DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP1071-1EVALZEVAL BOARD FOR ADP10711 |
1,288 | 235.40 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 3 Isolated Outputs | - | -15V, 5.5V, 24V | - | 18V ~ 32V | Flyback | 50kHz | Board(s) | ADP1071-1 |
|
NCP12700WIDEVINGEVBEVAL BOARD FOR NCP12700 |
2,956 | 237.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 15 W | 12V | - | 16V ~ 160V | Flyback | - | Board(s) | NCP12700 |
|
DC829AEVAL BOARD FOR LTC3776 |
1,916 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.25V, 2.5V | 5A, 5A | 2.75V ~ 8V | Buck | 550kHz | Board(s) | LTC3776 |
|

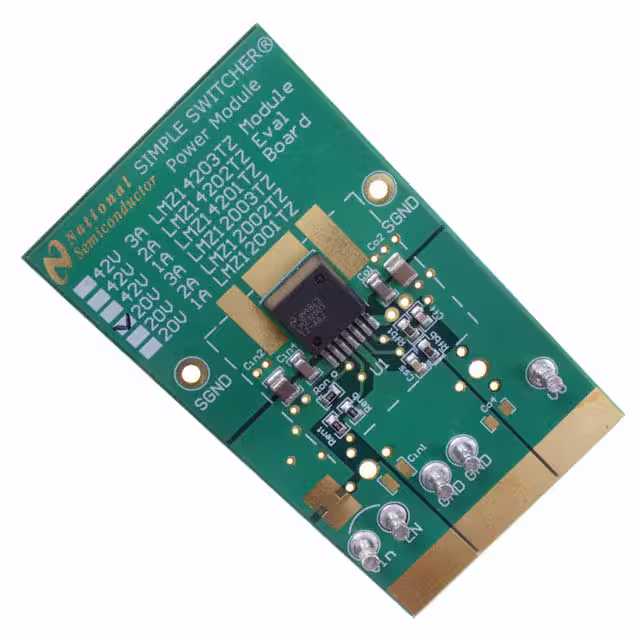

LMZ12003EVAL/NOPBEVAL BOARD FOR LMZ12003 |
4,833 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 4.5V ~ 20V | Buck | - | Board(s) | LMZ12003 |
|
LMZ12002EVAL/NOPBEVAL BOARD FOR LMZ12002 |
2,470 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 4.5V ~ 20V | Buck | - | Board(s) | LMZ12002 |
|
LM27342MYEVALEVAL BOARD FOR LM27342 |
4,854 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 5V ~ 20V | Buck | 2MHz | Board(s) | LM27342 |
|

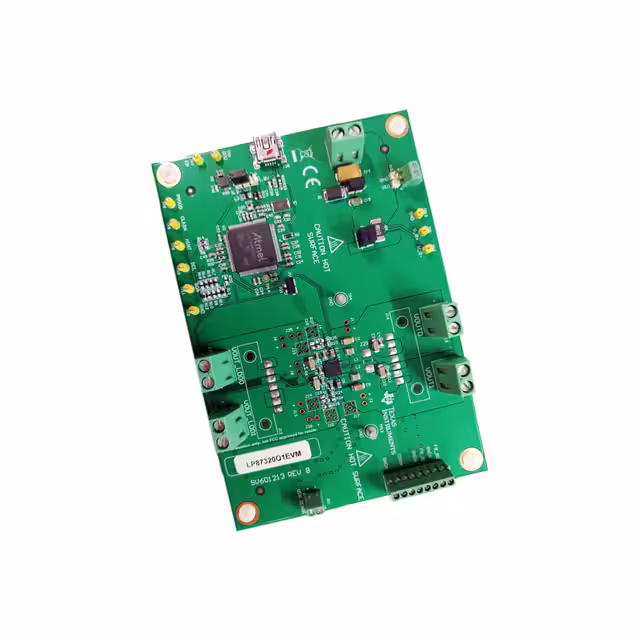

LP87320Q1EVMEVAL BOARD FOR LP8732Q1 |
3,859 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | - | 2.8V ~ 5.5V | Buck | - | Board(s), Cable(s) | LP8732-Q1 |
|

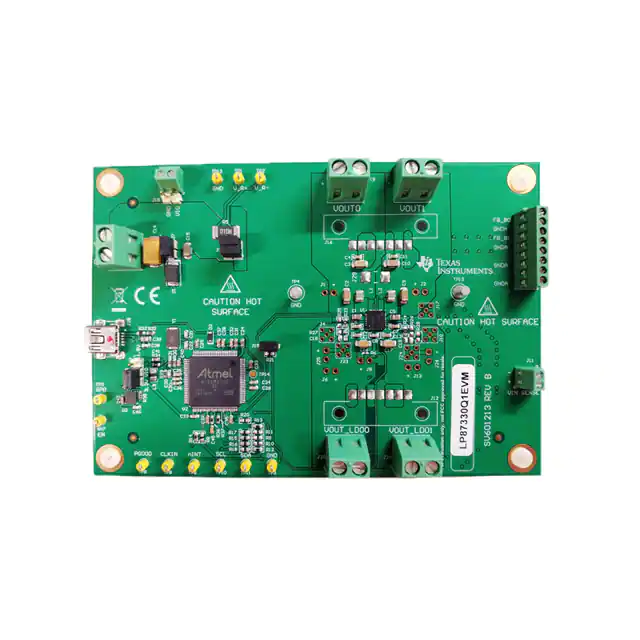

LP87330Q1EVMEVAL BOARD FOR LP8733Q1 |
3,736 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | - | 2.8V ~ 5.5V | Buck | - | Board(s), Cable(s) | LP8733-Q1 |
|

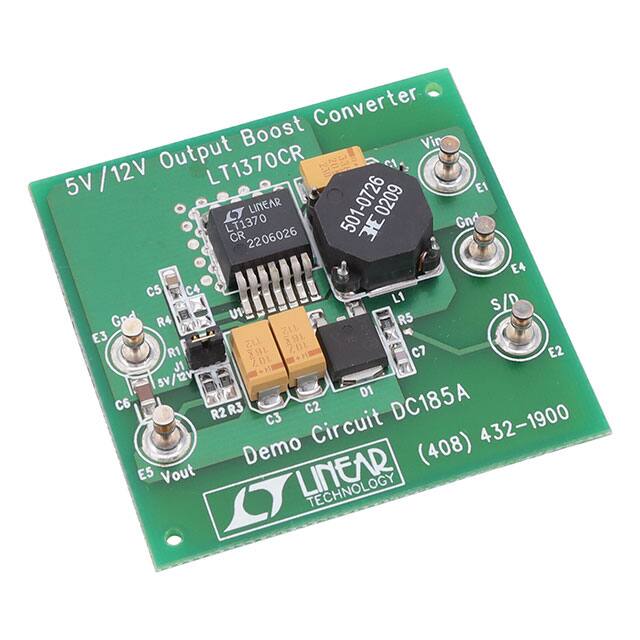

DC185AEVAL BOARD FOR LT1370 |
3,710 | 215.34 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V or 12V | - | 2.7V ~ 12V | Buck | 500kHz | Board(s) | LT1370 |
|
I6A20A-001-EVK-S1CCEVAL BOARD FOR I6A |
2,100 | 243.71 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | - | - | - | - | - | Board(s) | i6A |
|
BM1P10CFJ-EVK-001EVAL BOARD FOR BM1P10 |
2,293 | 248.75 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 48 W | 24V | 2A | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | BM1P10 |
|

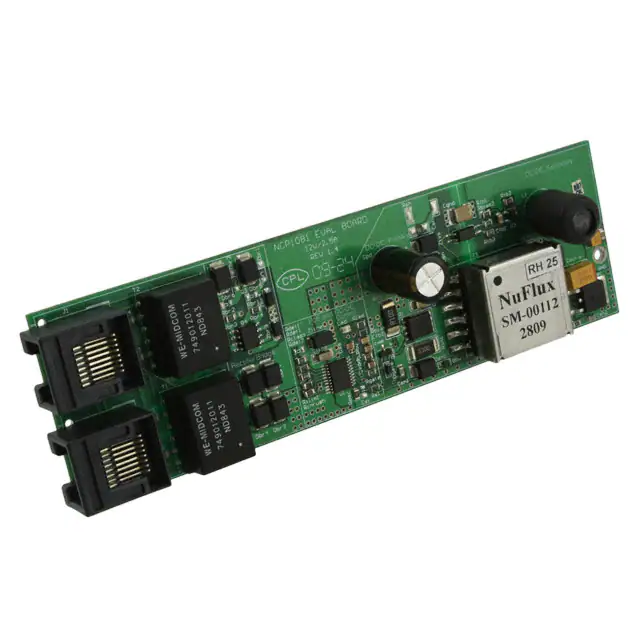

NCP1081SPCGEVBEVAL BOARD FOR NCP1081 |
3,804 | 250.00 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 2 Non-Isolated Outputs | - | 12V | 2.5A | 36V ~ 57V | Buck | 250kHz | Board(s) | NCP1081 |
|
LP87642Q1EVMEVAL BOARD FOR LP8764Q1 |
4,164 | 238.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 20A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s), Cable(s) | LP8764-Q1 |
|
|
DC1517AEVAL BOARD FOR LT3511 |
4,945 | 257.48 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 300mA | 36V ~ 75V | Flyback | - | Board(s) | LT3511 |
|

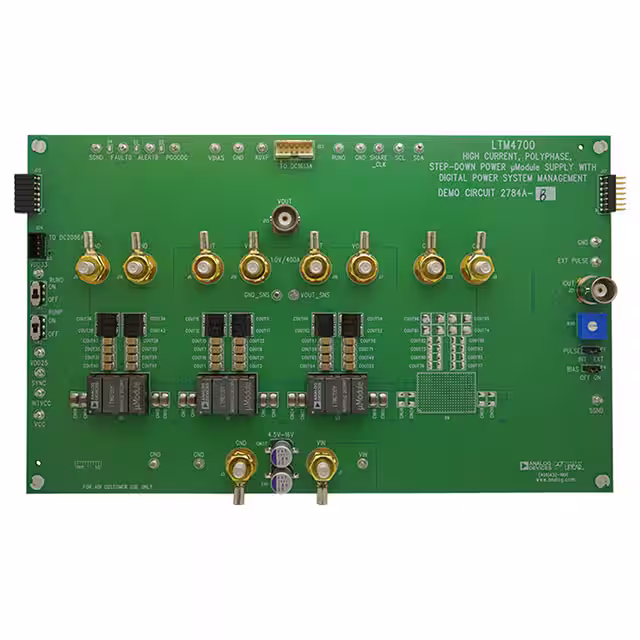

DC2784A-BEVAL BOARD FOR LTM4700 |
2,892 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 300A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4700 |
|

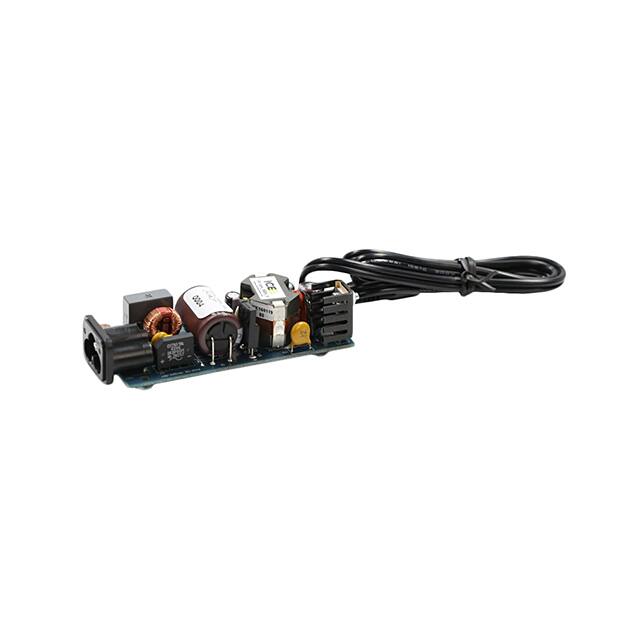

EVAL45W19VFLYBP7TOBO1EVAL BOARD FOR ICE2QS03G |
3,232 | 297.28 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 45 W | 19V | 2.4A | 90 ~ 265 VAC | Flyback | - | Board(s) | ICE2QS03G |
|
DC2199A-BEVAL BOARD FOR LTC3765 LTC3766 |
2,046 | 305.08 |
|
Datasheet |
Direct Flux Limit™, PolyPhase® | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 24V | 15A | 36V ~ 60V | Forward Converter | 200kHz | Board(s) | LTC3765, LTC3766 |
|
DC2380A-BEVAL BOARD FOR LTC7851 |
4,325 | 308.16 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 60A, 60A | 7V ~ 14V | Buck | 400kHz | Board(s) | LTC7851 |
|

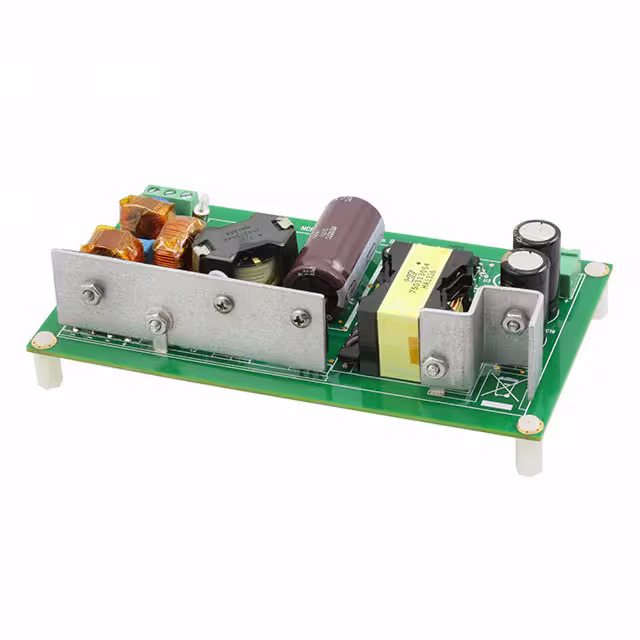

NCP1937BADAPGEVBEVAL BOARD FOR NCP1937 |
4,555 | 324.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 90 W | 20V | 4.25A | 90 ~ 265 VAC | Flyback | - | Board(s) | NCP1937 |
|

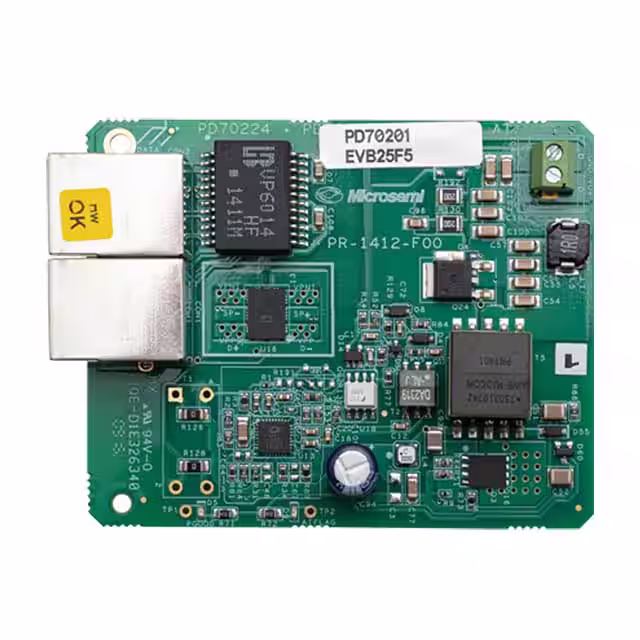

PD70201EVB25F-5EVAL BOARD FOR PD70201 |
2,931 | 350.62 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 5V | 5A | - | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
