DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

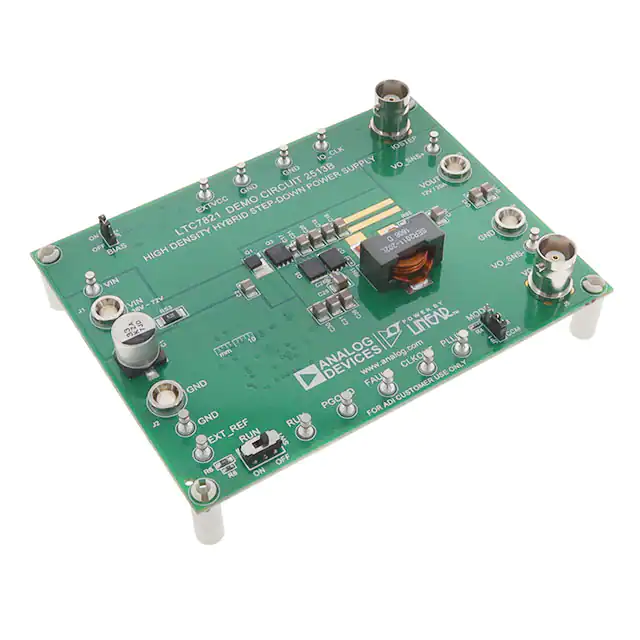

DC2513BEVAL BOARD FOR LTC7821 |
1,380 | 240.62 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 36V ~ 72V | Buck | 500kHz | Board(s) | LTC7821 |
|

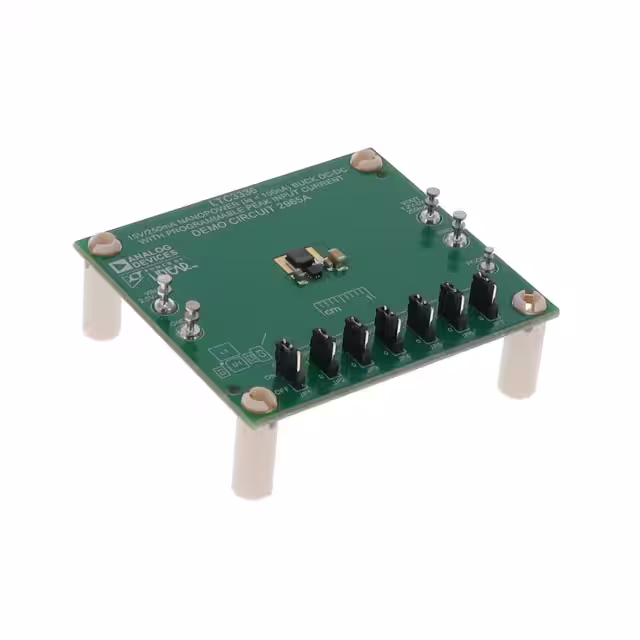

DC2965AEVAL BOARD FOR LTC3336 |
4,350 | 137.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V ~ 5V | 300mA | 2.5V ~ 15V | Buck | 2MHz | Board(s) | LTC3336 |
|
EVL3414E-J-00AEVAL BOARD FOR MP3414E |
4,175 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V ~ 4V | 1.8A | 0.6V ~ 4V | Boost | 1MHz | Board(s) | MP3414E |
|
|
EVQ4263-QVE-00AEVAL BOARD FOR MPQ4263 |
1,392 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 3.6V ~ 36V | Buck | 420kHz | Board(s) | MPQ4263 |
|
|
EV4255-VE-00AEVAL BOARD FOR MP4255 |
1,439 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V ~ 36V | 3A, 3A | 6V ~ 36V | Buck | - | Board(s) | MP4255 |
|
|
EVL8870-L-00AEVAL BOARD FOR MP8870 |
2,017 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 15A | 3V ~ 18V | Buck | 650kHz | Board(s) | MP8870 |
|
|
EVM54322-PB-00AEVAL BOARD FOR MPM54322 |
4,771 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V | 3A, 3A | 3V ~ 16V | Buck | 1MHz | Board(s) | MPM54322 |
|
|
EVL3437-J-00AEVAL BOARD FOR MP3437 |
4,486 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 8V | 2.5A | 2.7V ~ 16V | Boost | 600kHz | Board(s) | MP3437 |
|
|
EV2338-TL-00AEVAL BOARD FOR MP2338 |
1,030 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 6V ~ 28V | Buck | 430kHz | Board(s) | MP2338 |
|
|
EV2348-TL-00AEVAL BOARD FOR MP2348 |
3,599 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 19V | Buck | 650kHz | Board(s) | MP2348 |
|
|
EV28310-C-00AEVAL BOARD FOR MP28310 |
1,906 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3V or 3.3V | 300mA, 100mA | 2V ~ 5V | Buck | 1.5MHz | Board(s) | MP28310 |
|
|
EVM3695-10-MQ-10AEVAL BOARD FOR MPM369510 |
4,609 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 10A | 4V ~ 16V | Buck | 800kHz | Board(s) | MPM3695-10 |
|
|
EV06W0503A-2-Y-00BEVAL BOARD FOR MID06W0503AGY2S |
4,999 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | 1 Isolated Output | 600 mW | 3.3V | 180mA | 4.5V ~ 5.5V | - | - | Board(s) | MID06W0503AGY-2S |
|
|
EVM3814-PA-01A2.75V TO 6V, 1A, ULTRA-SMALL, UL |
2,168 | 0.00 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
XCL105C501H2-EVB-02EVAL BOARD FOR XCL105C501 |
1,744 | 0.00 |
|
Datasheet |
XCL105 | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 0.65V ~ 6V | Boost | 1.2MHz | Board(s) | XCL105C501 |
|
|
MAX17554AEVKIT#EVAL BOARD FOR MAX17554A |
2,263 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 50mA | 10V ~ 60V | Buck | 70kHz | Board(s) | MAX17554A |
|
|
MAX17554BEVKIT#EVAL BOARD FOR MAX17554B |
3,605 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 50mA | 10V ~ 60V | Buck | 70kHz | Board(s) | MAX17554B |
|
|
MAX17554CEVKIT#EVAL BOARD FOR MAX17554C |
2,330 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 50mA | 10V ~ 60V | Buck | 70kHz | Board(s) | MAX17554C |
|

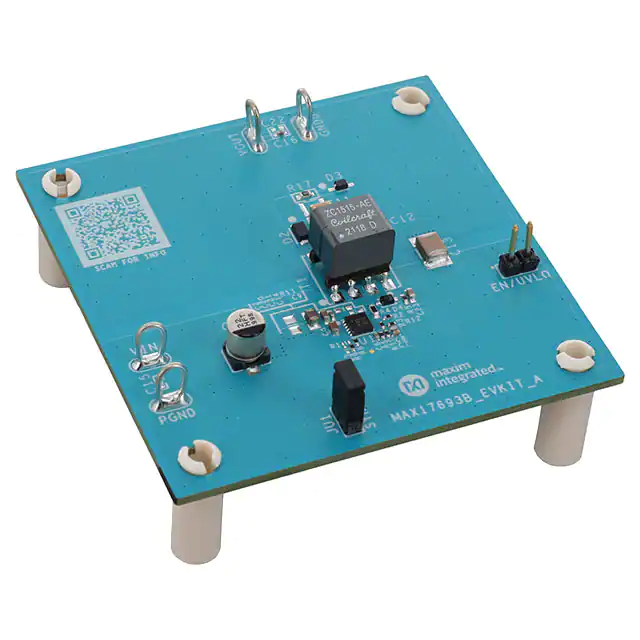

MAX17693BEVKIT#EVAL BOARD FOR MAX17693B |
1,735 | 36.42 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 1.25 W | 5V | 250mA | 18V ~ 36V | Flyback | 150kHz | Board(s) | MAX17693B |
|

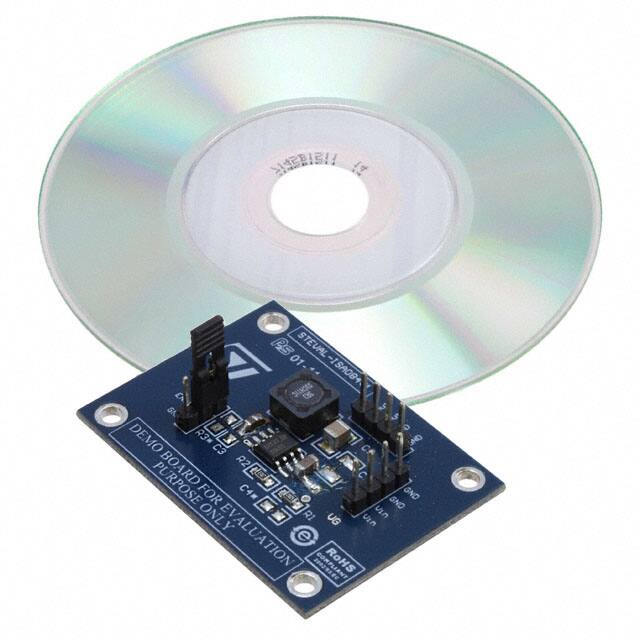

STEVAL-ISA084V1EVAL BOARD FOR ST1S40 |
1,956 | 31.25 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 4V ~ 18V | Boost, Inverting | 800kHz | Board(s) | ST1S40 |
