DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

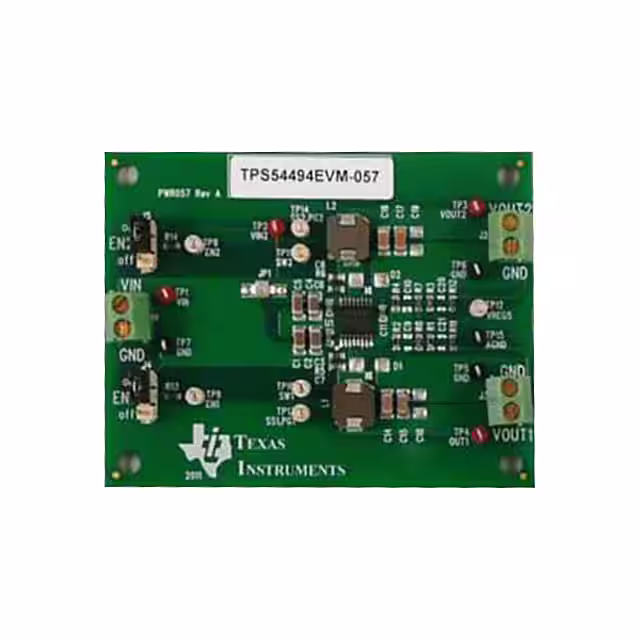

TPS54494EVM-057EVAL BOARD FOR TPS54494 |
1,201 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 4A, 2A | 5V ~ 18V | Buck | 700kHz | Board(s) | TPS54494 |
|

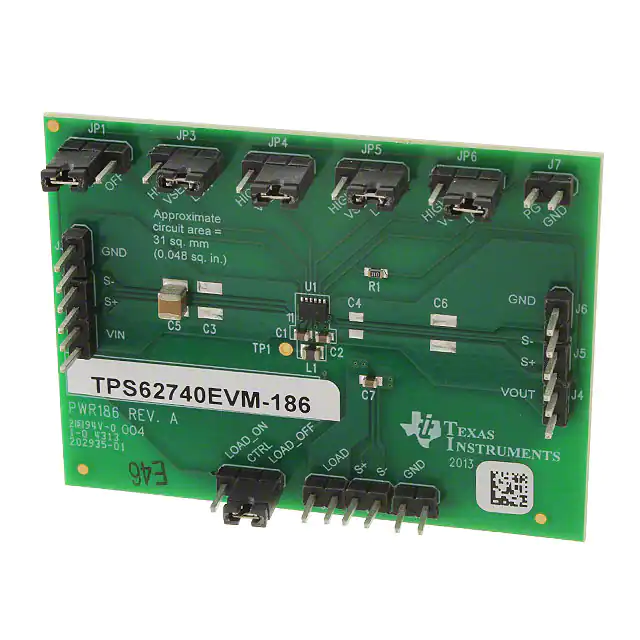

TPS62740EVM-186EVAL BOARD FOR TPS62740 |
2,544 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 3.3V | 300mA | 2.2V ~ 5.5V | Buck | - | Board(s) | TPS62740 |
|
TPS56C20EVM-614EVAL BOARD FOR TPS56C20 |
4,115 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 12A | 4.5V ~ 17V | Buck | 500kHz | Board(s) | TPS56C20 |
|

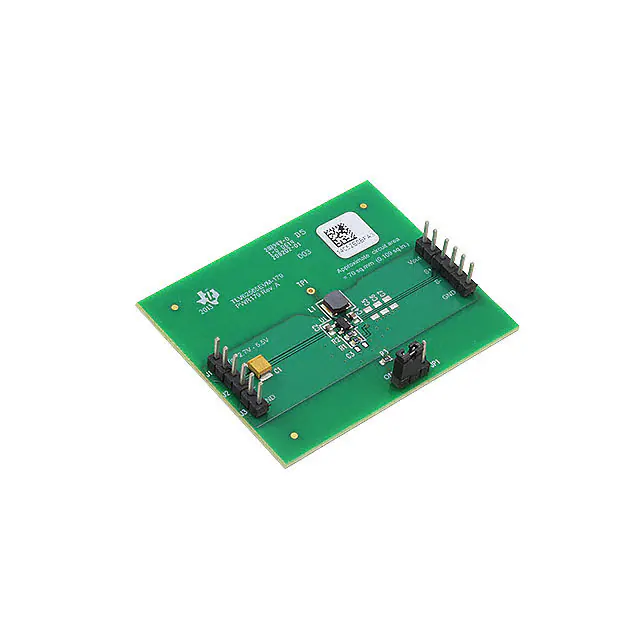

TLV62565EVM-179EVAL BOARD FOR TLV62565 |
3,946 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.7V ~ 5.5V | Buck | - | Board(s) | TLV62565 |
|
TPS61282EVM-586EVAL BOARD FOR TPS61282 |
2,386 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 3.5V | 4A | 2.3V ~ 4.8V | Buck | 2.3MHz | Board(s) | TPS61282 |
|

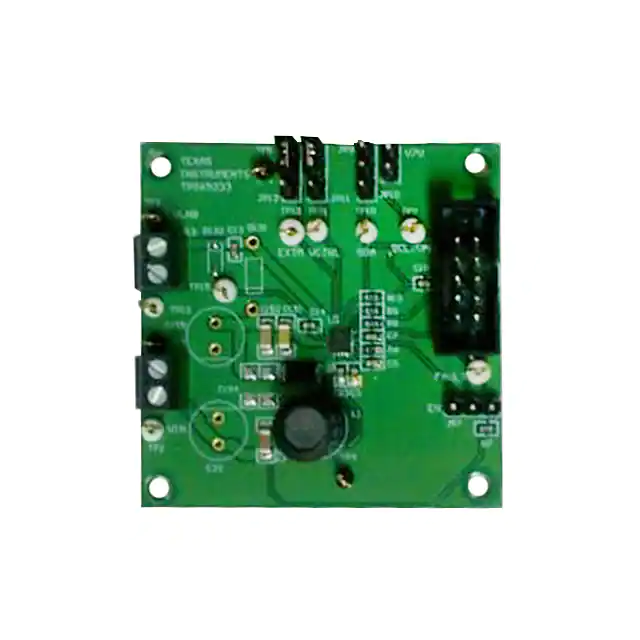

TPS65233EVMEVAL BOARD FOR TPS65233 |
3,092 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | 4.5V ~ 16V | Boost | 500kHz | Board(s) | TPS65233 |
|

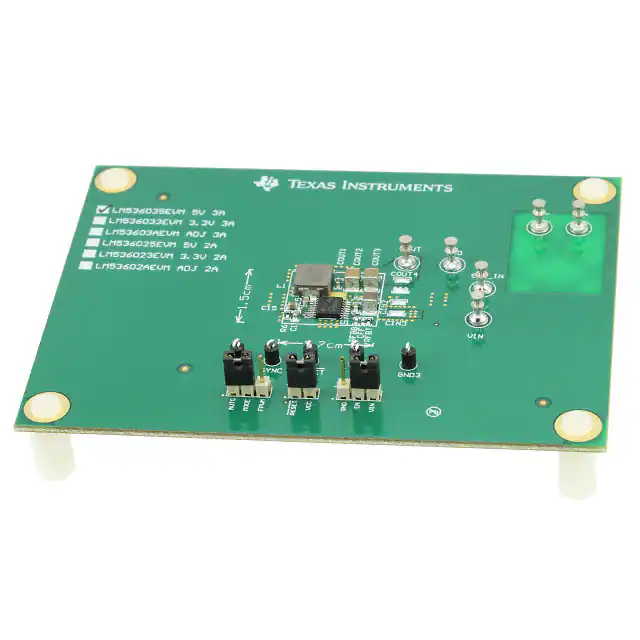

LM536035EVMEVAL BOARD FOR LM53635A |
3,301 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3.9V ~ 36V | Buck | 2.1MHz | Board(s) | LM53635A |
|

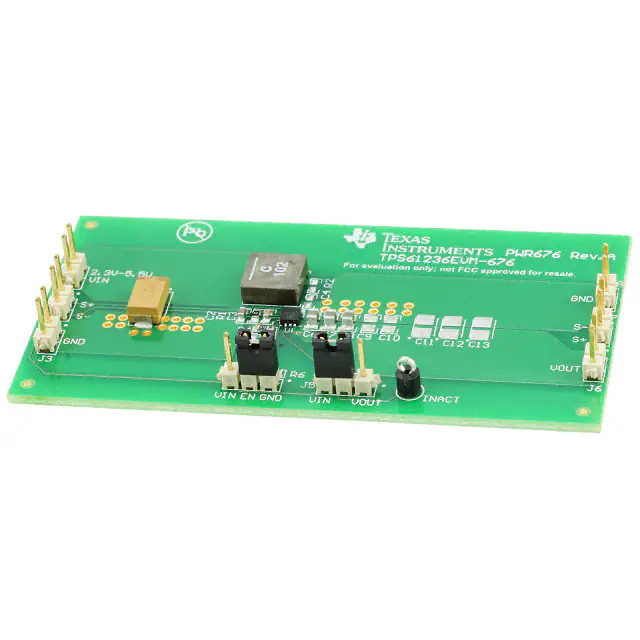

TPS61236EVM-676EVAL BOARD FOR TPS61236 |
2,231 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 3A | 2.3V ~ 4.4V | Boost | 1MHz | Board(s) | TPS61236 |
|

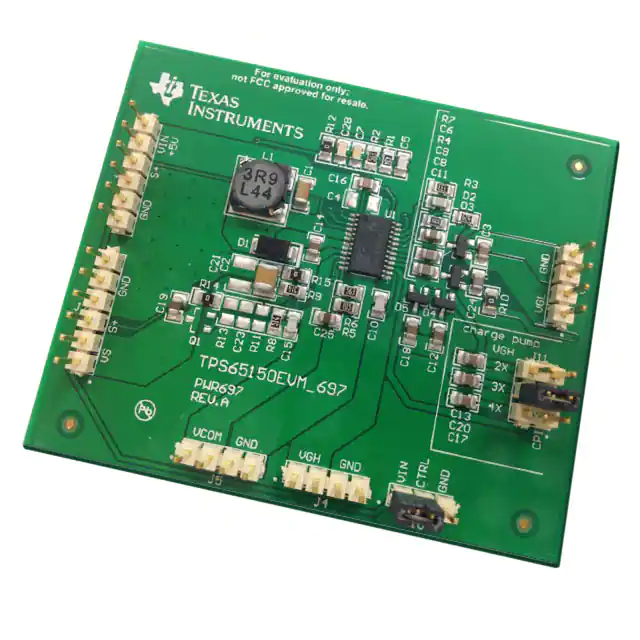

TPS65150EVM-697EVAL BOARD FOR TPS65150 |
4,253 | 58.80 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 3 Non-Isolated Outputs | - | 15V, 30V, -2V | - | 1.8V ~ 6V | Boost | 1.2MHz | Board(s) | TPS65150 |
|

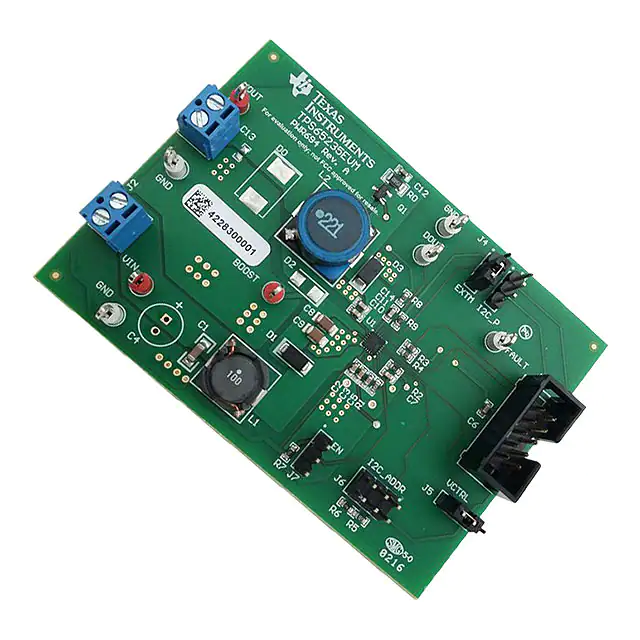

TPS65235EVM-694EVAL BOARD FOR TPS65235 |
1,573 | 58.80 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | 11V ~ 20V | 1A | 4.5V ~ 16V | Boost | - | Board(s) | TPS65235 |
|

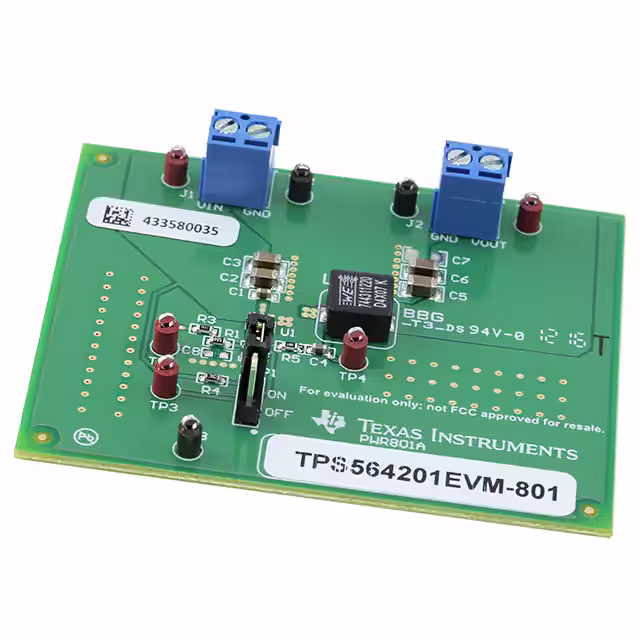

TPS564201EVM-801EVAL BOARD FOR TPS564201 |
2,107 | 58.80 |
|
Datasheet |
D-CAP2™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 4.5V ~ 17V | Buck | 560kHz | Board(s) | TPS564201 |
|

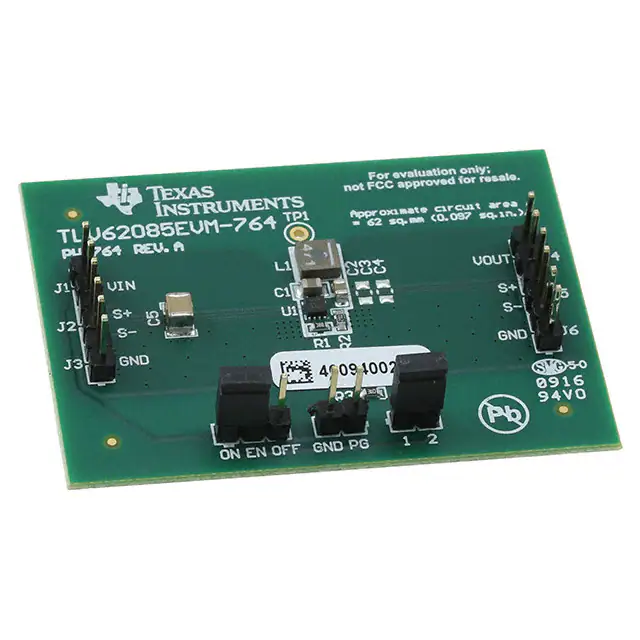

TLV62085EVM-764EVAL BOARD FOR TLV62085 |
4,818 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.5V ~ 6V | Buck | - | Board(s) | TLV62085 |
|

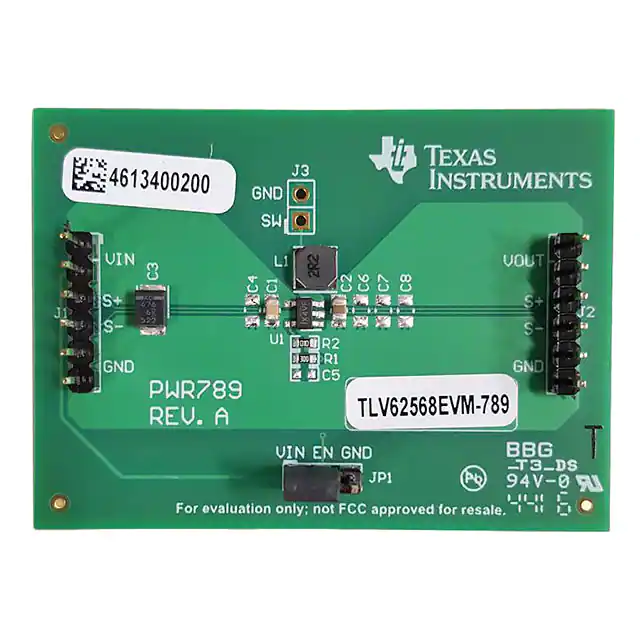

TLV62568EVM-789EVAL BOARD FOR TLV62568 |
4,766 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | TLV62568 |
|

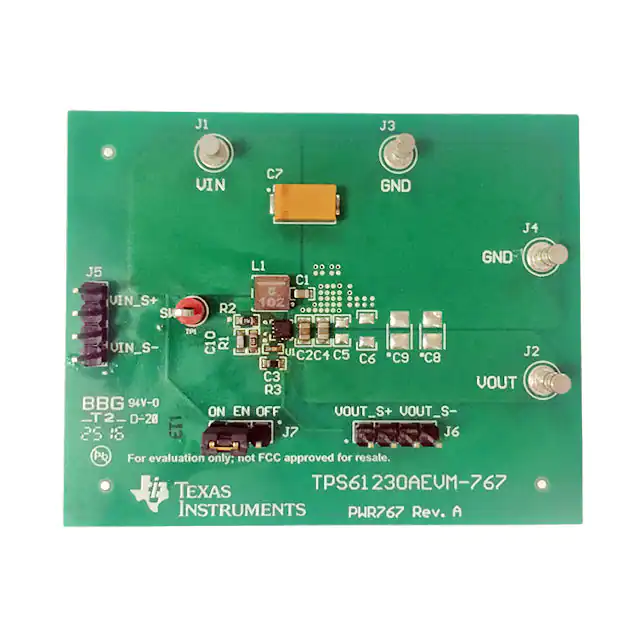

TPS61230AEVM-767EVAL BOARD FOR TPS61230A |
4,380 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2.4A | 2.5V ~ 4.5V | Boost | 1.15MHz | Board(s) | TPS61230A |
|

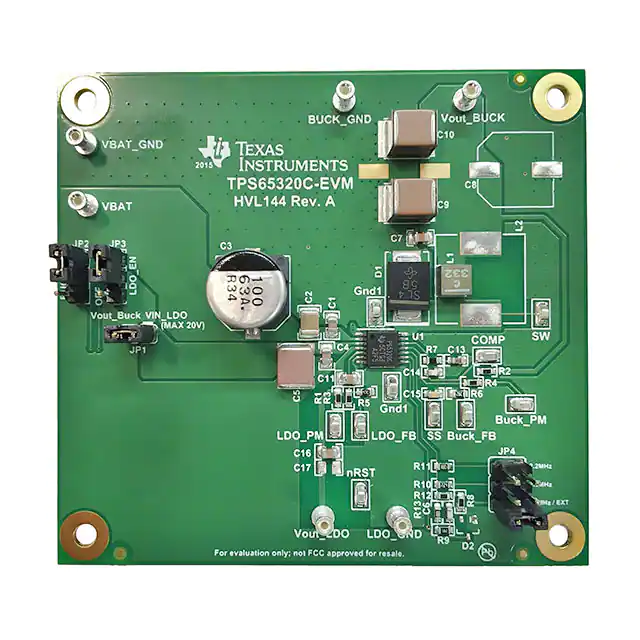

TPS65320C-EVMEVAL BOARD FOR TPS65320CQ1 |
2,599 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3.2A, 280mA | 3.6V ~ 40V | Buck | 110kHz, 400kHz, 2.1MHz | Board(s) | TPS65320C-Q1 |
|

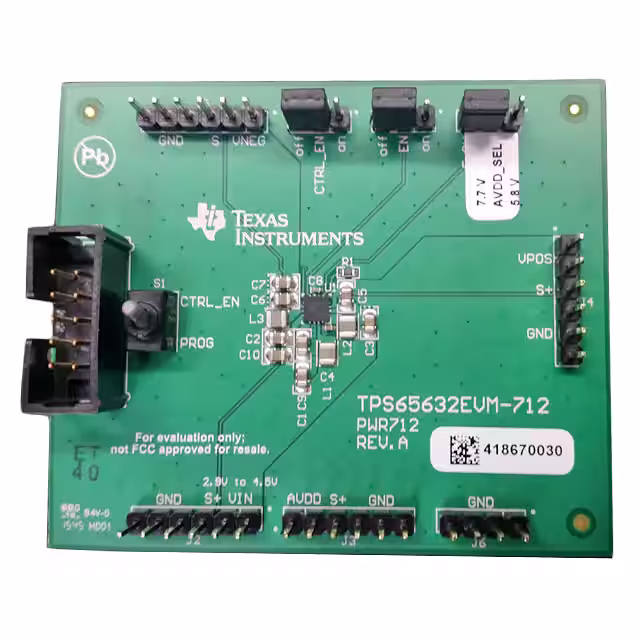

TPS65632EVM-712EVAL BOARD FOR TPS65632 |
2,856 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | - | - | 2.9V ~ 4.5V | Buck-Boost | - | Board(s) | TPS65632 |
|
TPS62136EVM-698EVAL BOARD FOR TPS62136 |
1,484 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | 3V ~ 17V | Buck | 1MHz | Board(s) | TPS62136 |
|

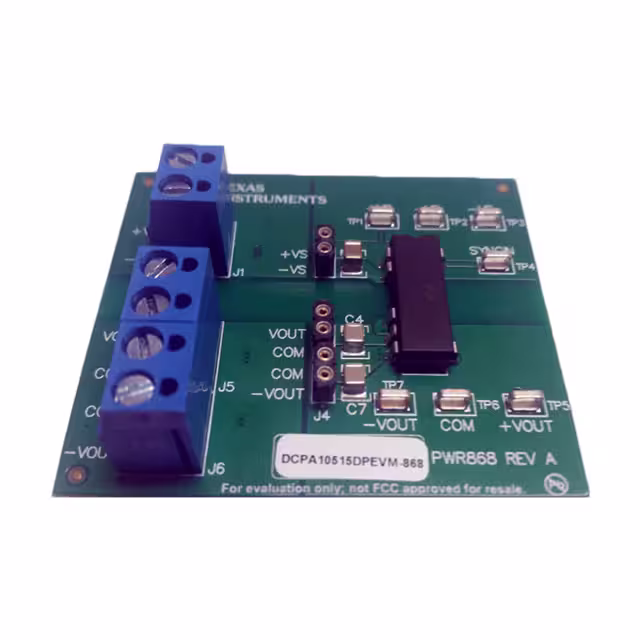

DCPA10515DEVM-868EVAL BOARD FOR DCPA10505 |
1,852 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | 2 Isolated Outputs | 1 W | ±15V | - | 4.5V ~ 5.5V | - | - | Board(s) | DCPA10505 |
|

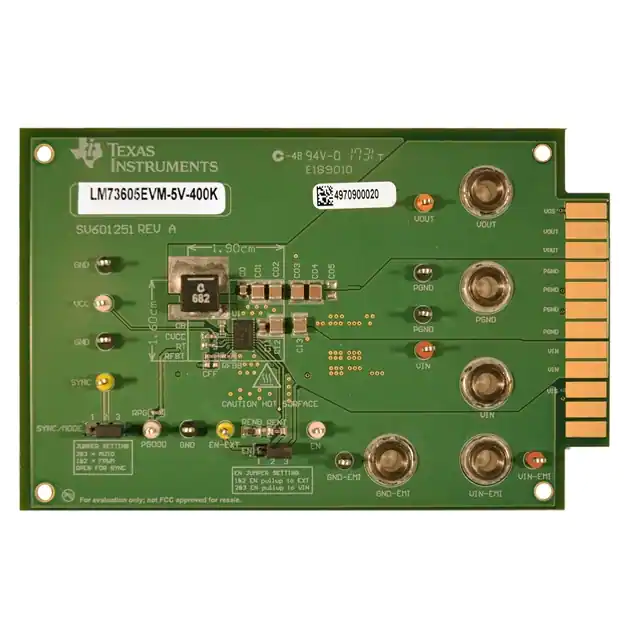

LM73605EVM-5V-400KEVAL BOARD FOR LM73605 |
3,811 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 6V ~ 36V | Buck | 400kHz | Board(s) | LM73605 |
|

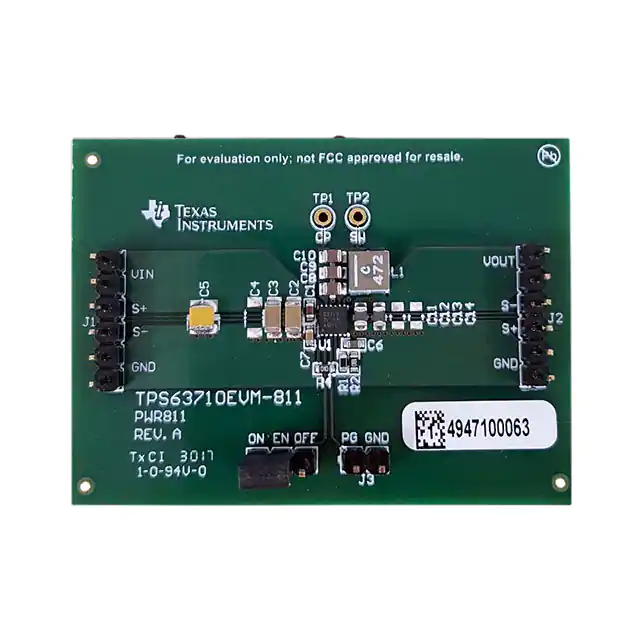

TPS63710EVM-811EVAL BOARD FOR TPS63710 |
4,497 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -1.8V | 1A | 3.1V ~ 14V | Inverting | 1.5MHz | Board(s) | TPS63710 |
