DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS62903-Q1EVMEVAL BOARD FOR TPS62903Q1 |
1,820 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 17V | Buck | - | Board(s) | TPS62903-Q1 |
|
|
TPS564242EVMEVAL BOARD FOR TPS564242 |
1,345 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 3V ~ 16V | Buck | 1.2MHz | Board(s) | TPS564242 |
|
|
TPS568231EVMEVAL BOARD FOR TPS568231 |
4,264 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 8A | 4.5V ~ 17V | Buck | 800kHz | Board(s) | TPS568231 |
|

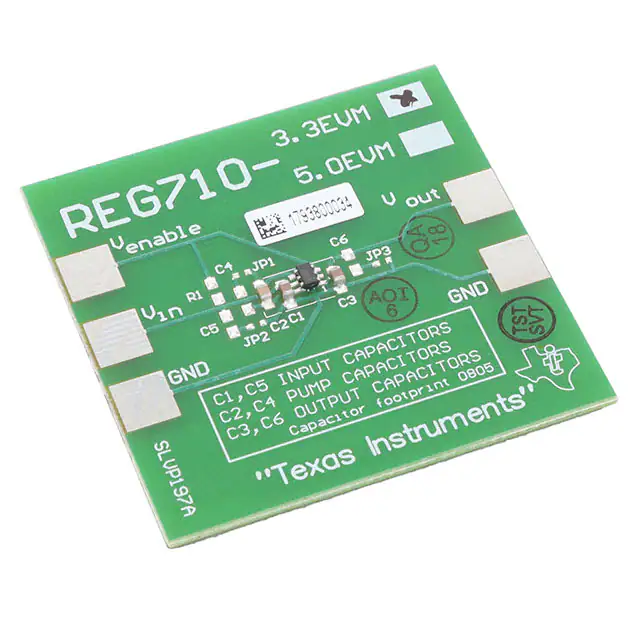

REG710EVM-33EVAL BOARD FOR REG710 |
4,203 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 30mA | 1.8V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | REG710 |
|

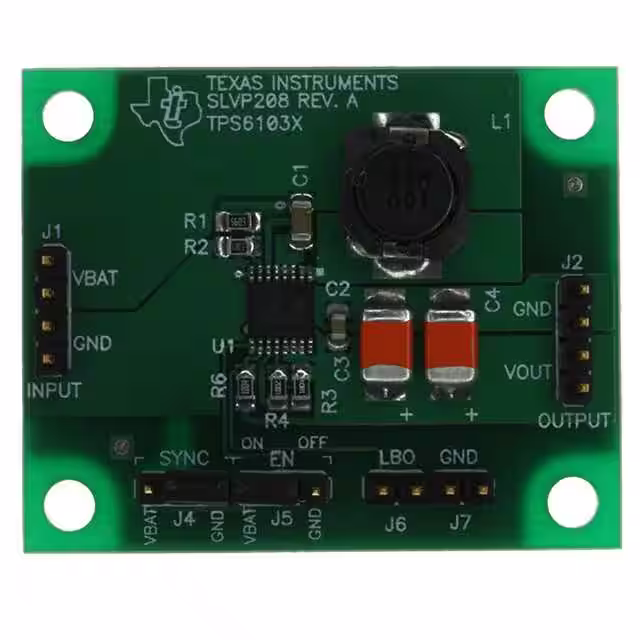

TPS61030EVM-208EVAL BOARD FOR TPS61030 |
3,584 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 1.8V ~ 5V | Boost | 600kHz | Board(s) | TPS61030 |
|
TPS61030EVM-029EVAL BOARD FOR TPS61030 |
4,313 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 1.8V ~ 5V | Boost | 600kHz | Board(s) | TPS61030 |
|

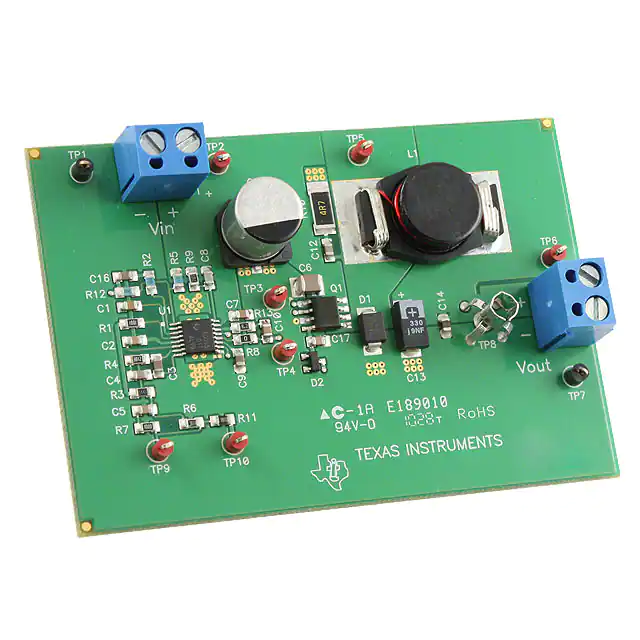

TPS40055EVM-002EVAL BOARD FOR TPS40055 |
1,810 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 10V ~ 40V | Buck | 300kHz | Board(s) | TPS40055 |
|

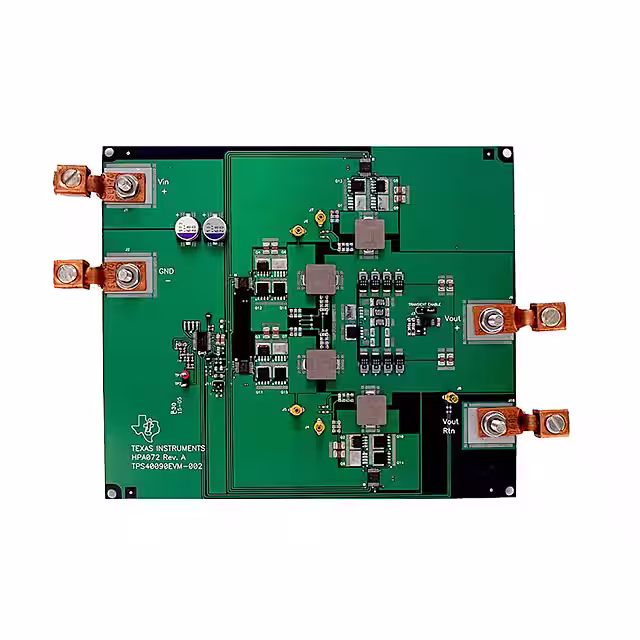

TPS40090EVM-002EVAL BOARD FOR TPS40090 |
3,115 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 100A | 10.5V ~ 14V | Buck | 420kHz | Board(s) | TPS40090 |
|
TPS65120EVM-076EVAL BOARD FOR TPS65120 |
1,146 | 58.80 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | 287 mW | 3.3V, 5V, 12V, -12V | 25mA, 20mA, 4mA, 4mA | 2.5V ~ 5.5V | Boost | - | Board(s) | TPS65120 |
|

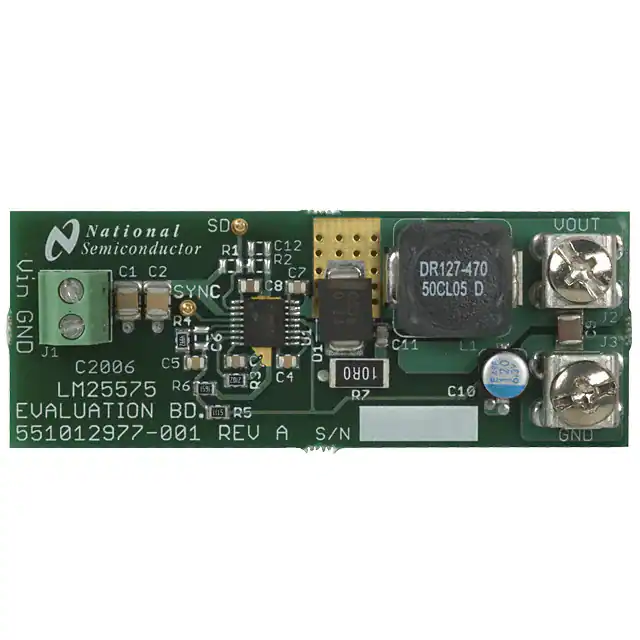

LM25575EVALEVAL BOARD FOR LM25575 |
3,383 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 7V ~ 42V | Buck | 300kHz | Board(s) | LM25575 |
|

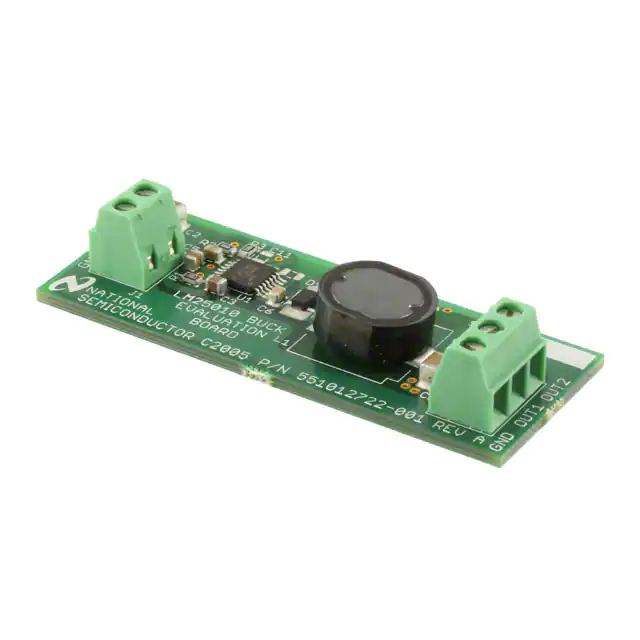

LM25010EVALEVAL BOARD FOR LM25010 |
4,477 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 42V | Buck | 200kHz | Board(s) | LM25010 |
|

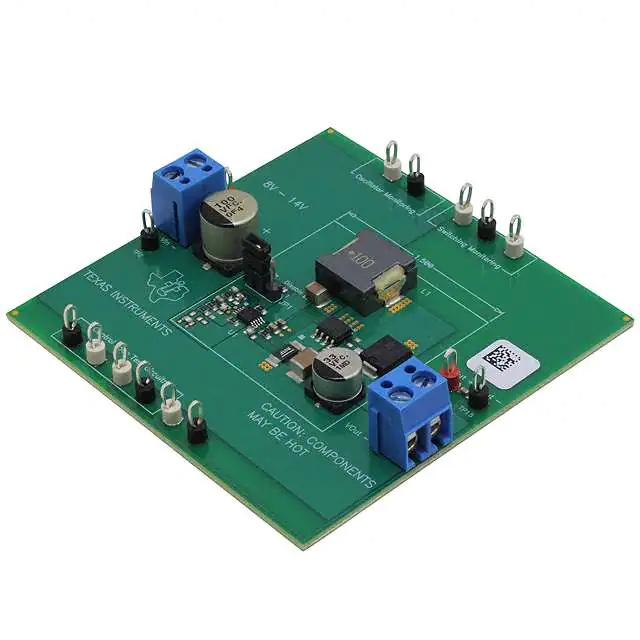

TPS40210EVMEVAL BOARD FOR TPS40210 |
3,239 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 2A | 8V ~ 14V | Boost | 600kHz | Board(s) | TPS40210 |
|

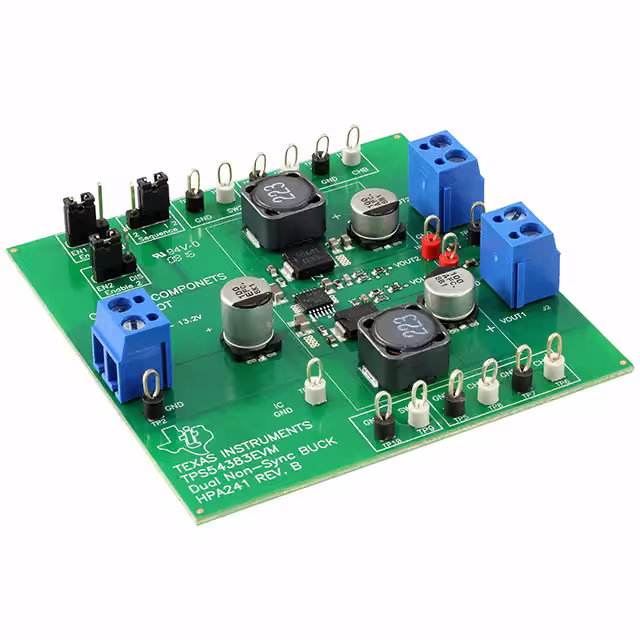

TPS54383EVMEVAL BOARD FOR TPS54383 |
1,761 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A, 2A | 9.6V ~ 13.2V | Buck | 310kHz | Board(s) | TPS54383 |
|

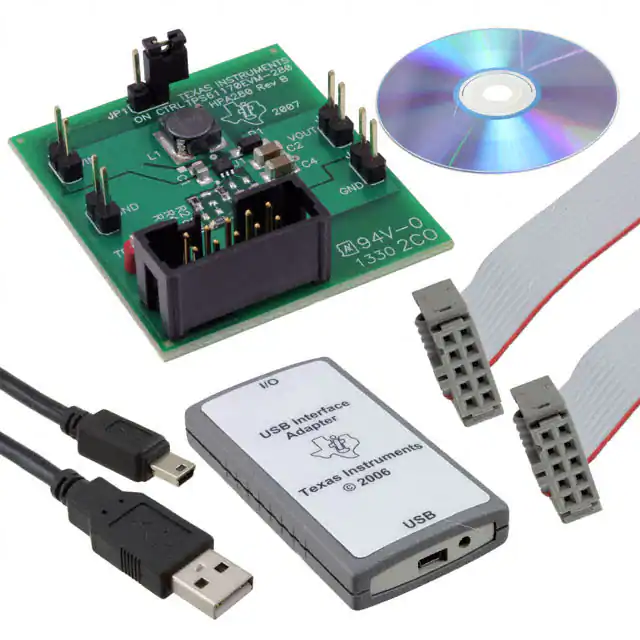

TPS61170EVM-280EVAL BOARD FOR TPS61170 |
2,092 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 550mA | 9V ~ 18V | Boost | 1.2MHz | Board(s) | TPS61170 |
|

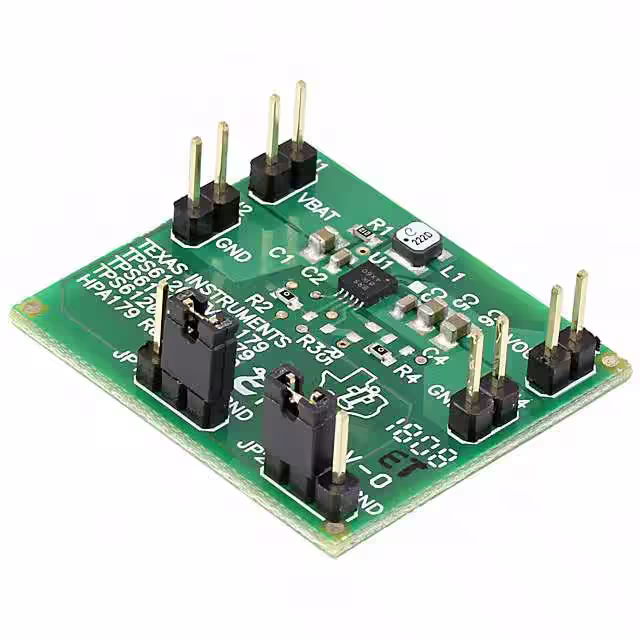

TPS61201EVM-179EVAL BOARD FOR TPS61201 |
4,176 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 0.3V ~ 5.5V | Boost | - | Board(s) | TPS61201 |
|
LM22677EVAL/NOPBEVAL BOARD FOR LM22677 |
1,605 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LM22677 |
|
LM2735YMFEVALEVAL BOARD FOR LM2735 |
2,495 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 5.5V | Boost | 520kHz | Board(s) | LM2735 |
|

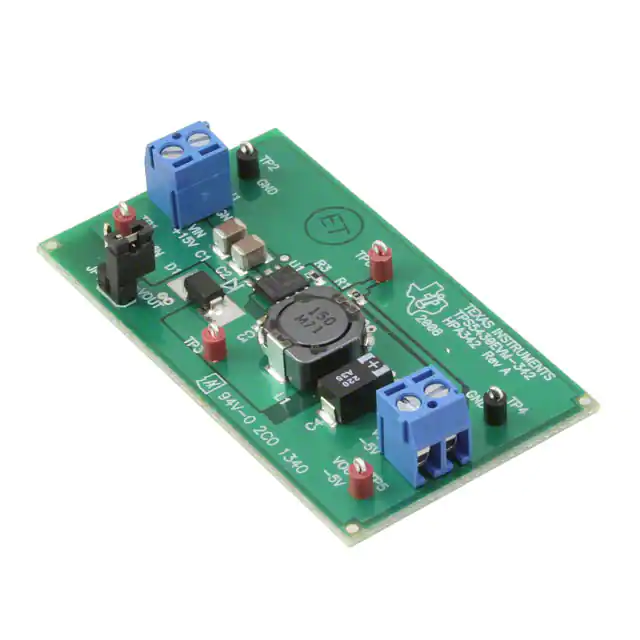

TPS5430EVM-342EVAL BOARD FOR TPS5430 |
2,664 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 2.25A | 10.8V ~ 19.8V | Inverting | 500kHz | Board(s) | TPS5430 |
.JPG)
|

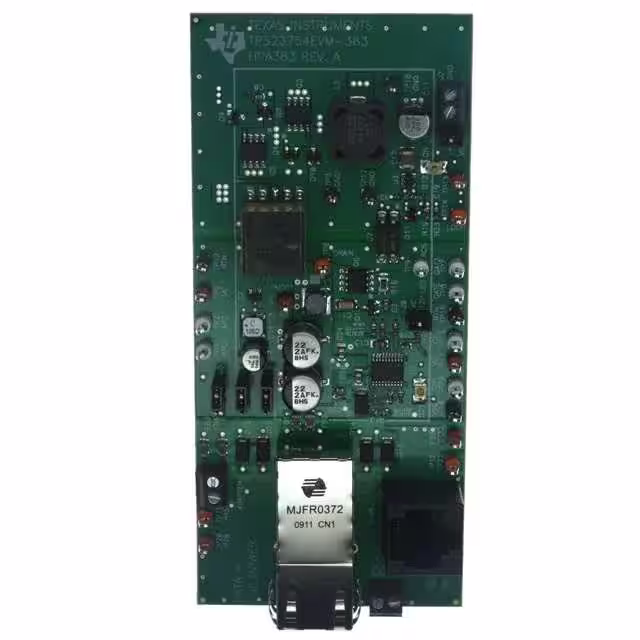

TPS23754EVM-383EVAL BOARD FOR TPS23754 |
4,833 | 58.80 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 12V | 2.5A | 30V ~ 57V | Buck | 250kHz | Board(s) | TPS23754 |
|

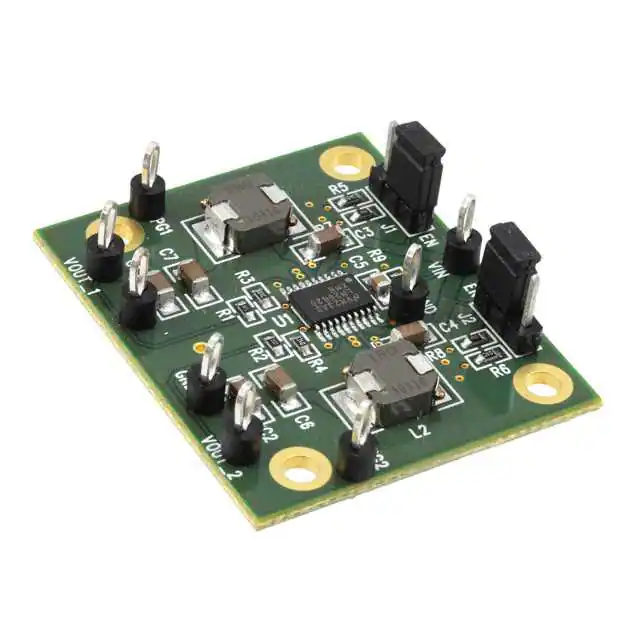

LM26420XMHEVAL/NOPBEVAL BOARD FOR LM26420 |
3,172 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 2A, 2A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | LM26420 |
