DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

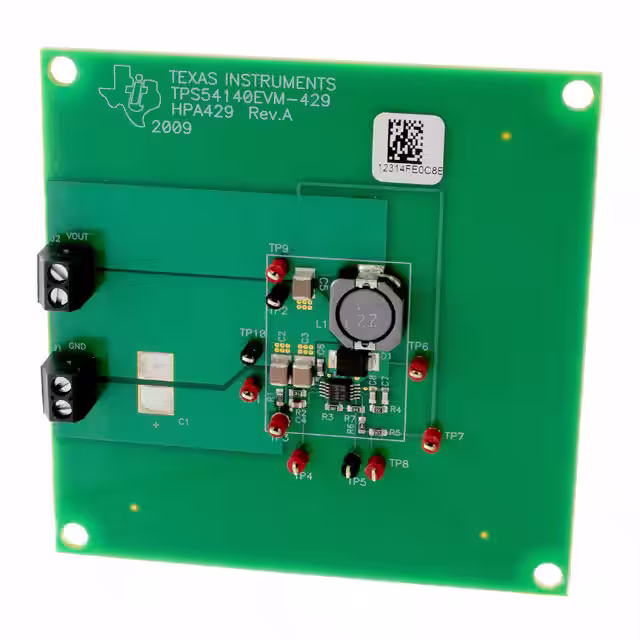

TPS54140EVM-429EVAL BOARD FOR TPS54140 |
4,364 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 25V ~ 42V | Buck | 500kHz | Board(s) | TPS54140 |
|
TPS54060EVM-590EVAL BOARD FOR TPS54060 |
3,303 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | ±18V | 100mA | 18V ~ 30V | Buck | 300kHz | Board(s) | TPS54060 |
|

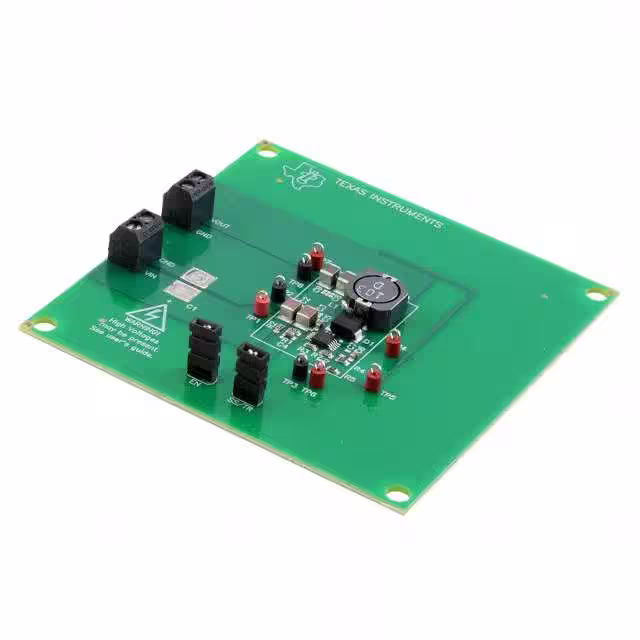

TPS54260EVM-597EVAL BOARD FOR TPS54260 |
2,425 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 10.8V ~ 13.2V | Buck | 300kHz | Board(s) | TPS54260 |
|

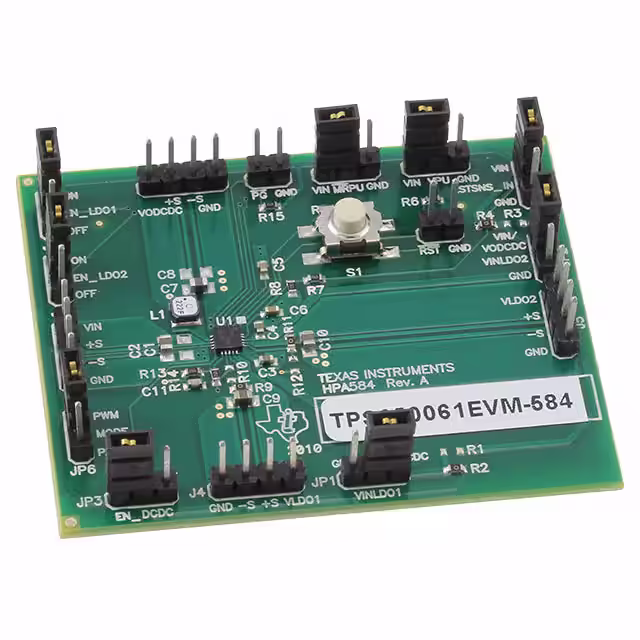

TPS650061EVM-584EVAL BOARD FOR TPS650061 |
1,218 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 1A, 300mA, 300mA | 1.6V ~ 6V | Buck | 2.25MHz | Board(s) | TPS650061 |
|

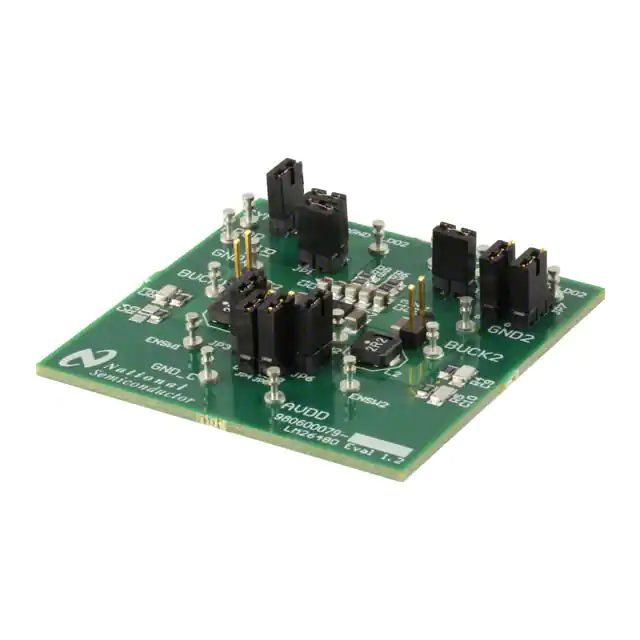

LM26480SQ-AAEV/NOPBEVAL BOARD FOR LM26480 |
1,813 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1V, 1.2V, 1.8V, 3.3V | 1.5A, 1.5A, 300mA, 300mA | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LM26480 |
|

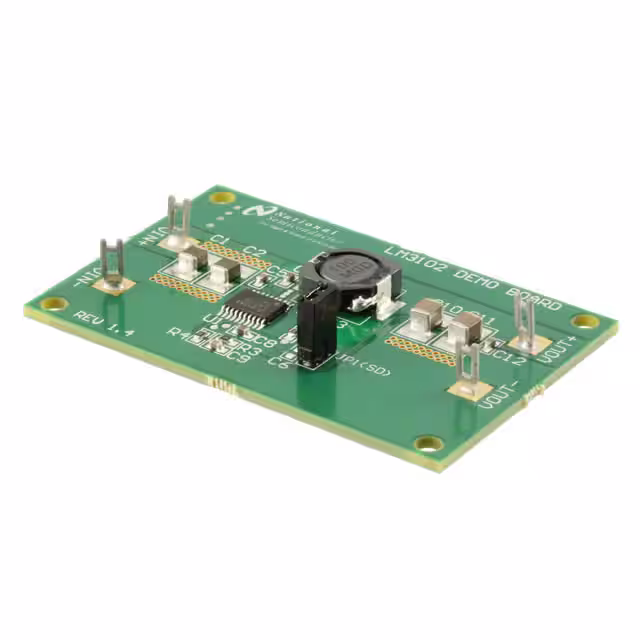

LM3102EVAL/NOPBEVAL BOARD FOR LM3102 |
4,411 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 8V ~ 42V | Buck | 500kHz | Board(s) | LM3102 |
|
LM3489EVAL/NOPBEVAL BOARD FOR LM3489 |
3,616 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 7V ~ 28V | Buck | - | Board(s) | LM3489 |
|
LM2735XMFEVAL/NOPBEVAL BOARD FOR LM2735 |
3,847 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 5.5V | Boost | 1.6MHz | Board(s) | LM2735 |
|

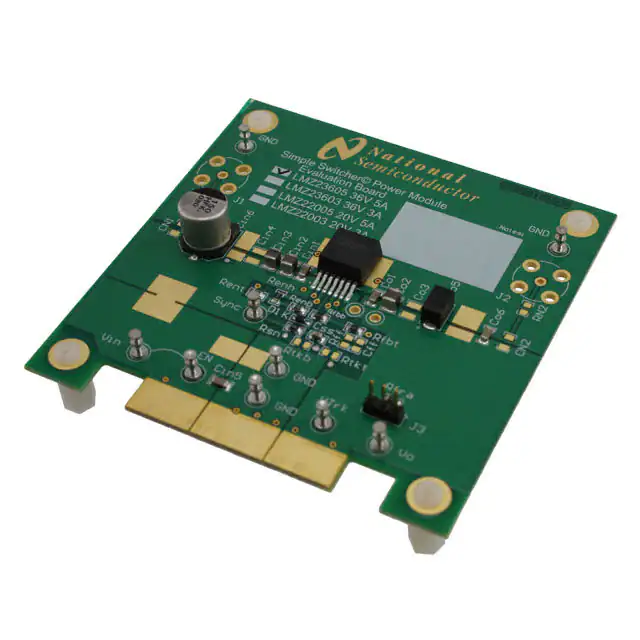

LMZ23605EVAL/NOPBEVAL BOARD FOR LMZ23605 |
3,388 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 36V | Buck | 812kHz | Board(s) | LMZ23605 |
|

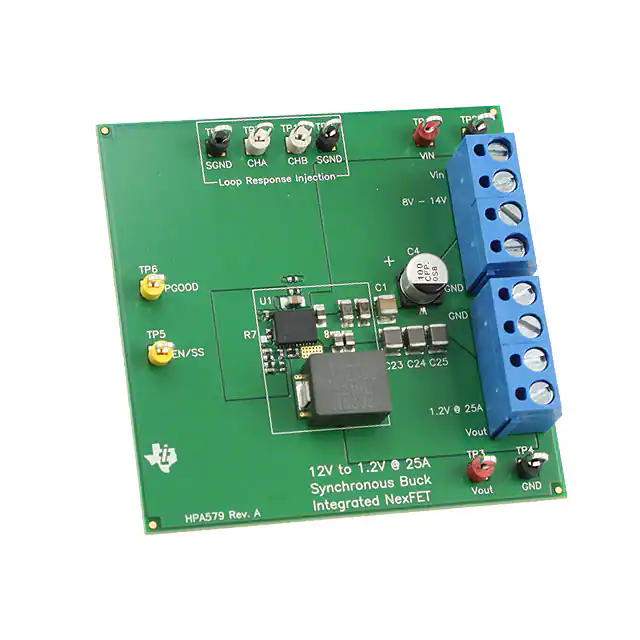

TPS56221EVM-579EVAL BOARD FOR TPS56221 |
4,401 | 58.80 |
|
Datasheet |
SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 25A | 8V ~ 14V | Buck | 500kHz | Board(s) | TPS56221 |
|

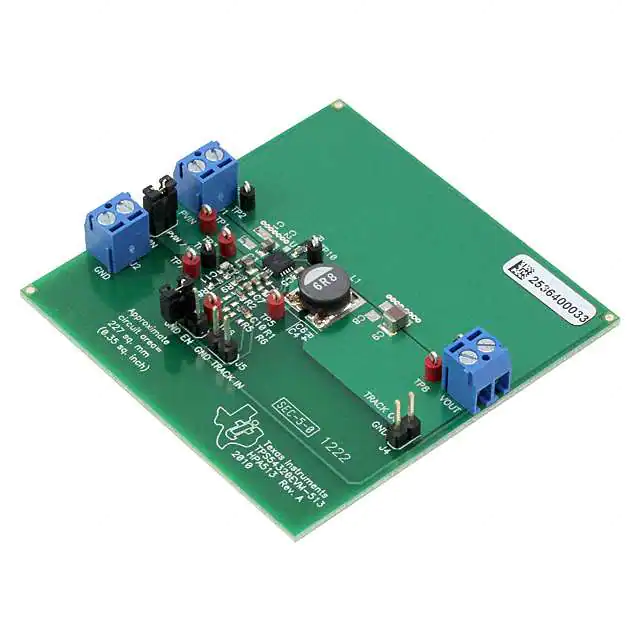

TPS54320EVM-513EVAL BOARD FOR TPS54320 |
2,839 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 8V ~ 17V | Buck | 480kHz | Board(s) | TPS54320 |
|

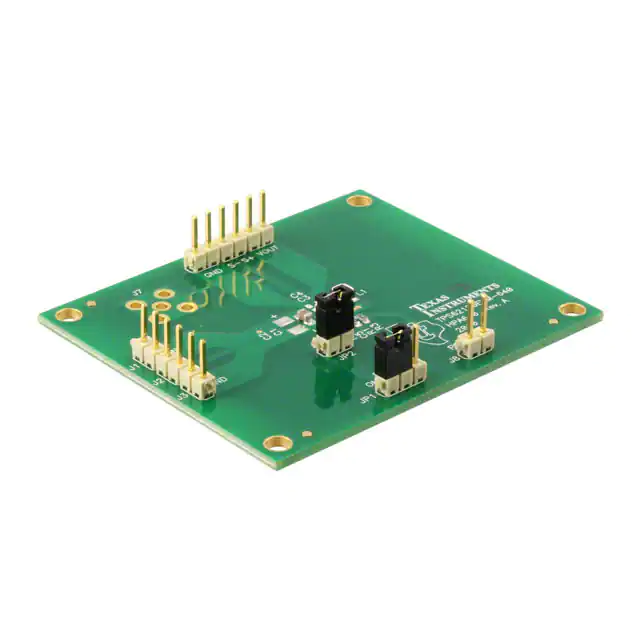

TPS62120EVM-640EVAL BOARD FOR TPS62120 |
3,994 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V ~ 5.5V | 75mA | 2V ~ 15V | Buck | 800kHz | Board(s) | TPS62120 |
|

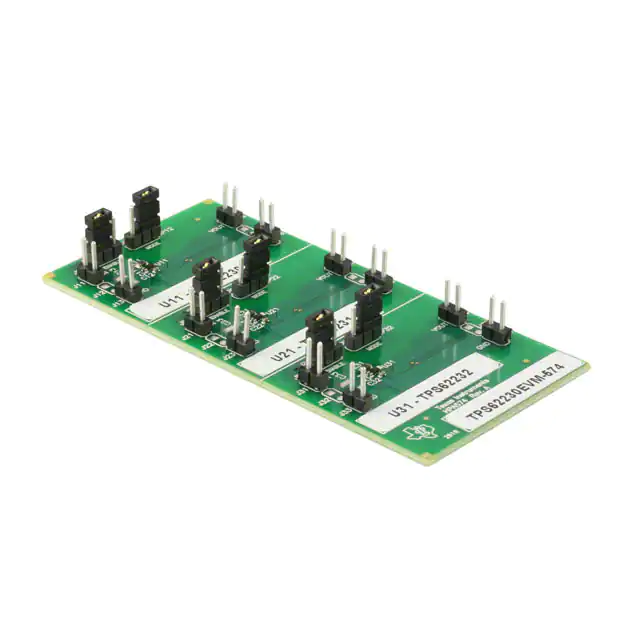

TPS62230EVM-574EVAL BOARD FOR TPS62230 TPS62231 |
2,454 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V | 500mA, 500mA, 500mA | 2.05V ~ 6V | Buck | 3MHz | Board(s) | TPS62230, TPS62231, TPS62232 |
|

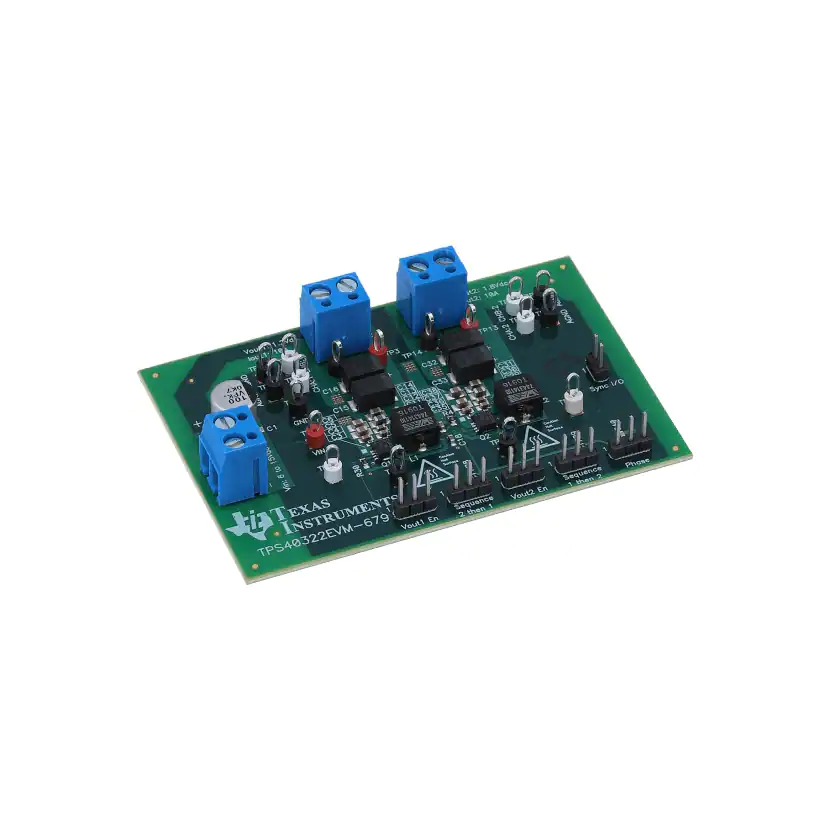

TPS40322EVM-679EVAL BOARD FOR TPS40322 |
3,288 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 10A, 10A | 8V ~ 15V | Buck | 500kHz | Board(s) | TPS40322 |
|

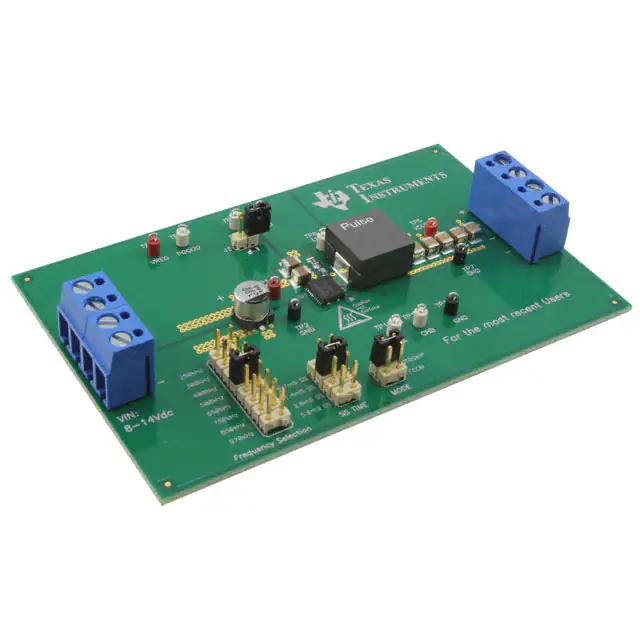

TPS53355EVM-743EVAL BOARD FOR TPS53355 |
4,080 | 58.80 |
|
Datasheet |
D-CAP™, Eco-Mode™, SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 30A | 8V ~ 14V | Buck | 500kHz | Board(s) | TPS53355 |
|

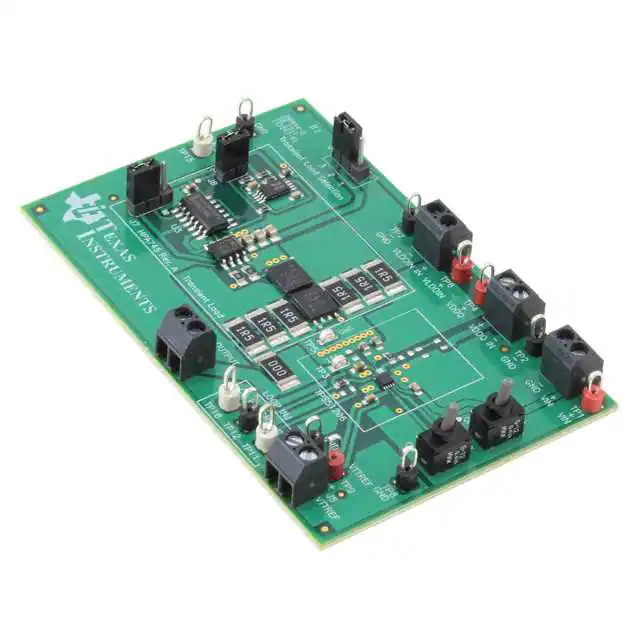

TPS51206EVM-745EVAL BOARD FOR TPS51206 |
1,538 | 58.80 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 2 Non-Isolated Outputs | - | - | 2A, 10mA | 3.1V ~ 6.5V | Buck | - | Board(s) | TPS51206 |
|

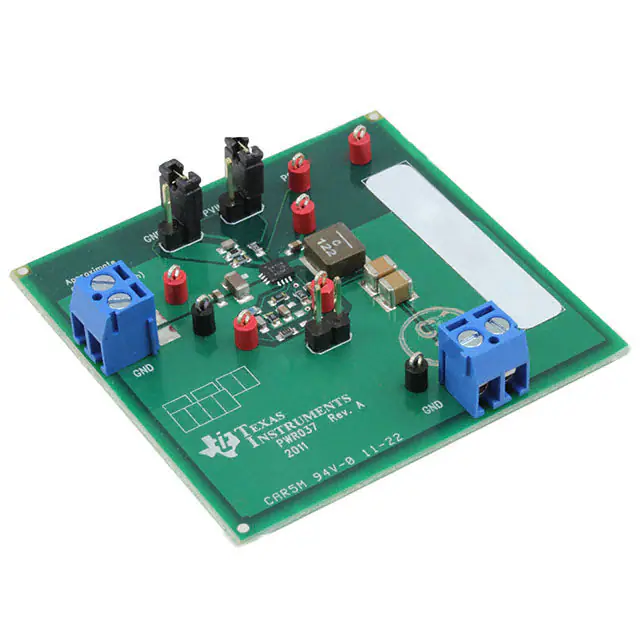

TPS54519EVM-037EVAL BOARD FOR TPS54519 |
2,447 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 2.95V ~ 6V | Buck | 490kHz | Board(s) | TPS54519 |
|

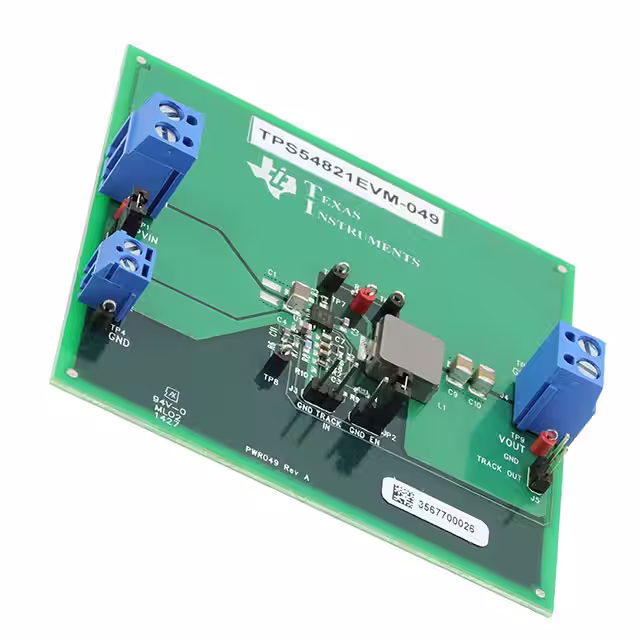

TPS54821EVM-049EVAL BOARD FOR TPS54821 |
2,621 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 8A | 8V ~ 17V | Buck | 480kHz | Board(s) | TPS54821 |
|

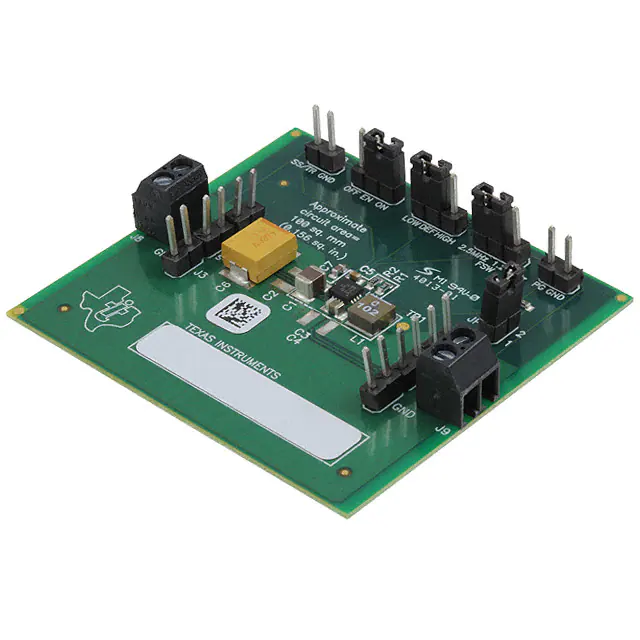

TPS62130EVM-505EVAL BOARD FOR TPS62130 |
4,766 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 3.7V ~ 17V | Buck | - | Board(s) | TPS62130 |
|

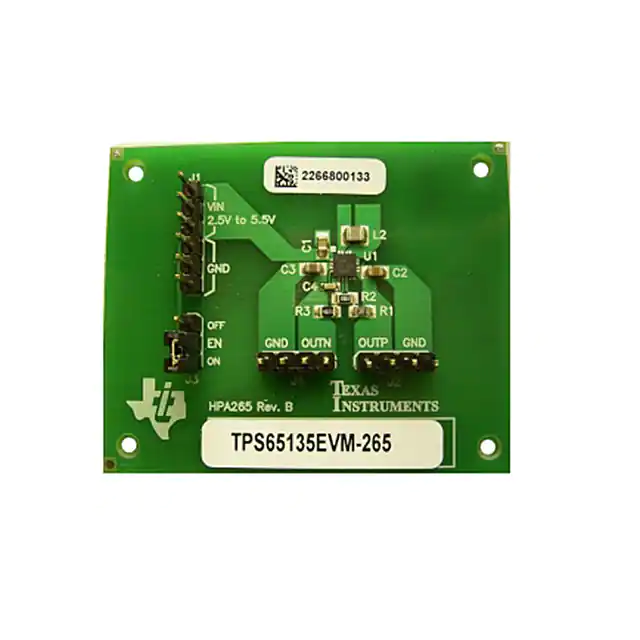

TPS65135EVM-265EVAL BOARD FOR TPS65135 |
2,968 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | ±5V | 80mA, 80mA | 2.5V ~ 5.5V | Buck-Boost | - | Board(s) | TPS65135 |
