DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX17524EVKIT#EVAL BOARD FOR MAX17524 |
3,356 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 6.5V ~ 60V | Buck | 450kHz | Board(s) | MAX17524 |
|
|
MAX17633BEVKIT#EVAL BOARD FOR MAX17633 |
4,838 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 6.5V ~ 36V | Buck | 500kHz | Board(s) | MAX17633 |
|
|
MAX17682EVKITD#EVAL BOARD FOR MAX17682 |
1,124 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs, 1 Non-Isolated Output | - | ±15V, 5V | 1A, 150mA, 150mA | 17V ~ 36V | Buck | 200kHz | Board(s) | MAX17682 |
|
|
MAX17673EVKIT#EVAL BOARD FOR MAX17673 |
2,106 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V | 1.5A, 1A, 1A | 4.5V ~ 60V | Buck | - | Board(s) | MAX17673 |
|

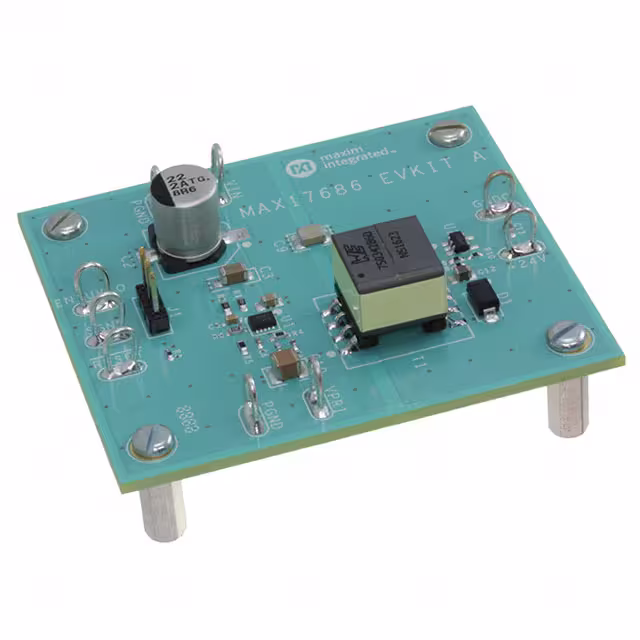

MAX17686EVKITA#EVAL BOARD FOR MAX17686 |
2,158 | 38.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | 2.4 W | 24V | 100mA | 17V ~ 60V | Buck | 200kHz | Board(s) | MAX17686 |
|
|
MAX17682EVKITC#EVAL BOARD FOR MAX17682 |
3,474 | 50.47 |
|
- |
- | Box | Active | DC/DC, Step Down | 8 Isolated Outputs | - | 15V, 15V, 15V, 15V, -8V, -8V, -8V, -8V | 225mA, 225mA, 75mA, 75mA, 75mA, 75mA, 75mA, 75mA | 15V ~ 60V | Buck | 250kHz | Board(s) | MAX17682 |
|

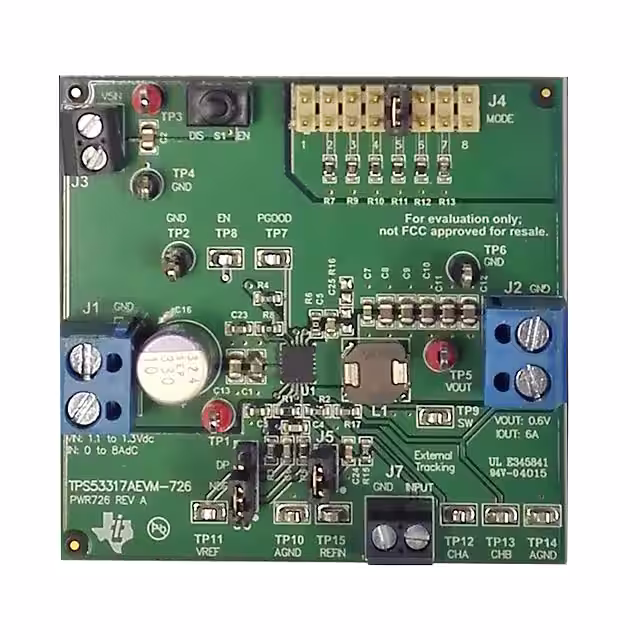

TPS53317AEVM-726EVAL BOARD FOR TPS53317 |
3,791 | 58.80 |
|
Datasheet |
D-CAP+™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V | 6A | 1.1V ~ 1.3V | Buck | - | Board(s) | TPS53317 |
|
|
ISL6752DBEVAL1ZEVAL BOARD FOR ISL6752 |
1,894 | 50.00 |
|
Datasheet |
- | Box | Active | DC/DC Isolated Power Supply | 1 Isolated Output | - | 12V | - | - | Resonant | - | Board(s) | ISL6752 |
|
STEVAL-ISA083V1EVAL BOARD FOR ST1S40IPUR |
4,965 | 48.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 4V ~ 18V | Buck | 800kHz | Board(s) | ST1S40IPUR |
|

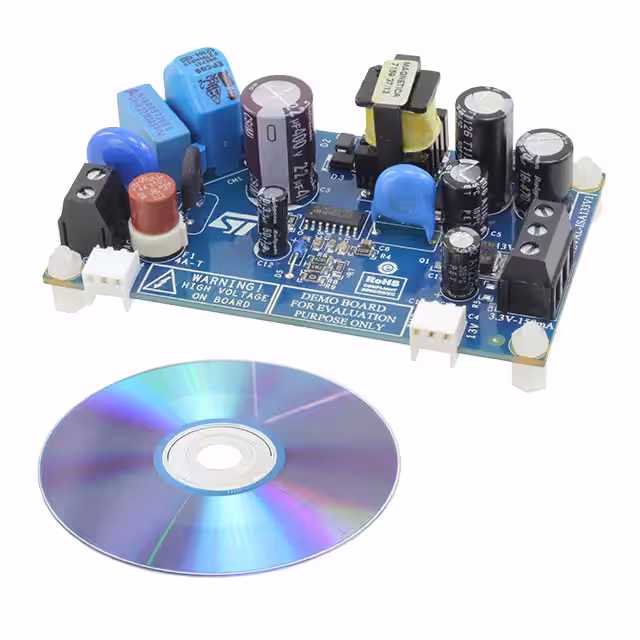

STEVAL-ISA133V1EVAL BOARD FOR ALTAIR04900 |
4,450 | 48.75 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | 7.5 W | 3.3V, 13V | 550mA, 100mA | 90 ~ 264 VAC | Flyback | - | Board(s) | ALTAIR04-900 |
|

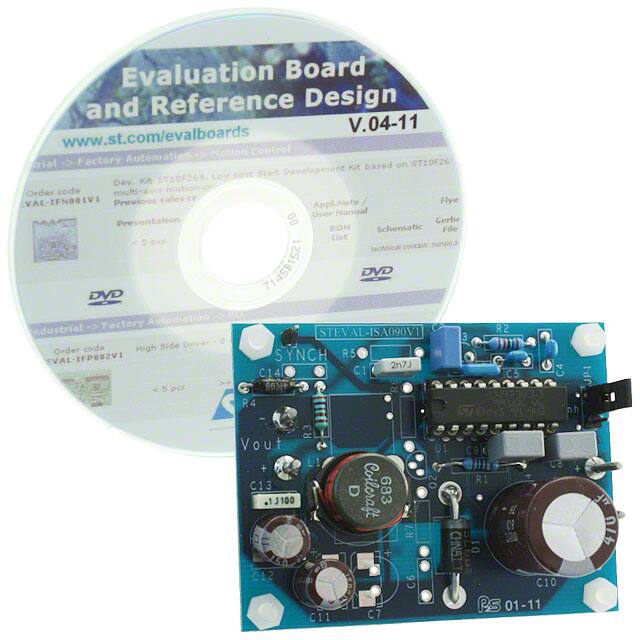

STEVAL-ISA090V1EVAL BOARD FOR L4973 |
2,051 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5.1V | 3.5A | 8V ~ 55V | Buck | 150kHz | Board(s) | L4973 |
|

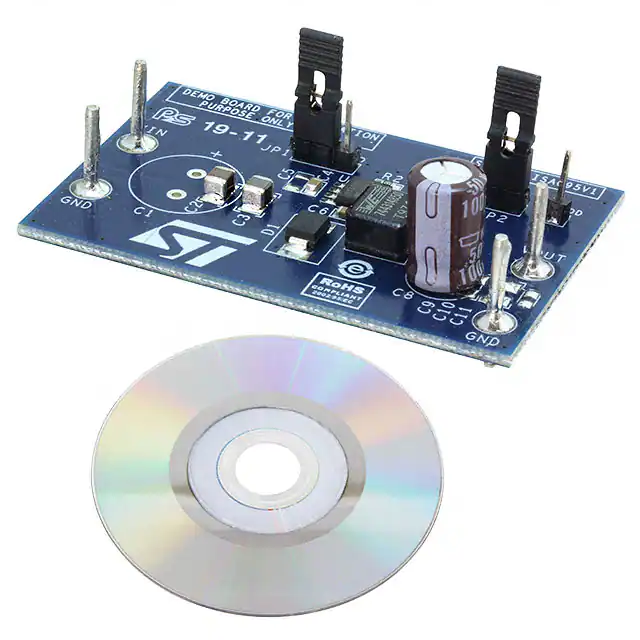

STEVAL-ISA095V1EVAL BOARD FOR ST1S14 |
3,572 | 48.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.22V | 3A | 5.5V ~ 48V | Buck | 850kHz | Board(s) | ST1S14 |
|
AS1310-TD-18_EK_STEVAL BOARD FOR AS1310 |
2,706 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V | 60mA | 0.7V ~ 3.6V | Boost | - | Board(s) | AS1310 |
|
STEVAL-ISA193V2EVAL BOARD FOR STCH02 |
1,817 | 48.75 |
|
- |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 15 W | 5V | 3A | 90 ~ 264 VAC | Flyback | - | Board(s) | STCH02 |
|
|
MAX17233EVKIT#EVAL BOARD FOR MAX17233 |
3,966 | 45.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 3.5V ~ 36V | Buck | 2.2MHz | Board(s) | MAX17233 |
|
LM3102EVALEVAL BOARD FOR LM3102 |
1,380 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 8V ~ 42V | Buck | 500kHz | Board(s) | LM3102 |
|

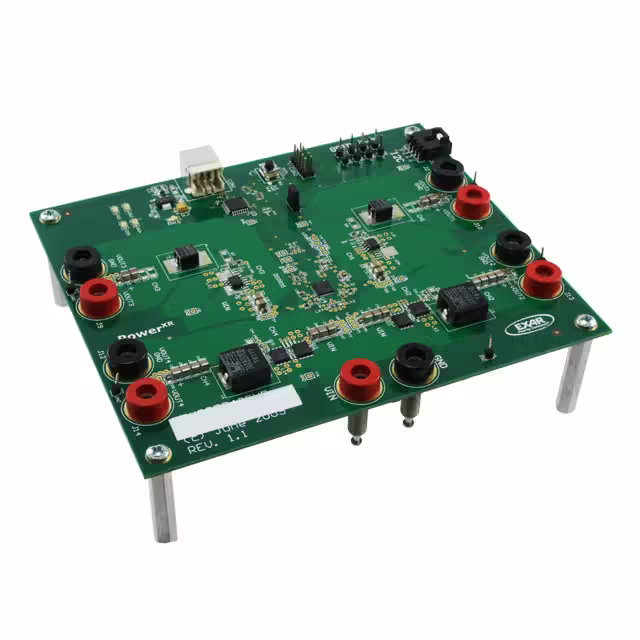

XRP7740EVBEVAL BOARD FOR XRP7740 |
2,004 | 62.50 |
|
Datasheet |
- | Bulk | Last Time Buy | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s) | XRP7740 |
|
XR77103EVB-A0R5EVAL BOARD FOR XR77103A0R5 |
4,880 | 50.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.8V ~ 6V | 2A, 2A, 2A | 4.5V ~ 14V | Buck | 500kHz | Board(s) | XR77103-A0R5 |
|

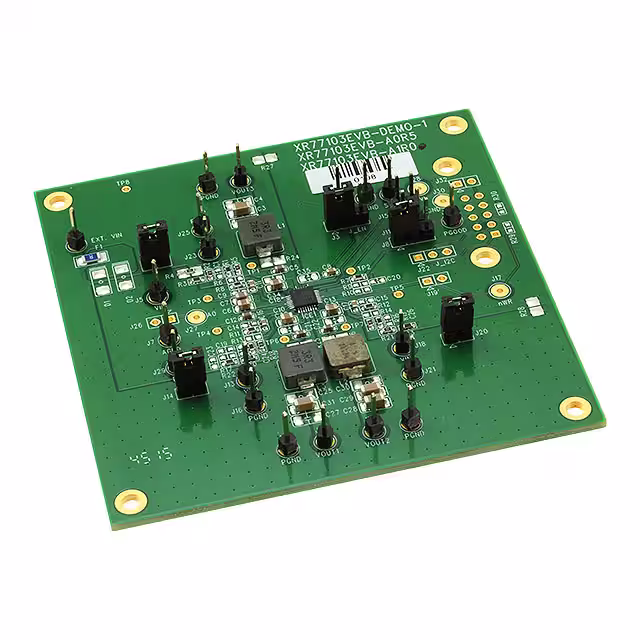

XR77103EVB-A1R0EVAL BOARD FOR XR77103A1R0 |
1,388 | 50.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.8V ~ 6V | 2A, 2A, 2A | 4.5V ~ 14V | Buck | 1MHz | Board(s) | XR77103-A1R0 |
|
APEK8672EEG-01-T-DKEVAL BOARD FOR A8672 |
3,299 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 8A, 30mA | 3V ~ 16V | Buck | - | Board(s) | A8672 |
