DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-LNBH06EVAL BOARD FOR LNBH26S |
3,413 | 51.25 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH26S |
|
ISL854102DEMO1ZEVAL BOARD FOR ISL854102 |
1,548 | 55.51 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 3V ~ 40V | Buck | 500kHz | Board(s) | ISL854102 |
|
|
RP402K001B033-EVPOWER MANAGEMENT IC DEVELOPMENT |
1,158 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|
|
RP509N001D033-EVEVAL BOARD FOR RP509N |
4,145 | 0.00 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A, 500mA | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | RP509N |
|
|
AP3125EV1EVAL BOARD FOR AP3125 |
4,255 | 55.97 |
|
- |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | - | 12V | 2A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | AP3125 |
|
PI3302-03-EVAL1EVAL BOARD FOR PI330203 |
3,839 | 53.34 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | - | - | Buck | - | Board(s) | PI3302-03 |
|

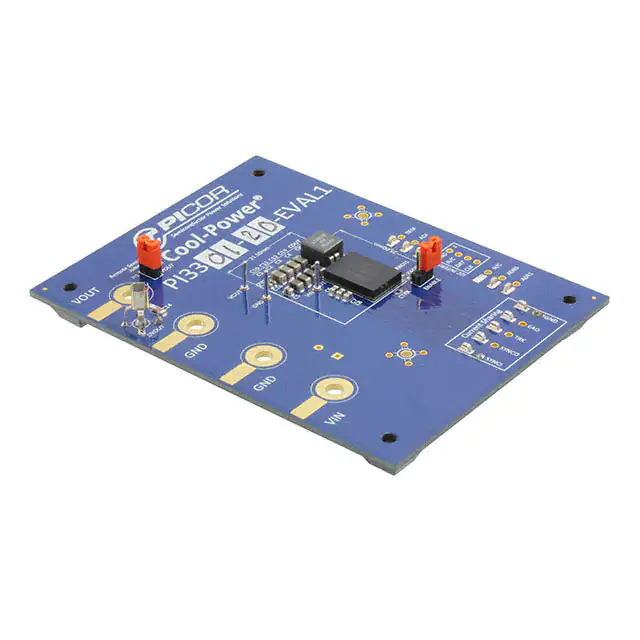

PI3301-20-EVAL1EVAL BOARD FOR PI330120 |
1,431 | 53.36 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 8V ~ 36V | Buck | 650kHz | Board(s) | PI3301-20 |
|

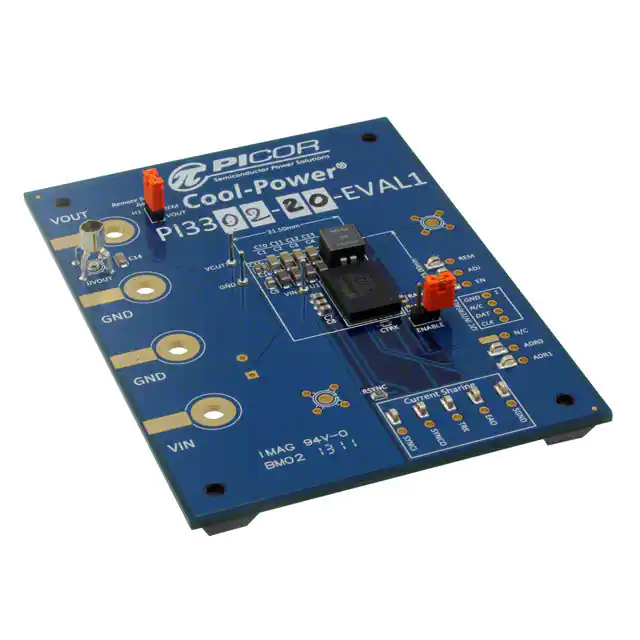

PI3302-20-EVAL1EVAL BOARD FOR PI330220 |
2,639 | 53.36 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 10A | 8V ~ 36V | Buck | 1MHz | Board(s) | PI3302-20 |
|
PI3305-20-EVAL1EVAL BOARD FOR PI330520 |
3,900 | 53.36 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 15V | 8A | 20.4V ~ 36V | Buck | 1.5MHz | Board(s) | PI3305-20 |
|
PI3585-00-EVAL1EVAL BOARD FOR PI358500 |
2,585 | 53.36 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 10A | 30V ~ 60V | Buck | 600kHz | Board(s) | PI3585-00 |
|
|
PI3586-00-EVAL1EVAL BOARD FOR PI358600 |
4,224 | 53.36 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 9A | 30V ~ 60V | Buck | 700kHz | Board(s) | PI3586-00 |
|
|
UCC2540EVM-054EVAL BOARD FOR UCC2540 UCC38083 |
4,365 | 0.00 |
|
Datasheet |
Predictive Gate Drive™ | - | Obsolete | AC/DC, Primary and Secondary Side | 2 Isolated Outputs | 36 W | 1.5V, 3.3V | 7.5A, 7.5A | 18.5V ~ 35V | Buck | 400kHz | Board(s) | UCC2540, UCC38083 |
|
|
UCD9112EVMEVAL BOARD FOR UCD9112 |
4,155 | 0.00 |
|
Datasheet |
Fusion Digital Power™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 4V | 40A | 5V ~ 14V | Buck | 500kHz | Board(s), Cable(s) | UCD9112 |
|
|
TPS23753EVM-001EVAL BOARD FOR TPS23753 |
2,680 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 7 W | 5V | 1.2A | 30V ~ 57V | Flyback | 248Hz | Board(s) | TPS23753 |
|
|
TPS23753EVM-004EVAL BOARD FOR TPS23753 |
3,936 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 10 W | 3.3V | 3A | 30V ~ 57V | Flyback | 125kHz | Board(s) | TPS23753 |
|
|
TPS56300EVM-139EVAL BOARD FOR TPS56300 |
2,641 | 0.00 |
|
Datasheet |
- | - | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 4A, 500mA | 5V | Buck | 300kHz | Board(s) | TPS56300 |
|
|
TPS60120EVM-142EVAL BOARD FOR TPS60120 |
4,397 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 200mA | 1.8V ~ 3.6V | Boost | - | Board(s) | TPS60120 |
|
|
TPS6734EVMEVAL BOARD FOR TPS6734 |
1,064 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 120mA | 3.75V ~ 12V | Boost | 170kHz | Board(s) | TPS6734 |
|
|
TPS6735EVMEVAL BOARD FOR TPS6735 |
3,128 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 200mA | 4V ~ 6.2V | Inverting | 160Hz | Board(s) | TPS6735 |
|
|
TPS61100EVM-216EVAL BOARD FOR TPS61100 |
3,451 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 250mA, 120mA | 0.9V ~ 3.6V | Boost | - | Board(s) | TPS61100 |
