DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN6501EVMEVAL BOARD FOR SN6501 |
1,148 | 0.00 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | DC/DC Isolated Power Supply | 1 Isolated Output | - | 5V | - | 3.3V, 5V | - | - | Board(s) | SN6501 |
|
|
SN6501-3EVMEVAL BOARD FOR SN6501 |
2,840 | 0.00 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | DC/DC Isolated Power Supply | 1 Isolated Output | - | 3.3V, 5V | - | 3.3V | - | - | Board(s) | SN6501 |
|
|
SN6501-5EVMEVAL BOARD FOR SN6501 |
1,756 | 0.00 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | DC/DC Isolated Power Supply | 1 Isolated Output | - | 5V | - | 5V | - | - | Board(s) | SN6501 |
|

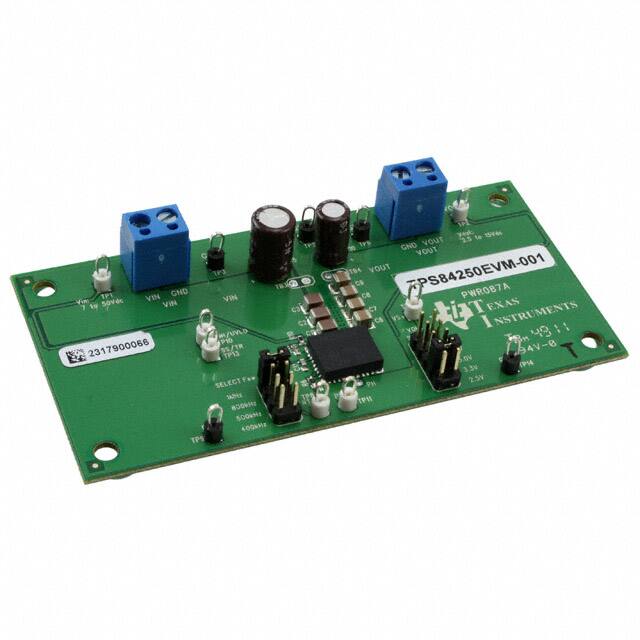

TPS84250EVM-001EVAL BOARD FOR TPS84250 |
3,259 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V, 5V, 12V or 15V | 2.5A | 7V ~ 50V | Buck | - | Board(s) | TPS84250 |
|

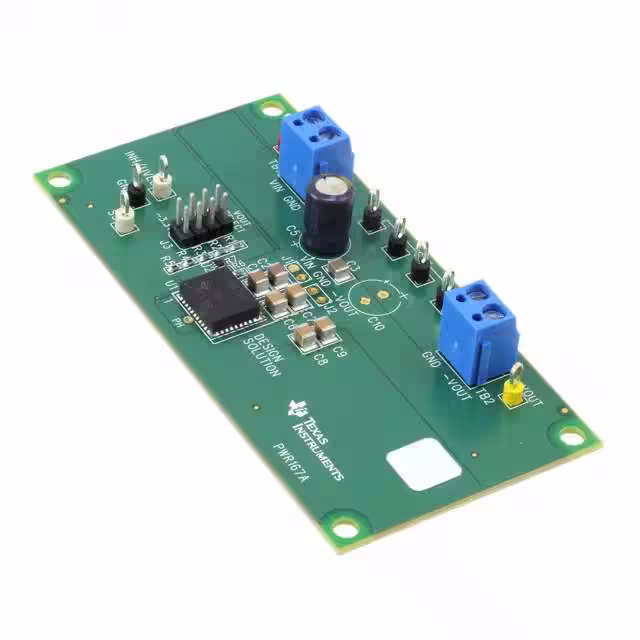

TPS84259EVM-001EVAL BOARD FOR TPS84259 |
2,030 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -3.3V, -5V, -12V, -15V | 2A | 4.5V ~ 40V | Inverting | 800kHz | Board(s) | TPS84259 |
|

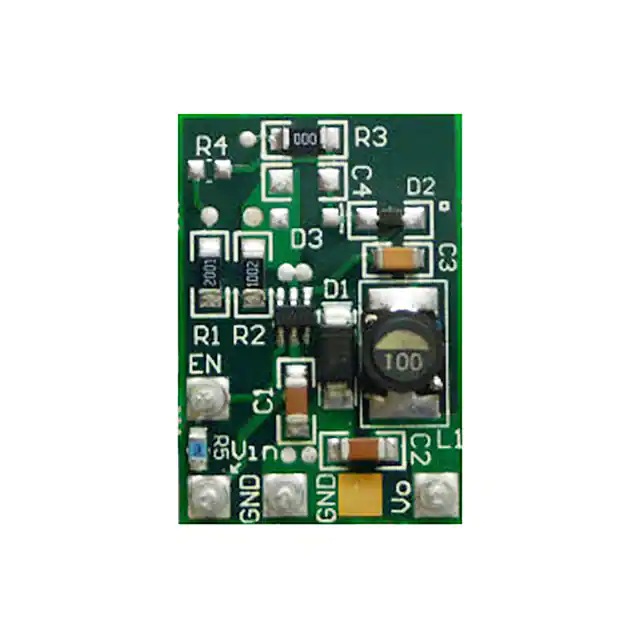

LM2736Y EVAL/NOPBEVAL BOARD FOR LM2736 |
3,374 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 750mA | 3V ~ 18V | Buck | 550kHz | Board(s) | LM2736 |
|
|
TPS84A20EVM-001EVAL BOARD FOR TPS84A20 |
1,781 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.9V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 10A | 2.95V ~ 17V | Buck | - | Board(s) | TPS84A20 |
|
|
MAX17570C12EVKIT#EVAL BOARD FOR MAX17570C |
1,784 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 300mA | 15V ~ 60V | Buck | 400kHz | Board(s) | MAX17570C |
|

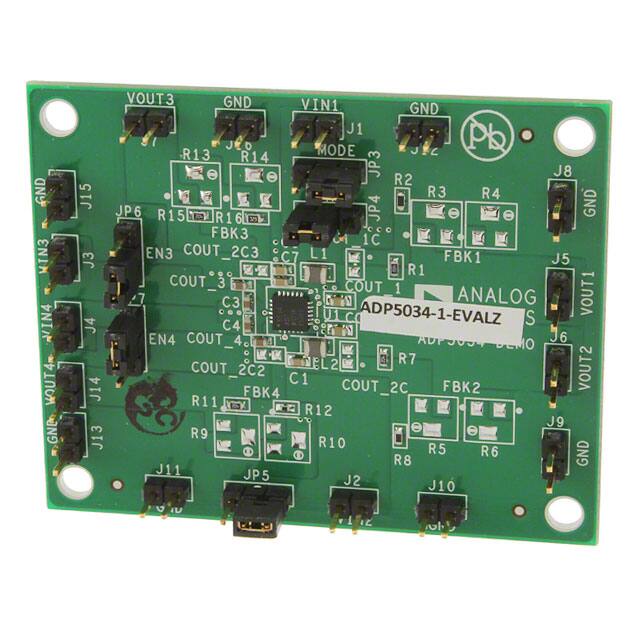

ADP5034-1-EVALZEVAL BOARD FOR ADP5034 |
2,578 | 52.42 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1.2A, 1.2A, 300mA, 300mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP5034 |
|

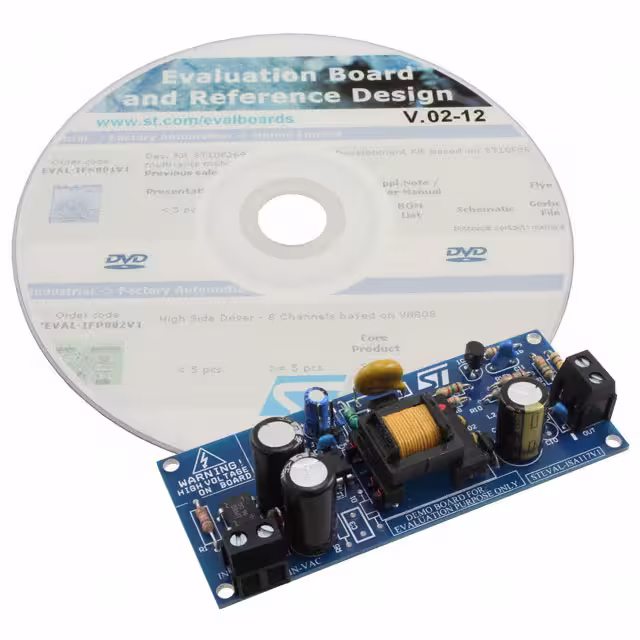

STEVAL-ISA117V1EVAL BOARD FOR VIPER16 |
4,814 | 52.50 |
|
Datasheet |
VIPer™ plus | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 4.2 W | 12V | 350mA | 90 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer16 |
|

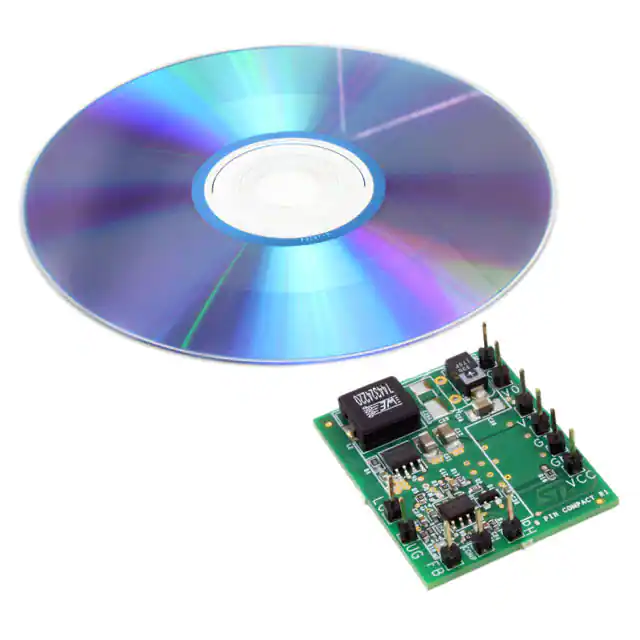

STEVAL-ISA039V1EVAL BOARD FOR L6727 |
2,914 | 52.50 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.25V | 5A | 5V ~ 12V | Buck | 300kHz | Board(s) | L6727 |
|

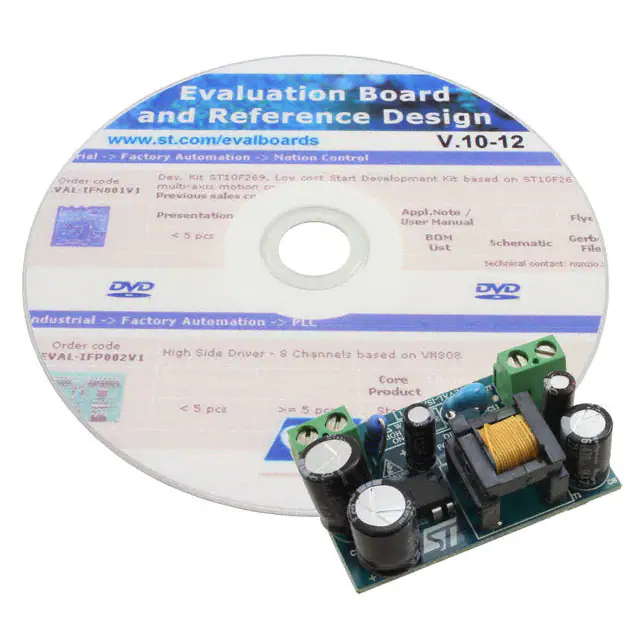

STEVAL-ISA136V1EVAL BOARD FOR VIPER06 |
4,069 | 52.50 |
|
Datasheet |
VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 3 W | 5V | 600mA | 85 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer06 |
|

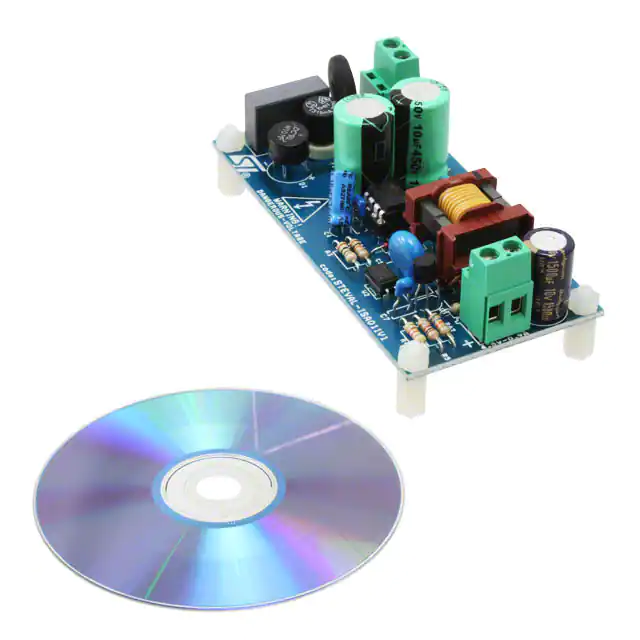

STEVAL-ISA011V1EVAL BOARD FOR VIPER12A |
2,657 | 52.50 |
|
Datasheet |
VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 4.1 W | 4.5V | 900mA | 88 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|

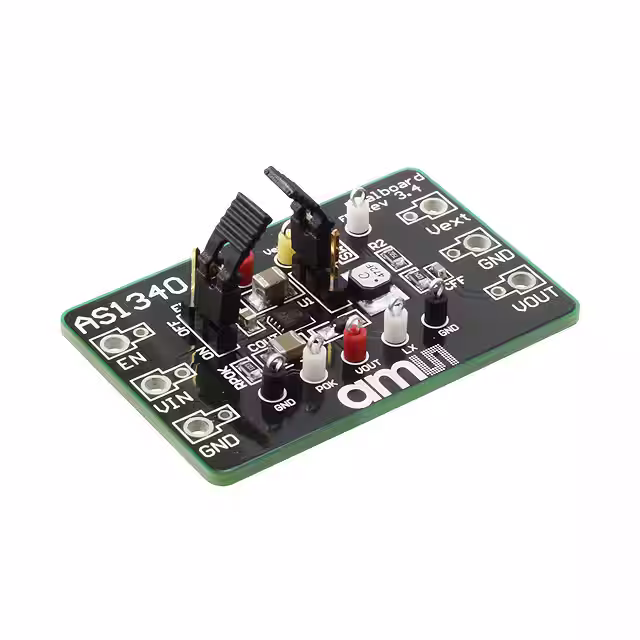

AS1340A-TD-10_EK_SEVAL BOARD FOR AS1340 |
2,538 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 2.7V ~ 50V | 100mA | 2.7V ~ 5.5V | Boost | 1MHz | Board(s) | AS1340 |
|

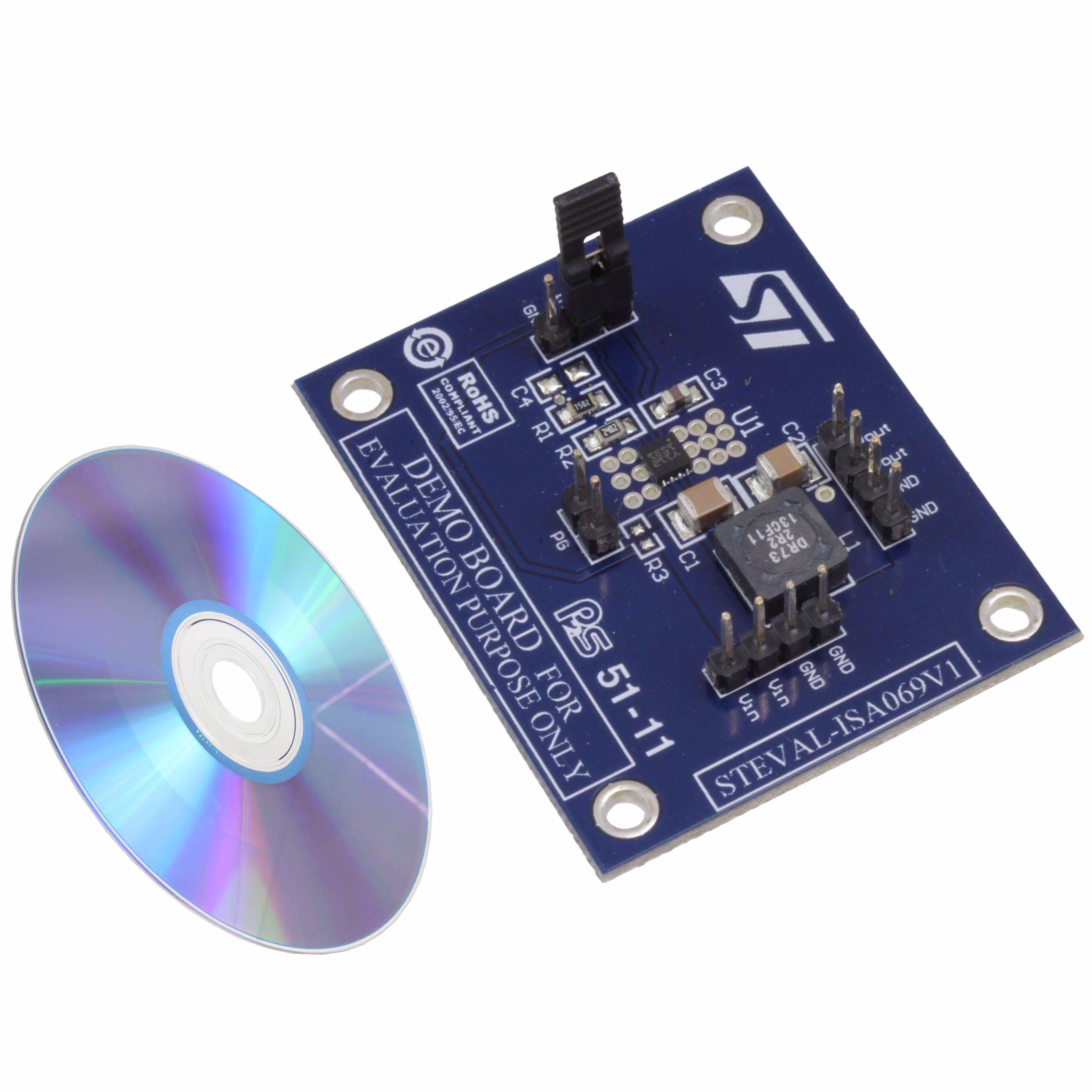

STEVAL-ISA069V1EVAL BOARD FOR ST1S31 |
3,956 | 52.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5.5V | 3A | 2.8V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST1S31 |
|

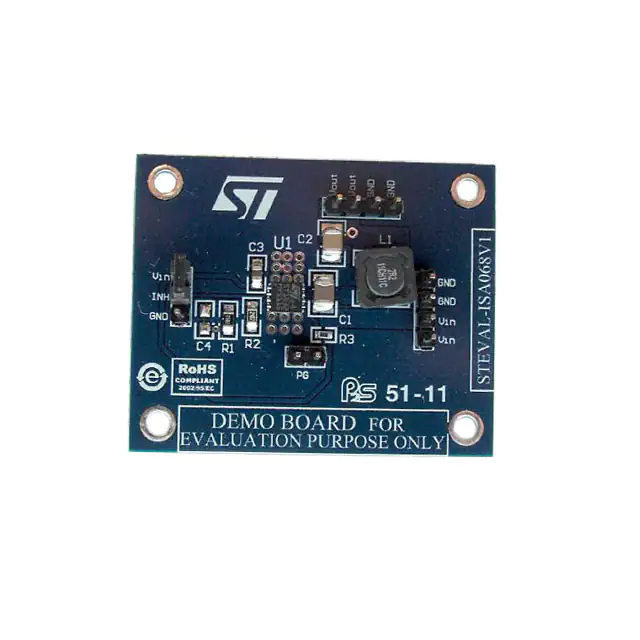

STEVAL-ISA068V1EVAL BOARD FOR ST1S32 |
3,165 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 2.8V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST1S32 |
|

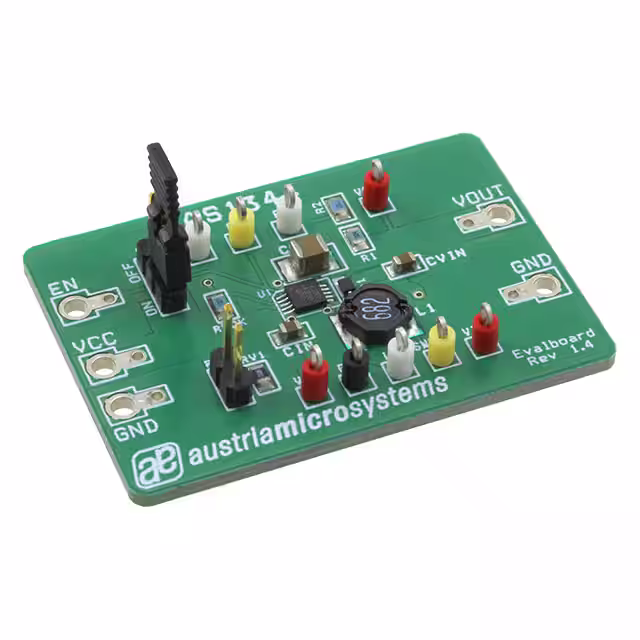

AS1344-TD_EK_STEVAL BOARD FOR AS1344 |
2,959 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5.5V ~ 42V | - | 0.9V ~ 3.6V | Boost | 1MHz | Board(s) | AS1344 |
|

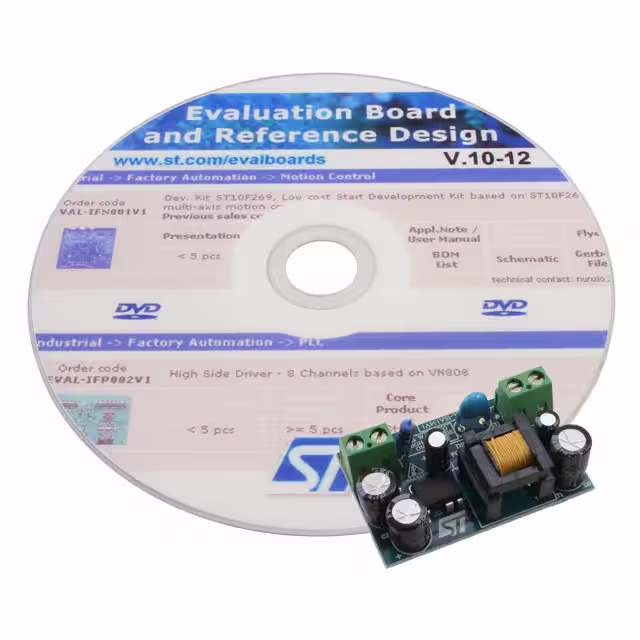

STEVAL-ISA134V1EVAL BOARD FOR VIPER06 |
4,301 | 52.50 |
|
Datasheet |
VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 4 W | 12V | 333mA | 85 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer06 |
|

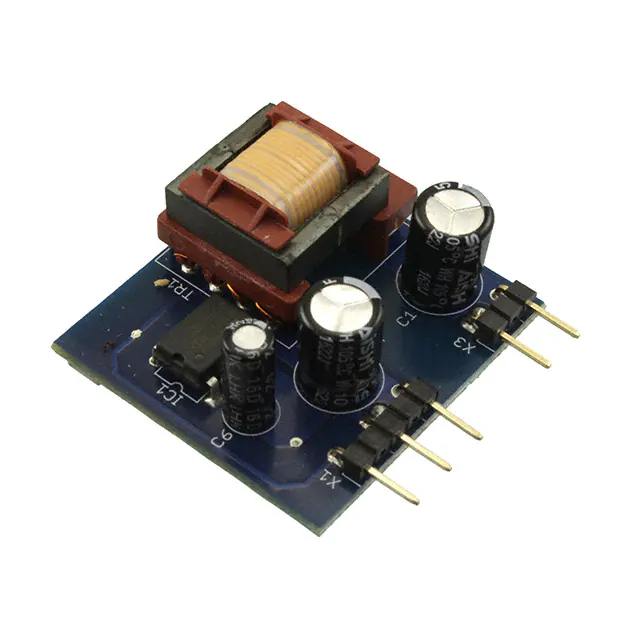

KIT6W12VBIASICE3TOBO1EVAL BOARD FOR ICE3RBR4765JZ |
3,630 | 52.50 |
|
Datasheet |
CoolMOS™, CoolSET™F3R | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 6 W | 12V | - | 90V ~ 400V | - | 65kHz | Board(s) | ICE3RBR4765JZ |
|
TL1451AEVM-166EVAL BOARD FOR TL1451A |
2,304 | 50.45 |
|
Datasheet |
- | Bag | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 1.5A, 1A | 4.5V ~ 5.5V | Buck | 300kHz | Board(s) | TL1451A |
