DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS650001EVM-585EVAL BOARD FOR TPS650001 |
1,068 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.8V | 600mA, 300mA, 300mA | 2.3V ~ 6V | Buck | 2.25MHz | Board(s) | TPS650001 |
|
|
TPS53128EVM-620EVAL BOARD FOR TPS53128 |
1,936 | 0.00 |
|
Datasheet |
D-CAP2™ | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.05V, 1.8V | 4A | 8V ~ 22V | Buck | 350kHz | Board(s) | TPS53128 |
|
|
TPS65257EVMEVAL BOARD FOR TPS65257 |
1,478 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 3 Non-Isolated Outputs | - | - | 3A, 2A, 2A | 4.5V ~ 16V | Buck | 300kHz ~ 2.2MHz | Board(s) | TPS65257 |
|
|
TPS59640EVM-751EVAL BOARD FOR TPS59640 |
4,581 | 0.00 |
|
Datasheet |
D-CAP+™ | Box | Obsolete | Special Purpose DC/DC, Intel IMVP7 SVID Power System | - | - | - | - | 9V ~ 20V | Buck | - | Board(s) | TPS59640 |
|
TPS54495EVM-057EVAL BOARD FOR TPS54495 |
1,474 | 0.00 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 4A, 2A | 5V ~ 18V | Buck | 700kHz | Board(s) | TPS54495 |
|

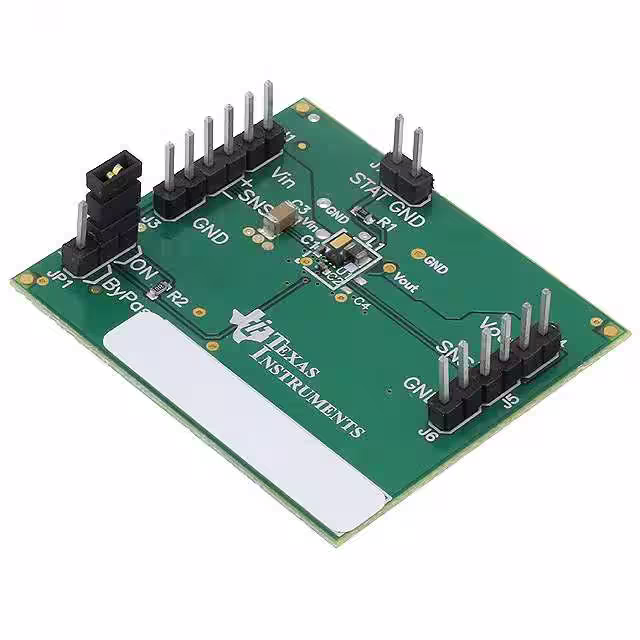

TPS62733EVM-726EVAL BOARD FOR TPS62733 |
4,625 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.3V | 100mA | 1.9V ~ 3.9V | Buck | - | Board(s) | TPS62733 |
|
LM10500SQ-1.0EV/NOPBEVAL BOARD FOR LM10500 |
1,705 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 5A | 3V ~ 18V | Buck | 300kHz | Board(s), Cable(s) | LM10500 |
|

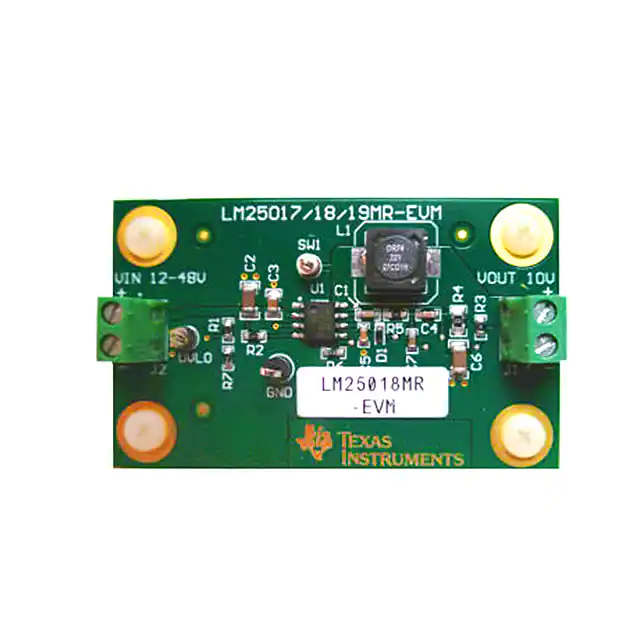

LM25018MR-EVMEVAL BOARD FOR LM25018 |
1,648 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 300mA | 12.5V ~ 48V | Buck | 440kHz | Board(s) | LM25018 |
|
TPS65287EVMEVAL BOARD FOR TPS65287 |
2,129 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 3A, 2A, 2A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS65287 |
|

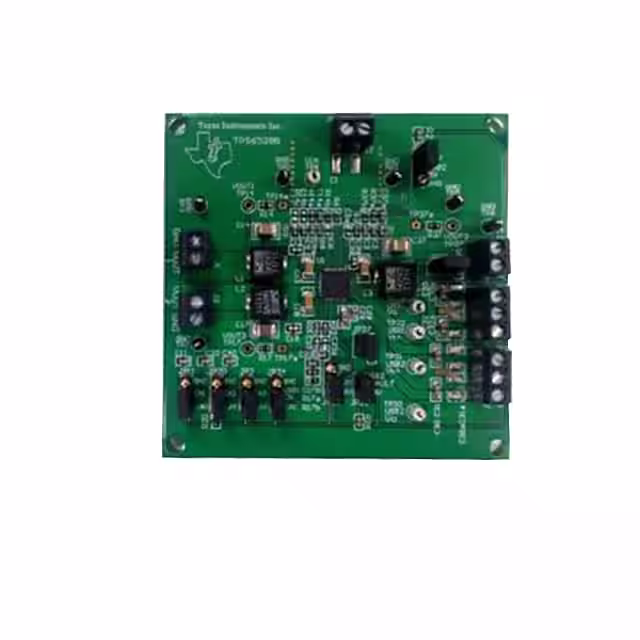

TPS65288EVMEVAL BOARD FOR TPS65288 |
4,698 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 3A, 2A, 2A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS65288 |
|

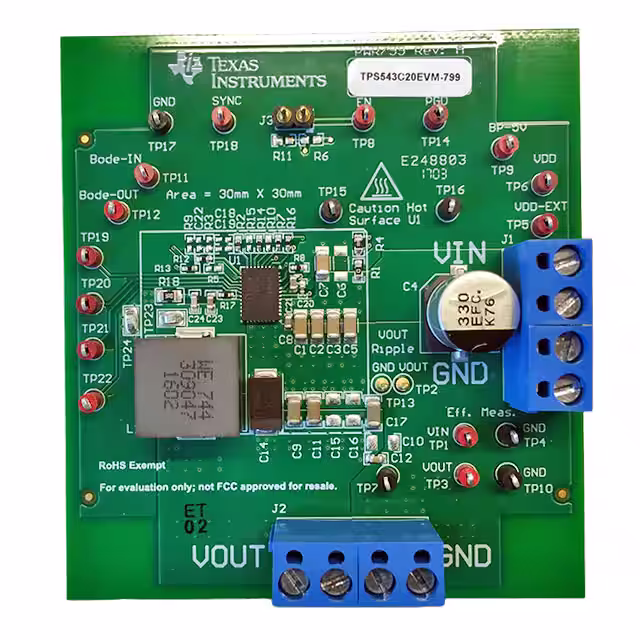

TPS543C20EVM-799EVAL BOARD FOR TPS543C20 |
4,105 | 0.00 |
|
Datasheet |
SWIFT™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 40A | 5V ~ 16V | Buck | 500kHz | Board(s) | TPS543C20 |
|

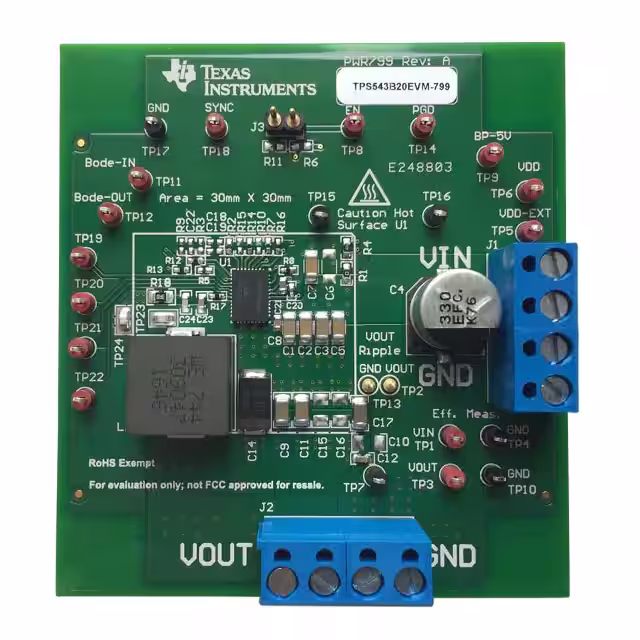

TPS543B20EVM-799EVAL BOARD FOR TPS543B20 |
1,432 | 0.00 |
|
Datasheet |
SWIFT™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 25A | 5V ~ 19V | Buck | 500kHz | Board(s) | TPS543B20 |
|
|
MAX1672EVKITEVAL BOARD FOR MAX1672 |
1,844 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V or 5V | 300mA | 1.8V ~ 11V | Boost, Buck | - | Board(s) | MAX1672 |
|

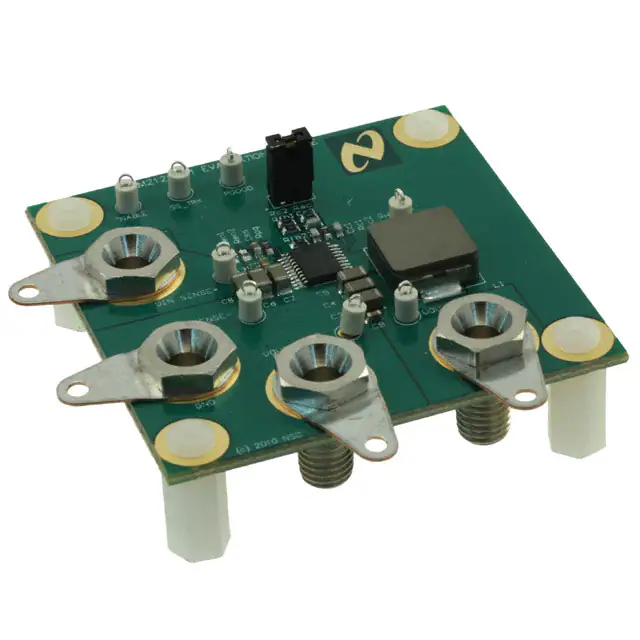

LM21212-1EVMEVAL BOARD FOR LM212121 |
3,926 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 2.95V ~ 5.5V | Buck | 300kHz ~ 1.5MHz | Board(s) | LM21212-1 |
|
AP3785TEV1EVAL BOARD FOR AP3785T |
1,979 | 57.72 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 15 W | 5V | 3A | 90 ~ 265 VAC | Flyback | - | Board(s) | AP3785T |
|
|
MAX889SEVKITEVAL BOARD FOR MAX889S |
1,097 | 64.11 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | -2.5V ~ -5.5V | 200mA | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | MAX889S |
|
|
MAX17783CEVKITA#EVAL BOARD FOR MAX17783C |
4,710 | 0.00 |
|
Datasheet |
Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 6V ~ 60V | Buck | 500kHz | Board(s) | MAX17783C |
|

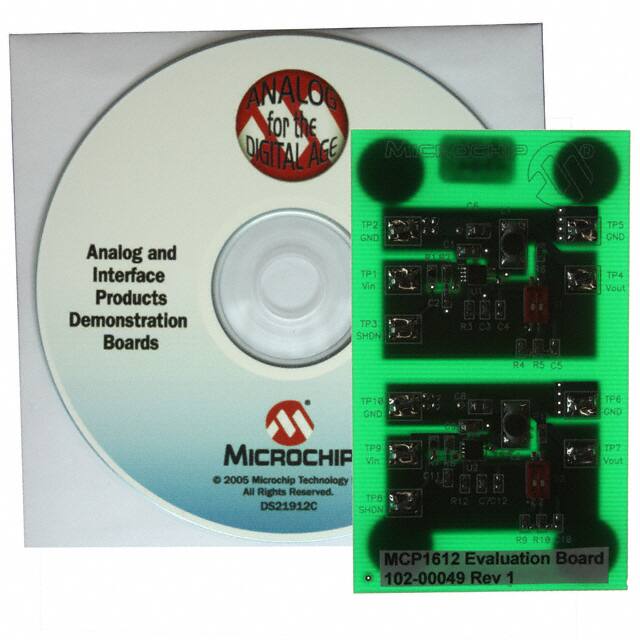

MCP1612EVEVAL BOARD FOR MCP1612 |
3,259 | 48.23 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1V, 1.2V, 1.4V, 1.7V, 2.4V or 3.3V | 1A | 2.7V ~ 5.5V | Buck | 1.4MHz | Board(s) | MCP1612 |
|

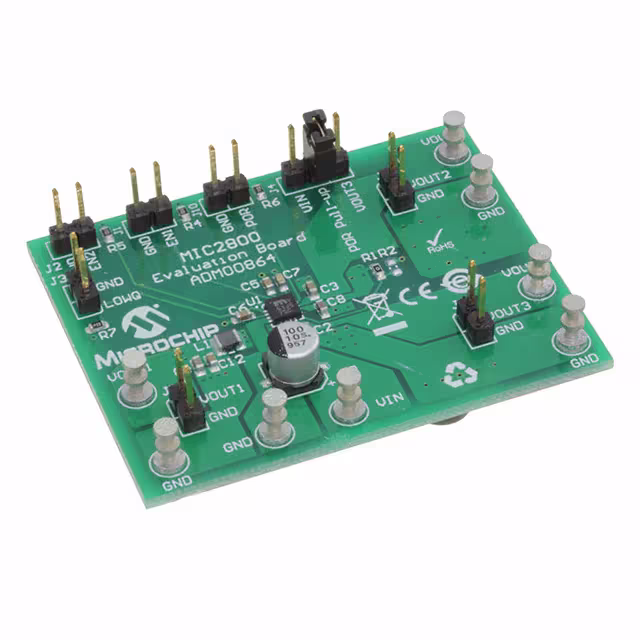

ADM00864EVAL BOARD FOR MIC2800 |
1,165 | 48.23 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.25V, 1.8V, 3.3V | 600mA, 300mA, 300mA | 3.6V ~ 5.5V | Buck | 2MHz | Board(s) | MIC2800 |
|

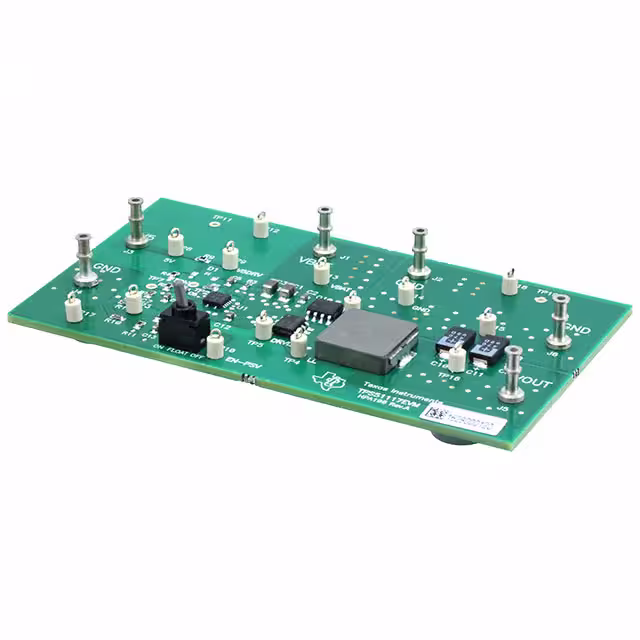

TPS51117EVMEVAL BOARD FOR TPS51117 |
3,048 | 0.00 |
|
Datasheet |
D-CAP™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 10A | 6V ~ 21V | Buck | 350kHz | Board(s) | TPS51117 |
