DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIP12109DBEVAL BOARD FOR SIP12109 |
2,237 | 71.88 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 4A | 4.5V ~ 15V | Buck | 1.5MHz | Board(s) | SIP12109 |
|
STEVAL-ISA023V2EVAL BOARD FOR VIPER53 |
4,901 | 0.00 |
|
Datasheet |
VIPER™ | Box | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 24 W | -5V, -12V | 3A, 800mA | 90 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer53 |
|

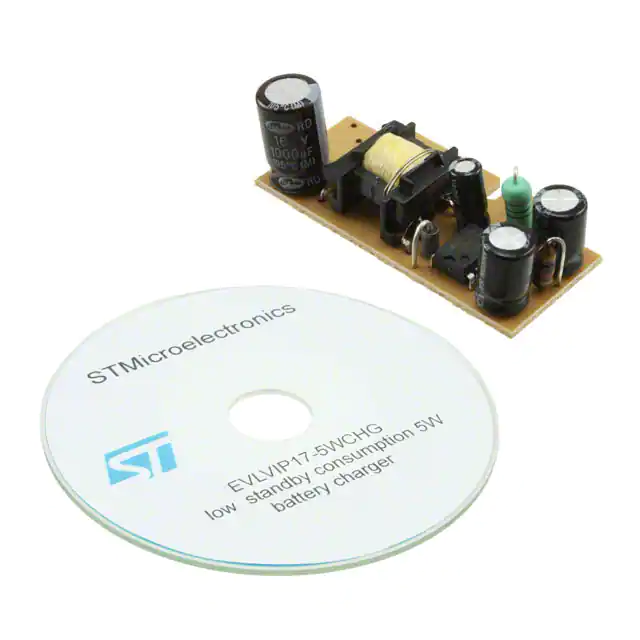

EVLVIP17-5WCHGEVAL BOARD FOR TSM1052 VIPER17 |
4,795 | 0.00 |
|
Datasheet |
VIPer™ plus | Bulk | Obsolete | AC/DC, Primary and Secondary Side | 1 Isolated Output | 5 W | 5.1V | 1A | 90 ~ 264 VAC | Flyback | 115kHz | Board(s) | TSM1052, VIPer17 |
|
EVLVIPER28H-10WEVAL BOARD FOR VIPER28 |
4,273 | 0.00 |
|
Datasheet |
VIPER™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 12 W | 5V | 2.4A | 85 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer28 |
|

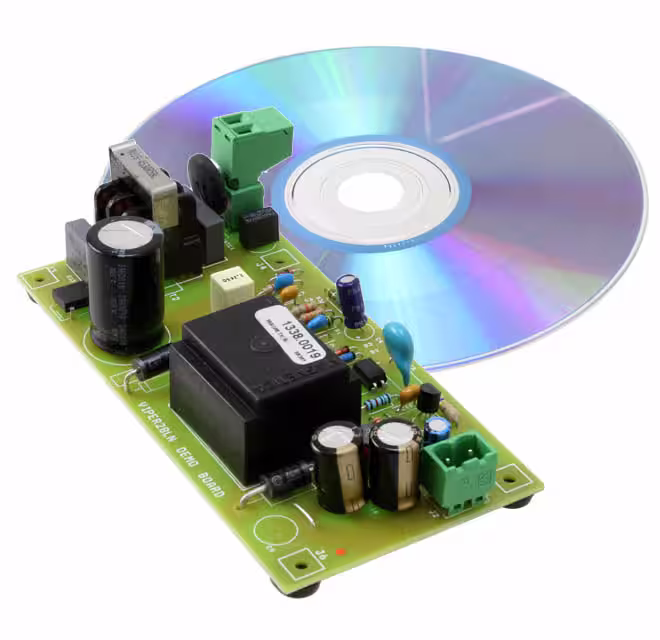

EVLVIPER28L-10WEVAL BOARD FOR VIPER28 |
1,979 | 0.00 |
|
Datasheet |
VIPER™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 12 W | 5V | 2.4A | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer28 |
|
EVLVIP27H-12SBEVAL BOARD FOR VIPER27 |
4,077 | 0.00 |
|
Datasheet |
VIPer™ plus | Box | Obsolete | AC/DC, Primary Side | - | 24 W | 800V | 2.5mA | 8.5V ~ 23.5V | Flyback | 115kHz | Board(s) | VIPer27 |
|

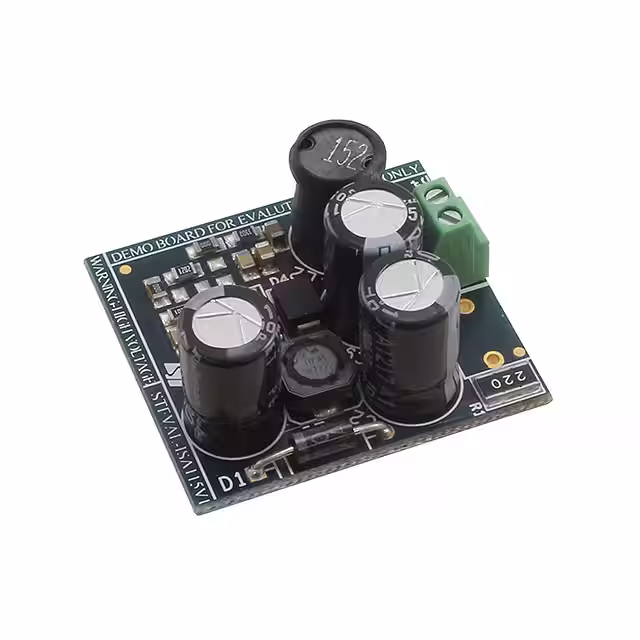

STEVAL-ISA115V1EVAL BOARD FOR VIPER06 |
1,635 | 72.50 |
|
Datasheet |
VIPER™ | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 1.8 W | 12V | 150mA | 90 ~ 264 VAC | Buck | 30kHz | Board(s) | VIPer06 |
|
STEVAL-ISA191V1EVAL BOARD FOR VIPER37 |
1,448 | 72.50 |
|
Datasheet |
VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | - | 5V, 12V | 1.2A, 750mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer37 |
|
|
ISL8130EV1ZEVAL BOARD FOR ISL8130 |
2,009 | 73.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 32V | 1.25A | 6V ~ 16V | Boost | - | Board(s) | ISL8130 |
|

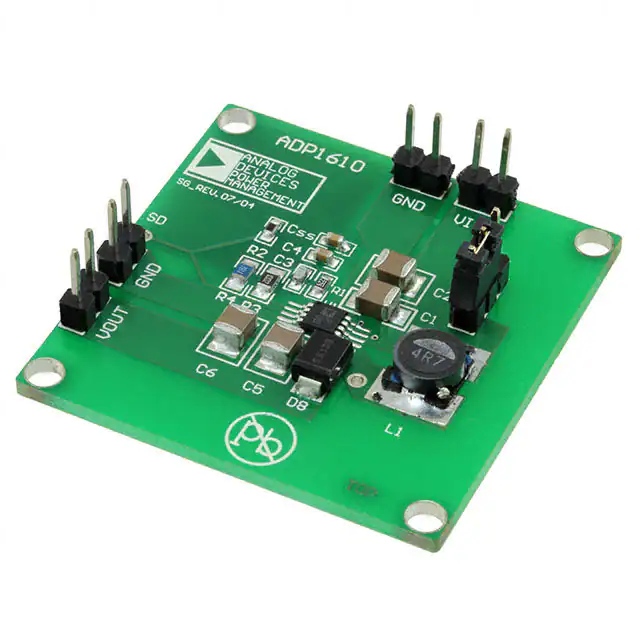

ADP1610-EVALZEVAL BOARD FOR ADP1610 |
4,704 | 66.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 10V | 300mA | 2.5V ~ 5.5V | Boost | 1.2MHz | Board(s) | ADP1610 |
|
ADP2108-1.5-EVALZEVAL BOARD FOR ADP2108 |
4,491 | 66.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2108 |
|
ADP2114-2PH-EVALZEVAL BOARD FOR ADP2114 |
3,342 | 66.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.3V | 4A | 2.75V ~ 5.5V | Buck | 300kHz, 600kHz, 1.2MHz | Board(s) | ADP2114 |
|
|
ADP1873-0.6-EVALZEVAL BOARD FOR ADP1873 |
2,240 | 66.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 2.75V ~ 20V | Buck | 600kHz | Board(s) | ADP1873 |
|
|
ISL91106IIQ-EVZEVAL BOARD FOR ISL91106 |
4,174 | 73.31 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | 2A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91106 |
|

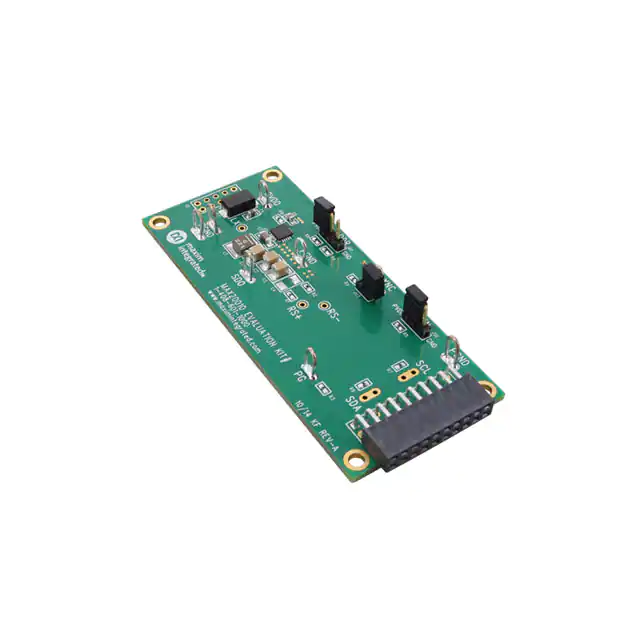

MAX20010EVKIT#EVAL BOARD FOR MAX20010 |
3,798 | 68.88 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 6A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20010 |
|

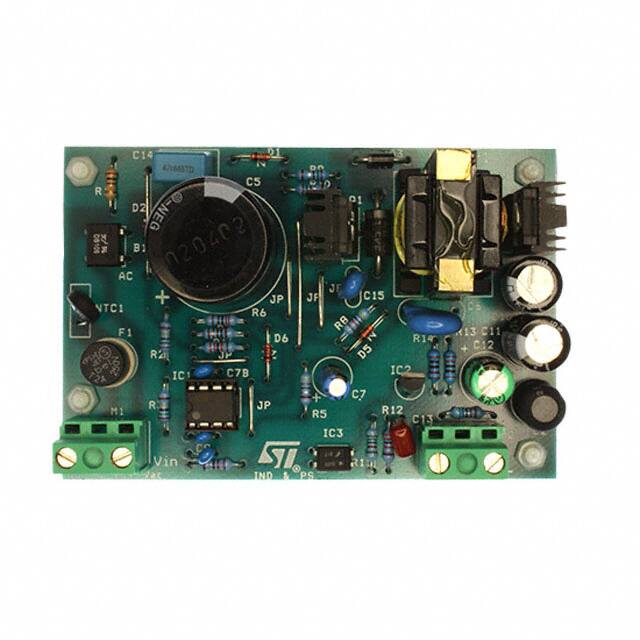

STEVAL-ISC001V1EVAL BOARD FOR L6565 |
1,151 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 30 W | 15V | 2A | 88 ~ 264 VAC | Flyback | 60kHz | Board(s) | L6565 |
|
|
ISL8011EVAL1ZEVAL BOARD FOR ISL8011 |
4,235 | 75.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V | 1.2A | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | ISL8011 |
|
|
ISL80019AEVAL1ZEVAL BOARD FOR ISL80019A |
4,722 | 75.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL80019A |
|
|
ISL8002AEVAL1ZEVAL BOARD FOR ISL8002A |
1,906 | 75.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL8002A |
|

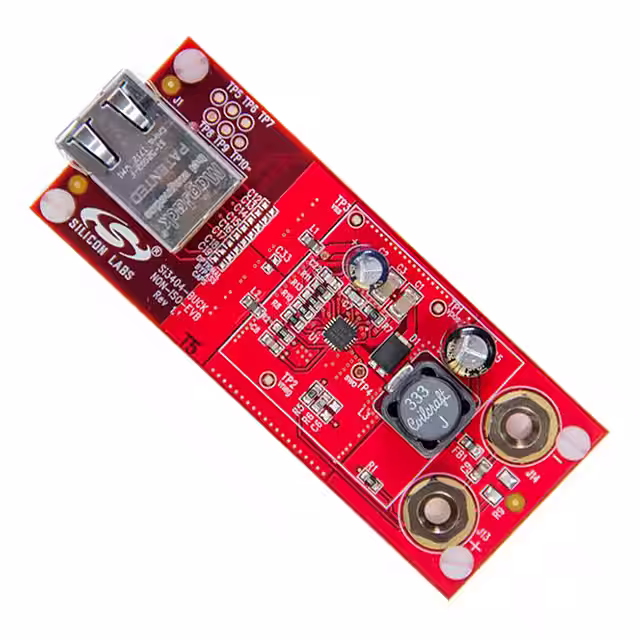

SI3404BKC2-KITEVAL BOARD FOR SI3404 |
2,363 | 75.00 |
|
Datasheet |
- | Bulk | Not For New Designs | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | Si3404 |
