DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

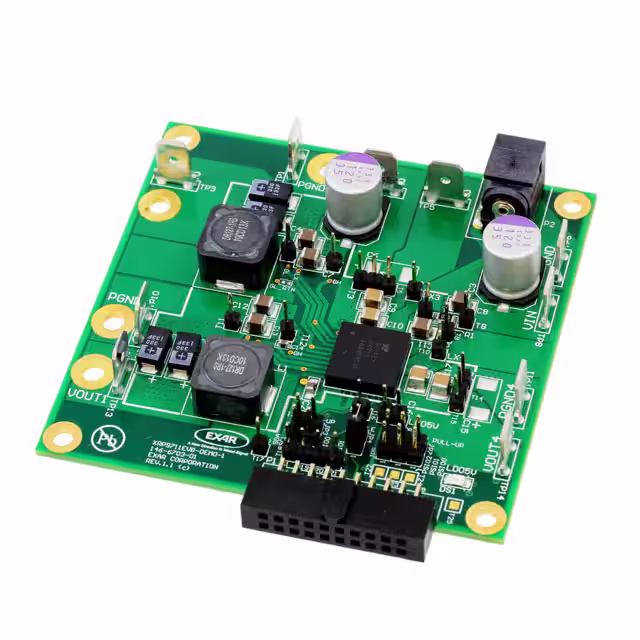

XRP9711EVB-DEMO-1EVAL BOARD FOR XRP9711 |
4,479 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 1.8V, 2.5V | 10A, 10A, 6A, 6A | 5.5V ~ 22V | Buck | - | Board(s) | XRP9711 |
|
ADP2102-EVALZEVAL BOARD FOR ADP2102 |
2,706 | 91.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | ADP2102 |
|

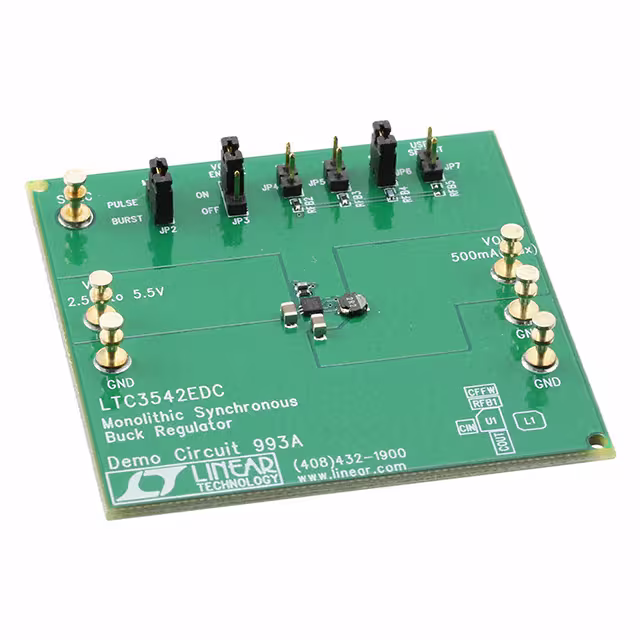

DC993AEVAL BOARD FOR LTC3542 |
3,052 | 75.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V or 1.8V | 500mA | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3542 |
|
STEVAL-ISA019V1EVAL BOARD FOR L6565 |
1,317 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 80 W | 24V | 3.3A | 180 ~ 600 VAC | Flyback | 50kHz | Board(s) | L6565 |
|
NCP3163INVGEVBEVAL BOARD FOR NCP3163 |
4,149 | 0.00 |
|
- |
- | Bulk | Discontinued at Digi-Key | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -15V | 500mA | 12V | Inverting | 150kHz | Board(s) | NCP3163 |
|
|
IRDC3812EVAL BOARD FOR IR3812 |
3,792 | 0.00 |
|
Datasheet |
SupIRBuck® | Tube | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 5V ~ 12V | Buck | - | Board(s) | IR3812 |
|
|
NCP3020AGEVBEVAL BOARD FOR NCP3020A |
1,515 | 0.00 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 9V ~ 18V | Buck | 300kHz | Board(s) | NCP3020A |
|

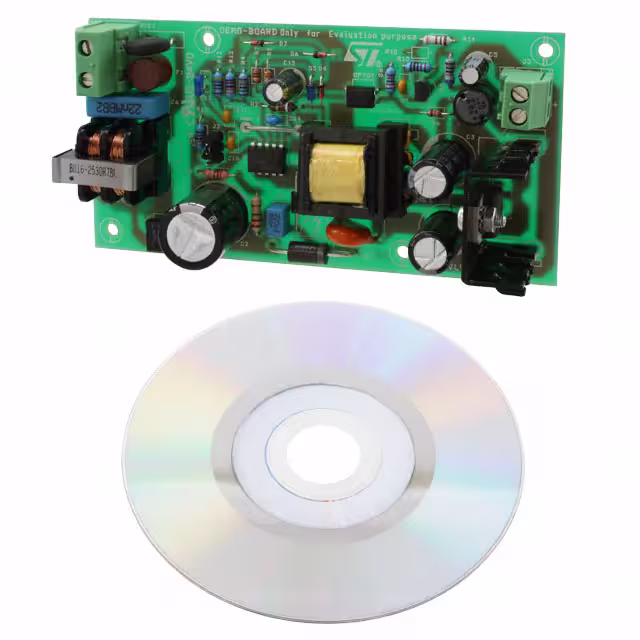

EVLVIP37LE5V3AEVAL BOARD FOR VIPER37 |
3,197 | 0.00 |
|
Datasheet |
VIPer™ plus | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 15 W | 5V | 3A | 90 ~ 264 VAC | - | 60kHz | Board(s) | VIPer37 |
|
|
FEBFAN6863W_CP452V1EVAL BOARD FOR FAN6863W |
2,444 | 0.00 |
|
- |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 40 W | 19V | 2.1A | 90 ~ 264 VAC | Flyback | - | Board(s) | FAN6863W |
|
|
ISL8023EVAL3ZEVAL BOARD FOR ISL8023 |
1,627 | 76.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8023 |
|
|
ISL9440CEVAL1ZEVAL BOARD FOR ISL9440C |
3,805 | 76.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1V, 2.5V, 3.32V, 5V | 6A, 6A, 4A, 800mA | 6V ~ 16V | Buck | 600kHz | Board(s) | ISL9440C |
|

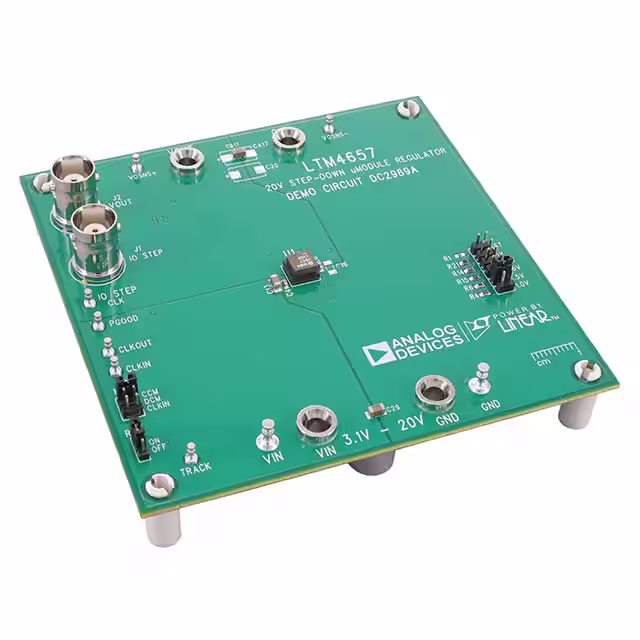

DC2989AEVAL BOARD FOR LTM4657 |
1,145 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.5V, 2.5V, 3.3V or 5V | 8A | 3.1V ~ 20V | Buck | 500kHz | Board(s) | LTM4657 |
|
|
MAX17291CEVKIT#EVAL BOARD FOR MAX17291C |
1,309 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | - | 1.8V ~ 4.5V | Boost | - | Board(s) | MAX17291C |
|
|
ISL8024EVAL3ZEVAL BOARD FOR ISL8024 |
2,110 | 76.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8024 |
|
MAX38802EVKIT#EVAL BOARD FOR MAX38802 |
1,623 | 71.41 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 9A | 6.5V ~ 14V | Buck | - | Board(s) | MAX38802 |
|
MAX38803EVKIT#EVAL BOARD FOR MAX38803 |
4,786 | 71.41 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 25A | 6.5V ~ 14V | Buck | - | Board(s) | MAX38803 |
|

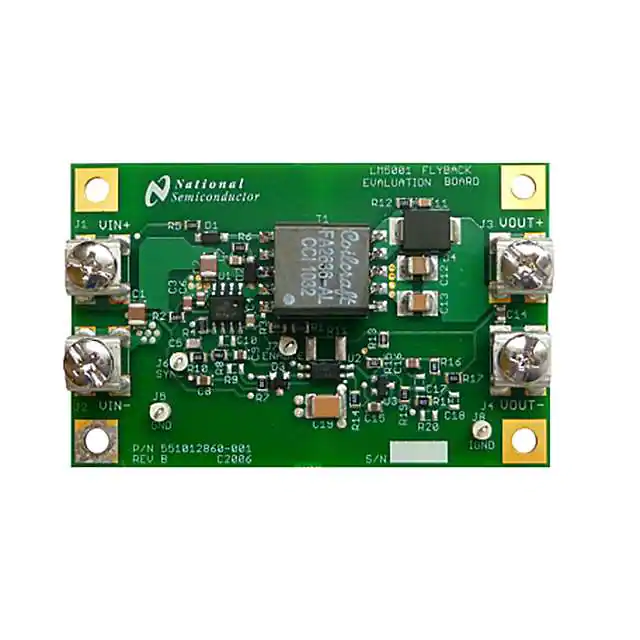

LM5001ISOEVALEVAL BOARD FOR LM5001 |
2,061 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 5V | 1A | 16V ~ 42V | Flyback | 250kHz | Board(s) | LM5001 |
|

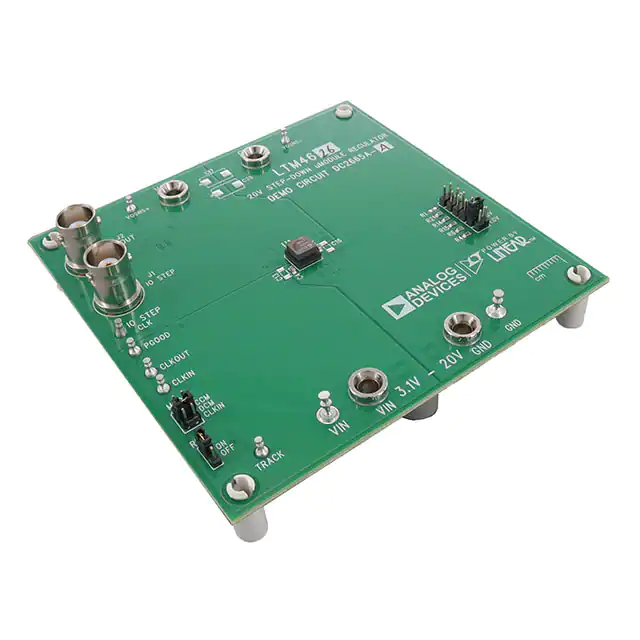

DC2665A-AEVAL BOARD FOR LTM4626 |
2,948 | 76.50 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 12A | 3.1V ~ 20V | Buck | 600kHz | Board(s) | LTM4626 |
|

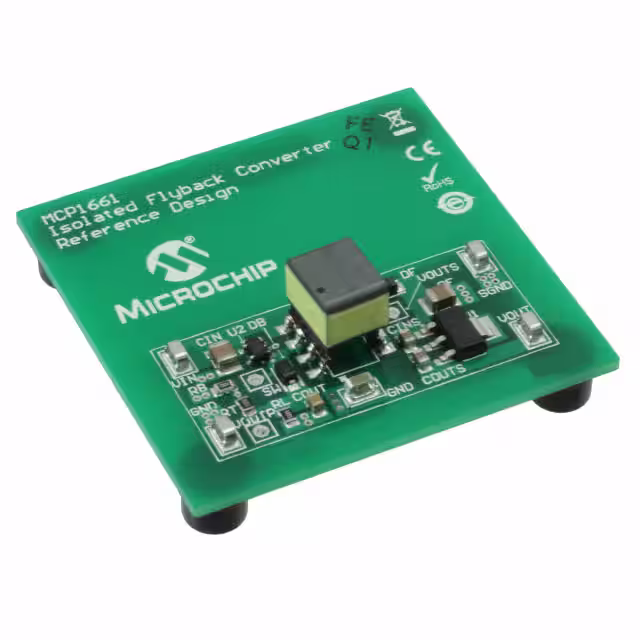

ARD00598EVAL BOARD FOR MCP1661 |
3,557 | 67.31 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Isolated Output | - | 5V | 200mA | 4.25V ~ 5.25V | Flyback | 500kHz | Board(s) | MCP1661 |
|
|
ISL8023AEVAL3ZEVAL BOARD FOR ISL8023A |
3,940 | 77.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | ISL8023A |
