DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

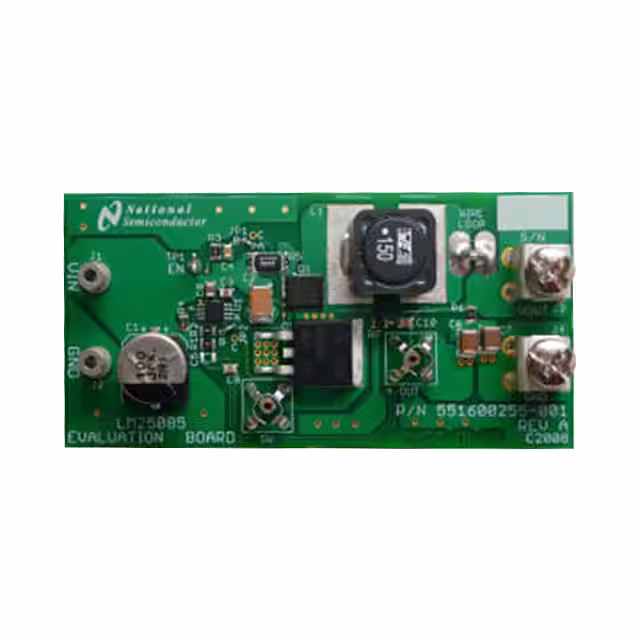

LM25085MYEVALEVAL BOARD FOR LM25085 |
1,096 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 5.5V ~ 42V | Buck | 300kHz | Board(s) | LM25085 |
|
MAX8569EVKIT+EVAL BOARD FOR MAX8569 |
1,393 | 69.56 |
|
- |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | 200mA | 1.5V ~ 5.5V | Boost | - | Board(s) | MAX8569 |
|
LM5015ISOEVALEVAL BOARD FOR LM5015 |
2,676 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 5V | 3A | 36V ~ 72V | Buck | 300kHz | Board(s) | LM5015 |
|
|
EL7534EVAL1EVAL BOARD FOR EL7534 |
4,203 | 75.00 |
|
Datasheet |
- | Box | Last Time Buy | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.5V ~ 5.5V | Buck | - | Board(s) | EL7534 |
|
LM25116EVALEVAL BOARD FOR LM25116 |
3,986 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 7A | 7V ~ 42V | Buck | 250kHz | Board(s) | LM25116 |
|
LM5116-12EVALEVAL BOARD FOR LM5116 |
2,323 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 5A | 15V ~ 80V | Buck | 250kHz | Board(s) | LM5116 |
|

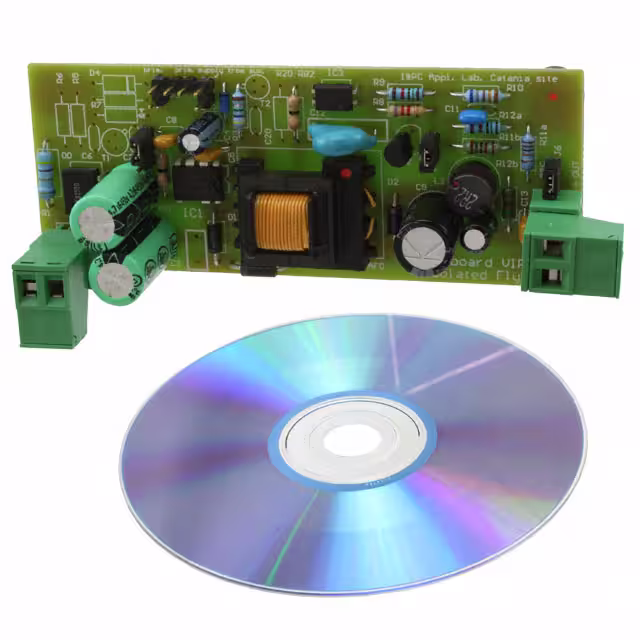

EVLVIP16L-4WFLEVAL BOARD FOR VIPER16 |
1,086 | 87.35 |
|
Datasheet |
VIPer™ plus | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 4 W | 16V | 250mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer16 |
|
MAX17094EVKIT+EVAL BOARD FOR MAX17094 |
1,035 | 75.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 5 Non-Isolated Outputs | - | 2.5V, 3.2V, 8V, 21.5V, -6.5V | 300mA, 250mA, 150mA, 30mA, 30mA | 1.8V ~ 5.5V | Boost, Inverting | - | Board(s) | MAX17094 |
|
MAX17088EVKIT+EVAL BOARD FOR MAX17088 |
4,920 | 75.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 3.2V, 8V, 21V, -13V | 300mA, 150mA, 20mA, 20mA | 1.8V ~ 6V | Boost | 1.2MHz | Board(s) | MAX17088 |
|

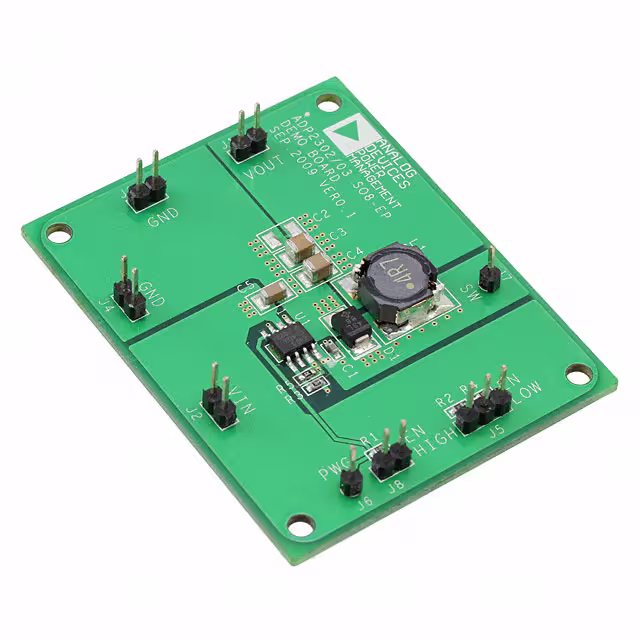

ADP2303-EVALZEVAL BOARD FOR ADP2303 |
2,659 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 3V ~ 20V | Buck | 700kHz | Board(s) | ADP2303 |
|
MAX1531EVKITEVAL BOARD FOR MAX1531 |
1,324 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 6 Non-Isolated Outputs | - | 2.5V, 3.3V, 9.7V, 10V, 25V, -9V | 1.5A, 500mA, 500mA, 50mA, 50mA, 25mA | 10.5V ~ 24V | Boost, Buck, Inverting | 250kHz or 500kHz | Board(s) | MAX1531 |
|
MAX17112EVKIT+EVAL BOARD FOR MAX17112 |
1,646 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 1 Non-Isolated Output | - | 15V | 600mA | 4.5V ~ 5.5V | Boost | 1MHz | Board(s) | MAX17112 |
|
MAX17117EVKIT+EVAL BOARD FOR MAX17117 |
3,257 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 4.25V, 8.5V, 23V, -6V | 250mA, 200mA, 20mA, 10mA | 2.3V ~ 5.5V | Boost, Inverting | 1.2MHz | Board(s) | MAX17117 |
|
|
MAX17122EVKIT+EVAL BOARD FOR MAX17122 |
2,346 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 6 Non-Isolated Outputs | - | 3.3V, 5V, 15V, 28V, -7.5V, -12V ~ -20V | 2.5A, 2.2A, 450mA, 100mA, 100mA, 25mA | 10V ~ 14V | Boost, Buck | 750kHz | Board(s) | MAX17122 |
|
|
MAX17135EVKIT+EVAL BOARD FOR MAX17135 |
4,961 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, Electronic Paper | 4 Non-Isolated Outputs | - | 15V, 22V, -15V, -20V | 200mA, 200mA, 20mA, 20mA | 2.7V ~ 5.5V | Boost, Buck | 1MHz | Board(s) | MAX17135 |
|
|
MAX1513EVKITEVAL BOARD FOR MAX1513 |
4,766 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 5 Non-Isolated Outputs | - | 3.3V, 14.7V, 15V, 25V, -10V | 500mA, 500mA, 50mA, 50mA, 25mA | 4.5V ~ 5.5V | Boost | 1.5MHz | Board(s) | MAX1513 |
|
|
MAX17077EVKIT+EVAL BOARD FOR MAX17077 |
3,947 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Up with LDO | - | - | - | - | - | Boost | - | Board(s) | MAX17077 |
|

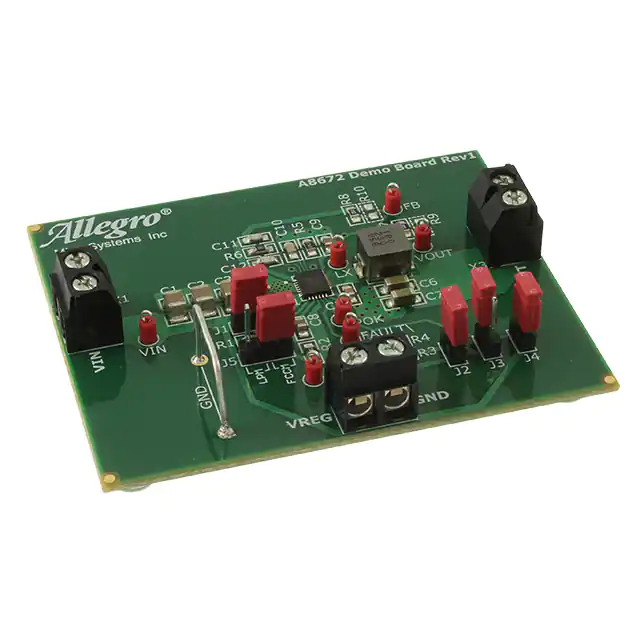

APEK8672EEG-TEVAL BOARD FOR A8672 |
4,440 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 8A | 3V ~ 16V | Buck | - | Board(s) | A8672 |
|

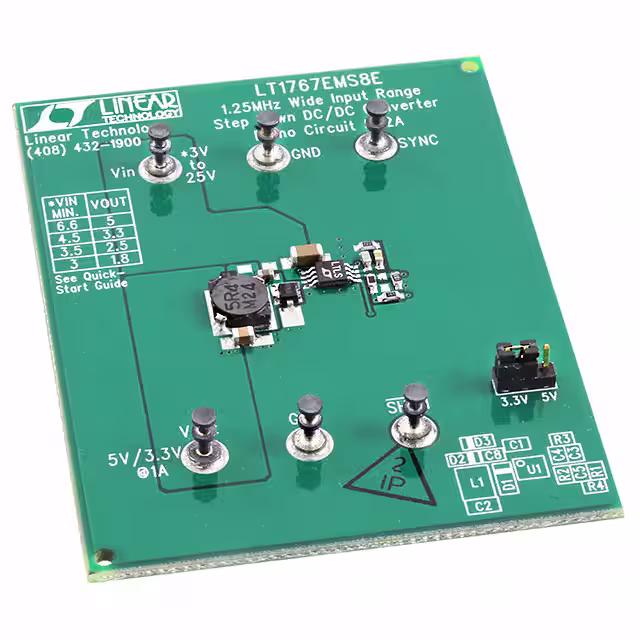

DC502AEVAL BOARD FOR LT1767 |
1,360 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 3V ~ 25V | Buck | 1.25MHz | Board(s) | LT1767 |
|

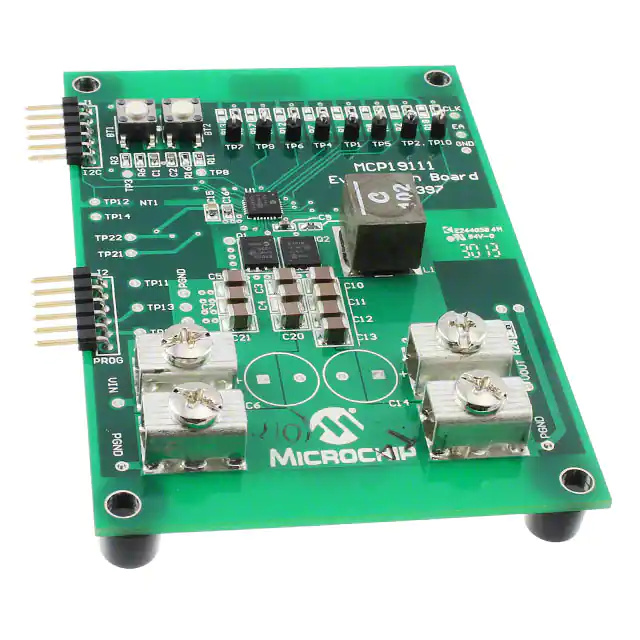

ADM00397EVAL BOARD FOR MCP19111 |
4,493 | 67.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | - | 5V ~ 12V | Buck | - | Board(s) | MCP19111 |
