DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDK-611EVAL BOARD FOR INN3672C |
1,906 | 93.75 |
|
Datasheet |
InnoSwitch™3-EP | Box | Obsolete | AC/DC Converter | 2 Isolated Outputs | 10 W | 5V, 12V | 700mA, 300mA | 90 ~ 265 VAC | Flyback | - | Board(s) | INN3672C |
|
EVL6563S-200ZRCEVAL BOARD FOR L6563 |
2,075 | 116.46 |
|
Datasheet |
- | Box | Active | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | 200 W | 400V | - | 90 ~ 265 VAC | - | 40kHz | Board(s) | L6563 |
|
DC883AEVAL BOARD FOR LT3473 |
3,659 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 25V | 80mA | 3V ~ 4.2V | Boost | 1.2MHz | Board(s) | LT3473 |
|
|
ISL78236CRSHEVAL1ZEVAL BOARD FOR ISL78236 |
3,068 | 100.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 3A, 3A | 2.85V ~ 6V | Buck | 2.5MHz | Board(s) | ISL78236 |
|

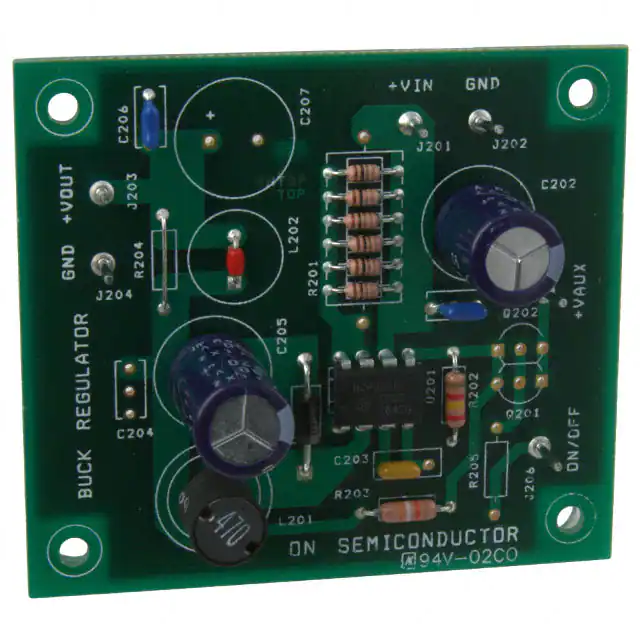

NCP3063DIPBCKEVBEVAL BOARD FOR NCP3063 |
4,051 | 100.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 7V ~ 15V | Buck | 250kHz | Board(s) | NCP3063 |
|

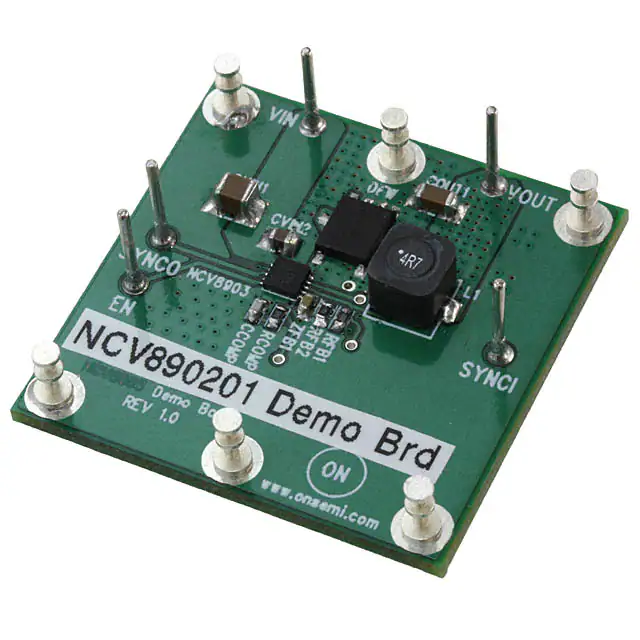

NV890201MWTXGEVBEVAL BOARD FOR NV890201 |
3,593 | 100.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 36V | Buck | 2MHz | Board(s) | NV890201 |
|
DC1023AEVAL BOARD FOR LT3505 |
4,814 | 100.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 36V | Buck | 2.2MHz | Board(s) | LT3505 |
|
|
EVAL6598-100WEVAL BOARD FOR L6563 L6598 |
3,363 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Isolated Output | 100 W | 24V | 4A | 90 ~ 264 VAC | Resonant | - | Board(s) | L6563, L6598 |
|
STEVAL-ISA015V2EVAL BOARD L6565 STC04IE170HV |
2,611 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 100 W | 24V | 4.3A | 320 ~ 480 VAC | Flyback | - | Board(s) | L6565, STC04IE170HV |
|
STEVAL-ISA041V1EVAL BOARD FOR L6565 STP12IE95F4 |
1,968 | 0.00 |
|
Datasheet |
VIPER™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 125 W | 19V | 6.6A | 240V ~ 400V | Flyback | 55kHz | Board(s) | L6565, STP12IE95F4 |
|

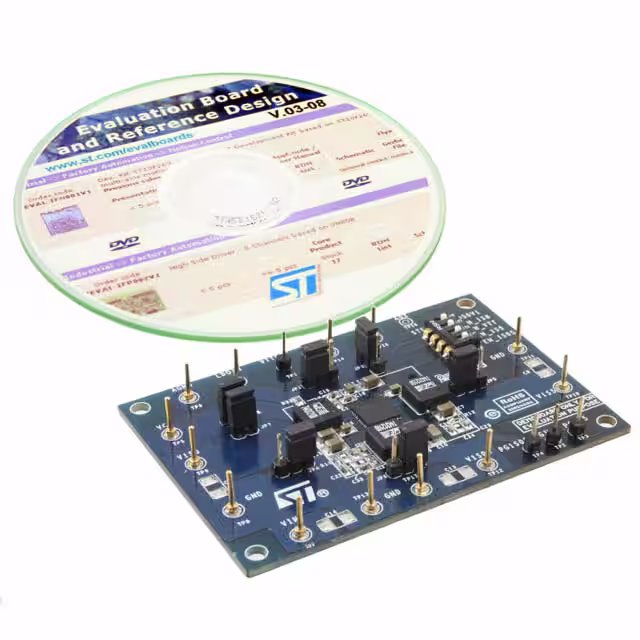

STEVAL-ISA050V1EVAL BOARD FOR PM6641 |
1,006 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Special Purpose DC/DC, DDR Memory Supply | 5 Non-Isolated Outputs | 14.7 W | 0.8V, 0.9V, 1.05V, 1.5V, 1.8V | 4A, 2.8A, 2.5A, 2A | 2.7V ~ 5.5V | Buck | 750kHz | Board(s) | PM6641 |
|

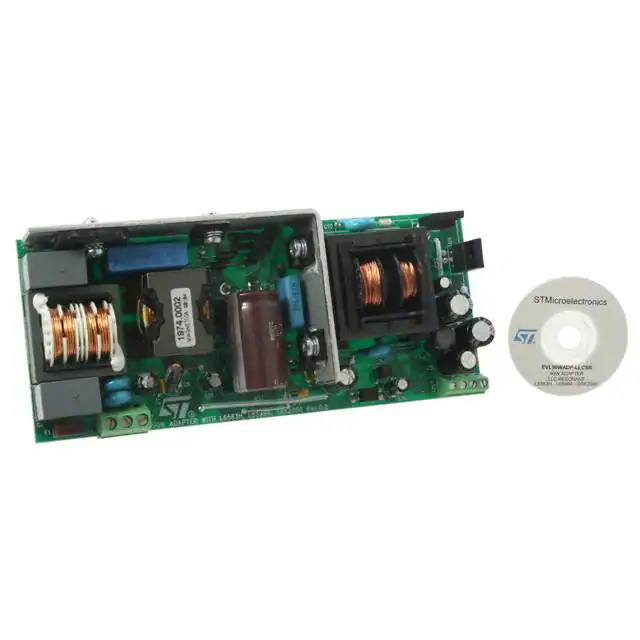

EVL90WADP-LLCSREVAL BOARD L6563H L6599A SRK2000 |
2,126 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 90 W | 19V | 4.75A | 90 ~ 264 VAC | Boost | 130kHz | Board(s) | L6563H, L6599A, SRK2000 |
|

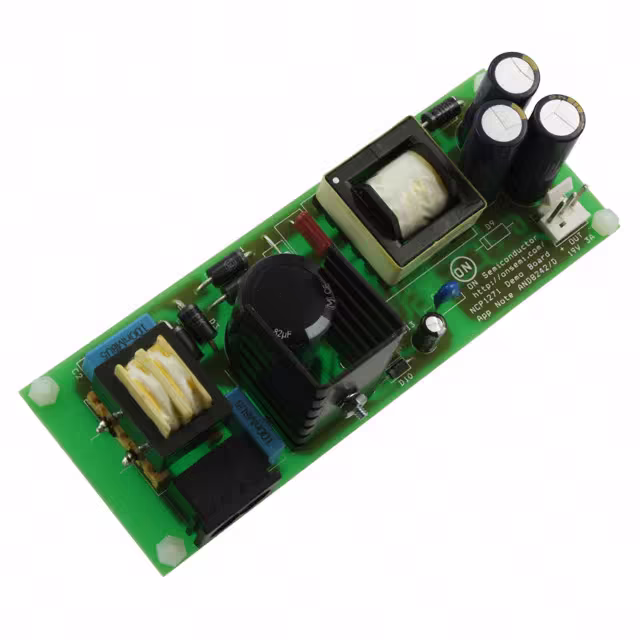

NCP1271ADAPGEVBEVAL BOARD FOR NCP1271 |
2,612 | 0.00 |
|
Datasheet |
Soft-Skip™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 3A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | NCP1271 |
|
|
NCP3163BUCKEVBEVAL BOARD FOR NCP3163 |
1,685 | 0.00 |
|
- |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2.5A | 8V ~ 24V | Buck | - | Board(s) | NCP3163 |
|
|
NCP3063SMDINVEVBEVAL BOARD FOR NCP3063 |
3,590 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 100mA | 5V | Inverting | - | Board(s) | NCP3063 |
|
|
DC1043A-BEVAL BOARD FOR LTM4601 |
3,894 | 100.05 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 30A | 5V ~ 20V | Buck | 750kHz | Board(s) | LTM4601 |
|
|
DC1118A-BEVAL BOARD FOR LTM4601 |
3,703 | 100.05 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.8V, 2.5V, 3.3V | 12A, 12A, 10A | 5V ~ 20V | Buck | 750kHz | Board(s) | LTM4601 |
|
|
DC1237A-BEVAL BOARD FOR LTC35271 |
1,830 | 100.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 5V | - | 0.7V ~ 5.5V | Boost | 1.2MHz, 2.2MHz | Board(s) | LTC3527-1 |
|

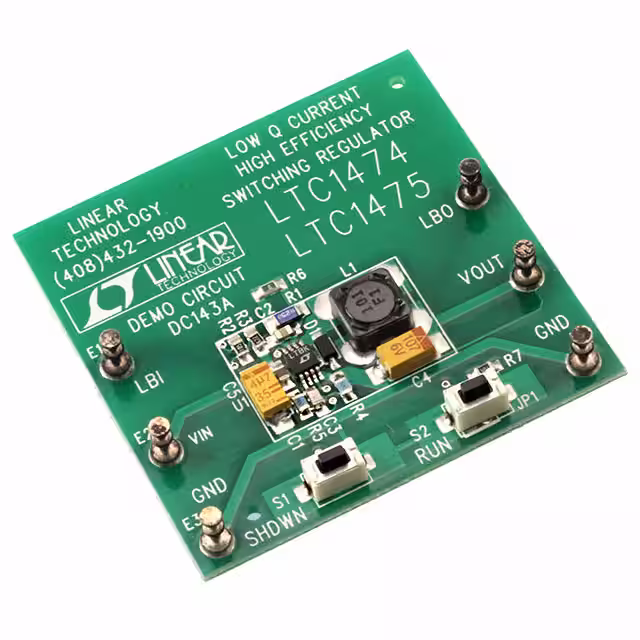

DC143A-DEVAL BOARD FOR LTC1475 |
1,045 | 100.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3.3V ~ 18V | Buck | - | Board(s) | LTC1475 |
|
|
ISL78236DUALEVAL1ZEVAL BOARD FOR ISL78236 |
2,734 | 101.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 3A, 3A | 2.85V ~ 6V | Buck | 2.5MHz | Board(s) | ISL78236 |
