DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

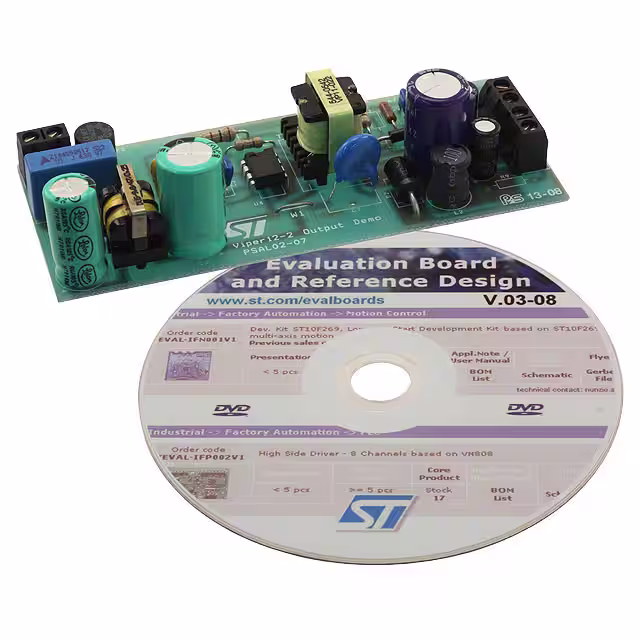

STEVAL-ISA001V1EVAL BOARD FOR VIPER12A |
2,608 | 0.00 |
|
Datasheet |
VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 6 W | 5V, 12V | 600mA, 250mA | 85 ~ 264 VAC | - | 60kHz | Board(s) | VIPer12A |
|

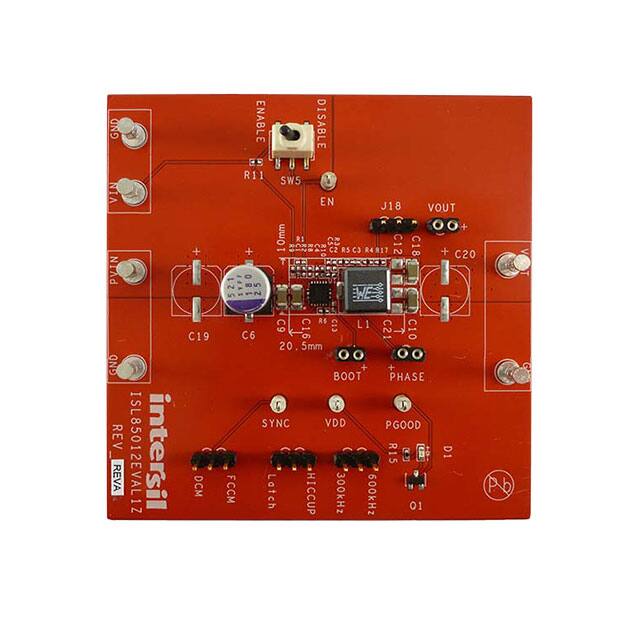

ISL85012EVAL1ZEVAL BOARD FOR ISL85012 |
2,570 | 91.25 |
|
Datasheet |
- | Bulk | Last Time Buy | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 12A | 4.5V ~ 18V | Buck | 600kHz | Board(s) | ISL85012 |
|
MAX15118EVKIT#EVAL BOARD FOR MAX15118 |
4,694 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 27 W | 1.5V | 18A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | MAX15118 |
|
STEVAL-ISA009V1EVAL BOARD FOR VIPER53 |
2,646 | 0.00 |
|
Datasheet |
VIPER™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 24 W | 12V | 2A | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | VIPer53 |
|
MAX8655EVKIT+EVAL BOARD FOR MAX8655 |
2,147 | 92.25 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 10.8V ~ 13.2V | Buck | 600kHz | Board(s) | MAX8655 |
|

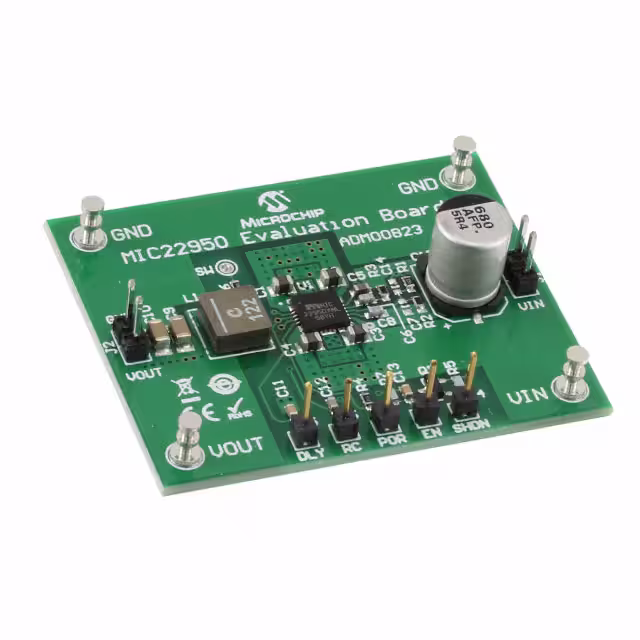

ADM00823EVAL BOARD FOR MIC22950 |
1,799 | 80.77 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 2.6V ~ 5.5V | Buck | 524kHz | Board(s) | MIC22950 |
|
|
EMEVB8900WEVAL BOARD FOR EM8900 |
1,556 | 65.87 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | - | Boost | - | Board(s) | EM8900 |
|
|
MYMGK1R820FRSR-H-EVMEVAL BOARD FOR MYMGK1R820FRSRH |
1,384 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 4.5V ~ 8V | Buck | 500kHz | Board(s) | MYMGK1R820FRSR-H |
|
|
MYTNC1R86RELA2RA-EVMEVAL BOARD FOR MYTNC1R86RELA2RA |
1,249 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V | 6A | 6V ~ 14.4V | Buck | 1MHz | Board(s) | MYTNC1R86RELA2RA |
|
|
MYTNA1R84RELA2RA-EVMEVAL BOARD FOR MYTNA1R84RELA2RA |
1,096 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 4A | 6V ~ 14.4V | Buck | 1MHz | Board(s) | MYTNA1R84RELA2RA |
|
|
MYTNC1R84RELA2RA-EVMEVAL BOARD FOR MYTNC1R84RELA2R |
4,731 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V | 4A | 6V ~ 14.4V | Buck | 1MHz | Board(s) | MYTNC1R84RELA2R |
|
|
MYTNA1R86RELA2RA-EVMEVAL BOARD FOR MYTNA1R86RELA2RA |
3,370 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 6A | 6V ~ 14.4V | Buck | 1MHz | Board(s) | MYTNA1R86RELA2RA |
|
|
MYMGK1R820ERSR-H-EVMEVAL BOARD FOR MYMGK1R820ERSRH |
1,657 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 8V ~ 15V | Buck | 500kHz | Board(s) | MYMGK1R820ERSR-H |
|

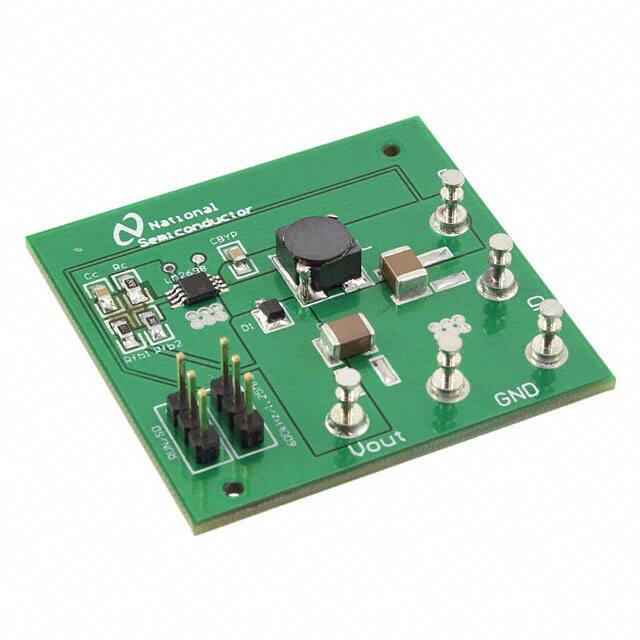

LM2698EVALEVAL BOARD FOR LM2698 |
3,637 | 90.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 400mA | 4.5V ~ 9V | Boost | - | Board(s) | LM2698 |
|

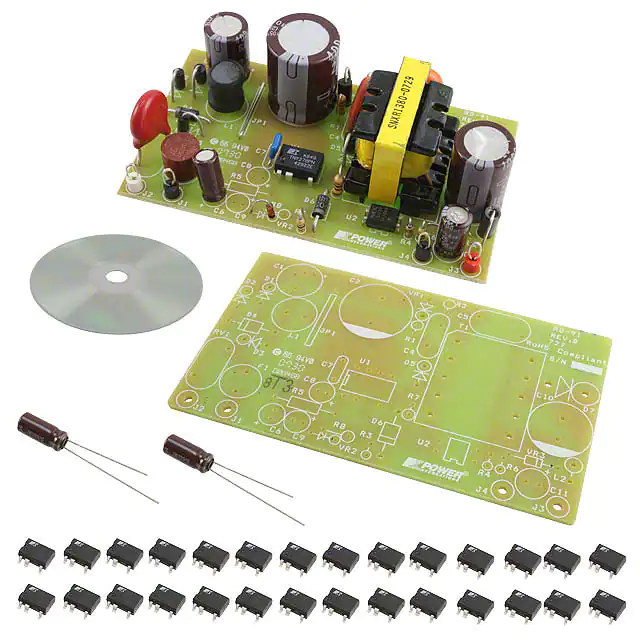

RDK-91EVAL BOARD FOR TNY274 TNY275 |
1,175 | 0.00 |
|
Datasheet |
TinySwitch®-III | Box | Obsolete | AC/DC, Primary Side | 1 Non-Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s), Accessories | TNY274, TNY275, TNY276, TNY277, TNY278, TNY279, TNY280 |
|
|
EL7532EVAL1ZEVAL BOARD FOR EL7532 |
3,903 | 93.75 |
|
Datasheet |
- | Box | Last Time Buy | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | EL7532 |
|
|
ISL8502EVAL1ZEVAL BOARD FOR ISL8502 |
2,992 | 93.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 2.5V | 2.5A. 2.5A | 4.5V ~ 14V | Buck | 500kHz | Board(s) | ISL8502 |
|
|
ISL8118EVAL1ZEVAL BOARD FOR ISL8118 |
2,252 | 93.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 25A | 4.5V ~ 20V | Buck | 300kHz | Board(s) | ISL8118 |
|
|
ISL8500EVAL2ZEVAL BOARD FOR ISL8500 |
1,285 | 93.75 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 2A | 9V ~ 14V | Inverting | 500kHz | Board(s) | ISL8500 |
|
|
ISL8126EVAL1ZEVAL BOARD FOR ISL8126 |
2,667 | 93.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 50A | 10V ~ 16V | Buck | 350kHz | Board(s) | ISL8126 |
