DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

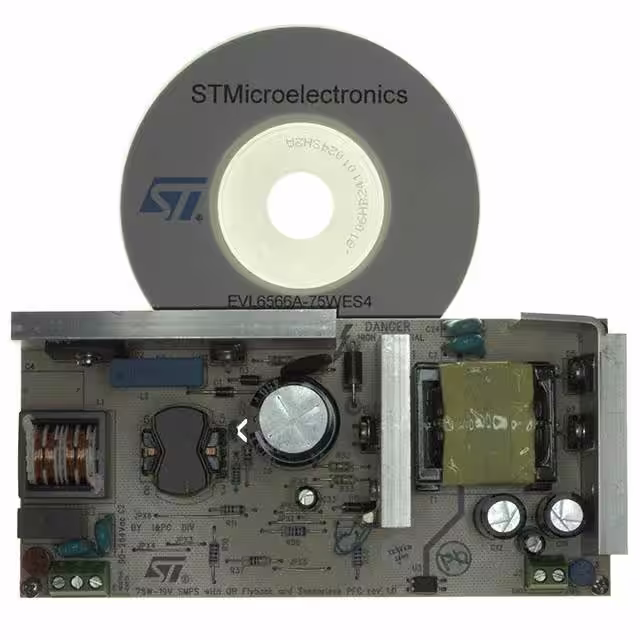

EVL6566A-75WES4EVAL BOARD L6563 L6566A TSM1014 |
3,457 | 124.78 |
|
Datasheet |
- | Box | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 75 W | 19V | 4A | 90 ~ 264 VAC | Flyback | - | Board(s) | L6563, L6566A, TSM1014 |
|

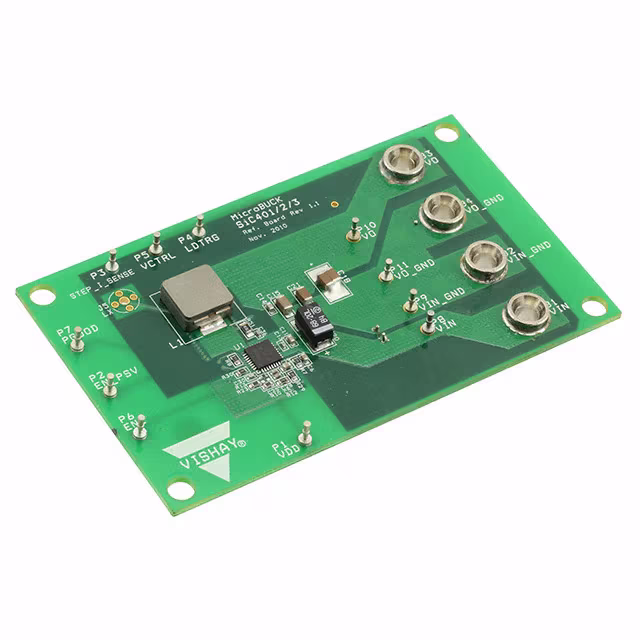

SIC401DBEVAL BOARD FOR SIC401 |
4,472 | 107.81 |
|
Datasheet |
microBUCK® | Box | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 15A, 200mA | 3V ~ 17V | Buck | - | Board(s) | SiC401 |
|
SIC402DBEVAL BOARD FOR SIC402 |
2,992 | 107.81 |
|
Datasheet |
microBUCK® | Box | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 10A, 200mA | 3V ~ 28V | Buck | - | Board(s) | SiC402 |
|
SIC403DBEVAL BOARD FOR SIC403 |
4,542 | 107.81 |
|
Datasheet |
microBUCK® | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | 6A, 200mA | 3V ~ 28V | Buck | - | Board(s) | SiC403 |
|
SIP12110DBEVAL BOARD FOR SIP12110 |
4,734 | 107.81 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 6A | 4.5V ~ 15V | Buck | 1MHz | Board(s) | SiP12110 |
|
SIC462EVBEVAL BOARD FOR SIC462 |
1,046 | 107.81 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 6A | 4.5V ~ 60V | Buck | - | Board(s) | SIC462 |
|
|
MAX77540QEVKIT#EVAL BOARD FOR MAX77540Q |
2,027 | 0.00 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX77540Q |
|
|
MAX77348EVKIT#EVAL BOARD FOR MAX77348 |
2,000 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 3.5 W | 4.5V | 1A | 2.3V ~ 5.5V | Buck-Boost | - | Board(s) | MAX77348 |
|
|
PKT-MEZDPD4506AEVAL BOARD FOR MEZDPD4506A |
2,918 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 22V | 6A | 4V ~ 45V | Buck | 600kHz | Board(s), Cable(s), Accessories | mEZDPD4506A |
|
|
EVKT-MP5470EVAL BOARD FOR MP5470 |
3,589 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.78V, 0.78V, 1.8V, 3.3V | 3A, 3A, 2A, 2A | 6.5V ~ 16V | Buck | 800kHz | Board(s), Cable(s), Accessories | MP5470 |
|
|
EVKT-MPM3593EVAL BOARD FOR MPM3593 |
4,193 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3.5V ~ 45V | Buck | 500kHz | Board(s) | MPM3593 |
|

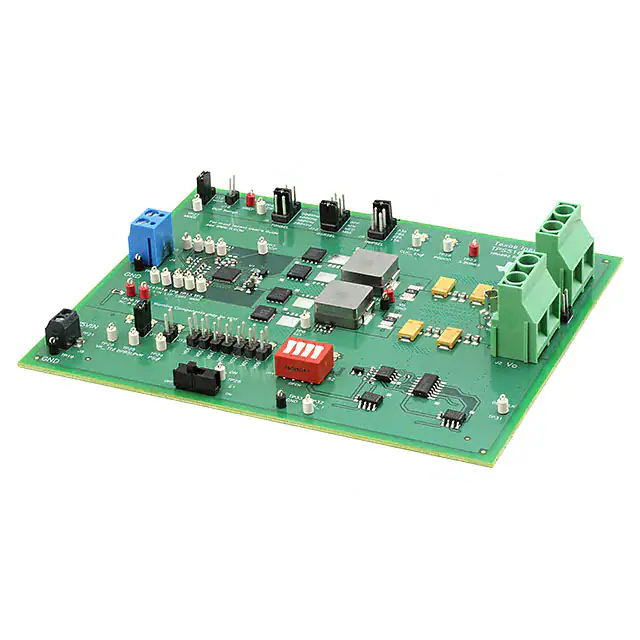

TPS51621EVM-602EVAL BOARD FOR TPS51621 |
1,827 | 101.93 |
|
Datasheet |
D-CAP™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 1.5V | 40A | 12V | Buck | 200kHz, 300kHz, 400kHz, 500kHz | Board(s) | TPS51621 |
|

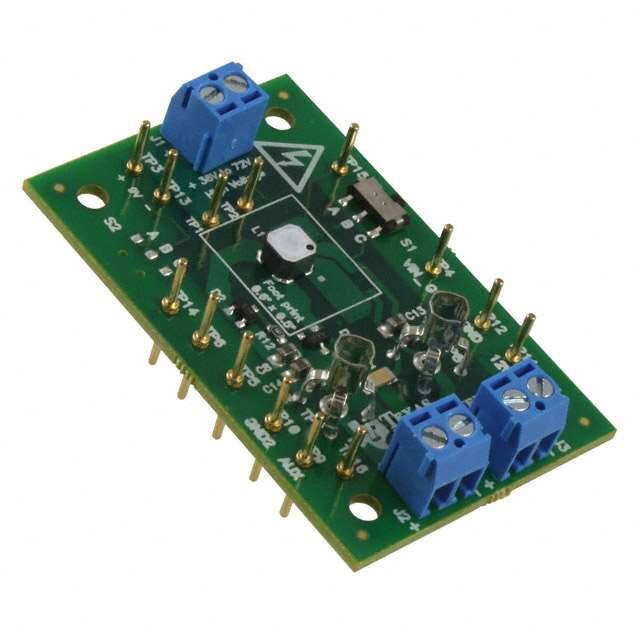

UCC25230EVM-754EVAL BOARD FOR UCC25230 |
1,197 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | 1.5 W | 12V, 12V | 65mA | 36V ~ 72V | Buck | 380kHz | Board(s) | UCC25230 |
|
UCC25230EVM-662EVAL BOARD FOR UCC25230 UCC28250 |
4,406 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 100 W | 3.3V | 30A | 36V ~ 72V | Buck | 200kHz | Board(s) | UCC25230, UCC28250 |
|
|
LM3691TL-1.2EV/NOPBEVAL BOARD FOR LM3691 |
1,441 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1A | 2.3V ~ 5.5V | Buck | 4MHz | Board(s) | LM3691 |
|

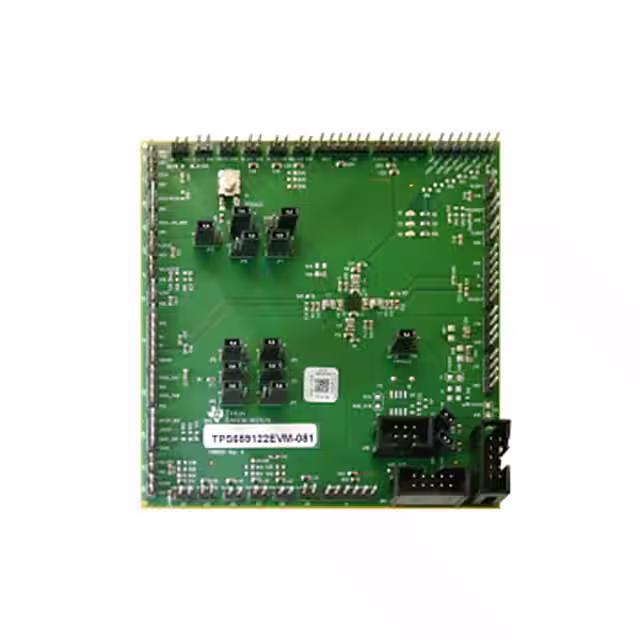

TPS659122EVM-081EVAL BOARD FOR TPS659122 |
4,987 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 14 Non-Isolated Outputs | - | - | - | 1.8V, 5V | Buck | - | Board(s) | TPS659122 |
|
PMLKBOOSTEVMBEVAL BOARD FOR LM5122 TPS55340 |
3,614 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 24V, 24V | 2A, 1.9A | 5V ~ 12V, 9V ~ 20V | Boost | - | Board(s) | LM5122, TPS55340 |
|
|
PMLKBUCKBOOSTEVMBEVAL BOARD FOR LM5118 |
2,106 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | - | - | Buck-Boost | - | Board(s) | LM5118 |
|
ISL8200AMEV1PHZEVAL BOARD FOR ISL8200AM |
3,627 | 109.50 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 6V | 10A | 3V ~ 20V | Buck | - | Board(s) | ISL8200AM |
|
|
ISL88550AEVAL1ZEVAL BOARD FOR ISL88550A |
2,692 | 108.68 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 2 Non-Isolated Outputs | 28.3 W | 1.8V, 0.9V | 15A, 1.5A | 2V ~ 25V | Buck | - | Board(s) | ISL88550A |
