DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL8502AEVAL1ZEVAL BOARD FOR ISL8502 |
2,141 | 110.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 2.5V | 2A | 4.5V ~ 14V | Buck | 500kHz ~ 1.2MHz | Board(s) | ISL8502 |
|
LP3906SQ-JXXIEVEVAL BOARD FOR LP3906 |
1,630 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1.5A, 1.5A, 300mA, 300mA | - | Buck | 2MHz | Board(s), Cable(s) | LP3906 |
|
|
MAX8687EVKIT#EVAL BOARD FOR MAX8687 |
4,725 | 0.00 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | - | - | Board(s) | MAX8687 |
|

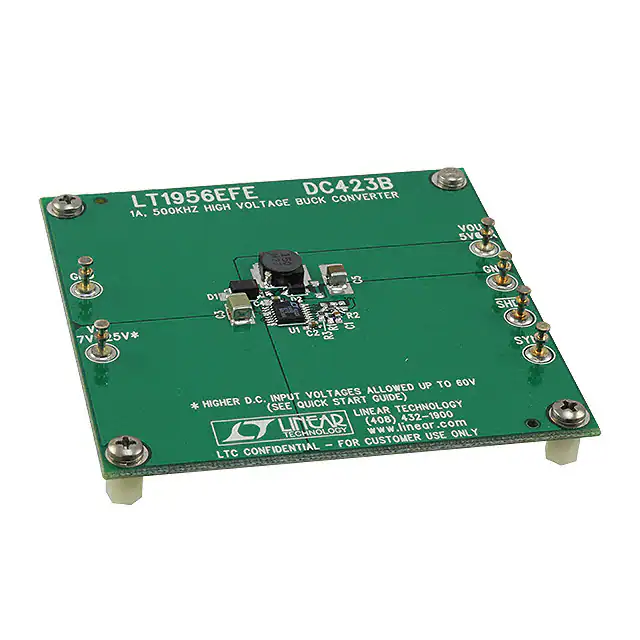

DC423BEVAL BOARD FOR LT1956 |
1,738 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 7.5V ~ 25V | Buck | 500kHz | Board(s) | LT1956 |
|

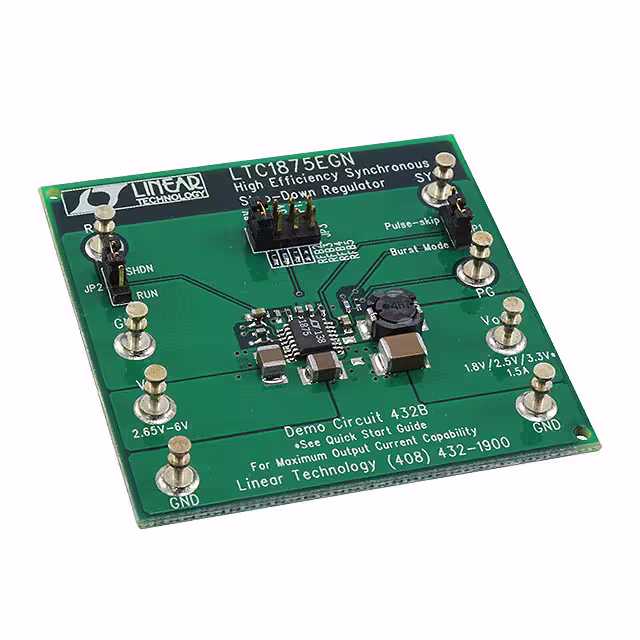

DC432BEVAL BOARD FOR LTC1875 |
1,515 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V or 3.3V | 1.5A | 2.65V ~ 6V | Buck | 550kHz | Board(s) | LTC1875 |
|

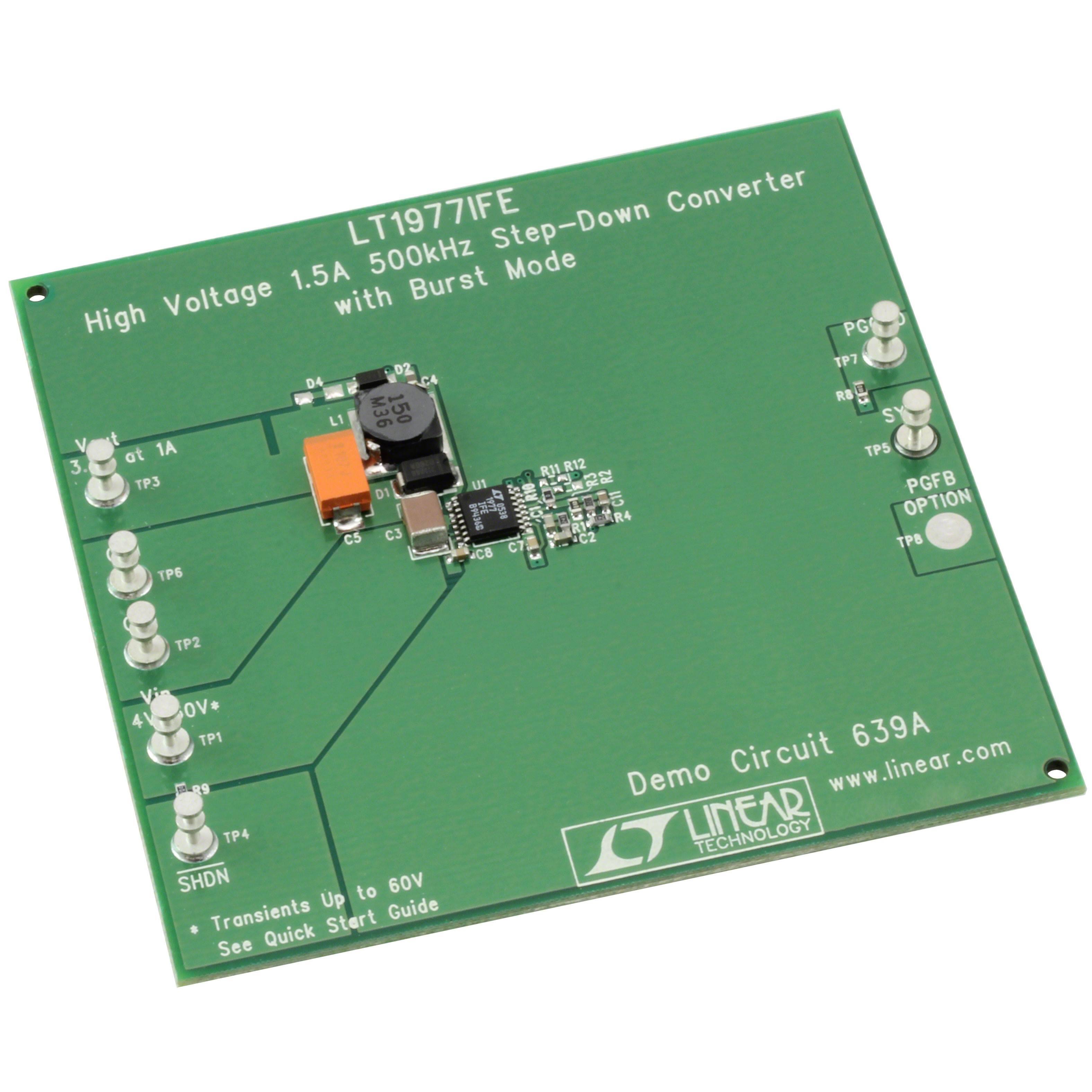

DC639AEVAL BOARD FOR LT1977 |
1,361 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4V ~ 36V | Buck | 500kHz | Board(s) | LT1977 |
|
|
REF5BR2280BZ22W1TOBO1EVAL BOARD FOR ICE5BR2280BZ |
1,259 | 110.00 |
|
Datasheet |
CoolSET™ | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 3 Isolated Outputs | 22 W | 5V, 12V, 15V | 1.4A, 300mA, 150mA | 85 ~ 264 VAC | Flyback | - | Board(s) | ICE5BR2280BZ |
|

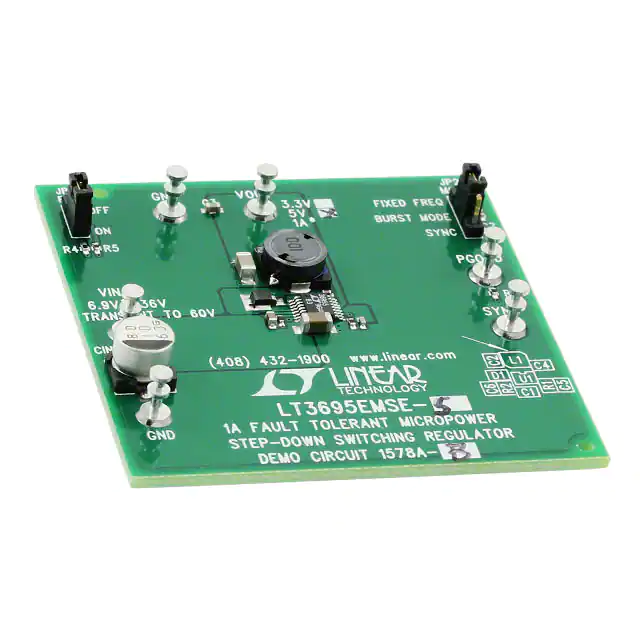

DC1578A-BEVAL BOARD FOR LT36955 |
3,655 | 110.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6.9V ~ 36V | Buck | 800kHz | Board(s) | LT3695-5 |
|

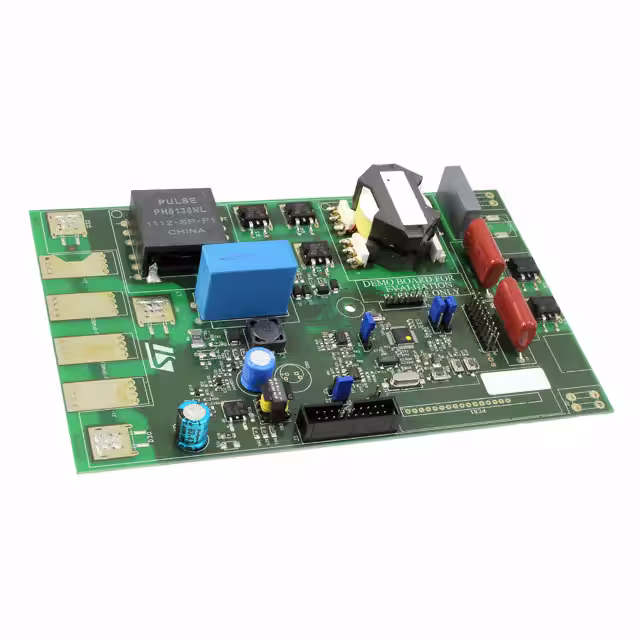

STEVAL-ISV013V1EVAL BOARD FOR STM32 |
1,215 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Special Purpose, MPPT, Solar | 1 Isolated Output | 250 W | 350V ~ 430V | - | 10V ~ 45V | Boost | - | Board(s) | STM32 |
|
|
RTKA211233DE0000BUEVAL BOARD FOR RTKA211233 |
1,297 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 24V | Buck | 1.4MHz | Board(s) | RTKA211233 |
|
|
KIT33730EKEVBEEVAL BOARD FOR MC33730 MCZ33730 |
1,839 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | - | - | - | - | 4.5V ~ 26.5V | Buck | - | Board(s) | MC33730, MCZ33730 |
|
|
DC459AEVAL BOARD FOR LT1946 LT1946A |
4,306 | 110.35 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 4 Non-Isolated Outputs | - | 8V, 12V, 23V, -8V | 400mA, 350mA, 10mA, 5mA | 3.3V, 5V | Boost, Buck | - | Board(s) | LT1946, LT1946A |
|
|
DC898A-AEVAL BOARD FOR LTC3728 |
3,014 | 100.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2V | 10A, 10A | 4.5V ~ 13.2V | Buck | 450kHz | Board(s) | LTC3728 |
|
|
DC898A-BEVAL BOARD FOR LTC3728 |
1,150 | 100.31 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 15A, 15A | 4.5V ~ 13.2V | Buck | 400kHz | Board(s) | LTC3728 |
|
|
DC059A-CEVAL BOARD FOR LTC1174 |
3,712 | 92.29 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 375mA | 4V ~ 16.5V | Buck | 200kHz | Board(s) | LTC1174 |
|
|
RTKA223012DR0060BUEVAL BOARD FOR RAA223012 |
2,109 | 0.00 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 750 mW | -5V or 5V | 150mA | 85 ~ 265 VAC | Boost, Buck | - | Board(s) | RAA223012 |
|
LM25037EVALEVAL BOARD FOR LM25037 |
2,412 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 5V | 10A | 16V ~ 32V | Buck | 250kHz | Board(s) | LM25037 |
|
|
XR77103ELBTR-G1R2-EVK G.HNEVAL BOARD FOR XR77103 |
4,730 | 0.00 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.1V, 1.5V, 3.3V | 2A, 2A, 2A | 4.5V ~ 14V | Buck | 1.14MHz | Board(s) | XR77103 |
|
|
RDK-942EVAL BOARD FOR IP2726S |
3,416 | 0.00 |
|
- |
InnoSwitch™4-Pro | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 25 mW | 3.3V ~ 21V | - | 90 ~ 265 VAC | Flyback | - | Board(s) | IP2726S |
|
|
RDK-962EVAL BOARD FOR LNK3773D |
1,891 | 0.00 |
|
- |
- | Bulk | Active | AC/DC Converter | 2 Non-Isolated Outputs | 12 W | 5V, 12V | 1.4A, 420mA | 90 ~ 265 VAC | - | - | Board(s) | LNK3773D |
