DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADP5071RE-EVALZEVAL BOARD FOR ADP5071 |
3,607 | 57.68 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | ±15V | - | 3V ~ 5.5V | Boost | - | Board(s) | ADP5071 |
|

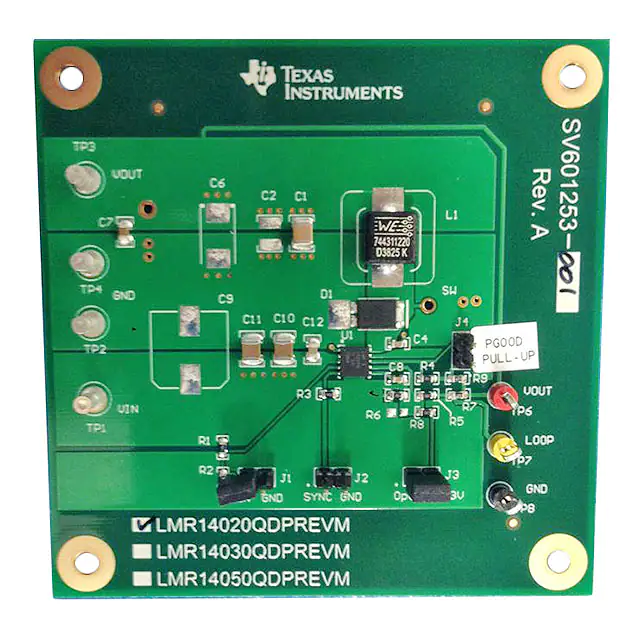

LMR14020QDPREVMEVAL BOARD FOR LMR14020Q1 |
3,986 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2A | 7V ~ 40V | Buck | 1.6MHz | Board(s) | LMR14020-Q1 |
|

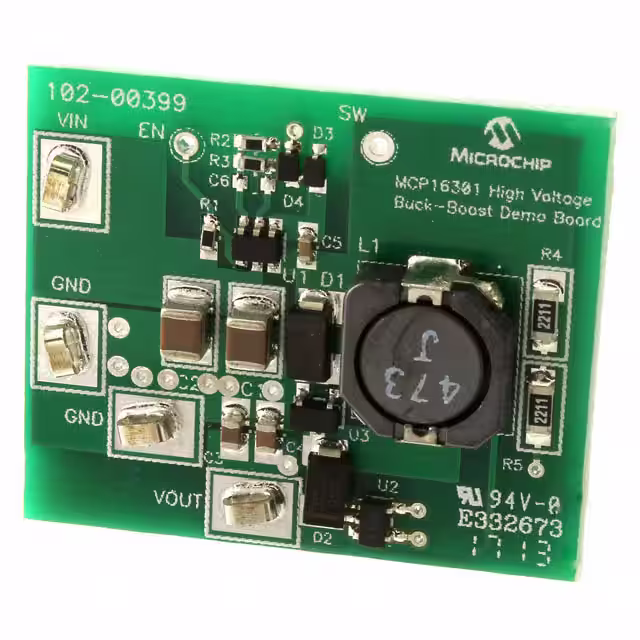

ADM00399EVAL BOARD FOR MCP16301 |
2,046 | 51.60 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | - | 5V ~ 30V | Buck-Boost | 500kHz | Board(s) | MCP16301 |
|

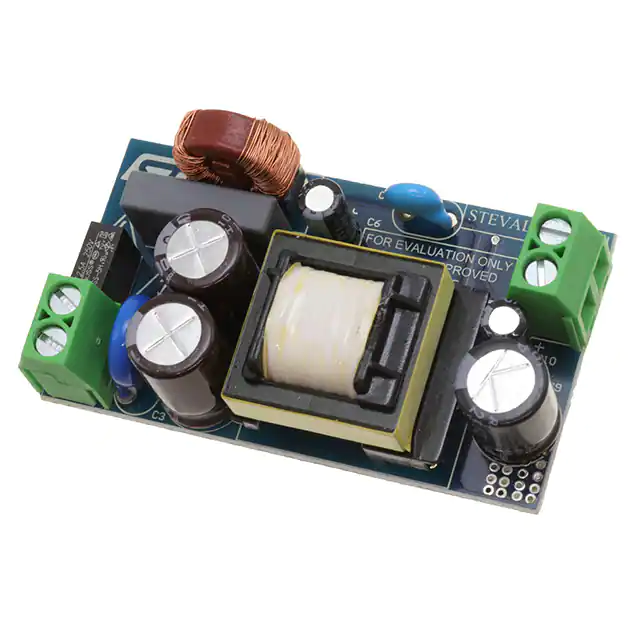

STEVAL-ISA171V1EVAL BOARD FOR VIPER35HD |
4,368 | 58.75 |
|
Datasheet |
- | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | - | 12V | 1.25A | 90 ~ 264 VAC | Resonant | 225kHz | Board(s) | VIPER35HD |
|

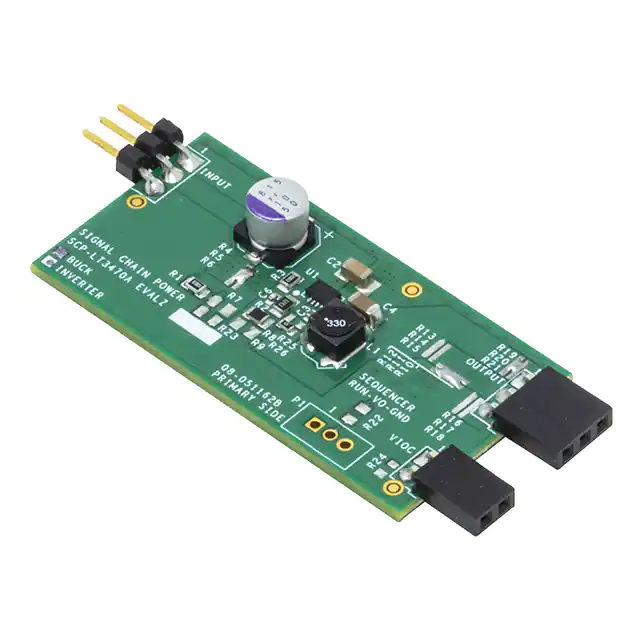

SCP-LT3470A-BEVALZEVAL BOARD FOR LT3470A |
4,286 | 58.85 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 250mA | 4V ~ 36V | Buck | - | Board(s) | LT3470A |
|
SCP-LT1956-BEVALZEVAL BOARD FOR LT1956 |
2,927 | 58.85 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 1A | 48V | Buck | 500kHz | Board(s) | LT1956 |
|

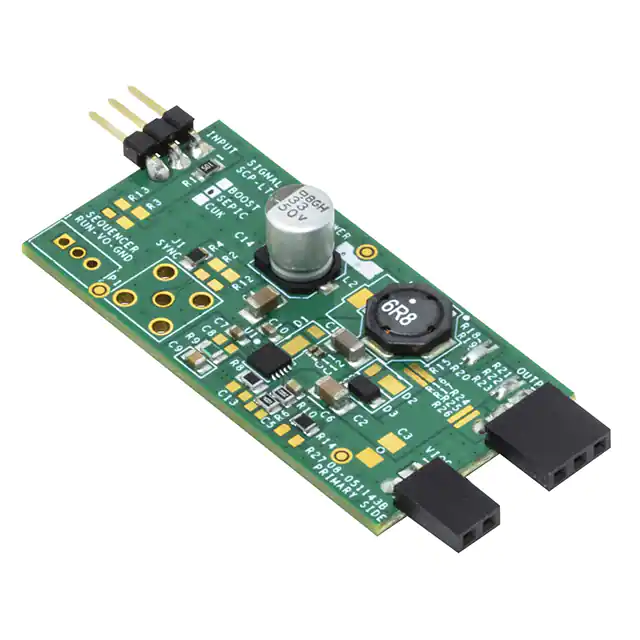

SCP-LT8362-S-EVALZEVAL BOARD FOR LT8362 |
3,501 | 58.85 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2A | 2.8V ~ 60V | SEPIC | 2MHz | Board(s) | LT8362 |
|

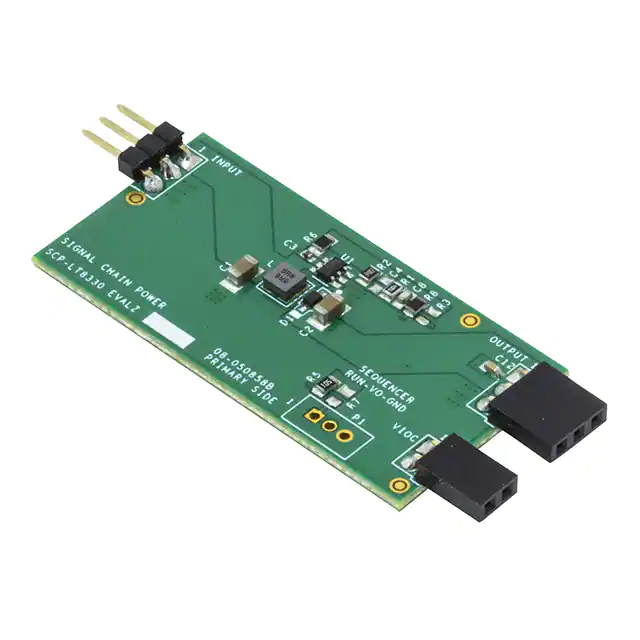

SCP-LT8330-EVALZEVAL BOARD FOR LT8330 |
3,868 | 58.85 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 135mA | 10V ~ 36V | Boost, Inverting | 2MHz | Board(s) | LT8330 |
|

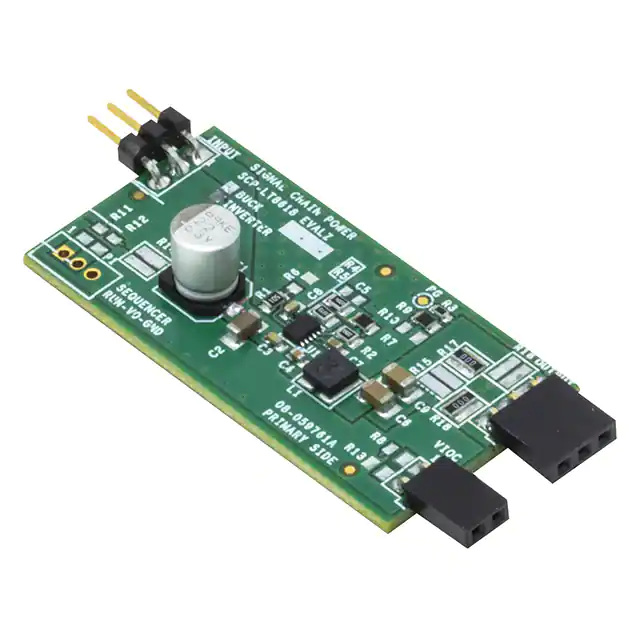

SCP-LT8618-IEVALZEVAL BOARD FOR LT8618 |
3,485 | 58.85 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 100mA | 3.4V ~ 60V | Buck, Inverting | 2MHz | Board(s) | LT8618 |
|

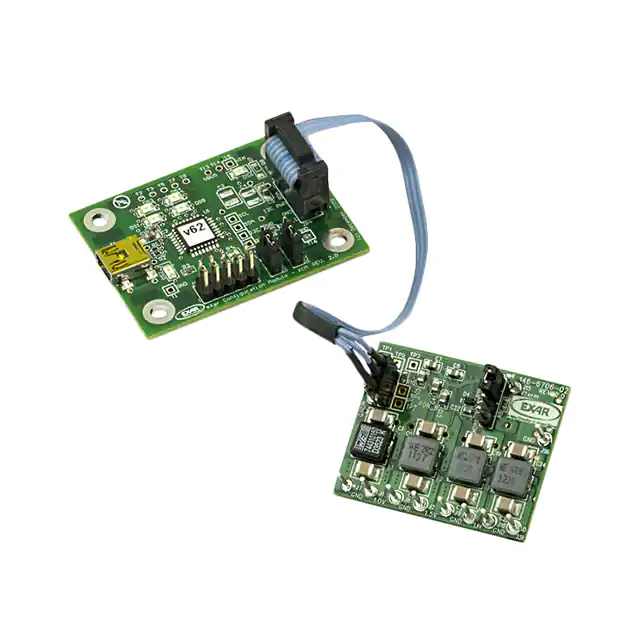

XRP7714EVB-ZYNQ-1-KITEVAL BOARD FOR XRP7714 |
1,048 | 60.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | - | - | - | - | - | Buck | - | Board(s), Cable(s) | XRP7714 |
|
TPS54314EVMEVAL BOARD FOR TPS54314 |
4,456 | 58.80 |
|
Datasheet |
SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 3V ~ 6V | Buck | 700kHz | Board(s) | TPS54314 |
|
TPSM82866AA0HEVMEVAL BOARD FOR TPSM82866AA0H |
3,228 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPSM82866AA0H |
|
TPSM560R6EVMEVAL BOARD FOR TPSM560R6 |
1,474 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 500 mW | 1V ~ 6V | 600mA | 4.2V ~ 60V | Buck | - | Board(s) | TPSM560R6 |
|

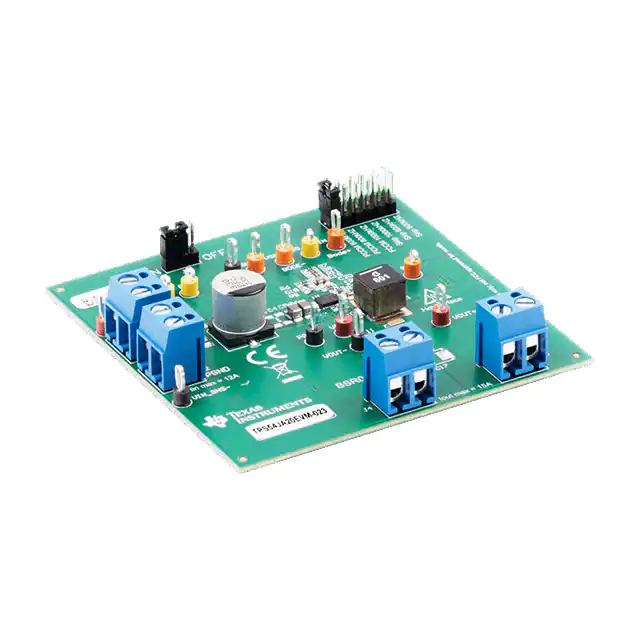

TPS54JA20EVM-023EVAL BOARD FOR TPS54JA20 |
4,802 | 58.80 |
|
Datasheet |
D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 12A | 4V ~ 16V | Buck | 800kHz | Board(s) | TPS54JA20 |
|

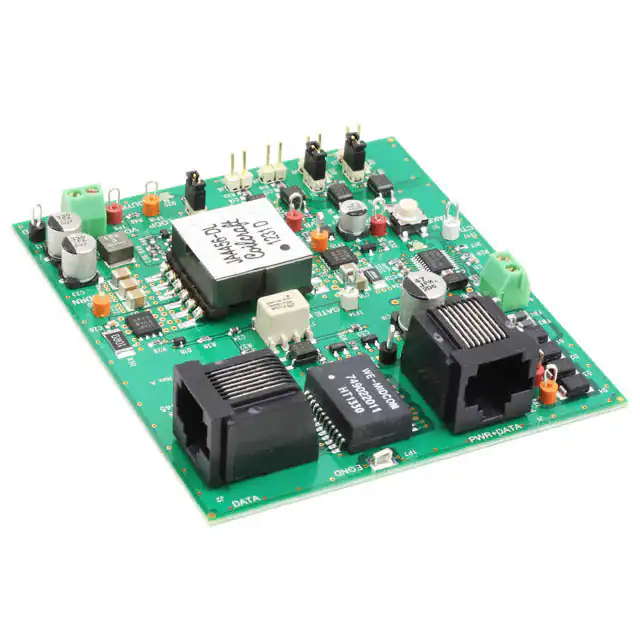

TPS23752EVM-145EVAL BOARD FOR TPS23752 |
3,210 | 58.80 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 25 W | 5V | 5A | 21.6V ~ 57V | Flyback | 250kHz | Board(s) | TPS23752 |
|

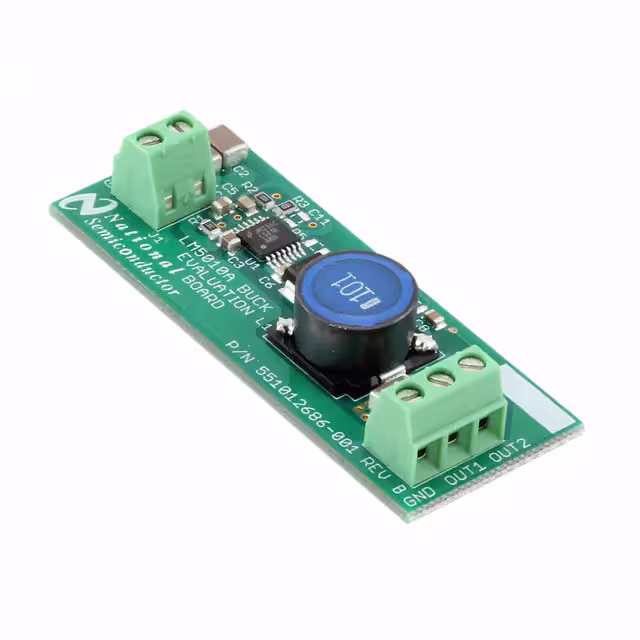

LM5010AEVAL/NOPBEVAL BOARD FOR LM5010A |
1,822 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 75V | Buck | 200kHz | Board(s) | LM5010A |
|

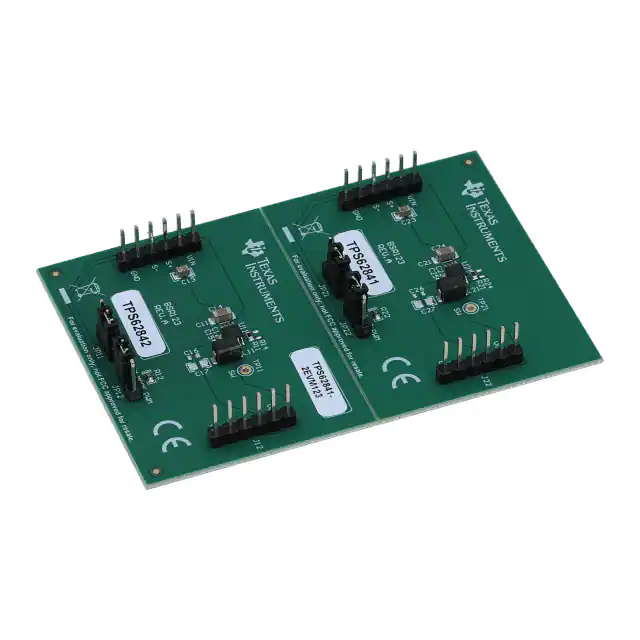

TPS62841-2EVM123EVAL BOARD FOR TPS62841 |
3,081 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 1.55V | 750mA | 1.8V ~ 6.5V | Buck | 1.8MHz | Board(s) | TPS62841 |
|

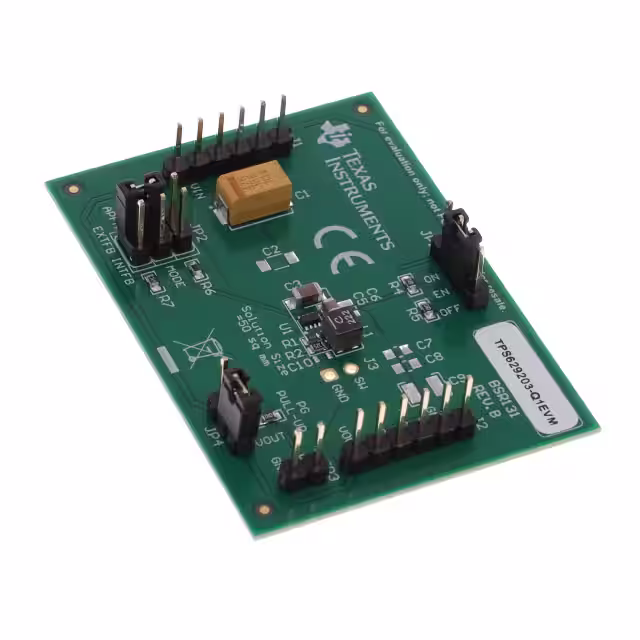

TPS629203-Q1EVMEVAL BOARD FOR TPS629203Q1 |
4,940 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5V ~ 17V | Buck | 2.5MHz | Board(s) | TPS629203-Q1 |
|

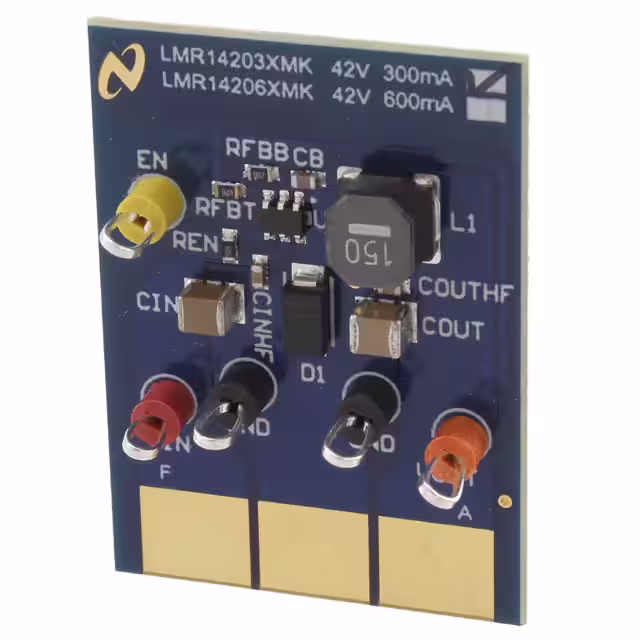

LMR14203XMKDEMO/NOPBEVAL BOARD FOR LMR14203 |
2,147 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 300mA | 4.5V ~ 42V | Buck | 1.25MHz | Board(s) | LMR14203 |
|

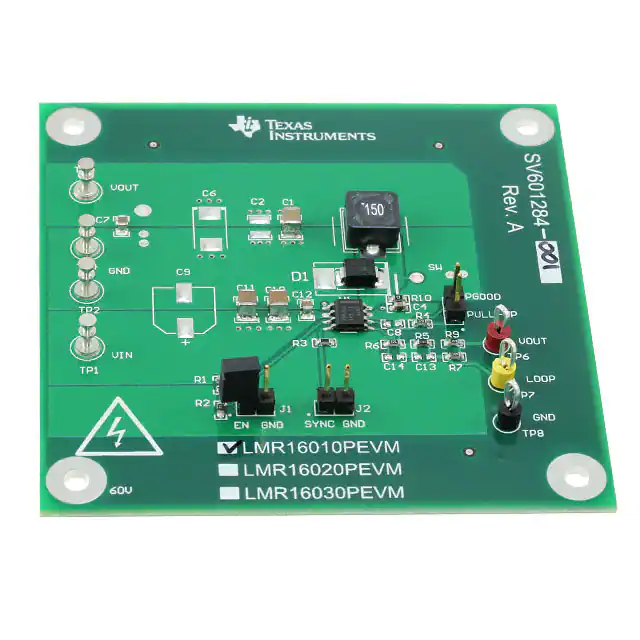

LMR16010PEVMEVAL BOARD FOR LMR16010 |
2,593 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 7V ~ 60V | Buck | 700kHz | Board(s) | LMR16010 |
