DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX17270EVKIT#EVAL BOARD FOR MAX17270 |
1,777 | 65.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 0.8V ~ 5V | 80mA | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | MAX17270 |
|

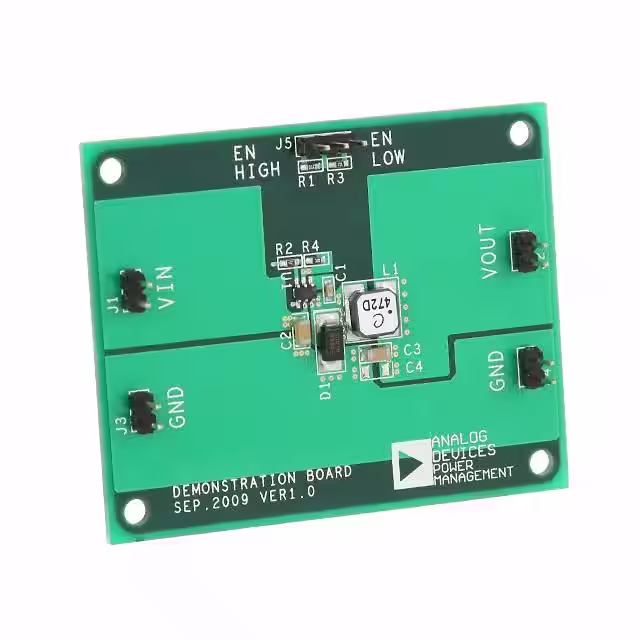

ADP2301-EVALZEVAL BOARD FOR ADP2301 |
1,541 | 70.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 3V ~ 20V | Buck | 1.4MHz | Board(s) | ADP2301 |
|
DC3051AEVAL BOARD FOR LTM4705 |
4,436 | 69.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 2.5V | 5A, 5A | 6V ~ 20V | Buck | 1MHz | Board(s) | LTM4705 |
|

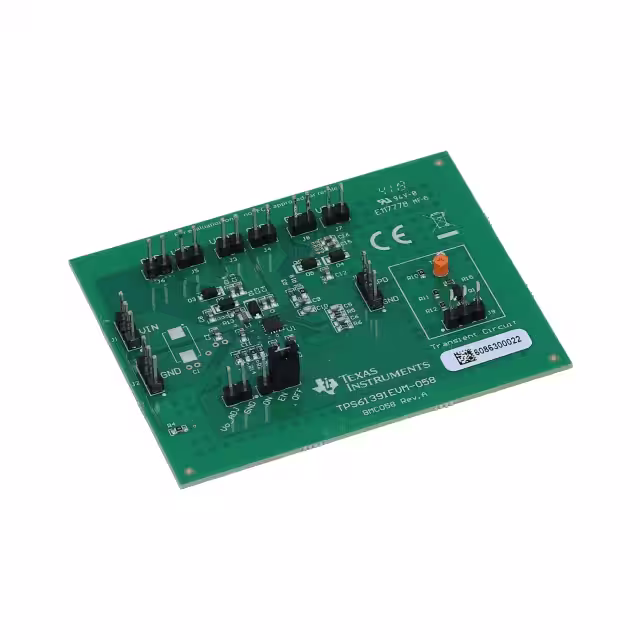

TPS61391EVM-058EVAL BOARD FOR TPS61391 |
3,938 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 20V ~ 85V | - | 2.5V ~ 5.5V | Boost | 700kHz | Board(s) | TPS61391 |
|

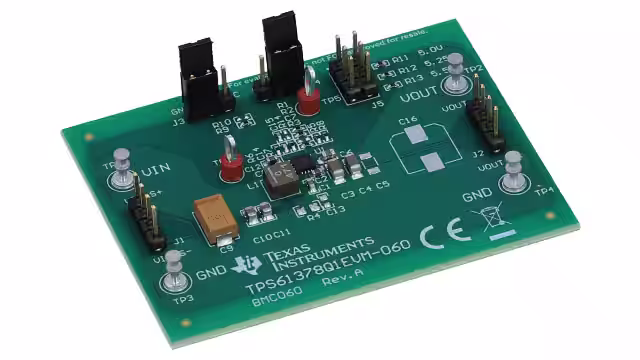

TPS61378Q1EVM-060EVAL BOARD FOR TPS61378Q1 |
3,706 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 9V | 1.7A | 3.3V ~ 6.5V | Boost | 2.2MHz | Board(s) | TPS61378-Q1 |
|

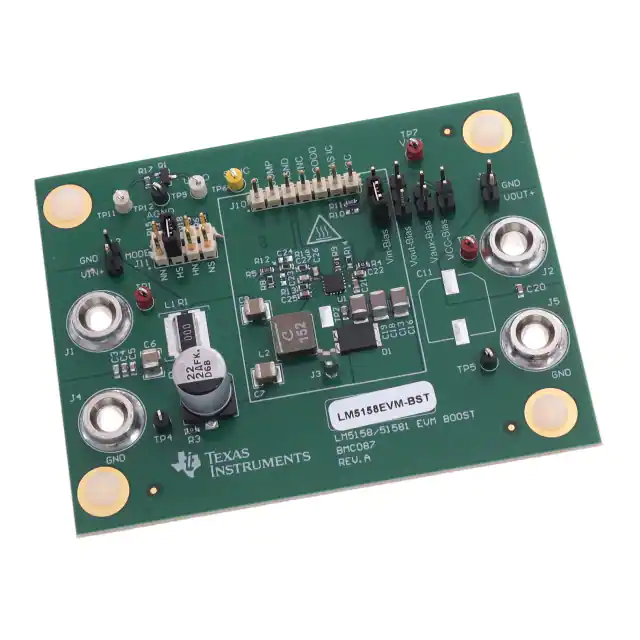

LM5158EVM-BSTEVAL BOARD FOR LM5158 |
1,715 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.2A | 3V ~ 9V | Boost | 2.1MHz | Board(s) | LM5158 |
|

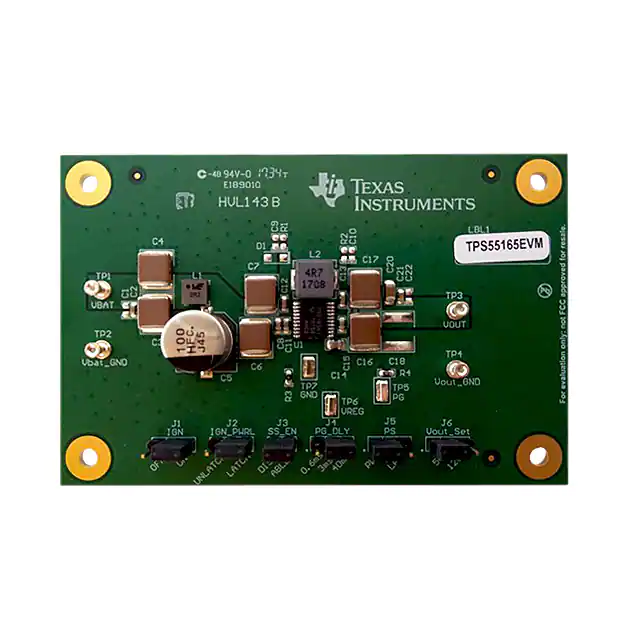

TPS55165Q1-EVMEVAL BOARD FOR TPS55165Q1 |
3,852 | 70.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 1A | - | Buck-Boost | 2MHz | Board(s) | TPS55165-Q1 |
|

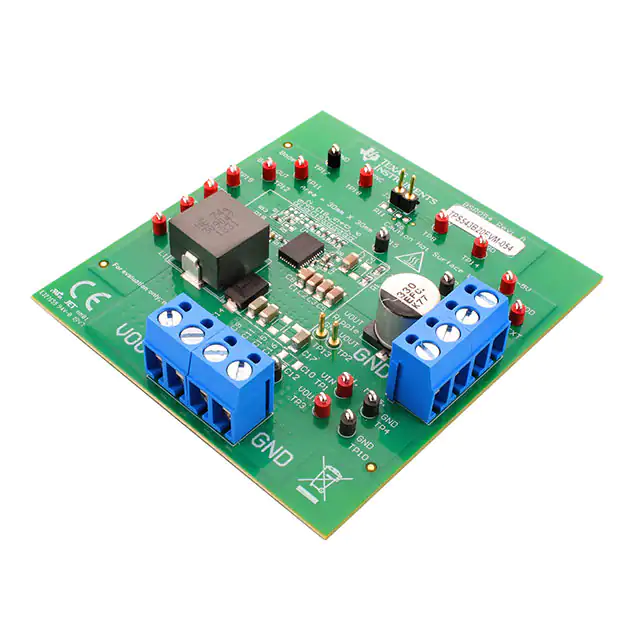

TPS61372EVM-033EVAL BOARD FOR TPS61372 |
4,950 | 70.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 600mA | 2.5V ~ 5V | Boost | - | Board(s) | TPS61372 |
|

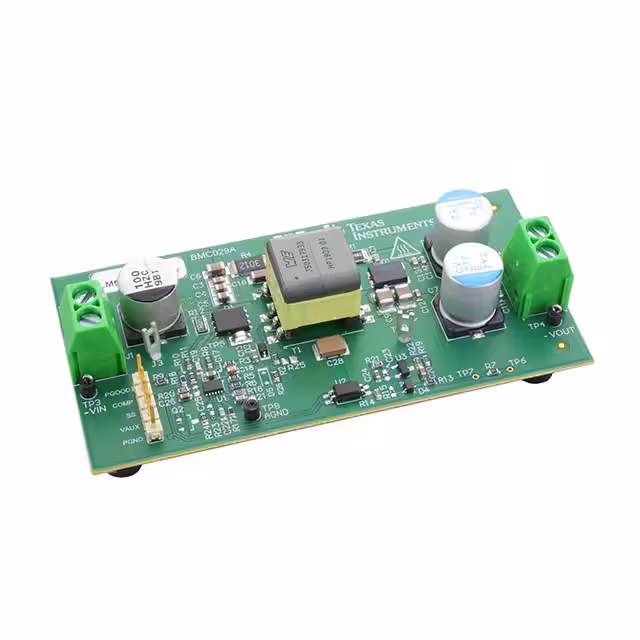

LM5155EVM-FLYEVAL BOARD FOR LM5155 |
4,196 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 4A | 18V ~ 36V | Flyback | 250kHz | Board(s) | LM5155 |
|
MAX77831WEVKIT#EVAL BOARD FOR MAX77831 |
1,918 | 66.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 18 W | 3V ~ 15V | - | 2.5V ~ 16V | Buck-Boost | 1.8MHz | Board(s) | MAX77831 |
|

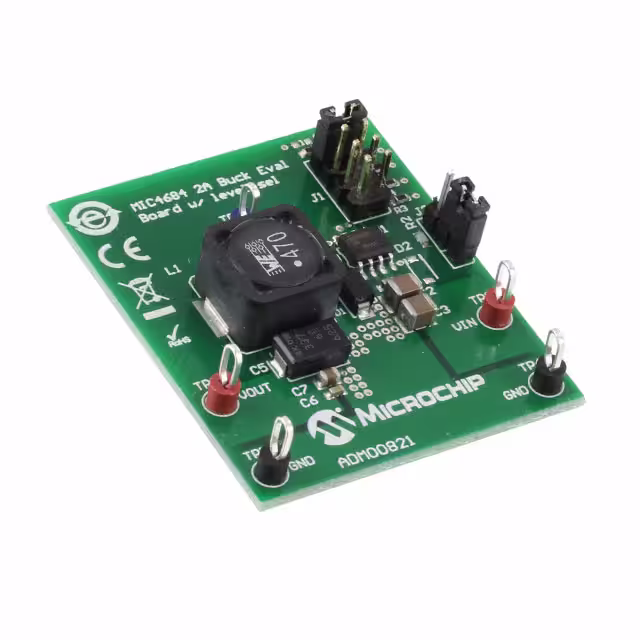

ADM00821EVAL BOARD FOR MIC4684 |
2,457 | 61.69 |
|
Datasheet |
SuperSwitcher™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V, 3.3V or 5V | 2A | 4V ~ 30V | Buck | 200kHz | Board(s) | MIC4684 |
|
MCP1650EVEVAL BOARD FOR MCP1650 MCP1651 |
4,459 | 61.69 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 5V, 12V | 1A, 400mA | - | Boost | 750kHz | Board(s) | MCP1650, MCP1651, MCP1652, MCP1653 |
|
RPX-2.5-EVM-1EVAL BOARD FOR RPX?2.5 |
1,525 | 71.59 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 2.5A | 4.5V ~ 28V | Buck | - | Board(s) | RPX‐2.5 |
|
ADP2302-EVALZEVAL BOARD FOR ADP2302 |
1,128 | 70.62 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3V ~ 20V | Buck | 700kHz | Board(s) | ADP2302 |
|
DC2458AEVAL BOARD FOR LT8608 |
4,056 | 70.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8608 |
|

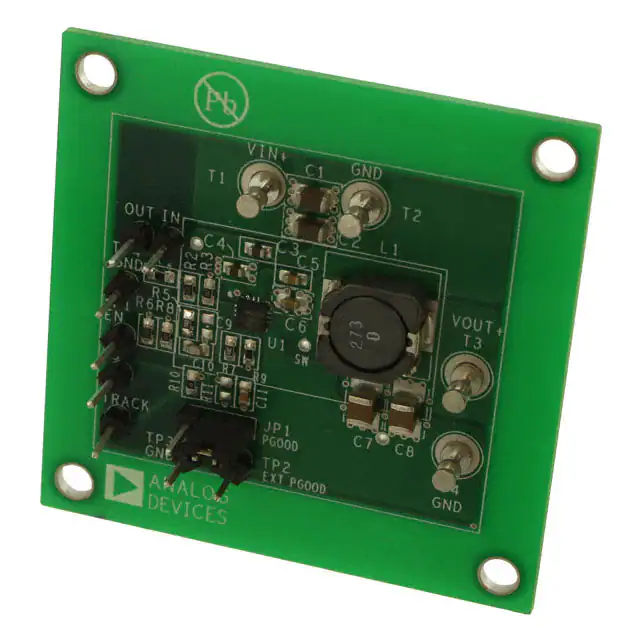

ADP2441-EVALZEVAL BOARD FOR ADP2441 |
3,968 | 70.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6V ~ 36V | Buck | 500kHz | Board(s) | ADP2441 |
|

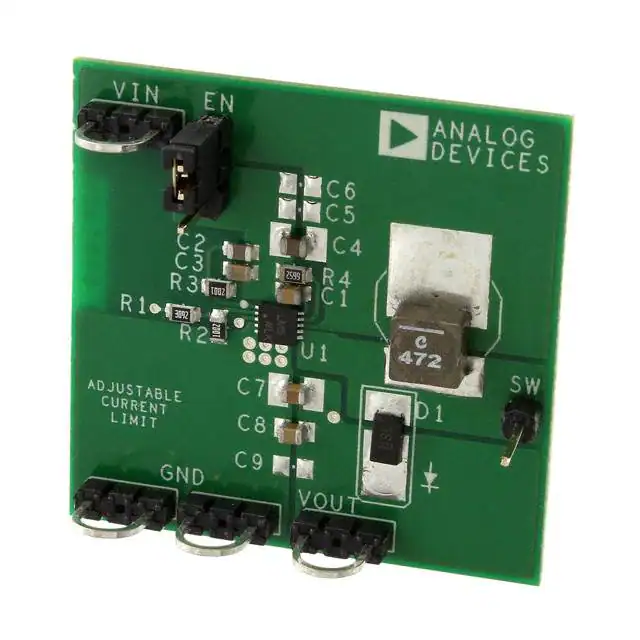

ADP1614-650-EVALZEVAL BOARD FOR ADP1614 |
1,086 | 70.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 4A | 2.5V ~ 5.5V | Boost | 650kHz | Board(s) | ADP1614 |
|

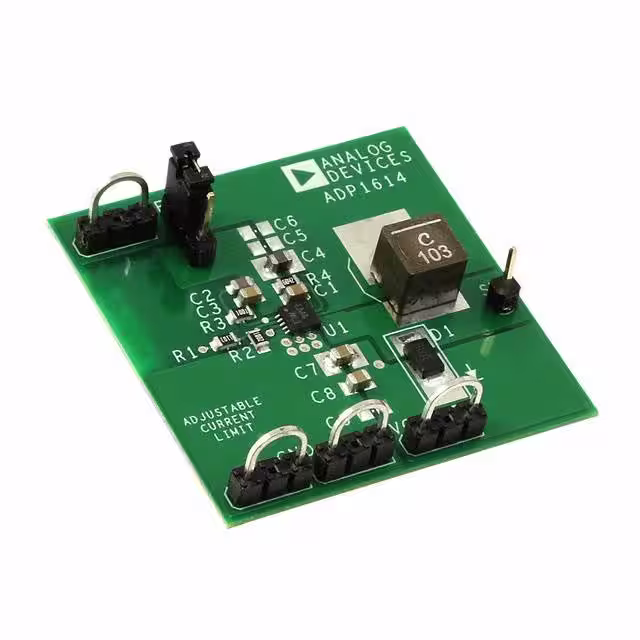

ADP1614-1.3-EVALZEVAL BOARD FOR ADP1614 |
4,526 | 70.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V | 4A | 2.5V ~ 5.5V | Boost | 1.3MHz | Board(s) | ADP1614 |
|

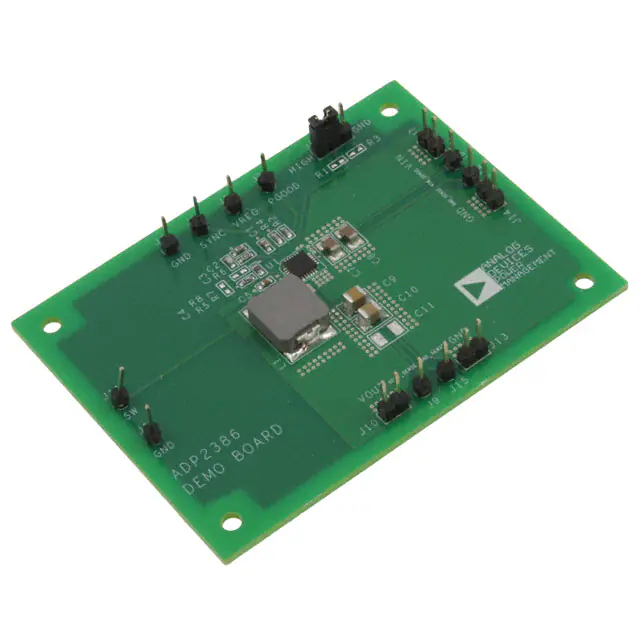

ADP2386-EVALZEVAL BOARD FOR ADP2386 |
2,374 | 70.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 4.5V ~ 20V | Buck | 600kHz | Board(s) | ADP2386 |
|

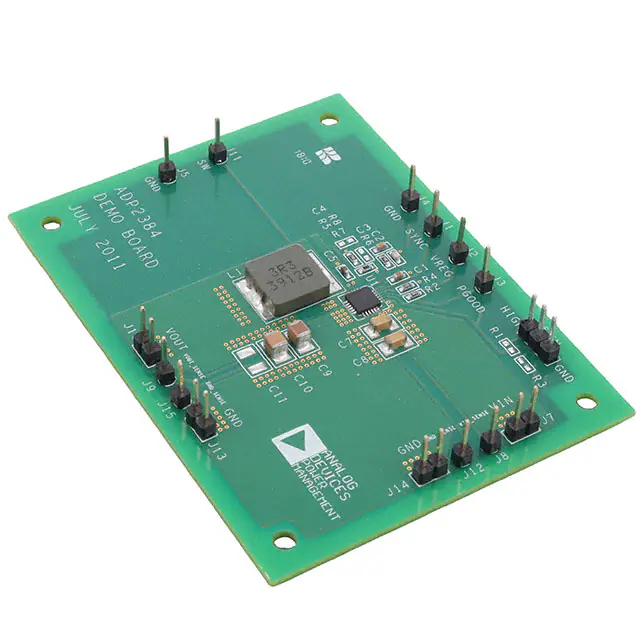

ADP2384-EVALZEVAL BOARD FOR ADP2384 |
1,290 | 87.58 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 18V | 4A | 4.5V ~ 20V | Buck | 600kHz | Board(s) | ADP2384 |
