DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

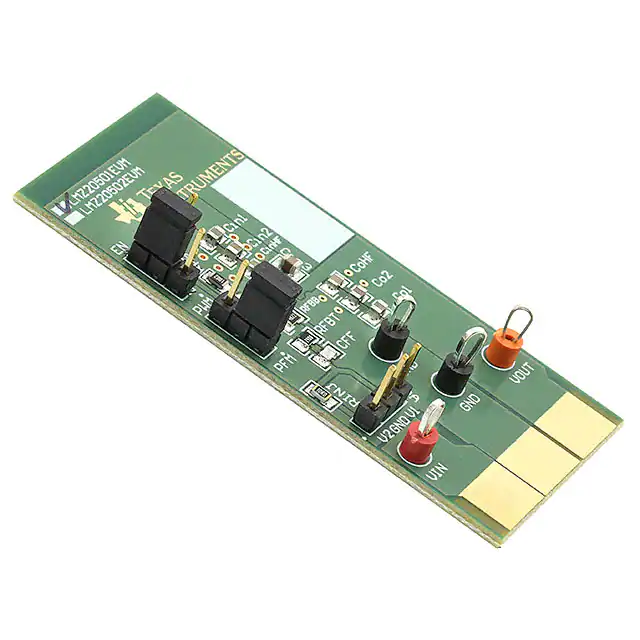

LMZ20501EVMEVAL BOARD FOR LMZ20501 |
2,512 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.7V ~ 5.5V | Buck | 3MHz | Board(s) | LMZ20501 |
|
LMR14050SEVMEVAL BOARD FOR LMR14050S |
1,462 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 5A | 7V ~ 36V | Buck | 400kHz | Board(s) | LMR14050S |
|

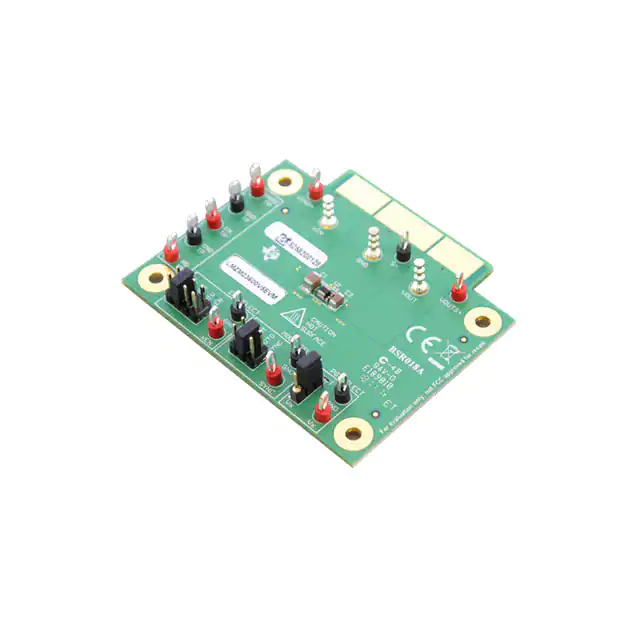

LMZM23600V5EVMEVAL BOARD FOR LMZM23600 |
2,773 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 4V ~ 36V | Buck | 750kHz | Board(s) | LMZM23600 |
|

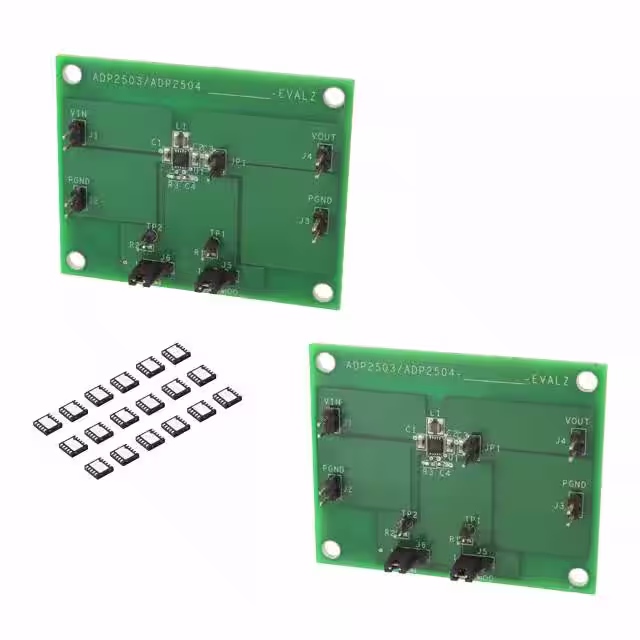

ADP2504CPZ-REDYKITEVAL BOARD FOR ADP2504 |
1,665 | 54.56 |
|
Datasheet |
RedyKit™ | Box | Active | DC/DC, Step Up or Down | - | - | - | 1A | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s), Accessories | ADP2504 |
|
ARD00698EVAL BOARD FOR MCP1663 |
1,790 | 53.84 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 32V | - | 2.4V ~ 5.5V | Boost | 500kHz | Board(s) | MCP1663 |
|
MYMGK1R820FRSR-EVMEVAL BOARD FOR MYMGK1R820FRSR |
4,482 | 62.50 |
|
Datasheet |
MGK | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 1.8V | 20A | 4.5V ~ 5.5V | - | 250kHz | Board(s) | MYMGK1R820FRSR |
|

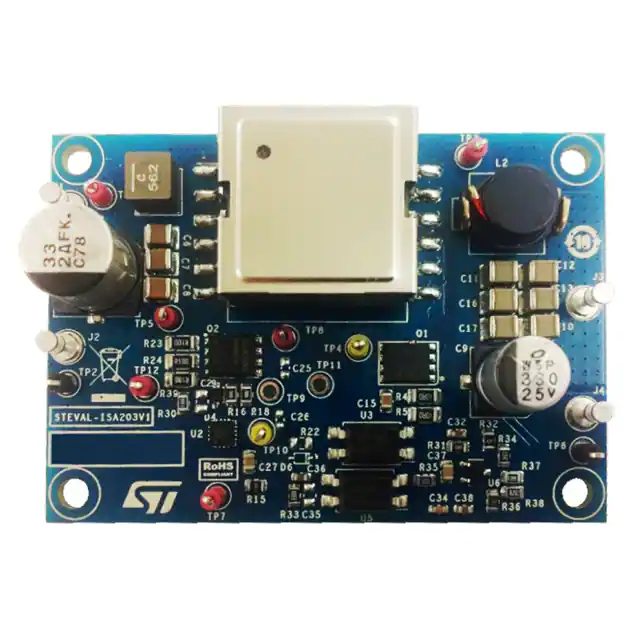

STEVAL-ISA203V1EVAL BOARD FOR PM8804 SRK1000 |
2,723 | 62.50 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | 60 W | 12V | 5A | 42V ~ 56V | Flyback | 200kHz | Board(s) | PM8804, SRK1000 |
|

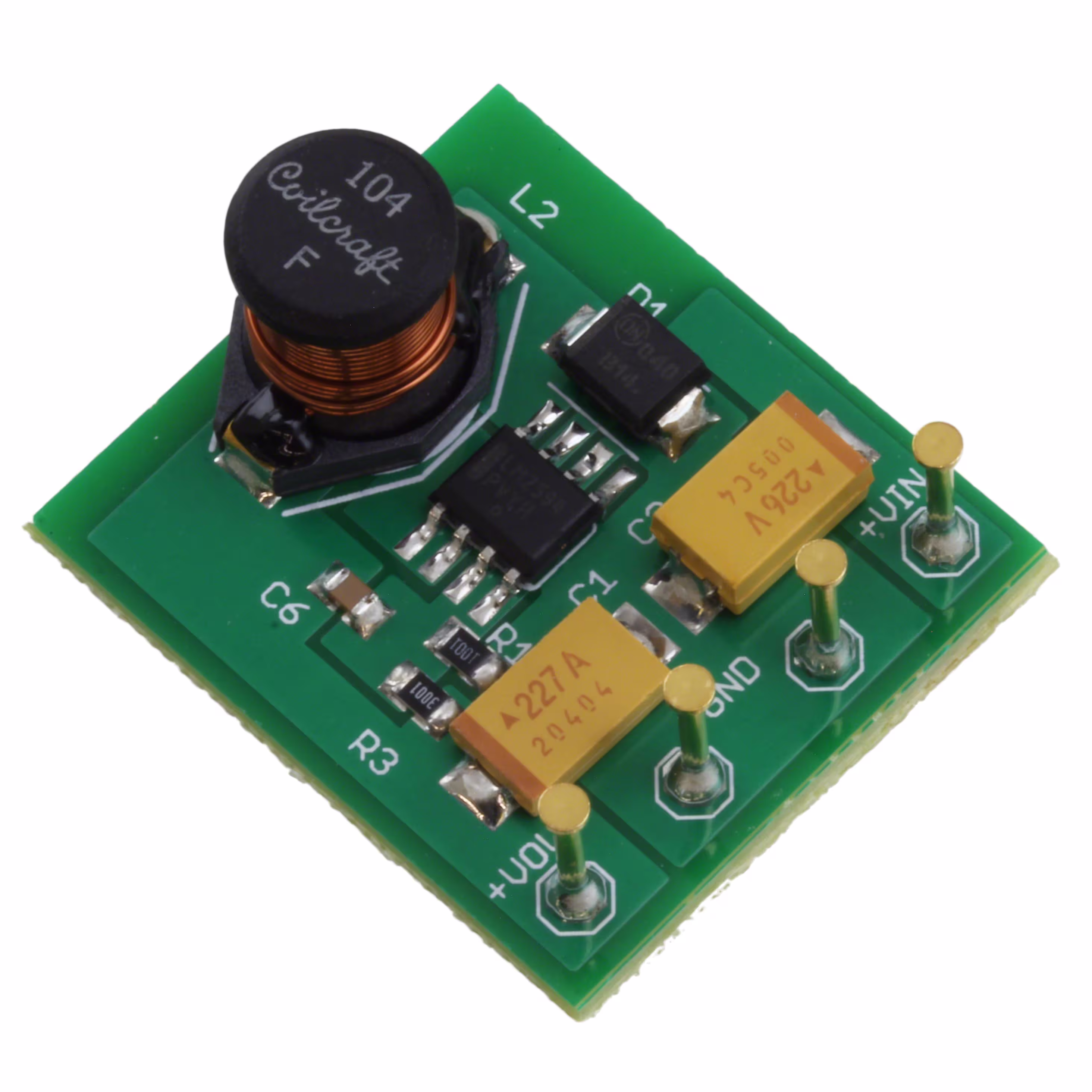

LM2594ASCBCKGEVBEVAL BOARD FOR LM2594 |
3,369 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 4.5V ~ 40V | Buck | 150kHz | Board(s) | LM2594 |
|

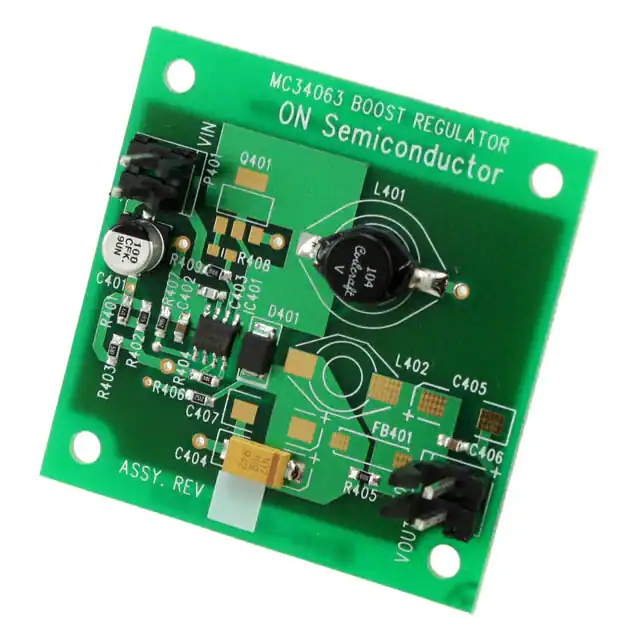

MC34063SMDBGEVBEVAL BOARD FOR MC34063 |
3,662 | 62.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 50mA | 3.3V | Boost | 100kHz | Board(s) | MC34063 |
|

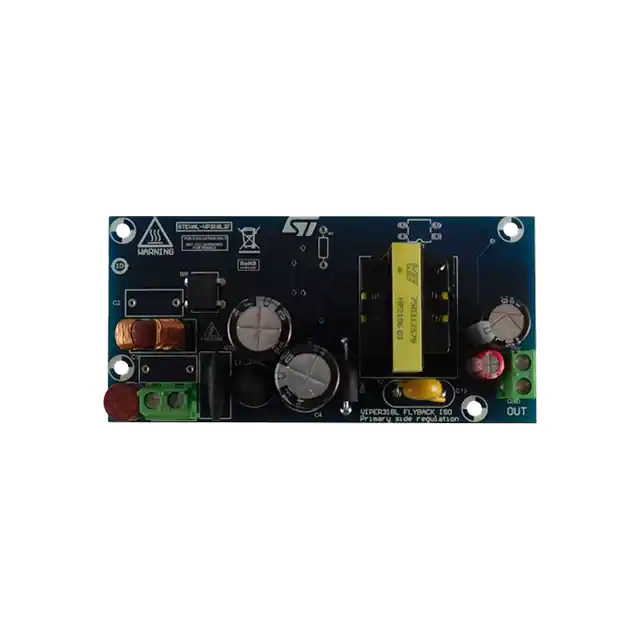

STEVAL-VP318L2FEVAL BOARD FOR VIPer318L |
1,091 | 62.50 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 18 W | 15V | 1.2A | 90 ~ 265VAC | Flyback | - | Board(s) | VIPer318L |
|
ADP5054-EVALZEVAL BOARD FOR ADP5054 |
3,008 | 62.91 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 1.8V, 3.3V | 6A, 6A, 2.5A, 2.5A | 4.5V ~ 15.5V | Buck | 600kHz | Board(s) | ADP5054 |
|
ADP5090-1-EVALZEVAL BOARD FOR ADP5090 |
3,721 | 62.91 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.5V | - | 0.38V ~ 3.3V | Boost | - | Board(s) | ADP5090 |
|
MAX77597EVKIT#EVAL BOARD FOR MAX77597 |
4,612 | 60.33 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 3.5V ~ 36V | Buck | - | Board(s) | MAX77597 |
|

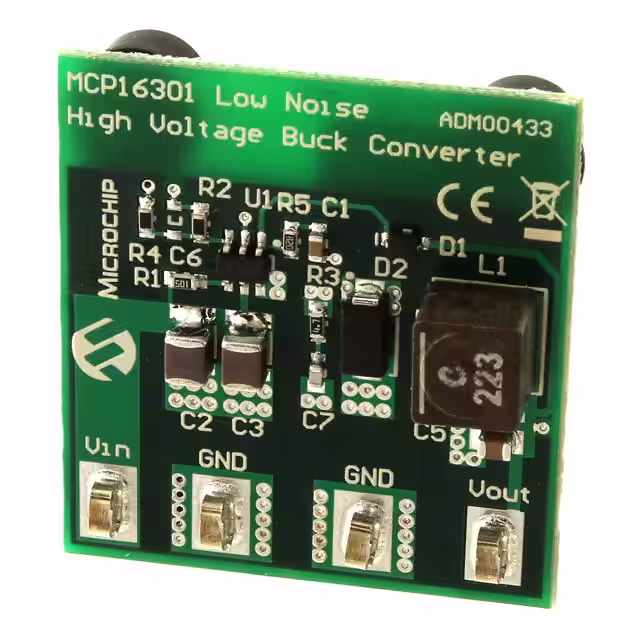

ADM00433EVAL BOARD FOR MCP16301 |
2,768 | 57.20 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 6V ~ 30V | Buck | - | Board(s) | MCP16301 |
|
SCP-LT3483-EVALZEVAL BOARD FOR LT3483 |
2,895 | 58.85 |
|
Datasheet |
SCP | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | -15V | 40mA | 2.7V ~ 12V | Inverting | - | Board(s) | LT3483 |
|

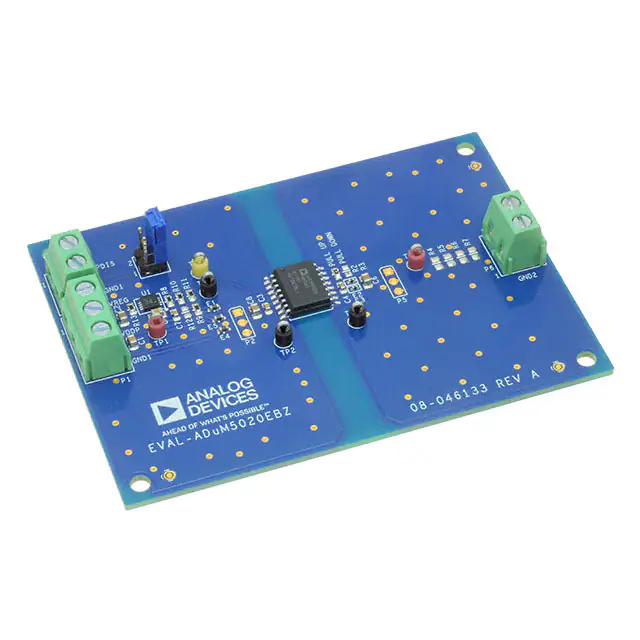

EVAL-ADUM5020EBZEVAL BOARD FOR ADUM5020 |
3,642 | 64.89 |
|
Datasheet |
IsoPower®, iCoupler® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V or 5V | 100mA | 5V | - | - | Board(s) | ADuM5020 |
|

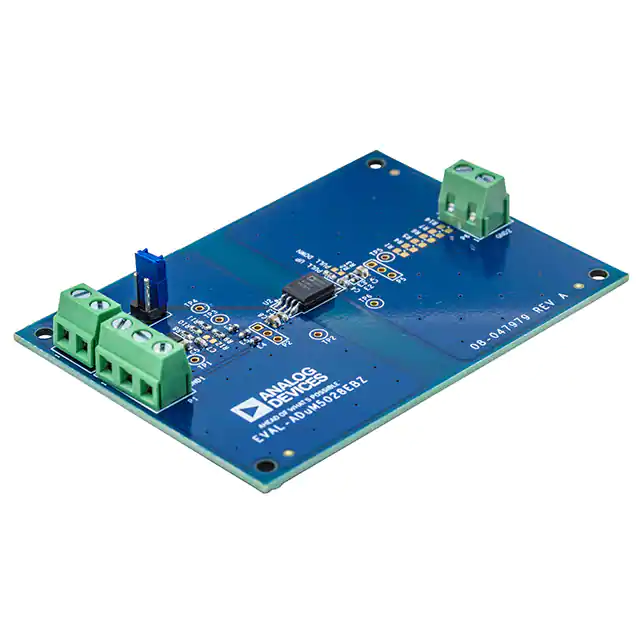

EVAL-ADUM5028EBZEVAL BOARD FOR ADUM5028 |
4,525 | 64.89 |
|
Datasheet |
IsoPower®, iCoupler® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V or 5V | 60mA | 5V | - | - | Board(s) | ADuM5028 |
|

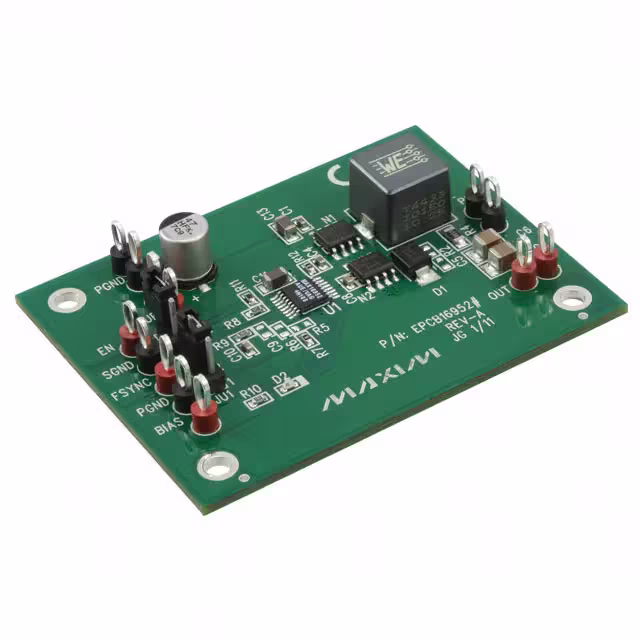

MAX16952EVKIT#EVAL BOARD FOR MAX16952 |
3,816 | 61.21 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 13V | - | 3.5V ~ 36V | Buck | - | Board(s) | MAX16952 |
|

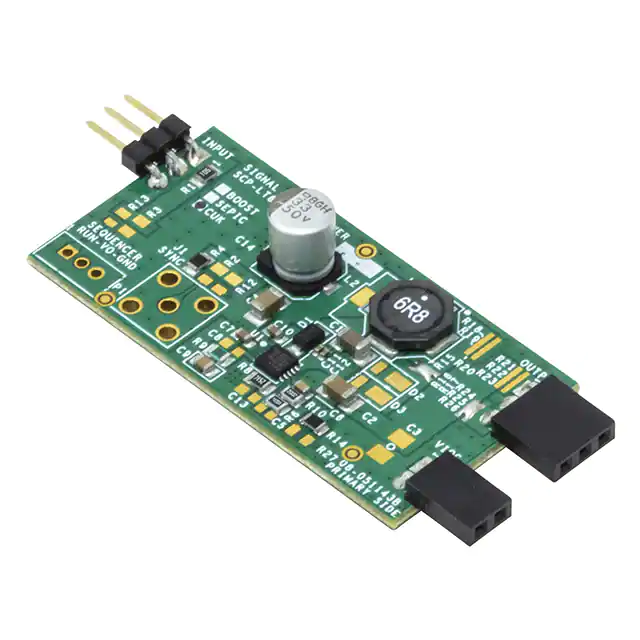

SCP-LT8362-I-EVALZEVAL BOARD FOR LT8362 |
2,701 | 66.21 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | -15V | 1A | 4.5V ~ 42V | Inverting | 2MHz | Board(s) | LT8362 |
|

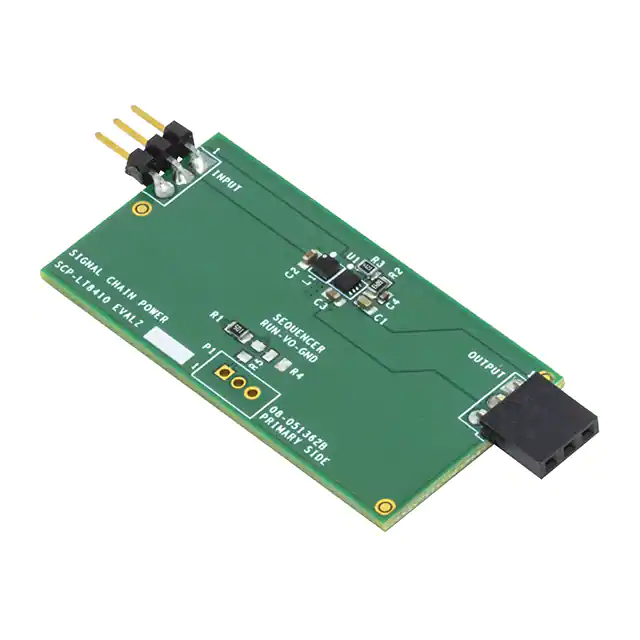

SCP-LT8410-EVALZEVAL BOARD FOR LT8410 |
2,928 | 66.21 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 16V | 1.6mA | 3V ~ 10V | Boost | - | Board(s) | LT8410 |
