DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX8686EVKIT+EVAL BOARD FOR MAX8686 |
2,437 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V ~ 5.5V | 25A | 4.5V ~ 20V | Buck | 300kHz ~ 1MHz | Board(s) | MAX8686 |
|

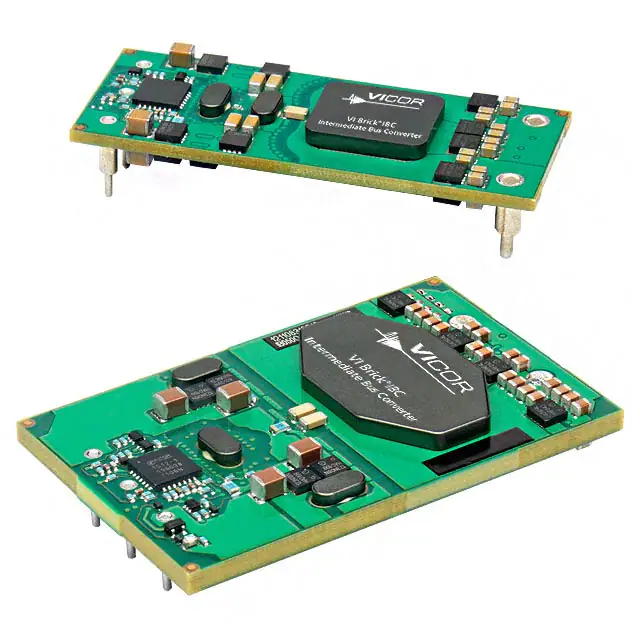

IB048E120T40N1-CBEVAL BOARD FOR IB048E120T40N1 |
3,192 | 0.00 |
|
Datasheet |
VI Brick® IBC | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 500 W | 12V | 40A | 38V ~ 55V | Buck | 1MHz | Board(s) | IB048E120T40N1 |
|

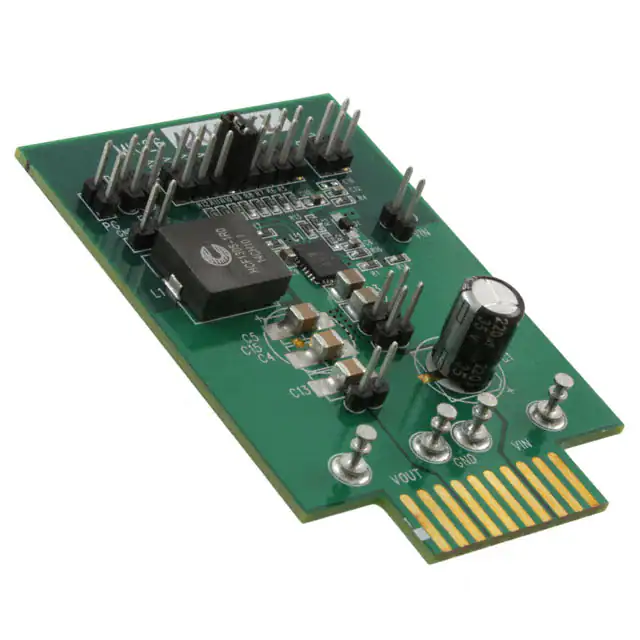

MIC261201YJL-EVEVAL BOARD FOR MIC261201 |
3,652 | 0.00 |
|
Datasheet |
Hyper Speed Control®, SuperSwitcher II™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 12A | 5.5V ~ 28V | Buck | 600kHz | Board(s) | MIC261201 |
|

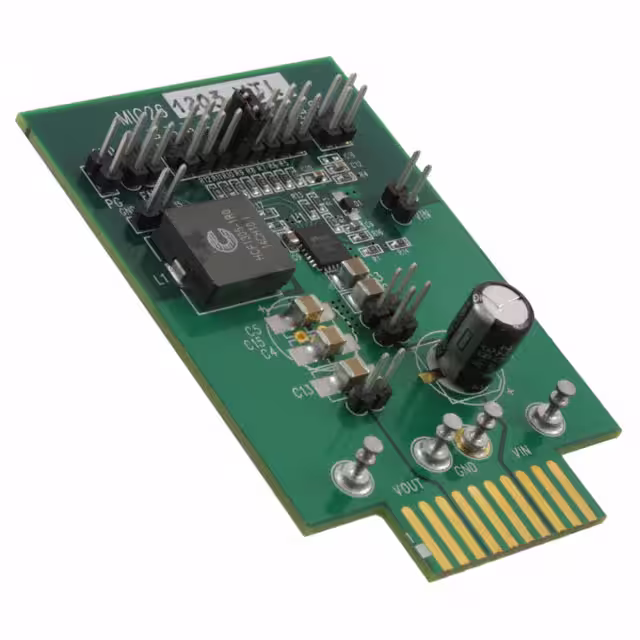

MIC261203YJL-EVEVAL BOARD FOR MIC261203 |
3,681 | 0.00 |
|
Datasheet |
HyperLight Load®, SuperSwitcher IIG™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | - | 5V | 12A | 5.5V ~ 28V | Buck | 600kHz | Board(s) | MIC261203 |
|
MIC26901YJL-EVEVAL BOARD FOR MIC26901 |
2,453 | 0.00 |
|
Datasheet |
Hyper Speed Control®, SuperSwitcher II™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 9A | 5.5V ~ 28V | Buck | 600kHz | Board(s) | MIC26901 |
|

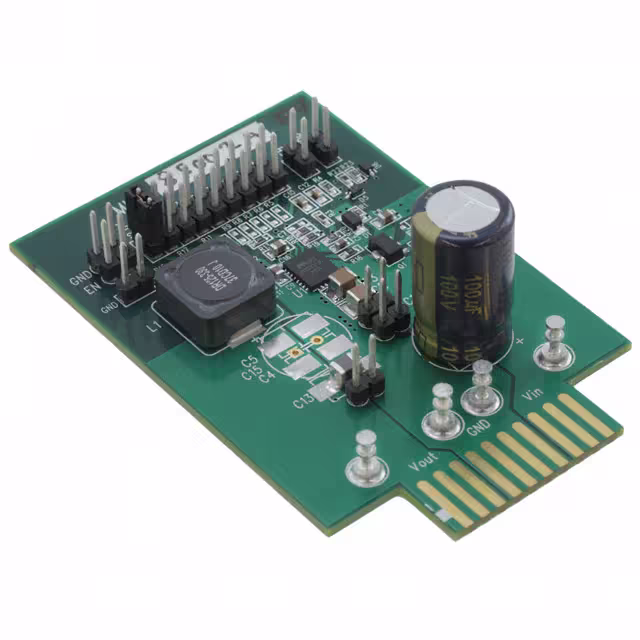

MIC28500-2A-EVEVAL BOARD FOR MIC28500 |
4,221 | 0.00 |
|
Datasheet |
Hyper Speed Control®, SuperSwitcher II™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 2A | 30V ~ 75V | Buck | 250kHz | Board(s) | MIC28500 |
|

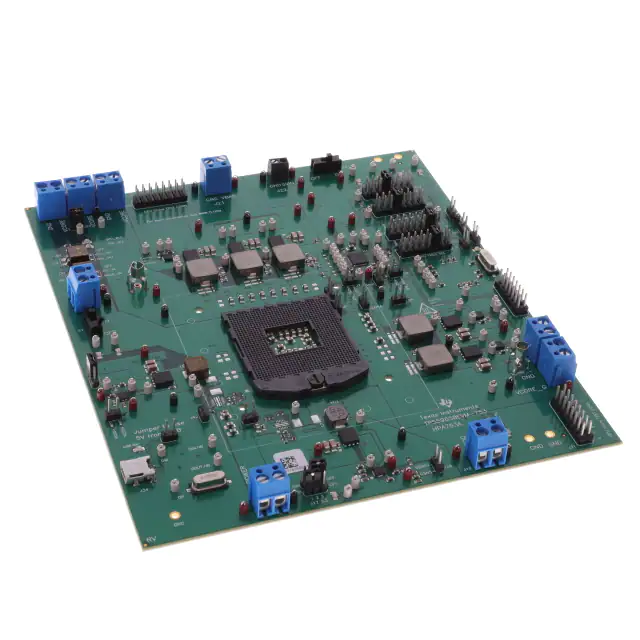

TPS59650EVM-753EVAL BOARD FOR TPS51219 TPS51916 |
4,746 | 101.93 |
|
Datasheet |
D-CAP+™ | Box | Obsolete | Special Purpose DC/DC, Intel IMVP7 SVID Power System | - | - | - | - | 9V ~ 20V | Buck | - | Board(s) | TPS51219, TPS51916, TPS59650, TPS70102 |
|

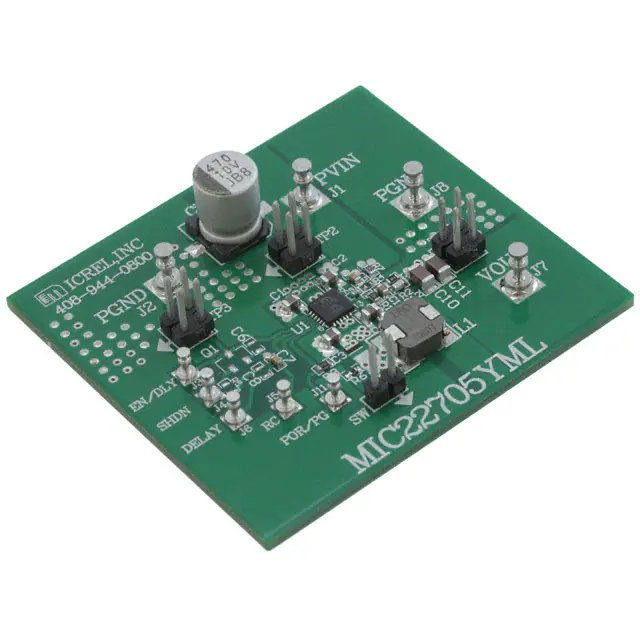

MIC22705YML-EVEVAL BOARD FOR MIC22705 |
2,067 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 7A | 2.9V ~ 5.5V | Buck | 1MHz | Board(s) | MIC22705 |
|
MIC23153YMT-EVEVAL BOARD FOR MIC23153 |
3,097 | 0.00 |
|
Datasheet |
HyperLight Load® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 4MHz | Board(s) | MIC23153 |
|

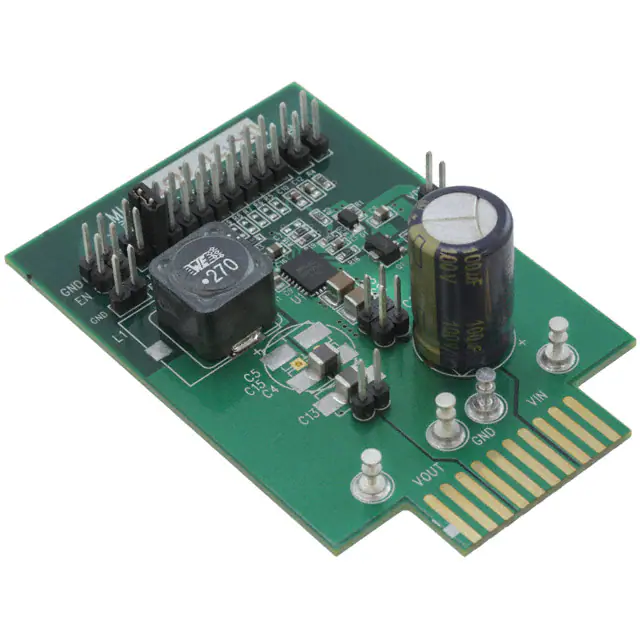

MIC28510-12V-EVEVAL BOARD FOR MIC28510 |
4,286 | 0.00 |
|
Datasheet |
Hyper Speed Control®, SuperSwitcher II™ | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 4A | 5V ~ 75V | Buck | - | Board(s) | MIC28510 |
|

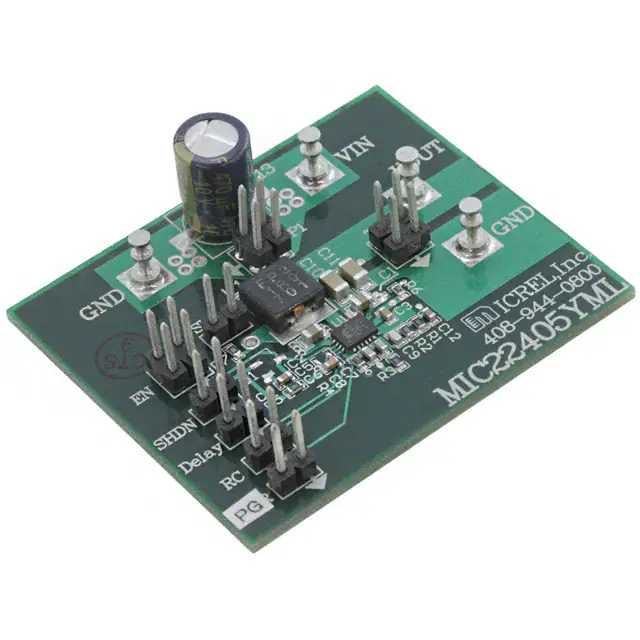

MIC22405YML-EVEVAL BOARD FOR MIC22405 |
3,141 | 41.99 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.9V ~ 5.5V | Buck | 1MHz | Board(s) | MIC22405 |
|

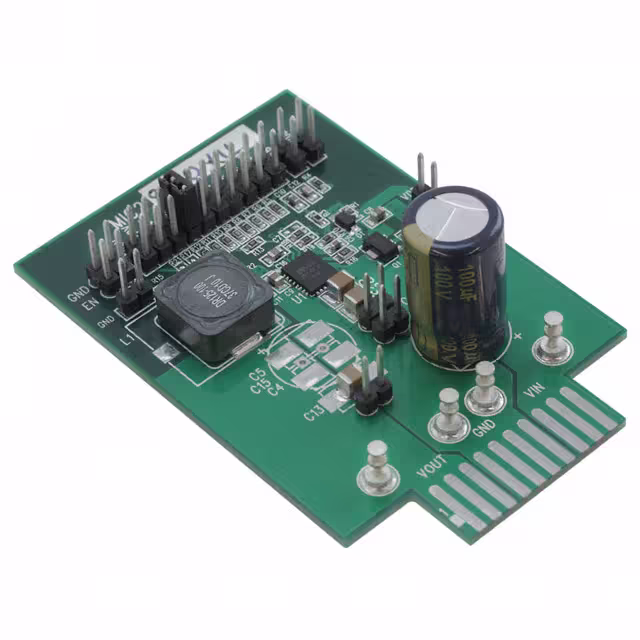

MIC28510-5V-EVEVAL BOARD FOR MIC28510 |
1,846 | 0.00 |
|
Datasheet |
Hyper Speed Control®, SuperSwitcher II™ | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5V | 4A | 5V ~ 75V | Buck | - | Board(s) | MIC28510 |
|
MIC26950YJL-EVEVAL BOARD FOR MIC26950 |
2,807 | 0.00 |
|
Datasheet |
Hyper Speed Control®, SuperSwitcher II™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V, 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 12A | 4.5V ~ 26V | Buck | 300kHz | Board(s) | MIC26950 |
|
|
ISL6537-6506EVAL1EVAL BOARD FOR ISL6506 ISL6537 |
3,496 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Special Purpose DC/DC, DDR Memory Supply | - | - | - | - | - | Buck | - | Board(s) | ISL6506, ISL6537 |
|
MAX17075EVKIT+EVAL BOARD FOR MAX17075 |
4,063 | 0.00 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 6.5V, 13V, 30V, -7V | 500mA, 500mA, 60mA, 30mA | 2.5V ~ 5.5V | Boost, Inverting | 1.2MHz | Board(s) | MAX17075 |
|
MAX17103EVKIT+EVAL BOARD FOR MAX17103 |
4,824 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 4.25V, 8.5V, 23V, -6V | 250mA, 200mA, 20mA, 20mA | 2.3V ~ 5.5V | Boost, Inverting | 1.2MHz | Board(s) | MAX17103 |
|
MAX8784EVKIT+EVAL BOARD FOR MAX8784 |
2,933 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 6 Non-Isolated Outputs | - | 7V, 7V, 7V, 14V, 28V, -9V | 700mA, 180mA, 180mA, 180mA, 50mA, 50mA | 4.5V ~ 5.5V | Boost, Inverting | 1.2MHz | Board(s) | MAX8784 |
|

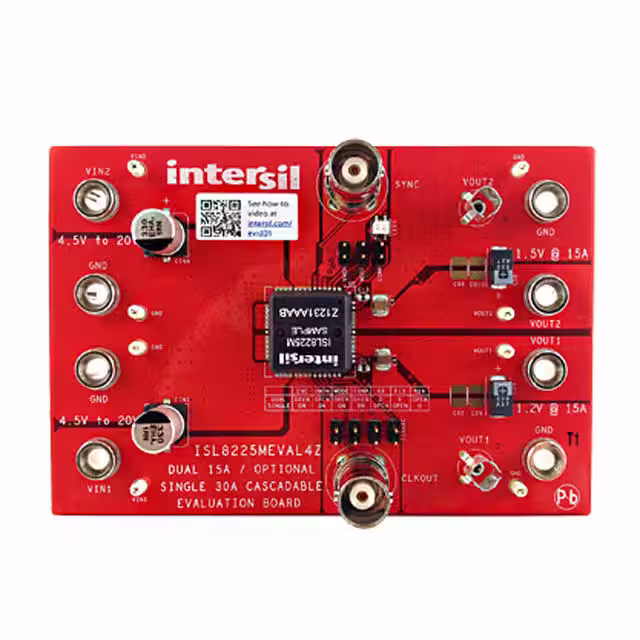

ISL8225MEVAL4ZEVAL BOARD FOR ISL8225M |
3,193 | 104.21 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 15A, 15A | 4.5V ~ 20V | Buck | - | Board(s) | ISL8225M |
|

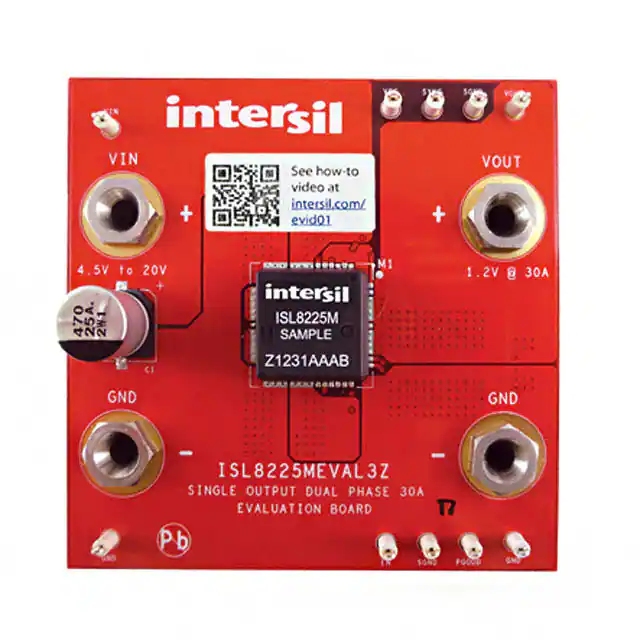

ISL8225MEVAL3ZEVAL BOARD FOR ISL8225M |
2,168 | 83.10 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 6V | 30A | 4.5V ~ 20V | Buck | - | Board(s) | ISL8225M |
|

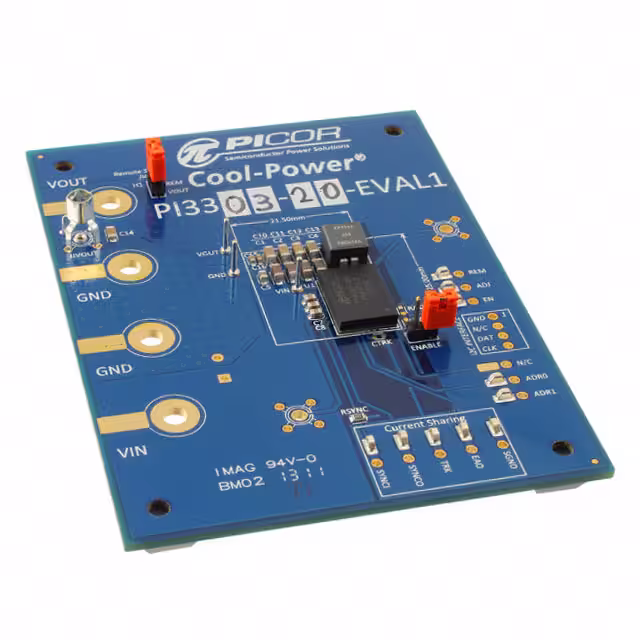

PI3303-20-EVAL1EVAL BOARD FOR PI330320 |
4,261 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 8A | 17.4V ~ 36V | Buck | 1.4MHz | Board(s) | PI3303-20 |
