DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1866AEVAL BOARD FOR LTM8052 |
4,977 | 95.64 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 6V ~ 36V | Buck | 450kHz | Board(s) | LTM8052 |
|

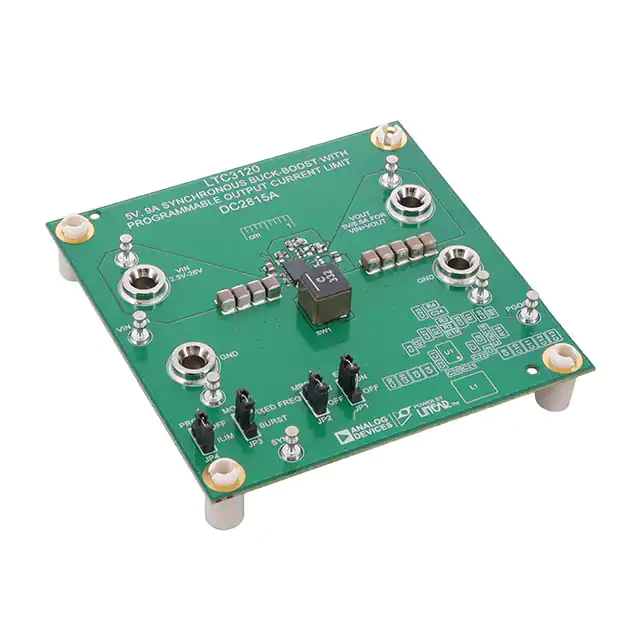

DC2815AEVAL BOARD FOR LT3120 |
2,014 | 95.64 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 6.5A | 2.5V ~ 26V | Buck-Boost | 1MHz | Board(s) | LT3120 |
|

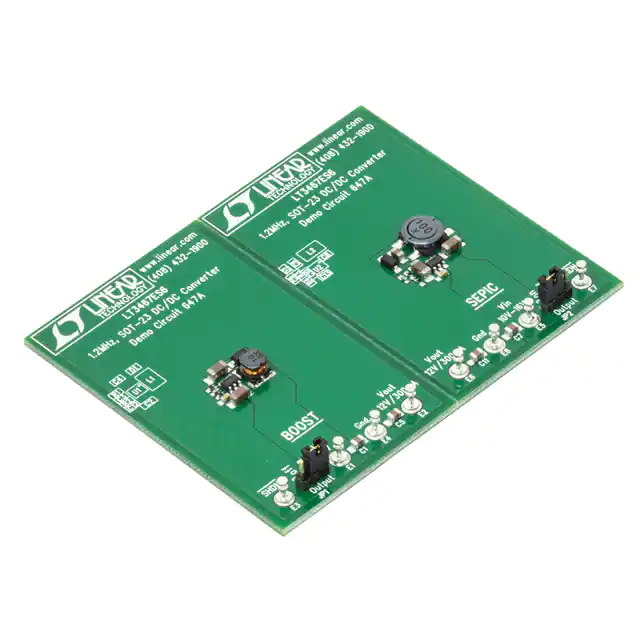

DC647AEVAL BOARD FOR LT3467 |
1,096 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 12V, 12V | 300mA, 300mA | 5V, 10V ~ 16V | Boost, SEPIC | 1.2MHz | Board(s) | LT3467 |
|
BD7F105EFJ-EVK-001EVAL BOARD FOR BD7F105 |
3,680 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 4 W | 16.5V | 250mA | 8V ~ 32V | Flyback | 363kHz | Board(s) | BD7F105 |
|
DC1037AEVAL BOARD FOR LT3470 |
3,440 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 200mA | 5.5V ~ 40V | Buck | - | Board(s) | LT3470 |
|

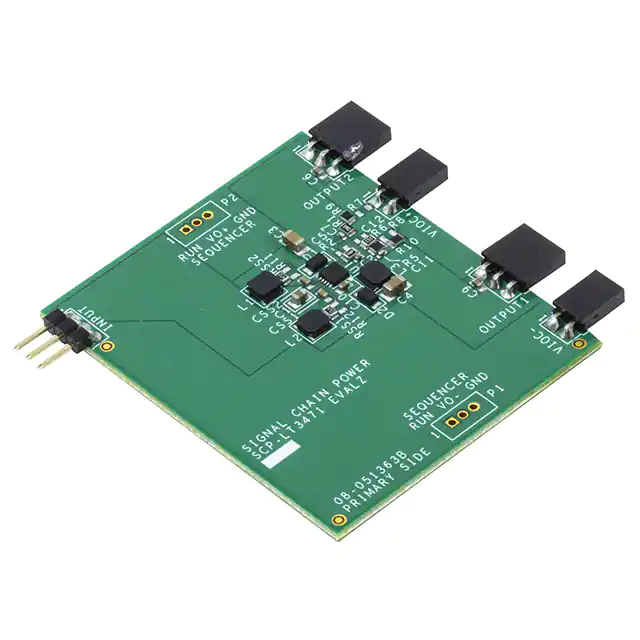

SCP-LT3471-EVALZEVAL BOARD FOR LT3471 |
3,533 | 88.28 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 12V, -12V | 300mA, 200mA | 4.5V ~ 10V | Boost | 1.2MHz | Board(s) | LT3471 |
|

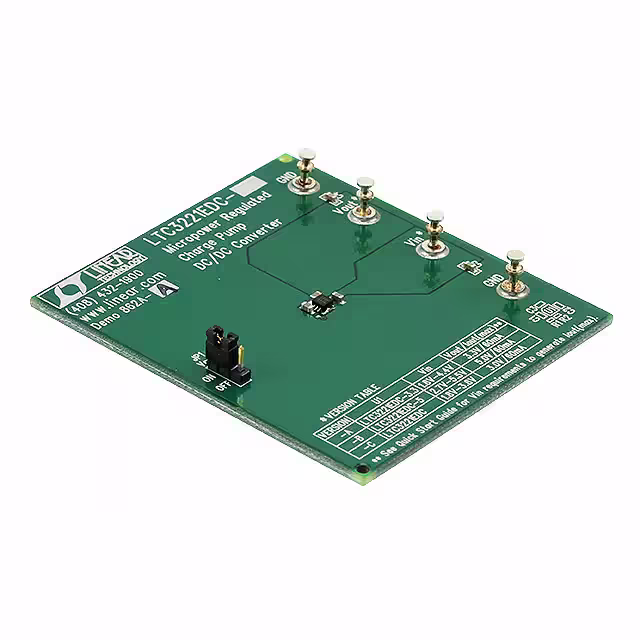

DC862A-AEVAL BOARD FOR LTC32213.3 |
1,016 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 60mA | 1.8V ~ 4.4V | Boost | 600kHz | Board(s) | LTC3221-3.3 |
|

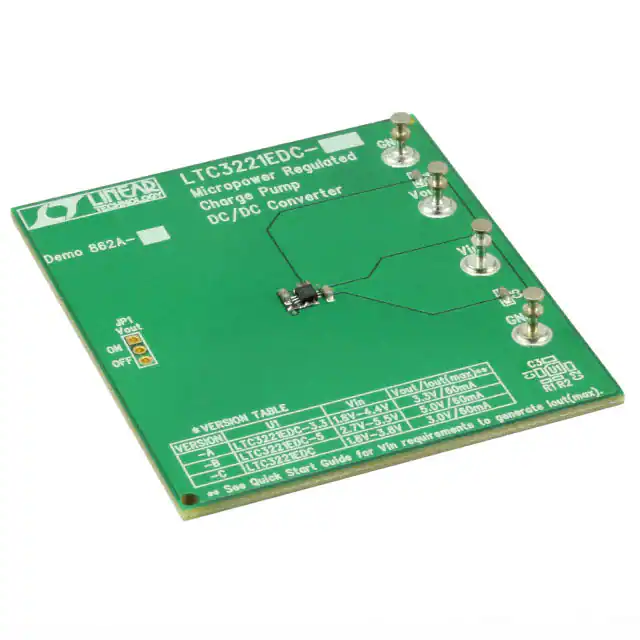

DC862A-CEVAL BOARD FOR LTC3221 |
2,038 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3V | 60mA | 1.8V ~ 3.8V | Boost | 600kHz | Board(s) | LTC3221 |
|
DC903A-AEVAL BOARD FOR LTC32403.3 |
2,144 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 150mA | 1.8V ~ 5.5V | Boost, Buck | 1.2MHz | Board(s) | LTC3240-3.3 |
|

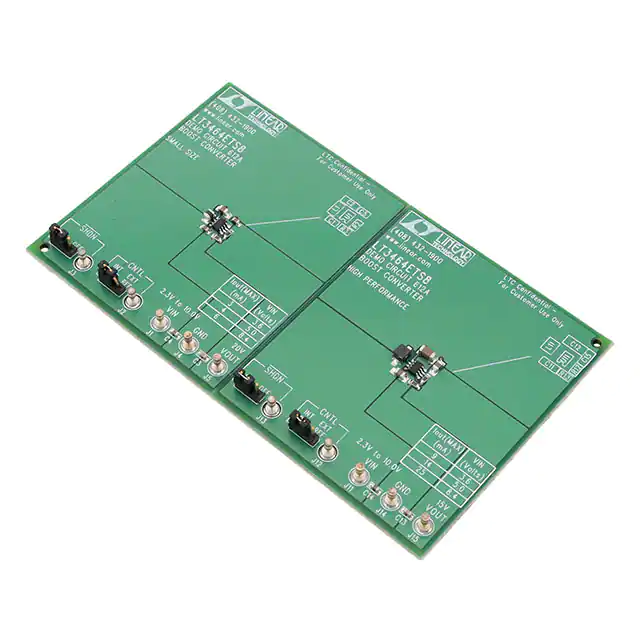

DC612AEVAL BOARD FOR LT3464 |
3,605 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 20V | 6mA | 2.3V ~ 10V | Boost | - | Board(s) | LT3464 |
|
DC692AEVAL BOARD FOR LTC3426ES6 |
2,592 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 800mA | 1.8V ~ 4.2V | Boost | 1.2MHz | Board(s) | LTC3426ES6 |
|
DC703AEVAL BOARD FOR LTC3459 |
1,149 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 8V | 40mA | 1.5V ~ 5.5V | Boost | - | Board(s) | LTC3459 |
|

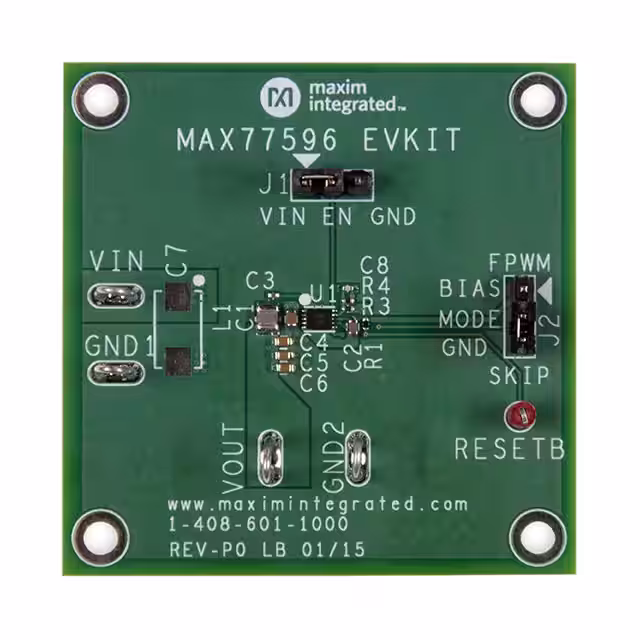

MAX77596EVKIT#EVAL BOARD FOR MAX77596 |
1,378 | 91.82 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3.5V ~ 24V | Buck | 1.7MHz | Board(s) | MAX77596 |
|
|
MAX77711AEVKIT#EVAL BOARD FOR MAX77511 MAX77711 |
3,290 | 115.01 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.25V ~ 5.2V | 3A, 3A, 3A, 3A | 2.3V ~ 10V | Buck | 1MHz | Board(s) | MAX77511, MAX77711 |
|

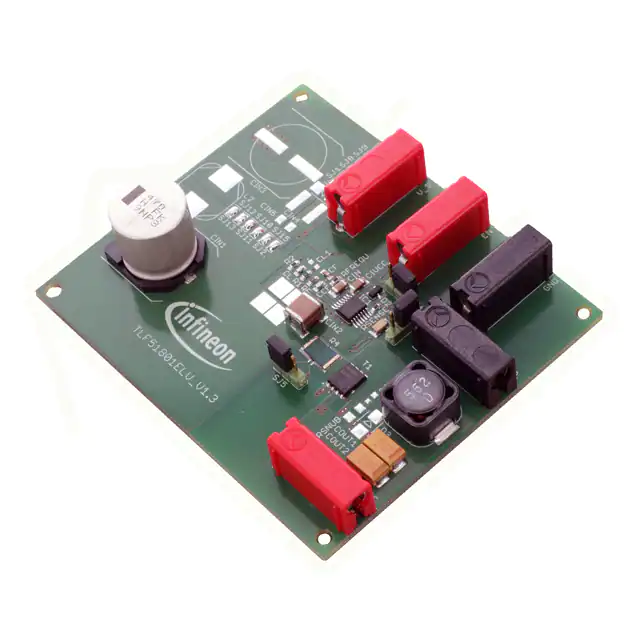

DEMOBOARDTLF51801ELTOBO1EVAL BOARD FOR TLF51801 |
3,317 | 103.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5.6V | 5A | 6V ~ 40V | Buck | - | Board(s) | TLF51801 |
|

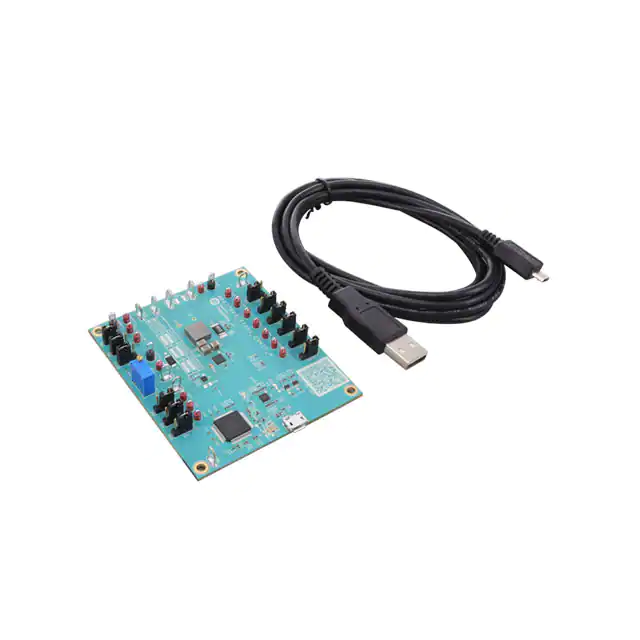

MAX77960EVKIT-06#EVAL BOARD FOR MAX77960 |
4,968 | 92.75 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Charger | 1 Non-Isolated Output | - | - | 3A | 3.5V ~ 25.4V | Buck-Boost | 600kHz | Board(s) | MAX77960 |
|

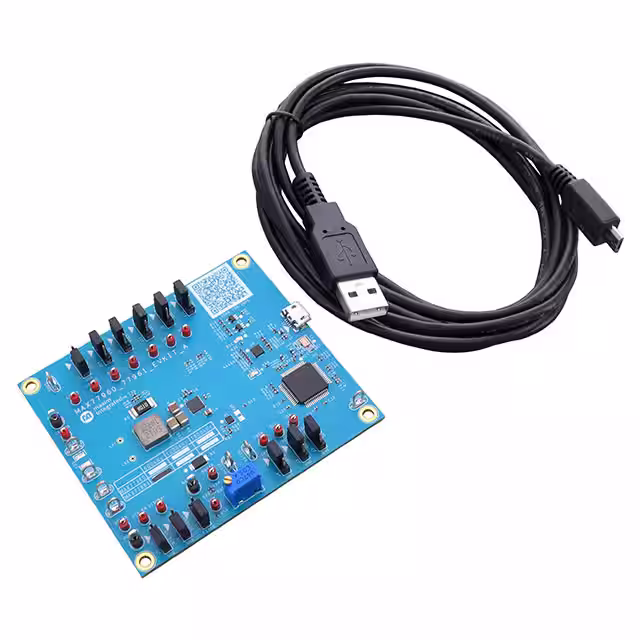

MAX77961EVKIT-06#EVAL BOARD FOR MAX77961 |
4,394 | 92.75 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Charger | 1 Non-Isolated Output | - | - | 6A | 3.5V ~ 25.4V | Buck-Boost | 600kHz | Board(s) | MAX77961 |
|
|
RDK-838EVAL BOARD FOR INN3879CH801 |
1,290 | 93.75 |
|
Datasheet |
PowiGaN™, InnoSwitch™3-PD | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 60 W | 3.3V ~ 21V | 3A | 90 ~ 265VAC | Flyback | - | Board(s) | INN3879C-H801 |
|
RDK-752EVAL BOARD FOR INN3673C |
3,000 | 93.75 |
|
Datasheet |
InnoSwitch™3-EP | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 15 W | 5V, 12V | 1.2A, 750mA | 85 ~ 277 VAC | Flyback | - | Board(s) | INN3673C |
|
RDK-839EVAL BOARD FOR TNY288 |
3,221 | 93.75 |
|
Datasheet |
TinySwitch®-4 | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | TNY288 |
