DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2958A-AEVAL BOARD FOR LT8609A |
1,119 | 80.04 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3V ~ 42V | Buck | 2MHz | Board(s) | LT8609A |
|

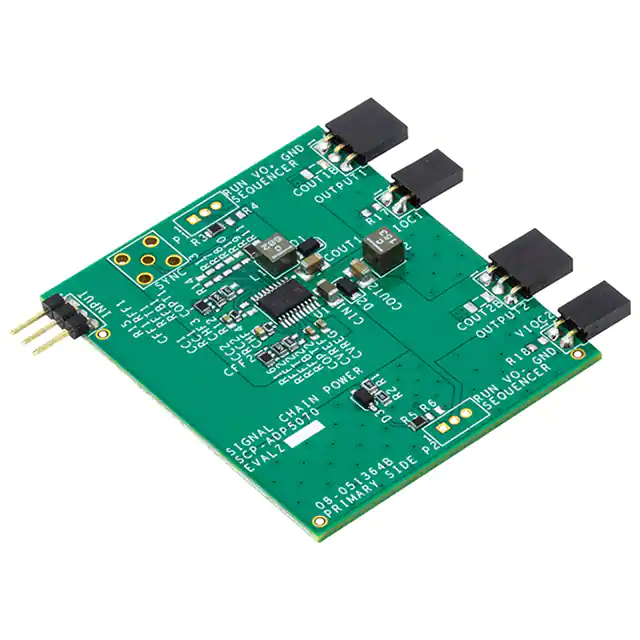

SCP-ADP5070-EVALZEVAL BOARD FOR ADP5070 |
1,974 | 80.25 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Positive and Negative Inverter | 2 Non-Isolated Outputs | - | ±39V | 1A, 600mA | 2.85V ~ 15V | Boost, Inverting | - | Board(s) | ADP5070 |
|

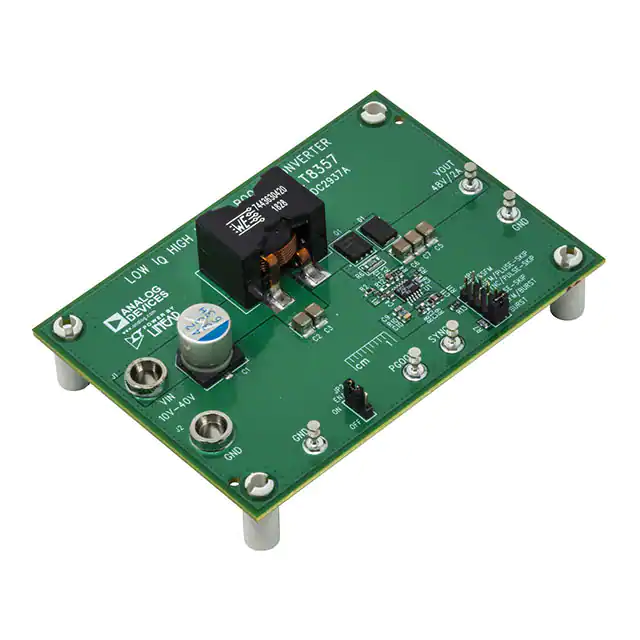

DC2937AEVAL BOARD FOR LT8357 |
2,891 | 80.25 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 4A | 10V ~ 40V | Boost | 362kHz | Board(s) | LT8357 |
|

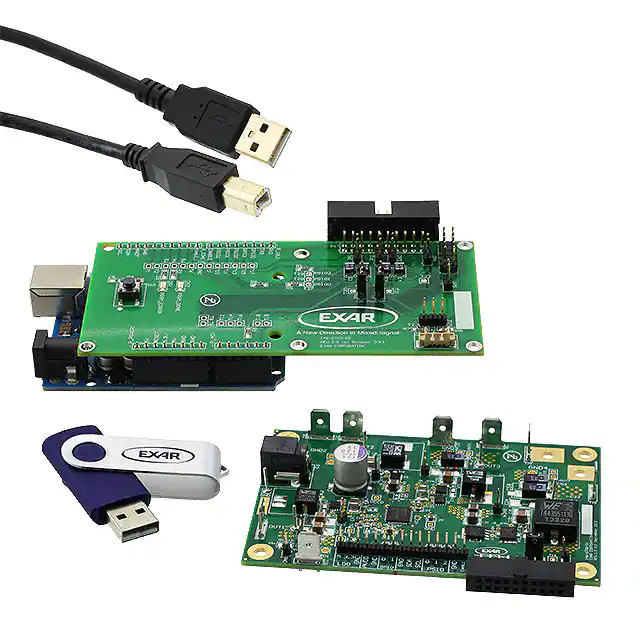

XRP7724EVB-DEMO-2-KITAEVAL BOARD FOR XRP7724 |
1,819 | 85.00 |
|
Datasheet |
- | Box | Not For New Designs | DC/DC, Step Up or Down with LDO | 4 Non-Isolated Outputs | - | 1V, 1.5V, 2.5V, 3.3V | 10A, 5A, 3A, 3A | 5.5 ~ 25V | Buck | - | Board(s), Accessories | XRP7724 |
|
ADP1621-EVALZEVAL BOARD FOR ADP1621 |
4,924 | 73.60 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2A | 3V ~ 3.6V | Boost | 600kHz | Board(s) | ADP1621 |
|

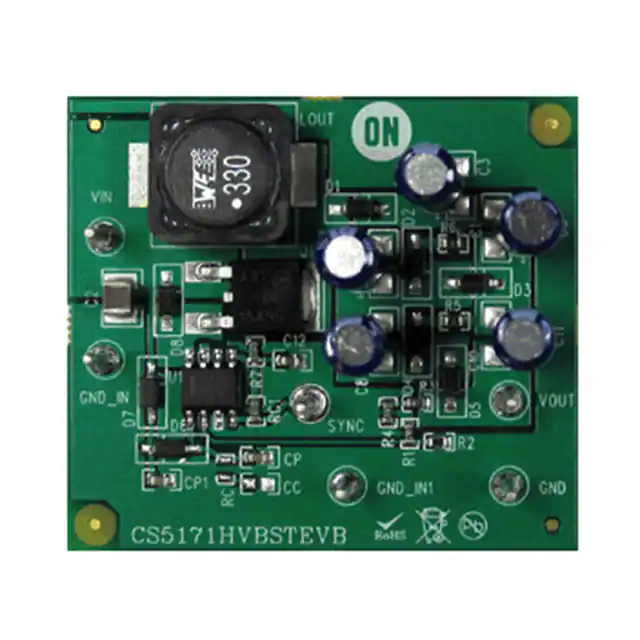

CS5171HVBSTGEVBEVAL BOARD FOR CS5171 |
3,378 | 81.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | 2.7V ~ 30V | Boost | 280kHz | Board(s) | CS5171 |
|

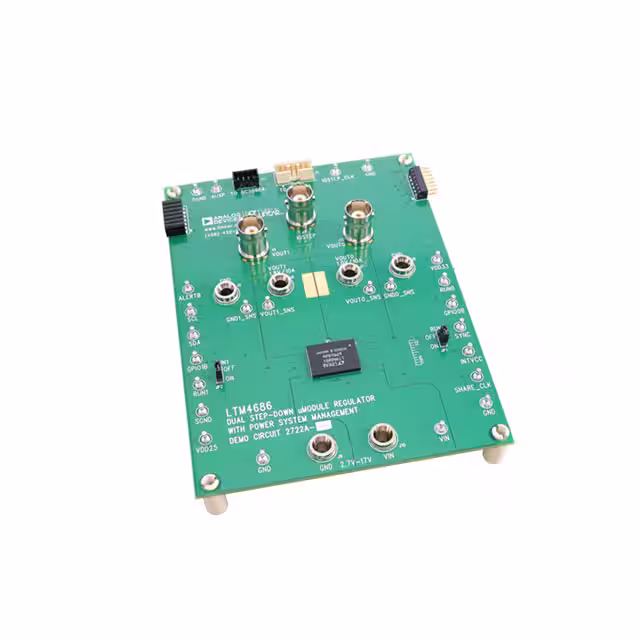

DC2722AEVAL BOARD FOR LTM4686 |
2,945 | 83.46 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 10A, 10A | 2.7V ~ 17V | Buck | 500kHz | Board(s) | LTM4686 |
|
DC2041AEVAL BOARD FOR LTC3255 |
2,954 | 84.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 50mA | 4V ~ 48V | Buck | 500kHz | Board(s) | LTC3255 |
|
MAX20459EVKIT#EVAL BOARD FOR MAX20459 |
2,173 | 79.50 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX20459 |
|
ROA17026EVAL BOARD FOR BMR461 |
4,411 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | - | - | 0.6V ~ 5V | - | 4.5V ~ 14V | Buck | - | Partially Populated Board(s) | BMR461 |
|

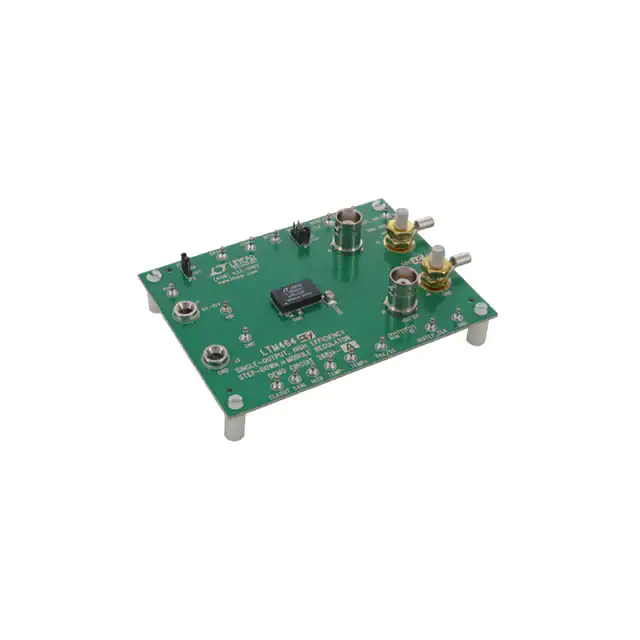

DC2681A-AEVAL BOARD FOR LTM4645 |
4,937 | 86.94 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 25A | 6V ~ 15V | Buck | 600kHz | Board(s) | LTM4645 |
|
DC1211A-AEVAL BOARD FOR LTC3528 |
2,534 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V ~ 5V | 1A | 0.7V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3528 |
|

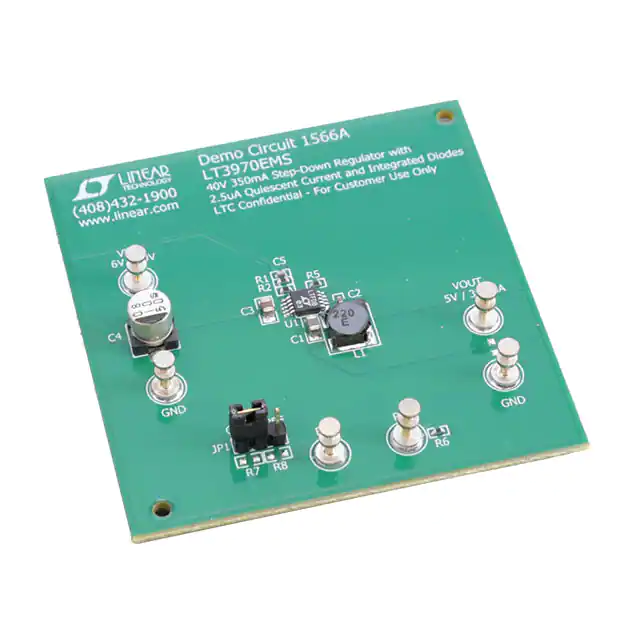

DC1566AEVAL BOARD FOR LT3970 |
2,821 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 350mA | 6V ~ 40V | Buck | 600kHz | Board(s) | LT3970 |
|

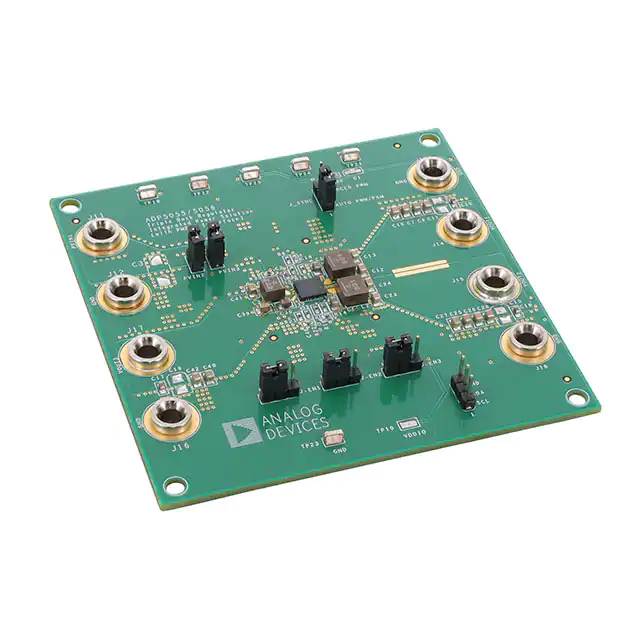

ADP5056-EVALZEVAL BOARD FOR ADP5056 |
2,296 | 116.03 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1V, 1.3V, 1.8V | 14A, 7A, 3A | 2.75V ~ 18V | Buck | - | Board(s) | ADP5056 |
|
SI34061ISOC4-KITEVAL BOARD FOR SI3406 |
4,579 | 92.50 |
|
Datasheet |
- | Bulk | Not For New Designs | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | - | - | - | - | - | Board(s) | Si3406 |
|

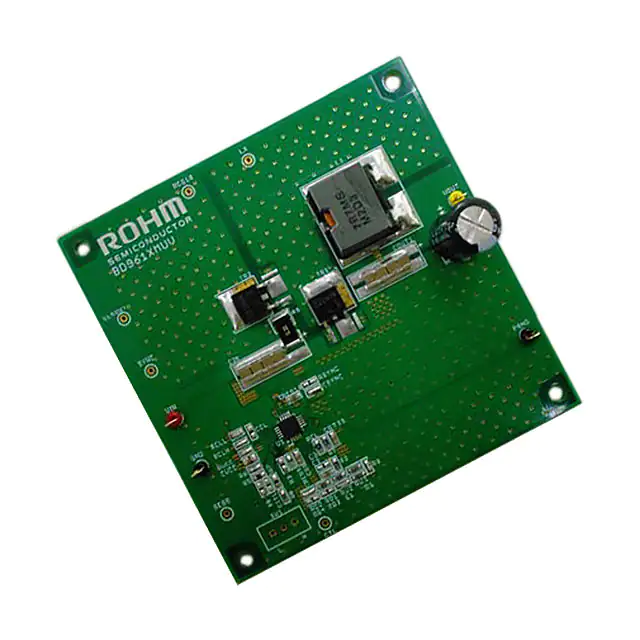

BD9611MUV-EVK-001EVAL BOARD FOR BD9611 |
2,438 | 87.94 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 10A | 15V ~ 36V | Buck | 250kHz | Board(s) | BD9611 |
|
DC1576AEVAL BOARD FOR LTC3805/5 |
2,815 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 3A | 5V ~ 30V | Buck-Boost, SEPIC | 300kHz | Board(s) | LTC3805/-5 |
|

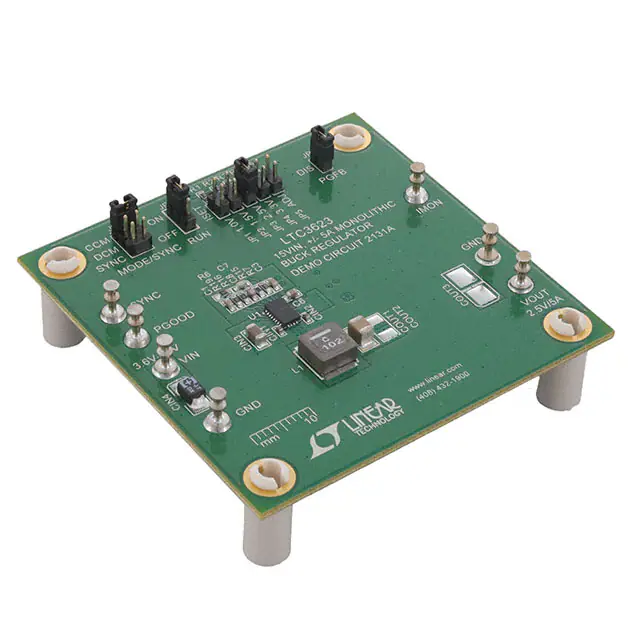

DC2131AEVAL BOARD FOR LTC3623 |
3,208 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 5V | 5A | 4V ~ 15V | Buck | 1MHz | Board(s) | LTC3623 |
|

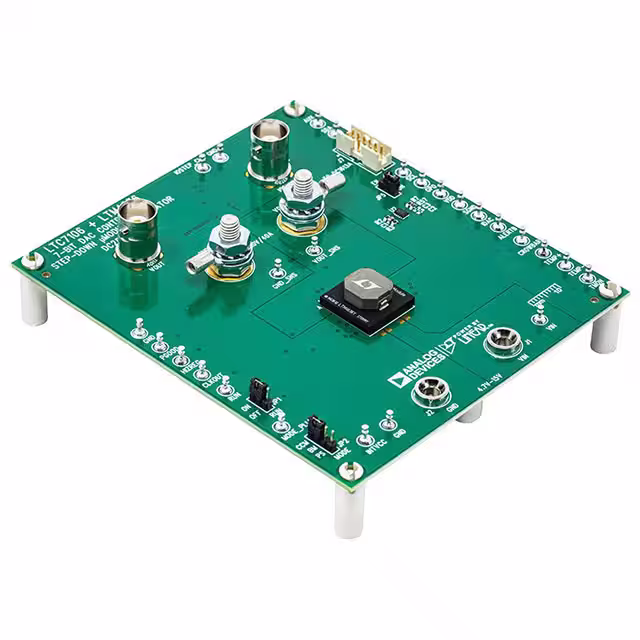

DC2830AEVAL BOARD FOR LTC7106 LTM4636 |
2,593 | 88.28 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 4.7V ~ 15V | Buck | 350kHz | Board(s) | LTC7106, LTM4636 |
|

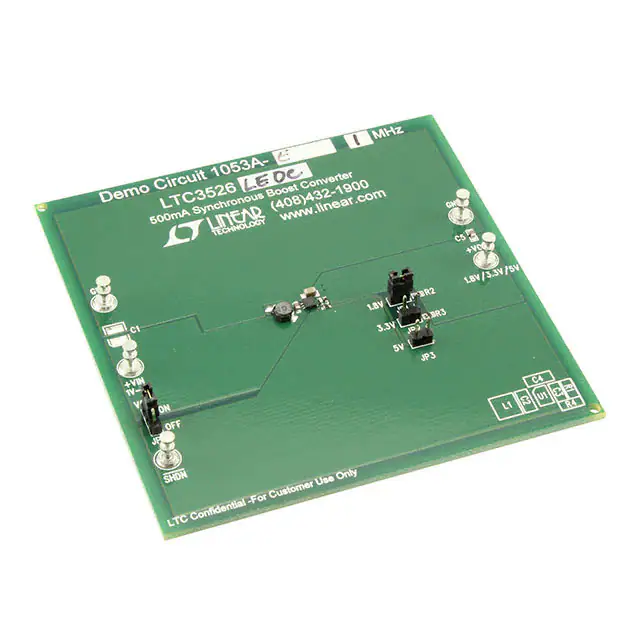

DC1053A-EEVAL BOARD FOR LTC3526L |
3,589 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 100mA | 0.8V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3526L |
