DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

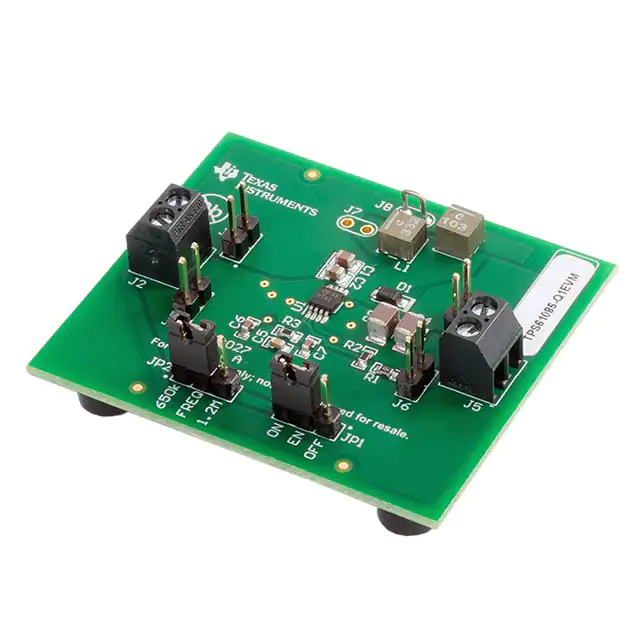

TPS61085-Q1EVMEVAL BOARD FOR TPS61085Q1 |
3,958 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 600mA | 2.3V ~ 6V | Boost | - | Board(s) | TPS61085-Q1 |
|

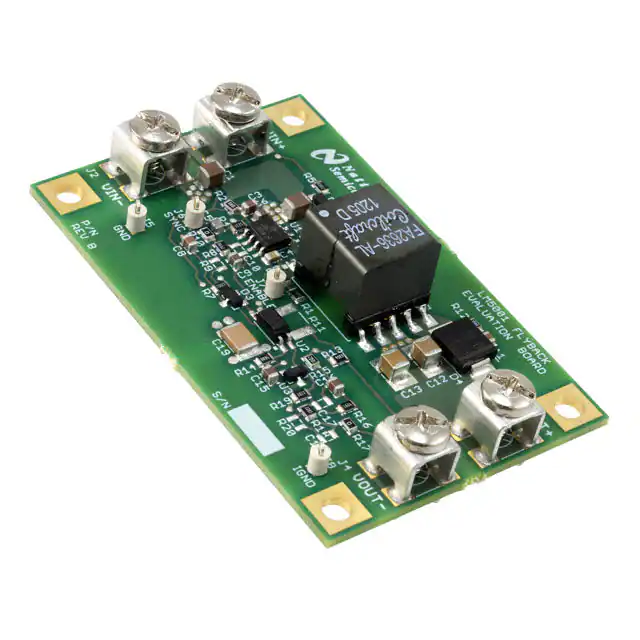

LM5001ISOEVAL/NOPBEVAL BOARD FOR LM5001 |
2,343 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 1A | 16V ~ 42V | Flyback | 250kHz | Board(s) | LM5001 |
|

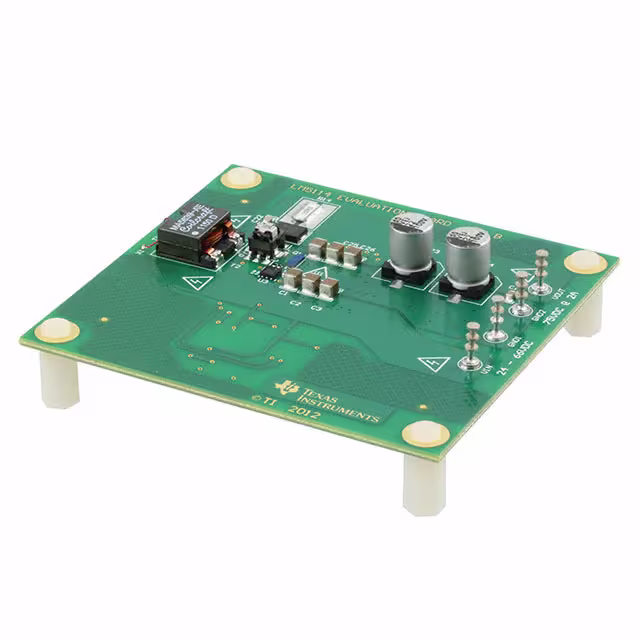

LM5114BSDEVAL/NOPBEVAL BOARD FOR LM5114 |
1,415 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 75V | 2A | 24V ~ 66V | Boost | 500kHz | Board(s) | LM5114 |
|

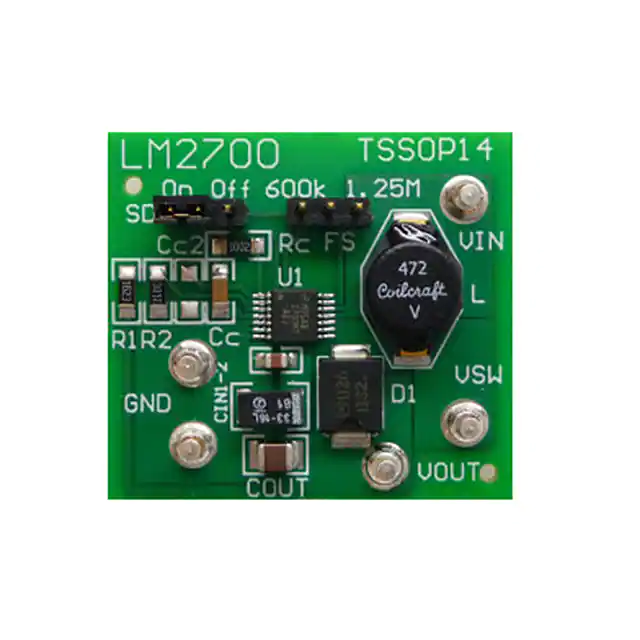

LM2700MT-ADJEV/NOPBEVAL BOARD FOR LM2700 |
4,455 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 8V | 2.5A | 2.2V ~ 12V | Boost | - | Board(s) | LM2700 |
|
BD83070GWL-EVK-001EVAL BOARD FOR BD83070 |
1,029 | 89.29 |
|
Datasheet |
- | Tube | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.5V or 3.3V | 1A | 2V ~ 5.5V | Buck-Boost | 1.5MHz | Board(s) | BD83070 |
|

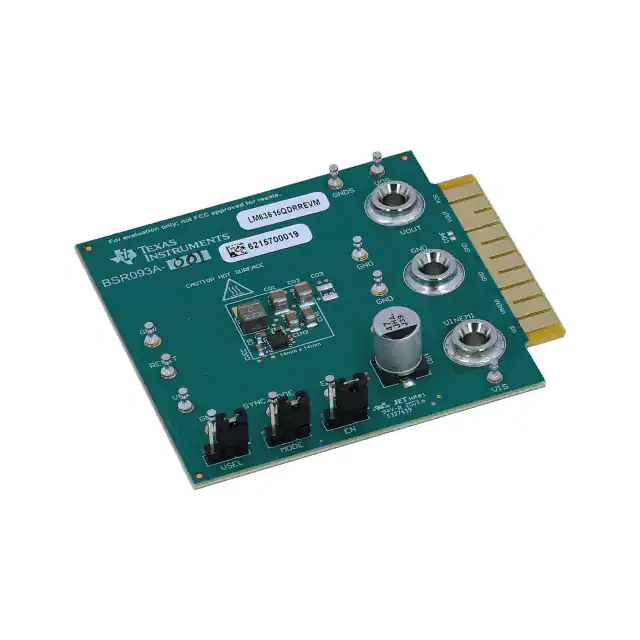

LM63615QDRREVMEVAL BOARD FOR LM63615Q1 |
4,297 | 83.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V ~ 5V | 1.5A | 3.5V ~ 36V | Buck | 2.1MHz | Board(s) | LM63615-Q1 |
|
TPSM82821AEVM-127EVAL BOARD FOR TPSM82821A |
3,836 | 83.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | TPSM82821A |
|

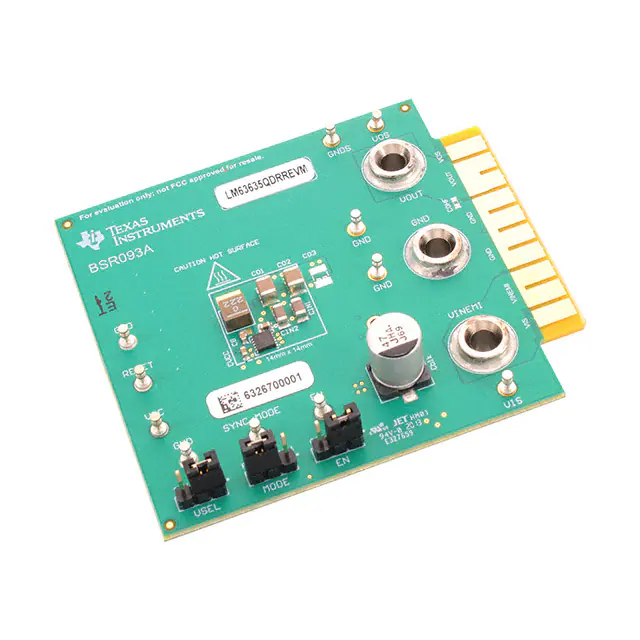

LM63635QDRREVMEVAL BOARD FOR LM63635 |
2,762 | 83.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V, 5V | 3.25A | 3.5V ~ 32V | Buck | 2.1MHz | Board(s) | LM63635 |
|
TPSM82822AEVM-127EVAL BOARD FOR TPSM82822A |
3,393 | 83.10 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | TPSM82822A |
|
TPS62442EVM-122EVAL BOARD FOR TPS62442Q1 |
2,935 | 83.10 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 2A, 2A | 2.7V ~ 6V | Buck | 2.25MHz | Board(s) | TPS62442-Q1 |
|

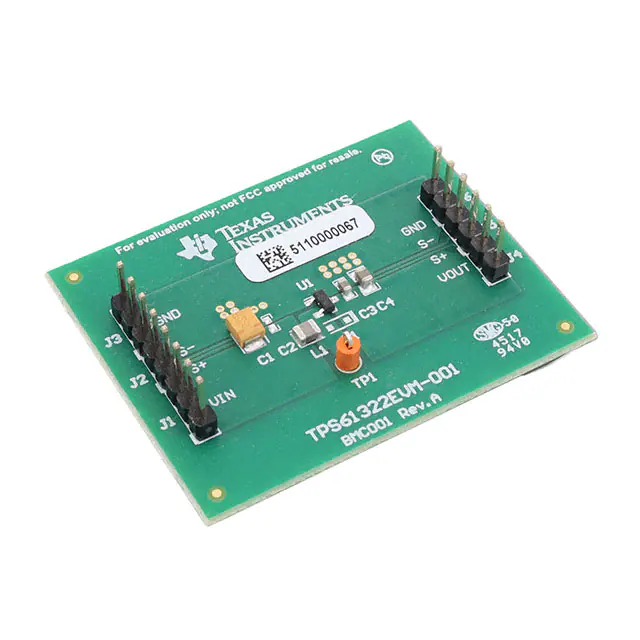

TPS61322EVM-001EVAL BOARD FOR TPS61322 |
2,780 | 83.10 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 2.2V | - | 0.85V ~ 2.2V | Boost | - | Board(s) | TPS61322 |
|
|
DC2383A-BEVAL BOARD FOR LTC36442 |
2,649 | 90.95 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V | 1.25A, 1.25A, 1.25A, 1.25A | 2.7V ~ 17V | Buck | 2.25MHz | Board(s) | LTC3644-2 |
|

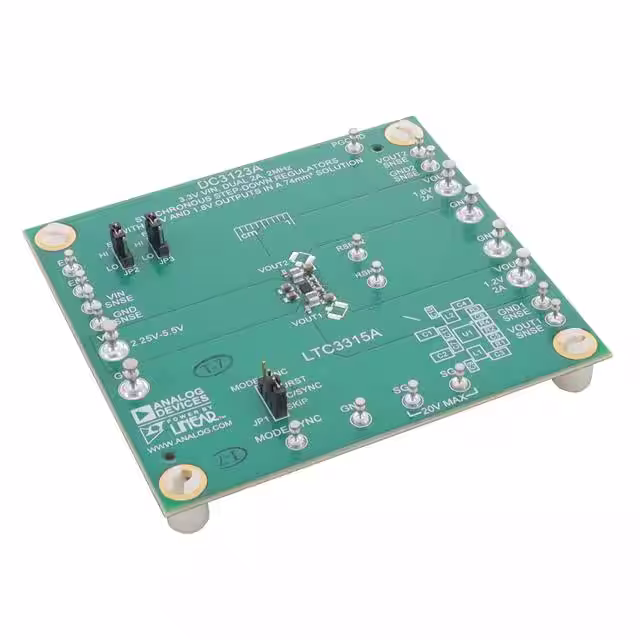

DC3123AEVAL BOARD FOR LTC3315A |
2,876 | 90.95 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 2A, 2A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3315A |
|

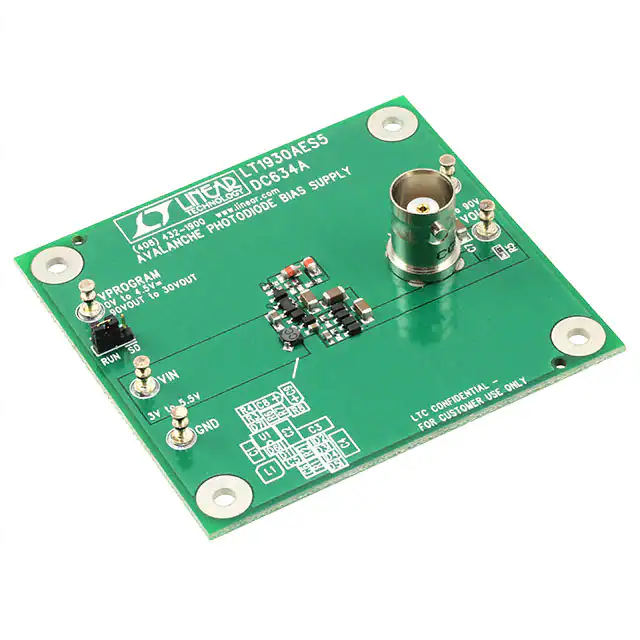

DC634AEVAL BOARD FOR LT1930A |
4,425 | 92.29 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 30V ~ 90V | - | 3V ~ 5.5V | Boost | 2.2MHz | Board(s) | LT1930A |
|
DC308AEVAL BOARD FOR LTC3401 |
2,102 | 92.29 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V, 5V | - | 1V ~ 5V | Boost | 3MHz | Board(s) | LTC3401 |
|

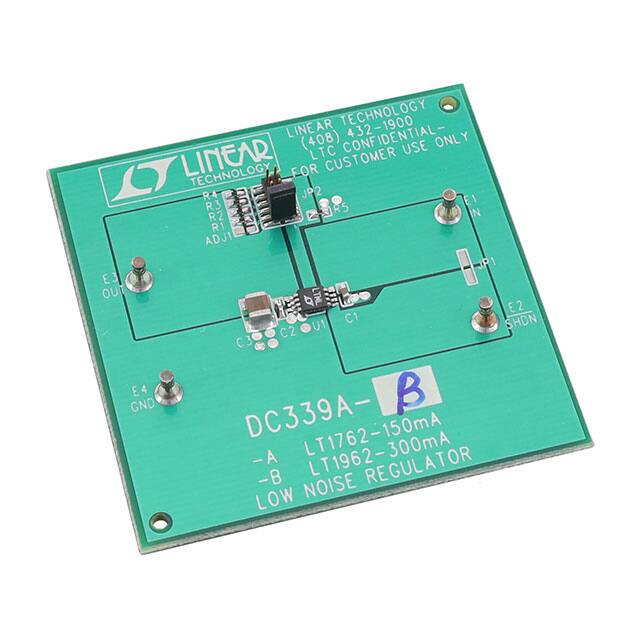

DC339A-BEVAL BOARD FOR LT1962 |
4,234 | 92.29 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.22V ~ 5V | 300mA | 2.3V ~ 20V | Buck | - | Board(s) | LT1962 |
|

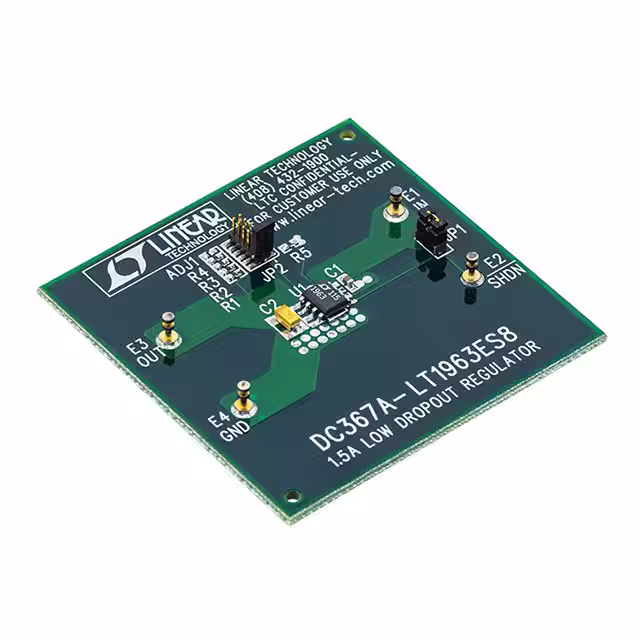

DC367AEVAL BOARD FOR LT1963 |
1,867 | 92.29 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.21V ~ 3.28V | 1.5A | 2.5V ~ 20V | Buck | - | Board(s) | LT1963 |
|

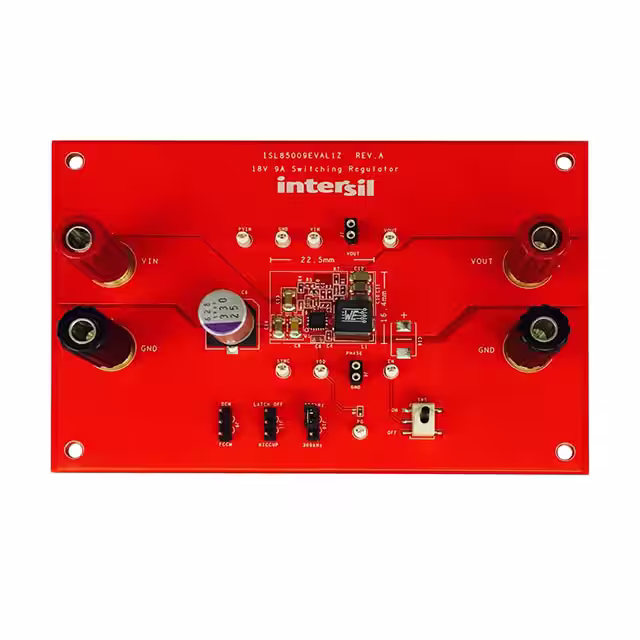

ISL85009EVAL1ZEVAL BOARD FOR ISL85009 |
1,816 | 93.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 9A | 4.5V ~ 18V | Buck | 600kHz | Board(s) | ISL85009 |
|

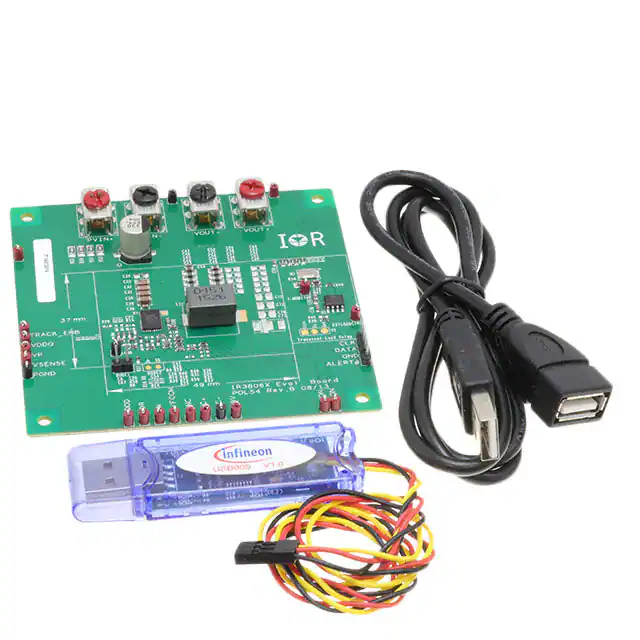

IRDC38064EVAL BOARD FOR IR38064 |
4,718 | 102.27 |
|
Datasheet |
SupIRBuck® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 35A | 12V | Buck | 600kHz | Board(s) | IR38064 |
|

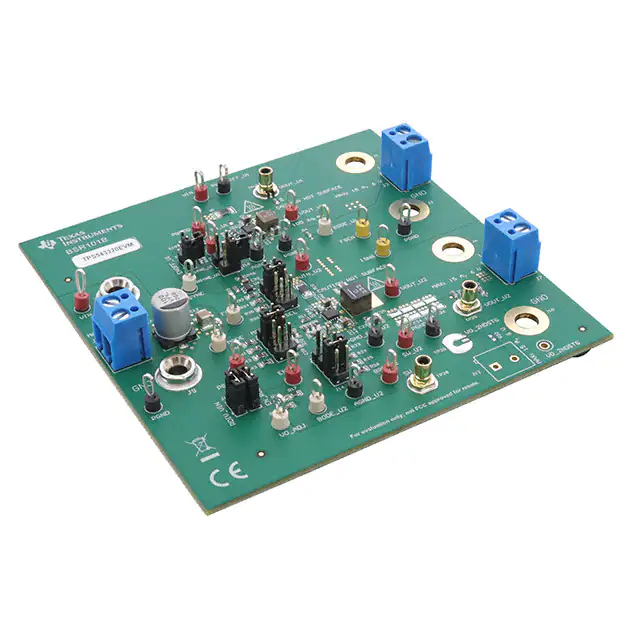

TPS543320EVMEVAL BOARD FOR TPS543320 |
2,027 | 94.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 4V ~ 18V | Buck | 1.5MHz | Board(s) | TPS543320 |
