DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

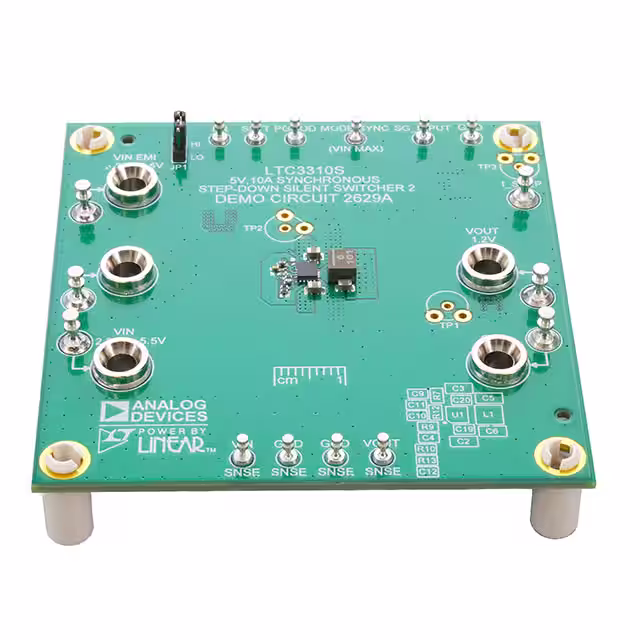

DC2629AEVAL BOARD FOR LTC3310S |
3,271 | 111.81 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 10A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3310S |
|
EVLHV101SSR50WEVAL BOARD FOR HVLED101 |
1,943 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Secondary Side | 1 Isolated Output | - | 60V | 833mA | 90 ~ 265 VAC | Flyback | - | Board(s) | HVLED101 |
|
|
EVLHV101PSR50WEVAL BOARD FOR HVLED101 |
1,661 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | - | 60V | 833mA | 90 ~ 265 VAC | Flyback | - | Board(s) | HVLED101 |
|
ADM00826EVAL BOARD FOR MIC24045 |
1,647 | 99.84 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.64V ~ 5.25V | 5A | 4.5V ~ 19V | Buck | - | Board(s), Cable(s) | MIC24045 |
|
DC2907AEVAL BOARD FOR LT8338 |
1,251 | 116.22 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 460mA | 4V ~ 16V | Boost | 2.2MHz | Board(s) | LT8338 |
|
DC2984AEVAL BOARD FOR LT3383 |
3,028 | 116.22 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 7 Non-Isolated Outputs | - | 0.8V, 1.2V, 1.2V, 1.5V, 1.8V, 1.81V, 3.31V | - | 2.7V ~ 5.5V | Buck | - | Board(s) | LT3383 |
|

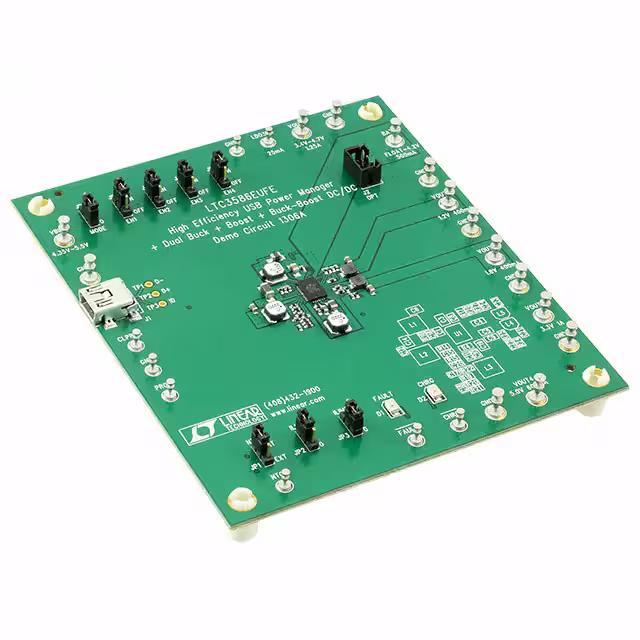

DC1306AEVAL BOARD FOR LTC3586 |
3,630 | 105.92 |
|
Datasheet |
Bat-Track™, PowerPath™ | Box | Active | DC/DC, Step Up or Down with LDO | 7 Non-Isolated Outputs | - | - | - | 4.35V ~ 5.5V | Boost, Buck | 2.25MHz | Board(s) | LTC3586 |
|

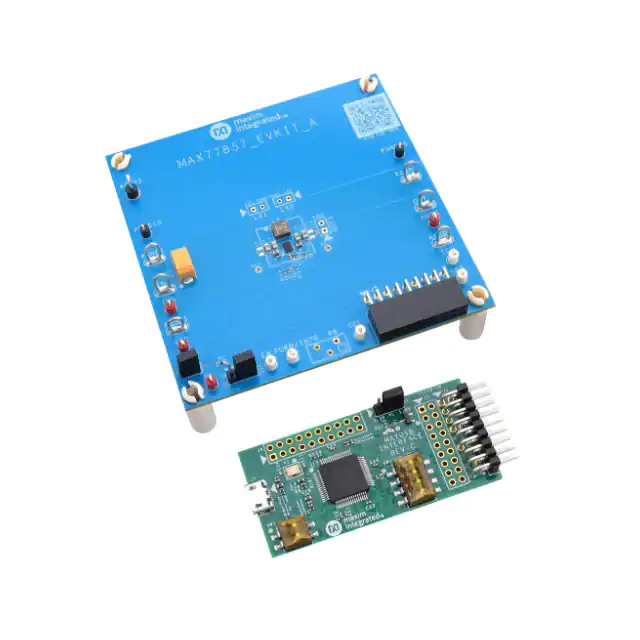

MAX77857WEVKIT#EVAL BOARD FOR MAX77857 |
1,453 | 75.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 7A | 2.5V ~ 16V | Buck-Boost | 1.8MHz | Board(s) | MAX77857 |
|

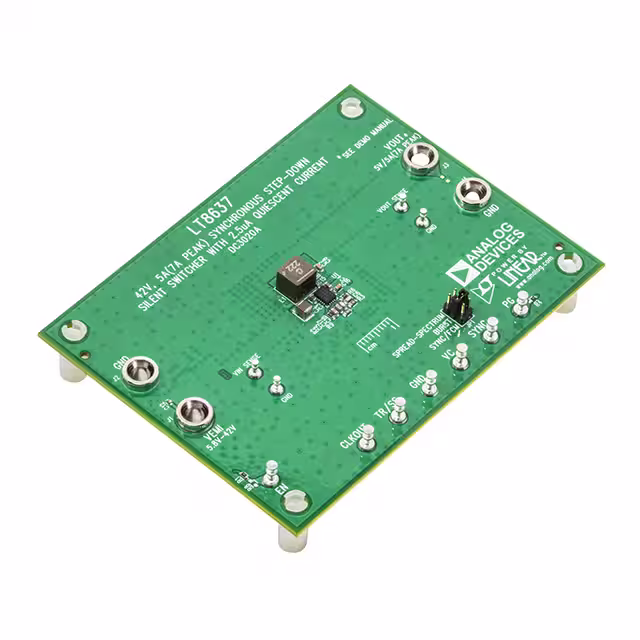

DC3020AEVAL BOARD FOR LT8637 |
2,084 | 117.70 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 5.8V ~ 42V | Buck | 2MHz | Board(s) | LT8637 |
|

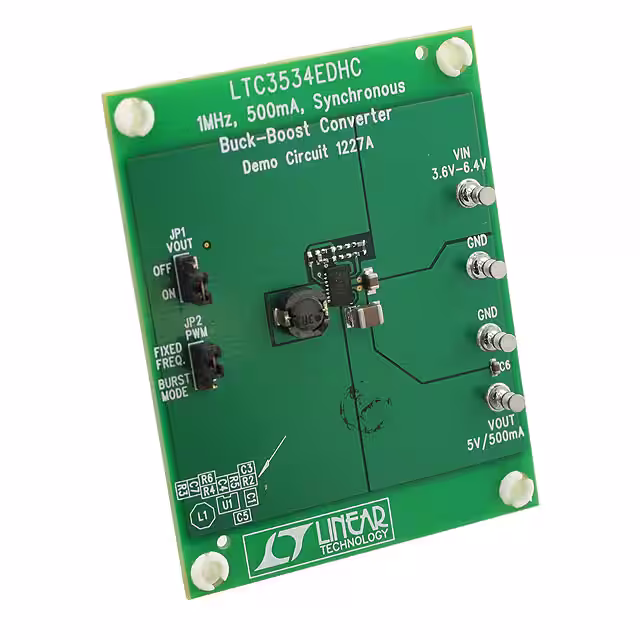

DC1227AEVAL BOARD FOR LTC3534 |
4,327 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 500mA | 3.6V ~ 7V | Buck-Boost | 1MHz | Board(s) | LTC3534 |
|
DC2138BEVAL BOARD FOR LT8301 |
4,339 | 117.70 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 5V | 1A | 10V ~ 32V | Flyback | 190kHz | Board(s) | LT8301 |
|

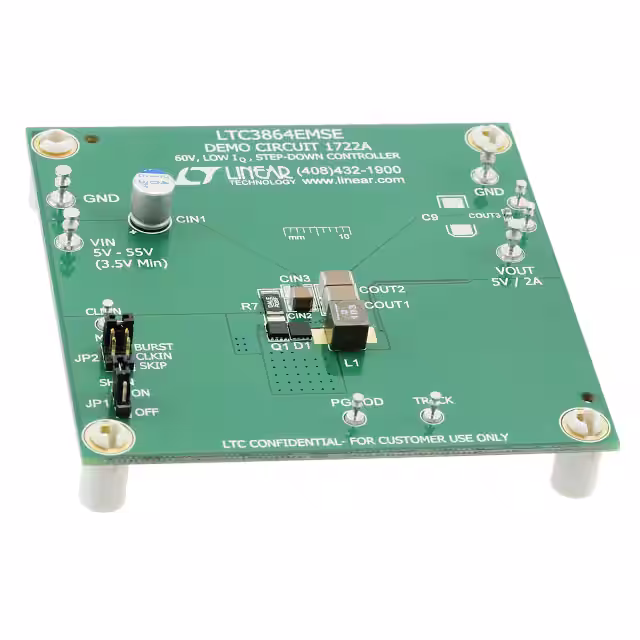

DC1722AEVAL BOARD FOR LTC3864 |
1,062 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 3.5V ~ 55V | Buck | 350kHz | Board(s) | LTC3864 |
|

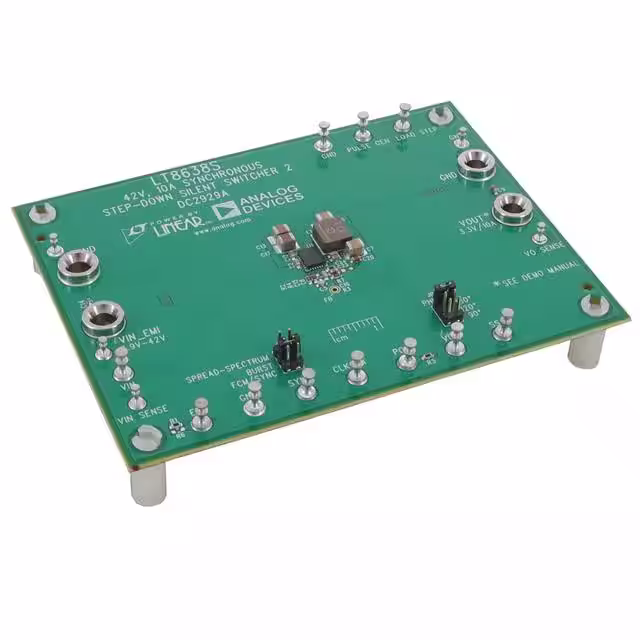

DC2929AEVAL BOARD FOR LT8638S |
2,057 | 117.70 |
|
Datasheet |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 3.9V ~ 42V | Buck | 2MHz | Board(s) | LT8638S |
|

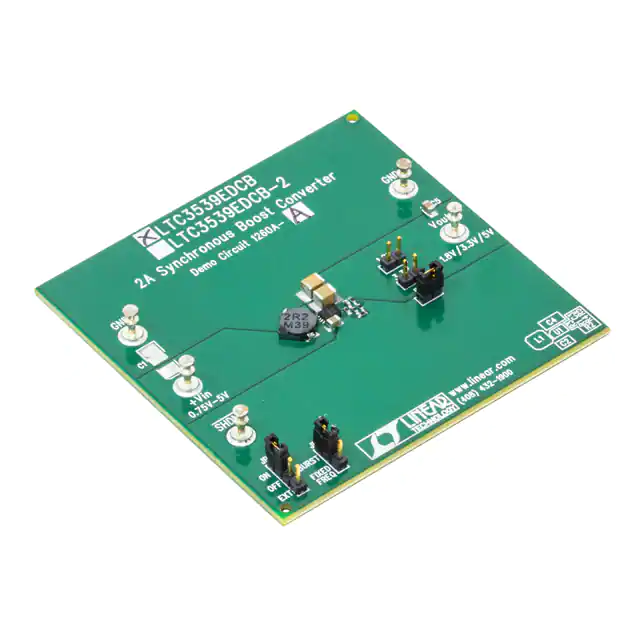

DC1260A-AEVAL BOARD FOR LTC3539EDCB |
4,313 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V ~ 5V | 2A | 0.7V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3539EDCB |
|

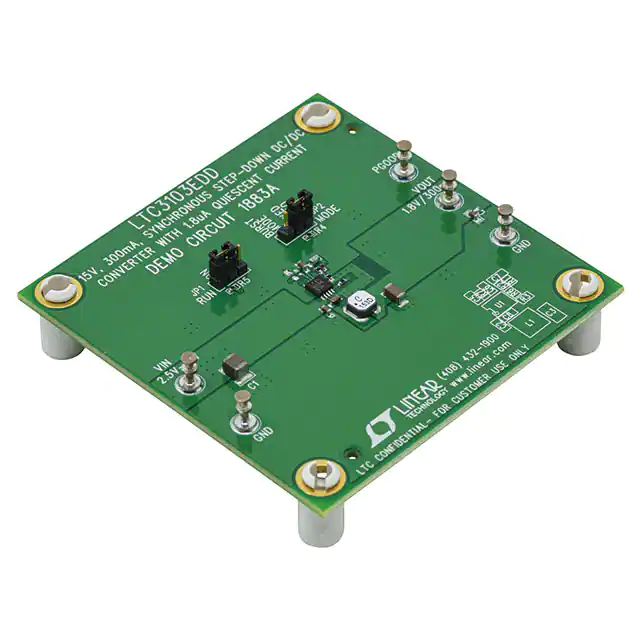

DC1883AEVAL BOARD FOR LTC3103 |
4,814 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 300mA | 2.5V ~ 15V | Buck | 1.2MHz | Board(s) | LTC3103 |
|
DC2560AEVAL BOARD FOR LT8642S |
2,131 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 10A | 2.8V ~ 18V | Buck | 2MHz | Board(s) | LT8642S |
|

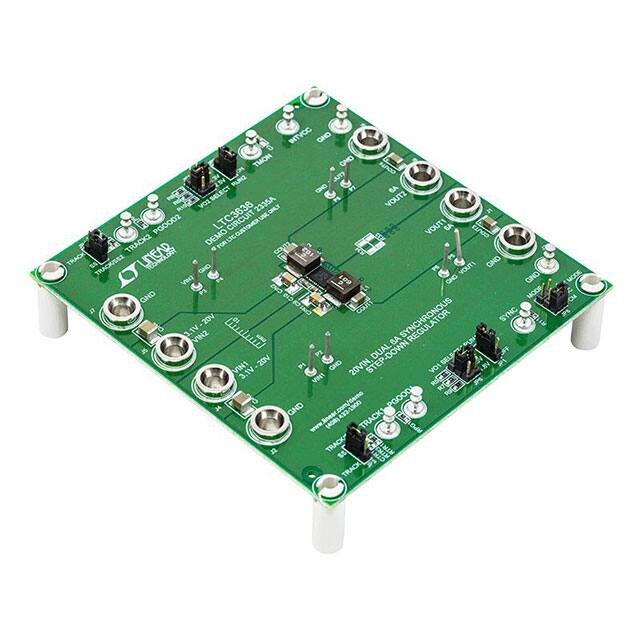

DC2335AEVAL BOARD FOR LTC3636 |
3,213 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 6A, 6A | 3.1V ~ 20V | Buck | 1MHz | Board(s) | LTC3636 |
|

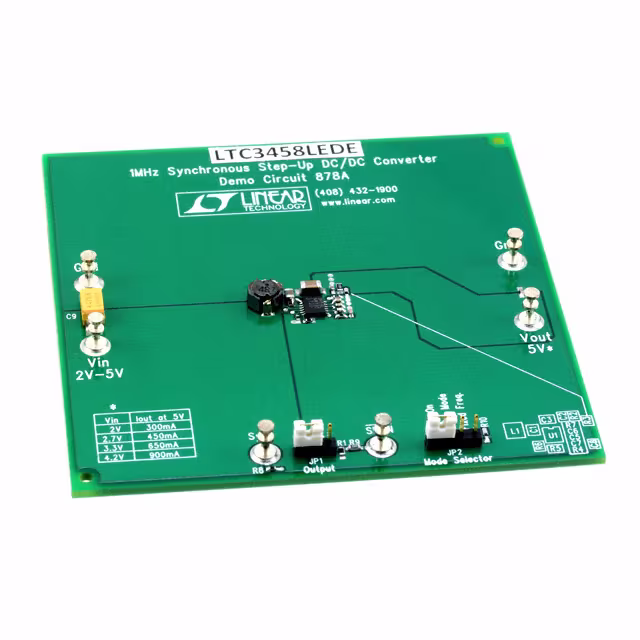

DC878AEVAL BOARD FOR LTC3458L |
3,553 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 900mA | 2V ~ 5V | Boost | 1MHz | Board(s) | LTC3458L |
|

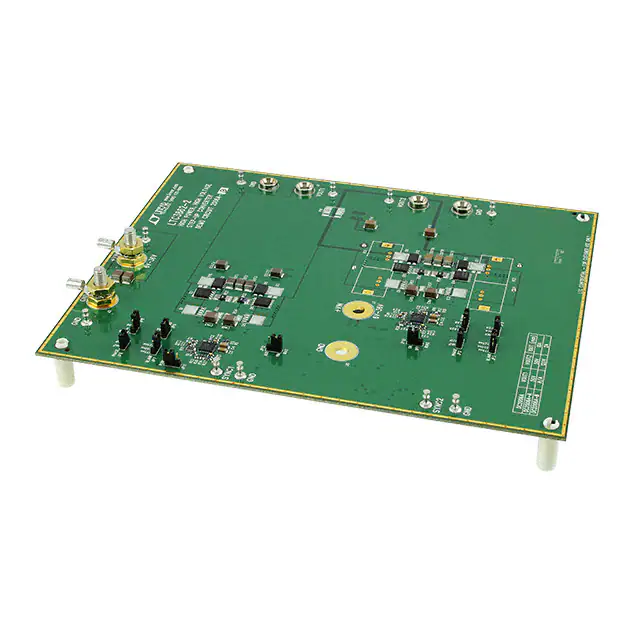

DC2006A-BEVAL BOARD FOR LTC38622 |
3,782 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 120V | 2A | 6V ~ 36V | Boost | 200kHz | Board(s) | LTC3862-2 |
|

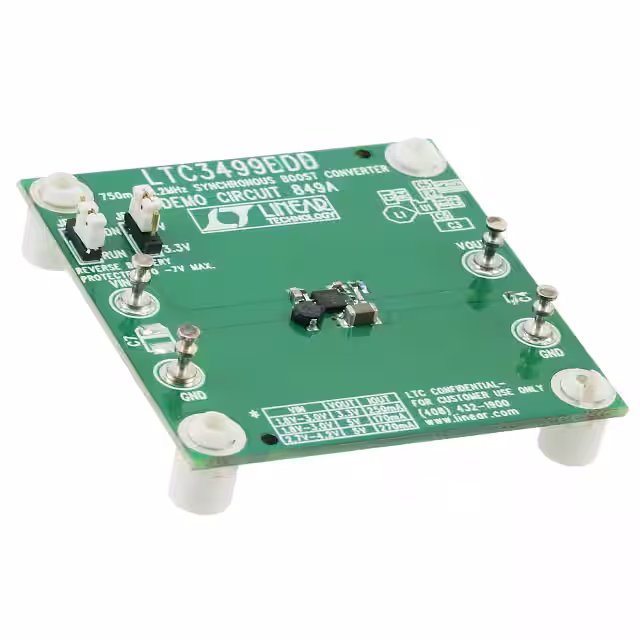

DC849AEVAL BOARD FOR LTC3499 |
3,252 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 250mA | 1.8V ~ 4.2V | Boost | 1.2MHz | Board(s) | LTC3499 |
