DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

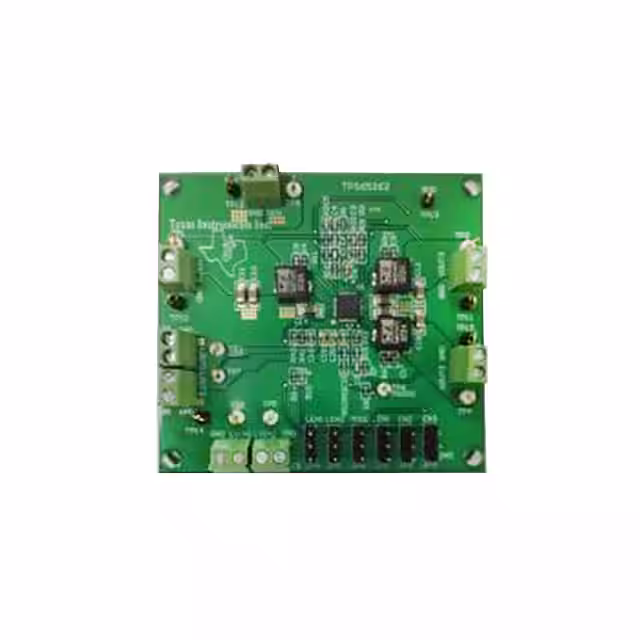

TPS65262EVM-619EVAL BOARD FOR TPS65262 |
3,947 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V, 5V | 3A, 1A, 1A, 200mA, 100mA | 4.5V ~ 18V | Buck | 600kHz | Board(s) | TPS65262 |
|

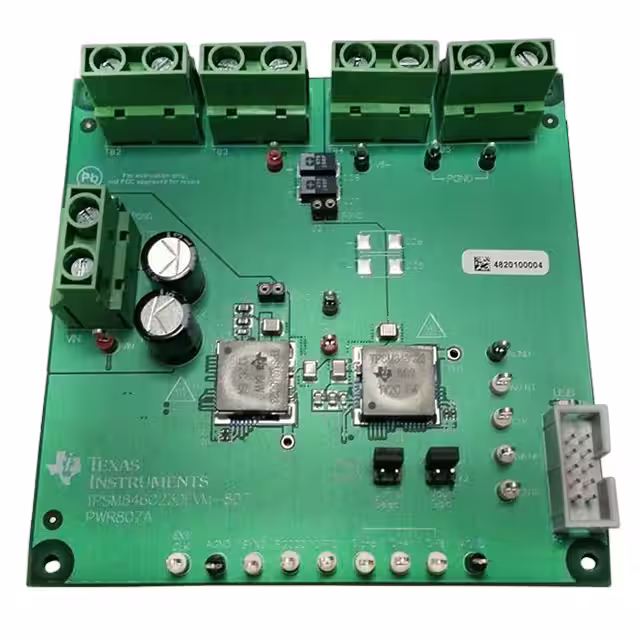

TPSM846C23DEVM-807EVAL BOARD FOR TPSM846C23 |
3,243 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.35V ~ 2V | 70A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | TPSM846C23 |
|

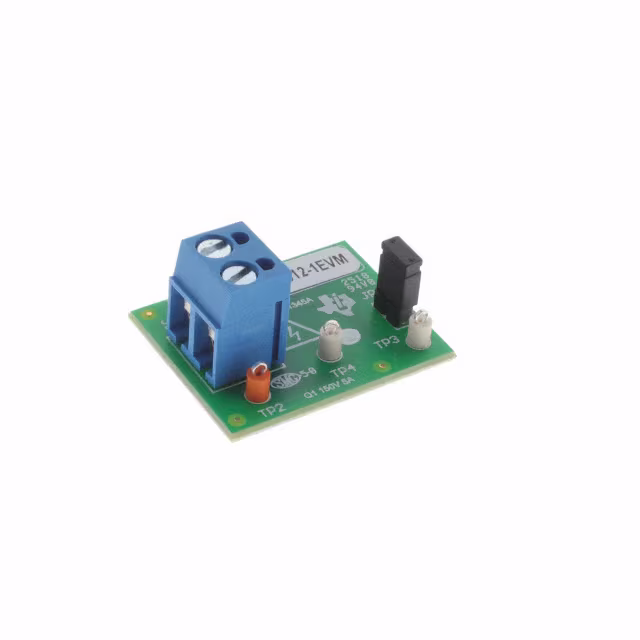

UCC24612-1EVMEVAL BOARD FOR UCC246121 |
3,372 | 118.80 |
|
Datasheet |
- | Bulk | Active | AC/DC, Secondary Side | 1 Non-Isolated Output | - | - | 5A | - | Flyback | - | Board(s) | UCC24612-1 |
|

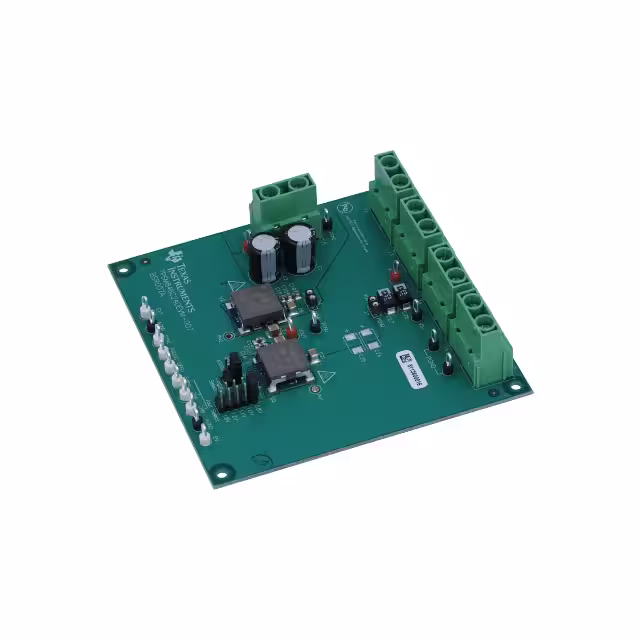

TPSM846C24DEVM-007EVAL BOARD FOR TPSM846C24 |
2,134 | 118.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 2V | 70A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | TPSM846C24 |
|
LM5152EVM-BSTEVAL BOARD FOR LM5152Q1 |
3,553 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 8.5V | 6A | 2.5V ~ 36V | Boost | 440kHz | Board(s) | LM5152-Q1 |
|
MAX25263EVKIT#EVAL BOARD FOR MAX25263 |
2,363 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A | 3.5V ~ 65V | Buck | 2.1MHz | Board(s) | MAX25263 |
|
|
MAX25262EVKIT#EVAL BOARD FOR MAX25262 |
2,213 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A | 3.5V ~ 65V | Buck | 2.1MHz | Board(s) | MAX25262 |
|
DC233AEVAL BOARD FOR LT1611 LT1613 |
3,631 | 121.30 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 3.3V, 5V, -5V | 120mA, 160mA, 200mA | 1V ~ 6V | Boost, Inverting, SEPIC | 1.4MHz | Board(s) | LT1611, LT1613 |
|
|
DC3113AEVAL BOARD FOR LTC33111 |
4,845 | 134.29 |
|
Datasheet |
Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 12.5A | 3V ~ 3.6V | Buck | 2MHz | Board(s) | LTC3311-1 |
|

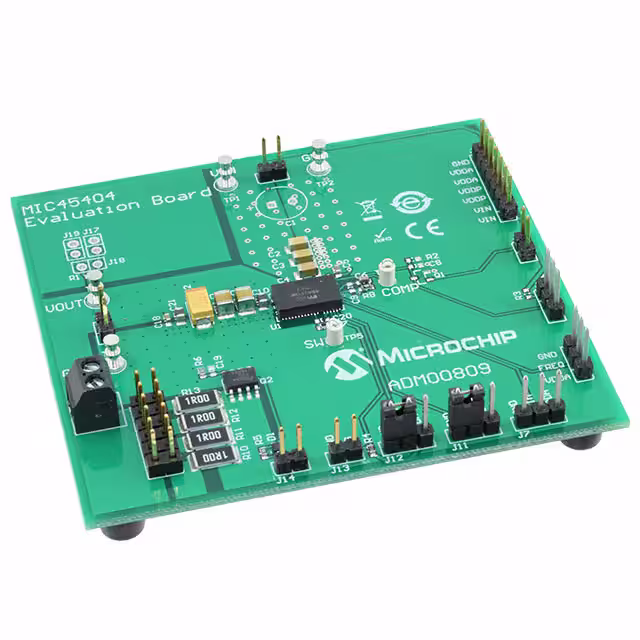

ADM00809EVAL BOARD FOR MIC45404 |
2,586 | 105.46 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V, 0.8V, 0.9V, 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 5A | 4.5V ~ 19V | Buck | - | Board(s) | MIC45404 |
|

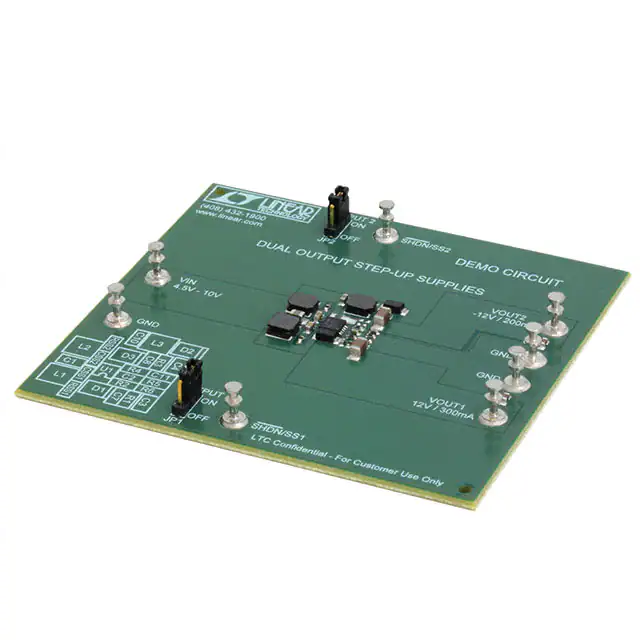

DC1280AEVAL BOARD FOR LT3471 |
1,170 | 111.81 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 12V, -12V | 300mA, 200mA | 4.5V ~ 10V | Boost | 1.2MHz | Board(s) | LT3471 |
|
DC2455A-AEVAL BOARD FOR LTM46501 |
2,210 | 123.59 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650-1 |
|
DC2143A-AEVAL BOARD FOR LTM4677 |
1,625 | 123.59 |
|
Datasheet |
µModule® | Tray | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 72A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4677 |
|

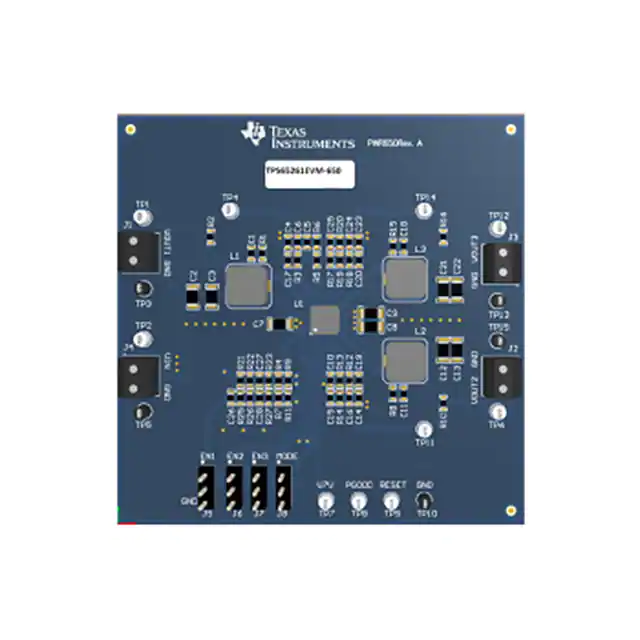

TPS65261EVM-650EVAL BOARD FOR TPS65261 |
4,542 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 3A, 2A, 2A | 4.5V ~ 18V | Buck | 600kHz | Board(s) | TPS65261 |
|
UCC28911EVM-718EVAL BOARD FOR UCC28911 |
3,994 | 118.80 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 7.5 W | 5V | 1.5A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC28911 |
|
|
MAX25255DUALEVKIT#EVAL BOARD FOR MAX25255 |
3,213 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V | 12A | 3V ~ 36V | Buck | 2MHz | Board(s) | MAX25255 |
|
MCRY-EVALKITEVAL BOARD FOR MCRY12125Q42DI |
3,978 | 125.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 4.2V | - | 0.024V ~ 0.5V | Flyback | - | Board(s) | MCRY12-125Q-42DI |
|
FAN251015GEVBEVAL BOARD FOR FAN251015 |
1,537 | 125.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 5.5V | 15A | 4.5V ~ 18V | Buck | - | Board(s) | FAN251015 |
|

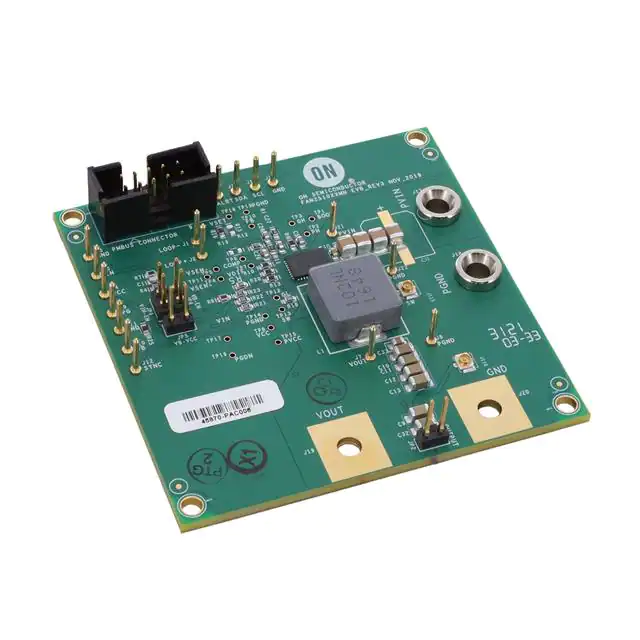

FAN251040GEVBEVAL BOARD FOR FAN251040 |
4,157 | 125.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 5.5V | 40A | 4.5V ~ 18V | Buck | - | Board(s) | FAN251040 |
|

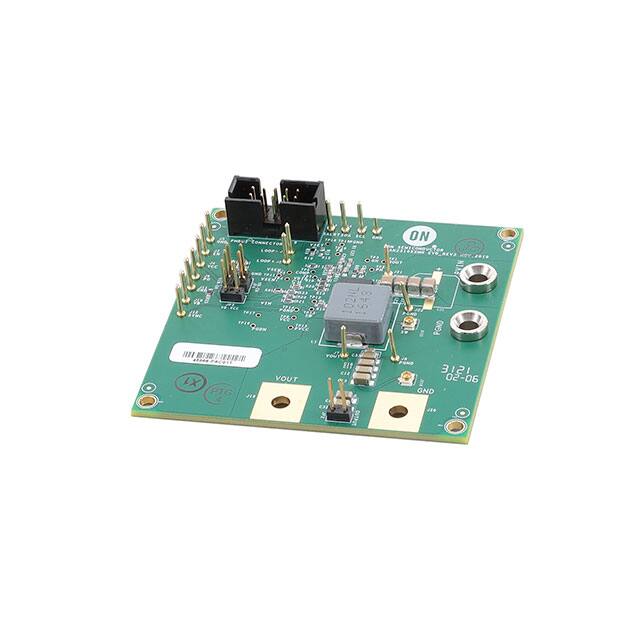

FAN251030GEVBEVAL BOARD FOR FAN251030 |
4,697 | 125.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 5.5V | 35A | 4.5V ~ 18V | Buck | - | Board(s) | FAN251030 |
