DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC3186A-CEVAL BOARD FOR LTC3311 |
4,693 | 0.00 |
|
Datasheet |
Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.176V ~ 1.224V | 25A | 3V ~ 5.5V | Buck | - | Board(s) | LTC3311 |
|
MAX8654EVKIT+EVAL BOARD FOR MAX8654 |
3,150 | 122.42 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 8A | 4.5V ~ 14V | Buck | 500kHz | Board(s) | MAX8654 |
|
|
BD7F100HFN-EVK-002EVAL BOARD FOR BD7F100 |
4,159 | 127.84 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 1A | 24V | Flyback | 400kHz | Board(s) | BD7F100 |
|
ROA170163/2EVAL BOARD FOR PMU8218 |
2,081 | 133.49 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 22 W | 0.6V ~ 5.5V | 4A | 4.5V ~ 17V | - | - | Board(s) | PMU8218 |
|

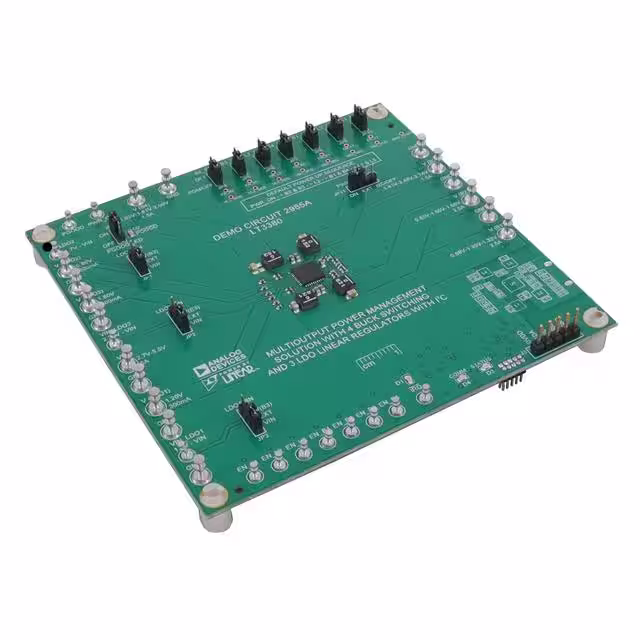

DC2985AEVAL BOARD FOR LT3380 |
4,338 | 145.87 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 7 Non-Isolated Outputs | - | 0.8V, 1.2V, 1.2V, 1.5V, 1.8V, 1.81V, 2.48V | 2.5A, 2.5A, 1.5A, 1.5A, 300mA, 300mA, 300mA | 2.7V ~ 5.5V | Buck | - | Board(s) | LT3380 |
|
DC559A-BEVAL BOARD FOR LTC3429B |
3,355 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 250mA | 1V ~ 3.3V | Boost | 500kHz | Board(s) | LTC3429B |
|
DC433AEVAL BOARD FOR LT1961 |
2,763 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1A | 2.8V ~ 12V | Boost | 1.25MHz | Board(s) | LT1961 |
|

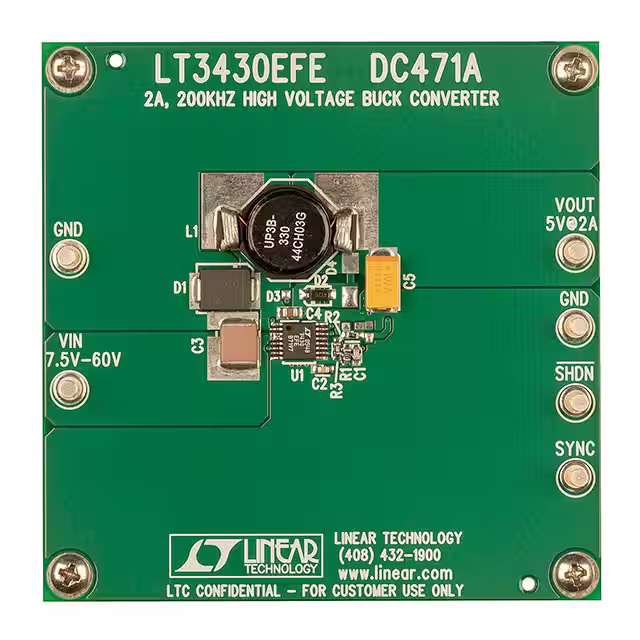

DC471AEVAL BOARD FOR LT3430 |
2,749 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 7.5V ~ 60V | Buck | 200kHz | Board(s) | LT3430 |
|
DC2874A-CEVAL BOARD FOR LTC3310S |
4,459 | 129.48 |
|
Datasheet |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3310S |
|

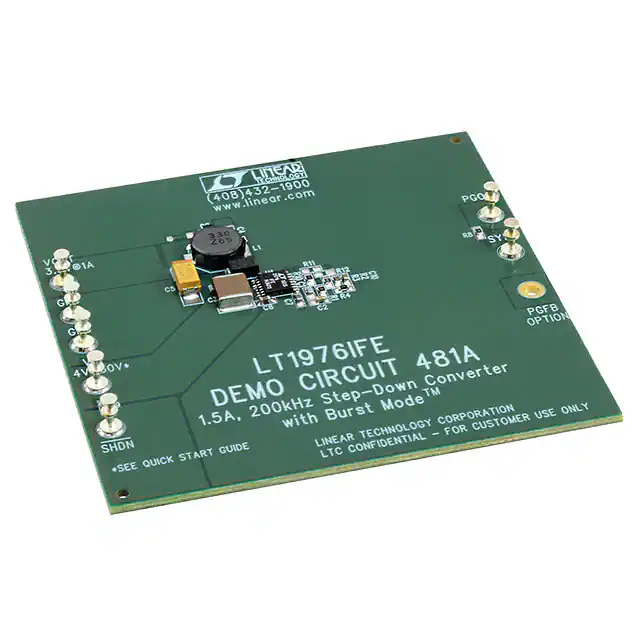

DC481AEVAL BOARD FOR LT1976 |
4,795 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4V ~ 42V | Buck | 200kHz | Board(s) | LT1976 |
|
DC679AEVAL BOARD FOR LT3463 |
2,336 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | 20V | 13mA, 9mA | 2.7V ~ 6V | Boost, Inverting | - | Board(s) | LT3463 |
|

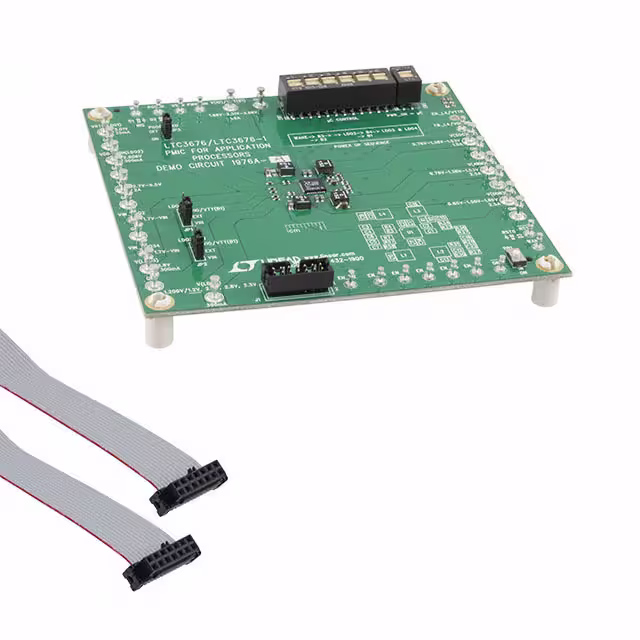

DC1976A-AEVAL BOARD FOR LTC3676 |
1,046 | 129.48 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 8 Non-Isolated Outputs | - | 1.2V, 1.38V, 1.38V, 1.5V, 1.8V, 2.81V, 3.01V, 3.31V | 2.5A, 2.5A, 1.5A, 1.5A, 300mA, 300mA, 300mA, 25mA | 2.7V ~ 5.5V | Buck | - | Board(s) | LTC3676 |
|
I6A14A-C01-EVK-S1EVAL BOARD FOR I6A24014A033V |
4,157 | 138.47 |
|
Datasheet |
i6A | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 250 W | 3.3V ~ 24V | 14A | 9V ~ 40V | Buck | 400kHz | Board(s) | i6A24014A033V |
|
|
I6A20A-C01-EVK-S1EVAL BOARD FOR I6A4W020A033V |
4,788 | 138.47 |
|
Datasheet |
i6A | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 250 W | 3.3V ~ 15V | 20A | 9V ~ 53V | Buck | 400kHz | Board(s) | i6A4W020A033V |
|
I7A45A-C01-EVK-S1EVAL BOARD FOR I7A24045A033V |
3,326 | 138.47 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 750 W | 3.6V ~ 18V | 45A | 18V ~ 32V | Buck | - | Board(s) | i7A24045A033V |
|
|
I6A10A-C01-EVK-S1EVAL BOARD FOR I6A4W010A033V |
1,388 | 138.47 |
|
Datasheet |
i6A | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 250 W | 3.3V ~ 40V | 10A | 9V ~ 53V | Buck | 400kHz | Board(s) | i6A4W010A033V |
|
|
I3A05A-C01-EVK-S1EVAL BOARD FOR I3A4W005A150V |
2,345 | 138.47 |
|
Datasheet |
i3A | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 100 W | 5V ~ 30V | 4.5A | 9V ~ 53V | Buck | 400kHz | Board(s) | i3A4W005A150V |
|

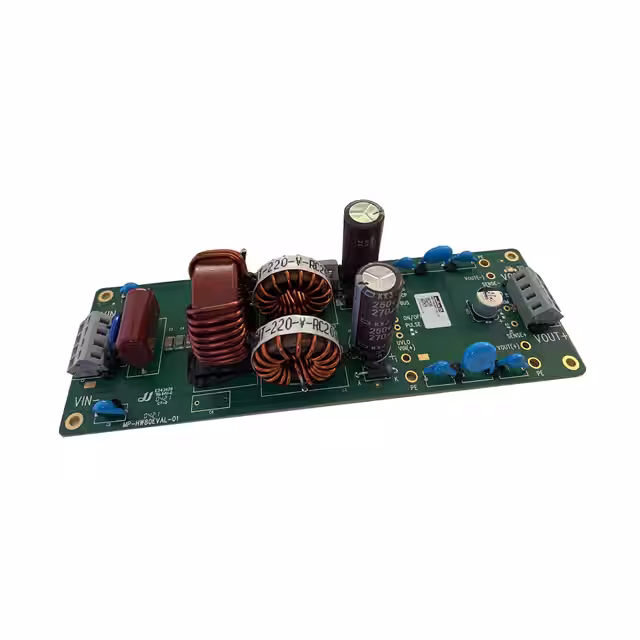

MP-HW80EVAL-01EVAL BOARD FOR IRHW80 |
2,605 | 139.38 |
|
Datasheet |
- | Tray | Active | DC/DC Converter | 1 Isolated Output | 250 W | 12V, 24V, 54V | 21A, 10.5A, 4.7A | 16V ~ 160V | - | 240kHz | Board(s) | IRH-W80 |
|

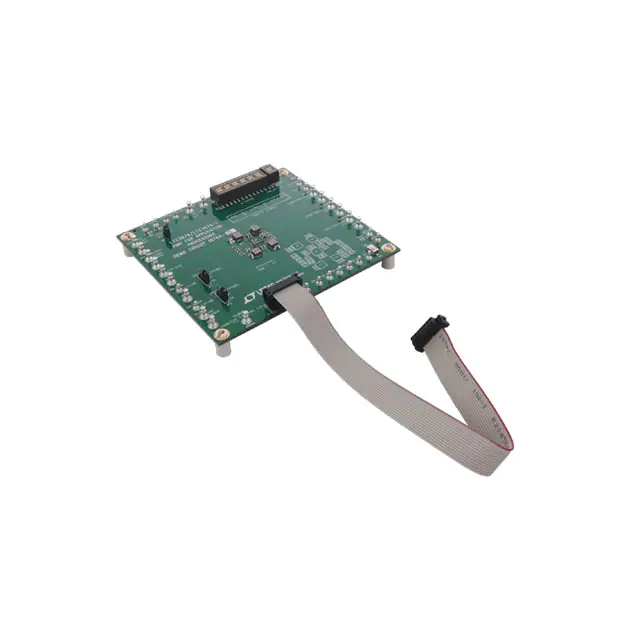

DC1976A-BEVAL BOARD FOR LTC36761 |
2,856 | 155.91 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 8 Non-Isolated Outputs | - | 1.2V, 1.38V, 1.38V, 1.5V, 1.8V, 2.81V, 3.01V, 3.31V | 2.5A, 2.5A, 1.5A, 1.5A, 300mA, 300mA, 300mA, 25mA | 2.7V ~ 5.5V | Buck | - | Board(s) | LTC3676-1 |
|
DC1700AEVAL BOARD FOR LTC3613 |
2,143 | 141.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 15A | 4.5V ~ 24V | Buck | 350kHz | Board(s) | LTC3613 |
