DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

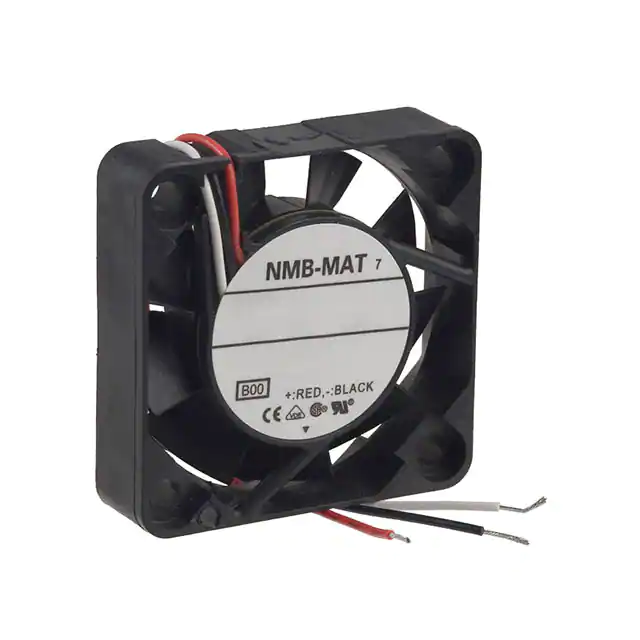

1604KL-01W-B39-B50FAN AXIAL 40X10MM BALL 5VDC WIRE |
2,816 | 0.00 |
|
Datasheet |
04010KA | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.096 in H2O (23.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.0dB | 375 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|
|
1604KL-01W-B49-B00FAN AXIAL 40X10MM BALL 5VDC WIRE |
4,698 | 0.00 |
|
Datasheet |
04010KA | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB | 600 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|
|
1604KL-01W-B59-B50FAN AXIAL 40X10MM BALL 5VDC WIRE |
2,040 | 0.00 |
|
Datasheet |
04010KA | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 775 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|
1604KL-04W-B39-B00FAN AXIAL 40X10MM 12VDC WIRE |
3,109 | 0.00 |
|
Datasheet |
04010KA | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.096 in H2O (23.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB | 740 mW | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|
|
1604KL-04W-B49-B50FAN AXIAL 40X10MM 12VDC WIRE |
4,426 | 0.00 |
|
Datasheet |
04010KA | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.0dB | 880 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|
|
1604KL-04W-B59-B50FAN AXIAL 40X10MM 12VDC WIRE |
3,802 | 0.00 |
|
Datasheet |
04010KA | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 6.0 CFM (0.168m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 29.0dB | 880 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.033 lb (14.97 g) |
|
|
1606KL-01W-B39-L00FAN AXIAL 40X15MM BALL 5VDC WIRE |
4,733 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB | 600 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-01W-B39-L50FAN AXIAL 40X15MM BALL 5VDC WIRE |
3,260 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB | 600 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-01W-B49-L00FAN AXIAL 40X15MM BALL 5VDC WIRE |
1,099 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 7.0 CFM (0.196m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB | 750 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-01W-B49-L50FAN AXIAL 40X15MM BALL 5VDC WIRE |
2,718 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 7.0 CFM (0.196m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB | 750 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-01W-B59-L50FAN AXIAL 40X15MM BALL 5VDC WIRE |
1,294 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 1.2 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-04W-B39-L00FAN AXIAL 40X15MM 12VDC WIRE |
1,318 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB | 800 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-04W-B39-L50FAN AXIAL 40X15MM 12VDC WIRE |
1,705 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB | 800 mW | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-04W-B49-L00FAN AXIAL 40X15MM 12VDC WIRE |
3,573 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 7.0 CFM (0.196m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB | 900 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-04W-B49-L50FAN AXIAL 40X15MM 12VDC WIRE |
3,749 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 7.0 CFM (0.196m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB | 900 mW | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-04W-B59-L50FAN AXIAL 40X15MM 12VDC WIRE |
3,026 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 1.02 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-05W-B39-L00FAN AXIAL 40X15MM 24VDC WIRE |
2,886 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB | 1.08 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-05W-B39-L50FAN AXIAL 40X15MM 24VDC WIRE |
4,353 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 6.0 CFM (0.168m³/min) | 0.145 in H2O (36.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 28.0dB | 1.08 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-05W-B49-L00FAN AXIAL 40X15MM 24VDC WIRE |
4,106 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 7.0 CFM (0.196m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB | 1.3 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
|
|
1606KL-05W-B49-L50FAN AXIAL 40X15MM 24VDC WIRE |
2,473 | 0.00 |
|
Datasheet |
1606KL | Box | Obsolete | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 7.0 CFM (0.196m³/min) | 0.189 in H2O (47.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB | 1.3 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.044 lb (19.96 g) |
