DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3110SB-05W-B29-B50FAN AXIAL 80X25MM 24VDC WIRE |
4,075 | 8.21 |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 19.0dB(A) | 720 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B39-B50FAN AXIAL 80X25MM 24VDC WIRE |
3,362 | 8.21 |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.4 CFM (0.851m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.0dB(A) | 960 mW | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B49-B50FAN AXIAL 80X25MM 24VDC WIRE |
3,588 | 8.21 |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | 1.44 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B59-B50FAN AXIAL 80X25MM 24VDC WIRE |
2,854 | 8.21 |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1.92 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-04W-B39-E50FAN AXIAL 80X25MM 12VDC WIRE |
2,506 | 8.21 |
|
Datasheet |
08025SA | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 30.4 CFM (0.851m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.0dB(A) | 720 mW | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B29-E50FAN AXIAL 80X25MM 24VDC WIRE |
2,969 | 8.21 |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.066 in H2O (16.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 19.0dB(A) | 720 mW | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B39-E50FAN AXIAL 80X25MM 24VDC WIRE |
2,327 | 8.21 |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.4 CFM (0.851m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.0dB(A) | 960 mW | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
|
3110SB-05W-B49-E50FAN AXIAL 80X25MM 24VDC WIRE |
1,728 | 8.21 |
|
Datasheet |
08025SA | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.0dB(A) | 1.44 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
2410SB-04W-B49-B50FAN AXIAL 60X25MM 12VDC WIRE |
4,662 | 9.54 |
|
Datasheet |
06025SA | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 26.5dB(A) | 1.2 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.123 lb (55.79 g) |
|
FFB0948VHEFAN DC AXIAL 48V 92X38 3800RPM |
1,123 | 0.00 |
|
- |
* | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

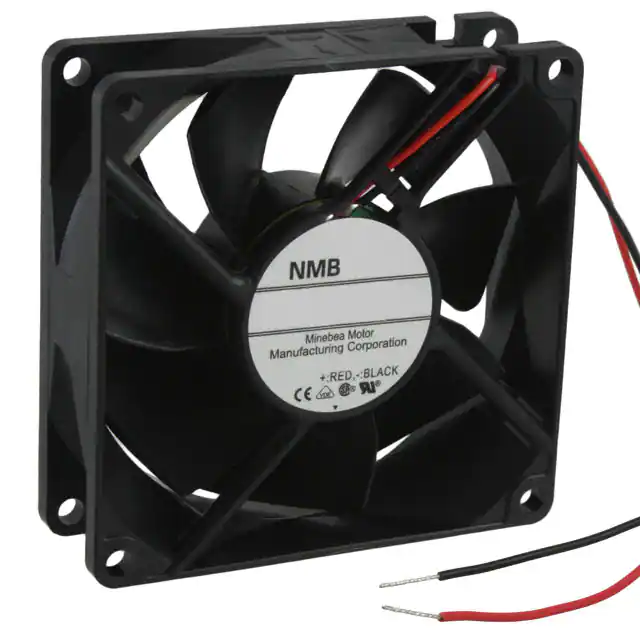

3110KL-04W-B60-B00FAN AXIAL 80X25MM 12VDC WIRE |
2,631 | 0.00 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | - | 35.0dB | 3.12 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3110KL-04W-B69-E00FAN AXIAL 80X25MM 12VDC WIRE |
4,788 | 8.38 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.0dB(A) | 3.12 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3610KL-04W-B10-E00FAN AXIAL 92X25MM 12VDC WIRE |
3,048 | 0.00 |
|
Datasheet |
3610KL | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 26.5 CFM (0.742m³/min) | 0.057 in H2O (14.2 Pa) | Ball | Tubeaxial | - | 25.0dB(A) | 880 mW | 1750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3610KL-04W-B30-E00FAN AXIAL 92X25MM 12VDC WIRE |
3,874 | 0.00 |
|
Datasheet |
3610KL | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 40.6 CFM (1.14m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | - | 34.0dB(A) | 1.92 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3610KL-04W-B39-E50FAN AXIAL 92X25MM 12VDC WIRE |
1,226 | 0.00 |
|
Datasheet |
3610KL | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 40.6 CFM (1.14m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB(A) | 1.92 W | 2450 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

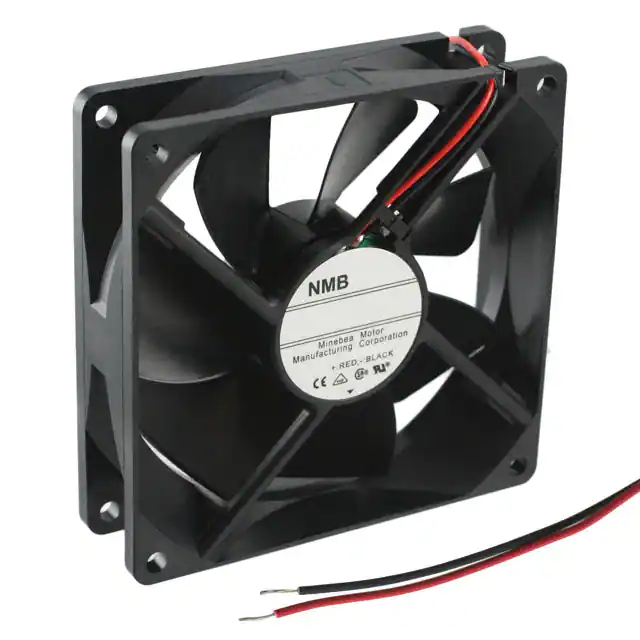

3610KL-04W-B60-E00FAN AXIAL 92X25MM 12VDC WIRE |
1,509 | 0.00 |
|
Datasheet |
3610KL | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 61.8 CFM (1.73m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | - | 44.5dB(A) | 5.16 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-04W-B69-E50FAN AXIAL 92X25MM 12VDC WIRE |
2,867 | 0.00 |
|
Datasheet |
3610KL | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 61.8 CFM (1.73m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.5dB(A) | 5.16 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B30-E00FAN AXIAL 92X25MM 24VDC WIRE |
4,811 | 11.26 |
|
Datasheet |
3610KL | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 40.6 CFM (1.14m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | - | 34.0dB(A) | 2.16 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B40-E00FAN AXIAL 92X25MM 24VDC WIRE |
2,453 | 0.00 |
|
Datasheet |
3610KL | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 47.6 CFM (1.33m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | - | 37.5dB(A) | 2.88 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B50-E00FAN AXIAL 92X25MM 24VDC WIRE |
4,832 | 0.00 |
|
Datasheet |
3610KL | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 54.7 CFM (1.53m³/min) | 0.192 in H2O (48.0 Pa) | Ball | Tubeaxial | - | 41.0dB(A) | 3.84 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
