DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3610KL-05W-B59-E50FAN AXIAL 92X25MM 24VDC WIRE |
3,803 | 0.00 |
|
Datasheet |
3610KL | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 54.7 CFM (1.53m³/min) | 0.192 in H2O (48.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.0dB(A) | 3.84 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

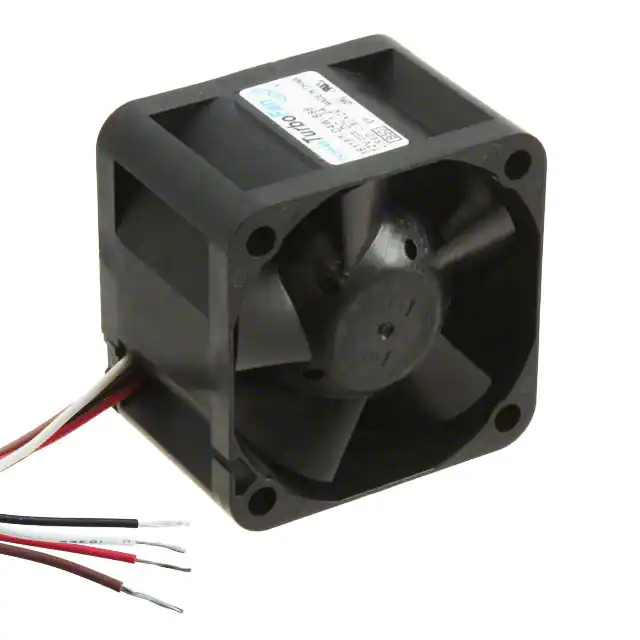

1611FT-D4W-B86-B50FAN AXIAL 40X28MM 12VDC WIRE |
3,520 | 0.00 |
|
Datasheet |
1611FT | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 29.3 CFM (0.820m³/min) | 2.680 in H2O (670.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.0dB | 11.4 W | 22000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL, VDE | 0.108 lb (48.99 g) |
|
1622FT-04W-B86-E00FAN AXIAL 40X56MM 12VDC WIRE |
1,189 | 14.77 |
|
Datasheet |
1622FT | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 30.0 CFM (0.840m³/min) | 3.540 in H2O (885.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.0dB | 12.6 W | 23000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 0.15 lb (68.04 g) |
|

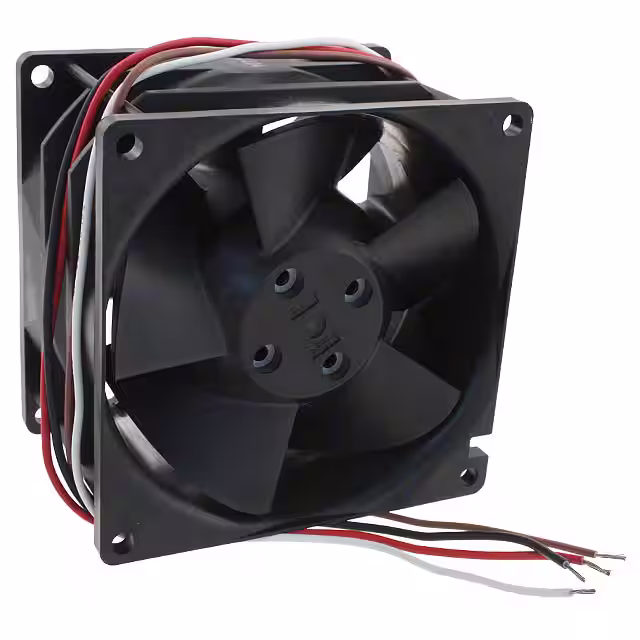

3122FT-D4W-B56-E50FAN AXIAL 80X56MM 12VDC WIRE |
2,389 | 0.00 |
|
Datasheet |
3122FT | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 56.00mm | 138.0 CFM (3.86m³/min) | 3.630 in H2O (905.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 65.5dB | 46.8 W | 13500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.485 lb (219.99 g) |
|
AFB0824VH-R00FAN AXIAL 80X25.4MM 24VDC WIRE |
3,376 | 10.01 |
|
Datasheet |
AFB | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 42.0 CFM (1.18m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 3.36 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
THA0948BEFAN AXIAL 92X38MM 48VDC WIRE |
4,714 | 0.00 |
|
Datasheet |
THA | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 189.7 CFM (5.31m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 67.2 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 1.1 lbs (500.0 g) |
|
TFA0948AEFAN AXIAL 92X38MM 48VDC WIRE |
4,441 | 0.00 |
|
Datasheet |
TFA | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 67.1 CFM (1.88m³/min) | 0.720 in H2O (179.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.8dB(A) | 5.76 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.463 lb (210.01 g) |
|

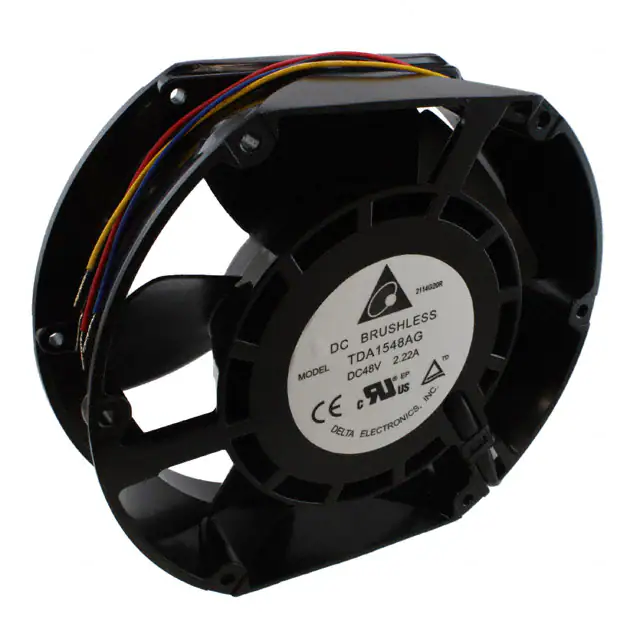

TDA1548AGFAN AXIAL 172X50.8MM 48VDC WIRE |
3,064 | 0.00 |
|
Datasheet |
TDA | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 402.1 CFM (11.26m³/min) | 2.854 in H2O (710.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.3dB(A) | 88.8 W | 5400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.7 lbs (771.1 g) |
|
TDA1748AGFAN AXIAL 172X50.8MM 48VDC WIRE |
4,999 | 0.00 |
|
Datasheet |
TDA | Box | Obsolete | 48VDC | Round - 172mm Dia | 50.80mm | 413.0 CFM (11.56m³/min) | 2.820 in H2O (702.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 88.8 W | 5400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lb (800.0 g) |
|
THB2048CTFAN AXIAL 208X70MM 48VDC WIRE |
2,802 | 0.00 |
|
Datasheet |
THB | Box | Obsolete | 48VDC | Round - 208mm Dia | 70.00mm | 827.4 CFM (23.17m³/min) | 2.690 in H2O (670.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.6dB(A) | 230.4 W | 5800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 3.5 lbs (1.6 kg) |
|
MB40100V2-000U-A99FAN AXIAL 40X10MM VAPO 5VDC WIRE |
2,013 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.0dB(A) | 900 mW | 5800 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.037 lb (16.78 g) |
|
MB40201V2-000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
4,660 | 0.00 |
|
Datasheet |
MagLev® MB | Tray | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 600 mW | 6200 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|

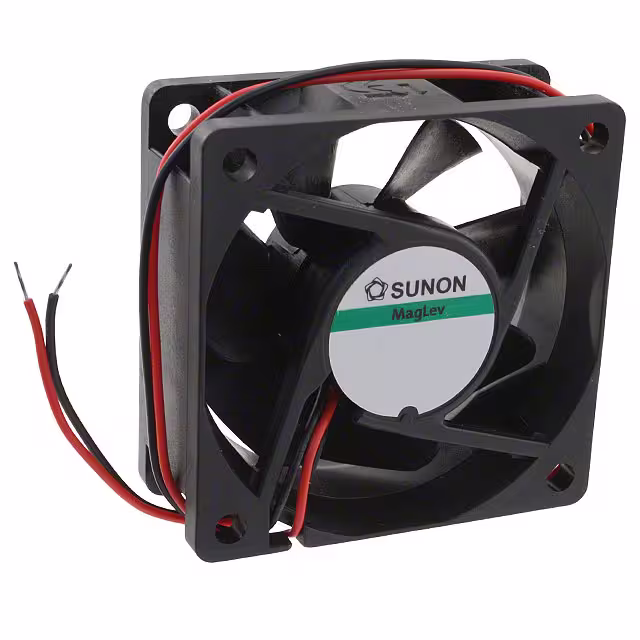

MB60251V1-000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
4,261 | 0.00 |
|
Datasheet |
MagLev® MB | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 33.5dB(A) | 1.5 W | 4500 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 0.126 lb (57.15 g) |
|

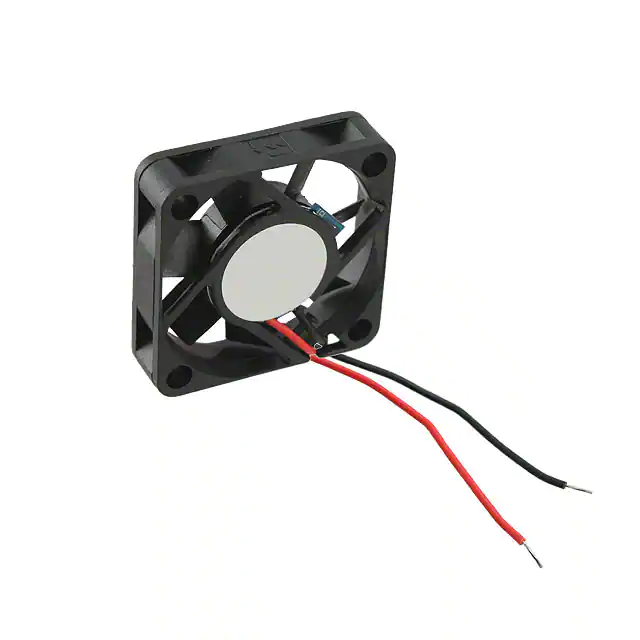

ME40100V1-000U-A99FAN AXIAL 40X10MM VAPO 5VDC WIRE |
2,326 | 0.00 |
|
Datasheet |
MagLev® ME | Tray | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.0dB(A) | 1.08 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.03 lb (13.61 g) |
|
|
ME40101V1-000U-A99FAN AXIAL 40X10MM 12VDC WIRE |
1,849 | 0.00 |
|
Datasheet |
MagLev® ME | Tray | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.0dB(A) | 1.08 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.03 lb (13.61 g) |
|
4715KL-04W-B10-E00FAN AXIAL 119X38.4MM 12VDC WIRE |
1,267 | 17.33 |
|
Datasheet |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 37.0dB | 3.24 W | 2300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|

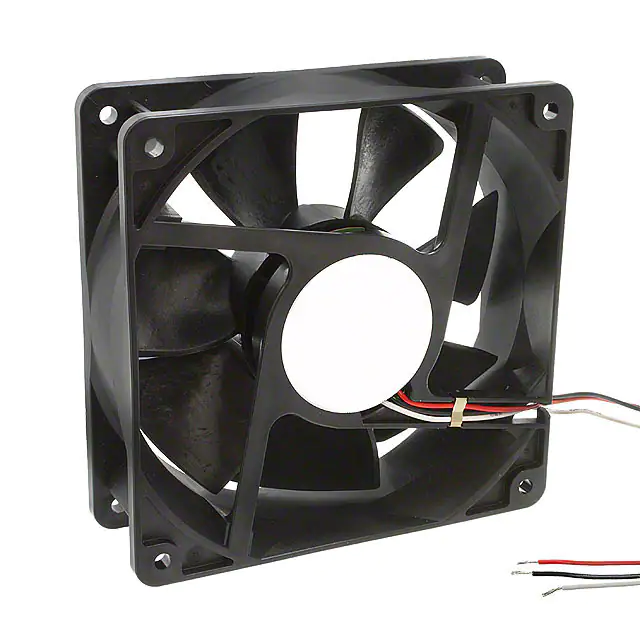

4715KL-05W-B19-E00FAN AXIAL 119X38.4MM 24VDC WIRE |
3,789 | 17.82 |
|
Datasheet |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB | 3.6 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B49-E00FAN AXIAL 119X38.4MM 48VDC WIRE |
2,142 | 17.82 |
|
Datasheet |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB | 9.6 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-05W-B19-E50FAN AXIAL 119X38.4MM 24VDC WIRE |
2,347 | 17.82 |
|
Datasheet |
11938KA | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 83.6 CFM (2.34m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB | 3.6 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B49-E50FAN AXIAL 119X38.4MM 48VDC WIRE |
4,306 | 17.82 |
|
Datasheet |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.5dB | 9.6 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
