DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4715KL-04W-B50-E00FAN AXIAL 119X38.4MM 12VDC WIRE |
4,847 | 17.33 |
|
Datasheet |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 129.9 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 12 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 104°F (-10 ~ 40°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B29-E50FAN AXIAL 119X38.4MM 48VDC WIRE |
2,832 | 17.82 |
|
Datasheet |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 97.0 CFM (2.72m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.0dB | 5.28 W | 2650 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-04W-B59-E50FAN AXIAL 119X38.4MM 12VDC WIRE |
2,619 | 17.82 |
|
Datasheet |
11938KA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.40mm | 129.9 CFM (3.64m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 50.0dB | 12 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 104°F (-10 ~ 40°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B39-E50FAN AXIAL 119X38.4MM 48VDC WIRE |
3,598 | 17.82 |
|
Datasheet |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.5dB | 7.68 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
4715KL-07W-B40-E00FAN AXIAL 119X38.4MM 48VDC WIRE |
1,135 | 17.33 |
|
Datasheet |
11938KA | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | - | 46.5dB | 9.6 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
ME80251V3-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
1,883 | 0.00 |
|
Datasheet |
MagLev® ME | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 1.1 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|

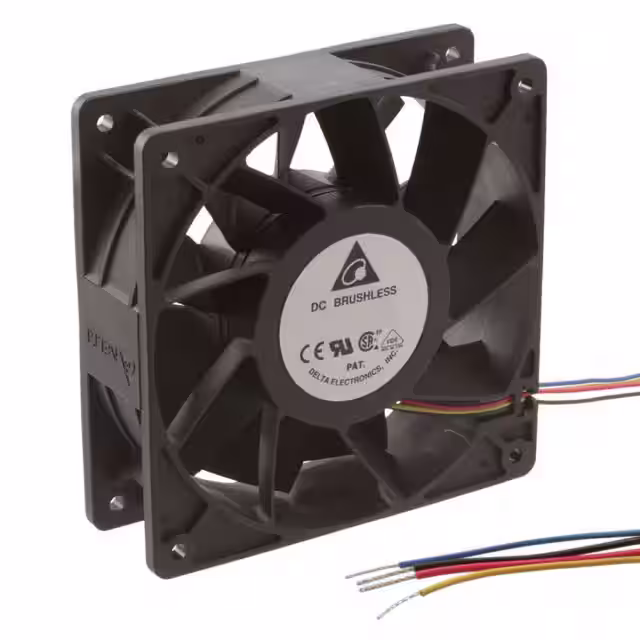

PFC1248DE-F00FAN AXIAL 120X38MM 48VDC WIRE |
1,008 | 0.00 |
|
Datasheet |
PFC | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 48 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
ME92251V3-000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
2,392 | 0.00 |
|
Datasheet |
MagLev® ME | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 1.3 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.207 lb (93.89 g) |
|

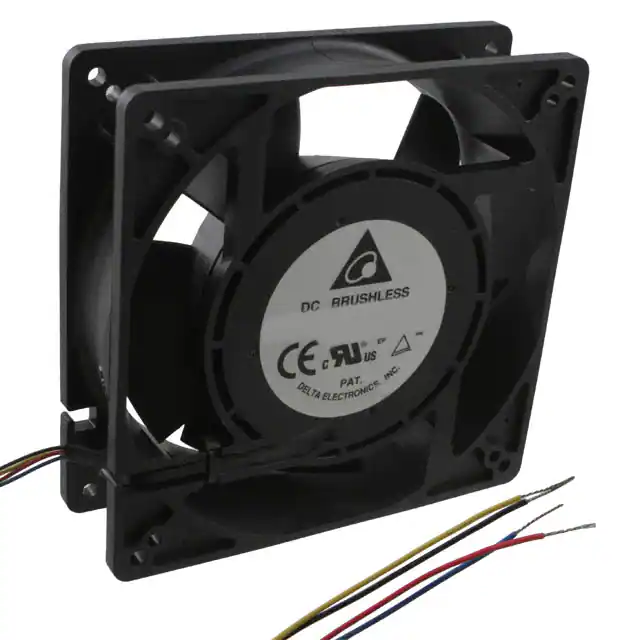

TDA1348AE-EPFAN AXIAL 127X38MM 48VDC WIRE |
3,937 | 63.15 |
|
Datasheet |
TDA | Box | Obsolete | 48VDC | Square - 127mm L x 127mm H | 38.00mm | 160.0 CFM (4.48m³/min) | 1.456 in H2O (362.7 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.4dB(A) | 19.2 W | 5300 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -27.4 ~ 158°F (-33 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|

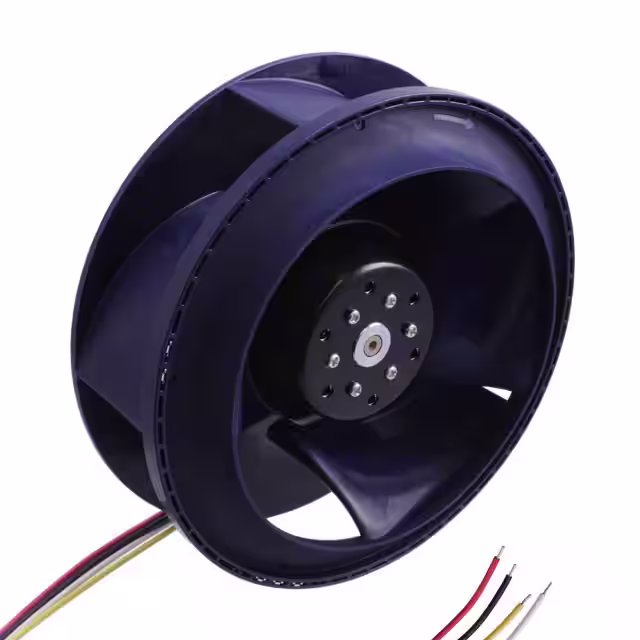

F175A1-062-D0750FAN IMP MTRZD 175X69.3MM 48VDC |
3,511 | 0.00 |
|
Datasheet |
F175 | Bulk | Obsolete | 48VDC | Round - 175mm Dia | 69.30mm | 551.0 CFM (15.43m³/min) | 5.110 in H2O (1272.9 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 117.6 W | 5600 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.3 lbs (1 kg) |
|

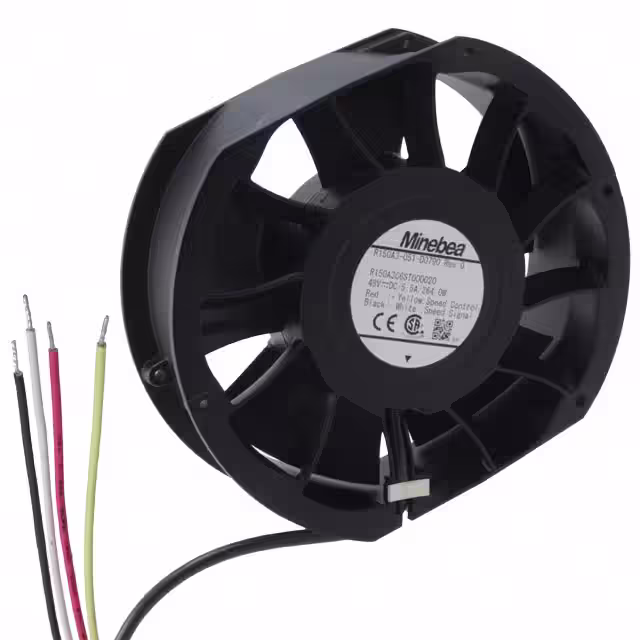

R150A1-051-D0760FAN AXIAL 172.7X50MM 48VDC WIRE |
4,742 | 0.00 |
|
Datasheet |
R150 | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.00mm | 365.0 CFM (10.22m³/min) | 3.485 in H2O (868.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 72 W | 6300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.3 lbs (1 kg) |
|
|
F175A2-062-D0740FAN IMP MTRZD 175X69.3MM 48VDC |
4,180 | 0.00 |
|
Datasheet |
F175 | Bulk | Obsolete | 48VDC | Round - 175mm Dia | 69.30mm | 442.0 CFM (12.38m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 64.8 W | 4600 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.3 lbs (1 kg) |
|
|
F175A4-062-D0540FAN IMP MTRZD 175X69.3MM 24VDC |
1,675 | 0.00 |
|
Datasheet |
F175 | Bulk | Obsolete | 24VDC | Round - 175mm Dia | 69.30mm | 413.0 CFM (11.56m³/min) | 2.950 in H2O (734.8 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 57.6 W | 4400 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.3 lbs (1 kg) |
|
F250A6-072-D0520FAN IMP MTRZD 250X99.8MM 24VDC |
2,836 | 0.00 |
|
Datasheet |
F250 | Bulk | Active | 24VDC | Round - 250mm Dia | 99.80mm | 668.0 CFM (18.70m³/min) | 1.845 in H2O (459.6 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 84 W | 2400 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 5.3 lbs (2.4 kg) |
|
MB40202VX-000U-A99FAN AXIAL 40X20MM 24VDC WIRE |
4,155 | 0.00 |
|
Datasheet |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.270 in H2O (67.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 27.5dB(A) | 1.54 W | 8200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|
FAD1-08015BHMW12FAN AXIAL 80X15MM 5VDC WIRE |
3,267 | 0.00 |
|
Datasheet |
FAD1-08015 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 15.00mm | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | Hydrodynamic | Tubeaxial | - | 24.9dB(A) | 650 mW | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08015DHMW12FAN AXIAL 80X15MM 24VDC WIRE |
2,872 | 0.00 |
|
Datasheet |
FAD1-08015 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | Hydrodynamic | Tubeaxial | - | 24.9dB(A) | 960 mW | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|

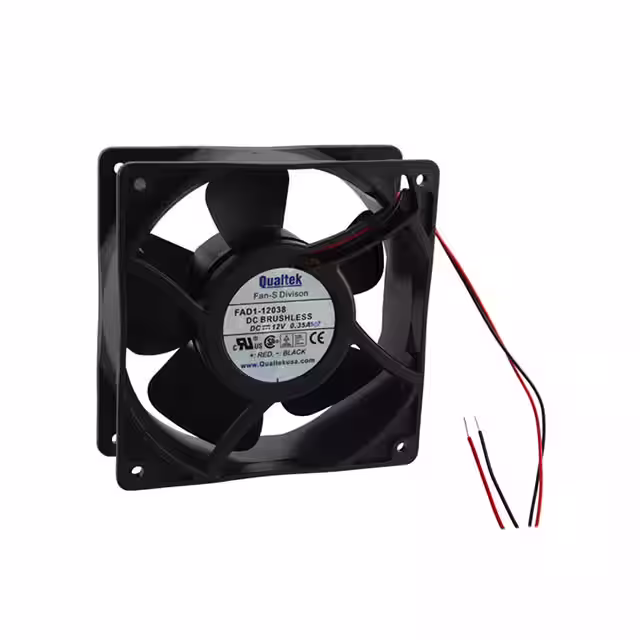

FAD1-12038EBJW32FAN AXIAL 120X38.5MM 48VDC WIRE |
3,560 | 0.00 |
|
Datasheet |
FAD1-12038 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 10.56 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.656 lb (297.56 g) |
|
|
FAD1-12038EHMW32FAN AXIAL 120X38.5MM 48VDC WIRE |
4,185 | 0.00 |
|
Datasheet |
FAD1-12038 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.50mm | 96.3 CFM (2.70m³/min) | 0.228 in H2O (56.8 Pa) | Hydrodynamic | Tubeaxial | - | 45.0dB(A) | 6.24 W | 2540 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.656 lb (297.56 g) |
|

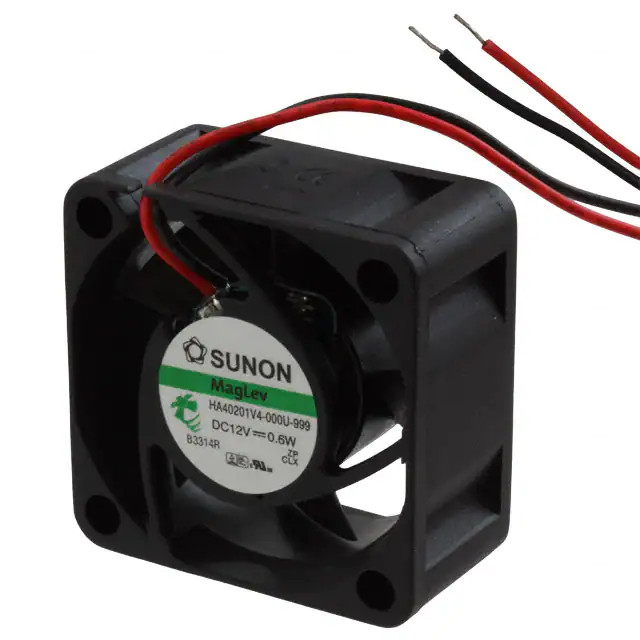

HA40201V4-000U-999FAN AXIAL 40X20MM 12VDC WIRE |
1,246 | 0.00 |
|
Datasheet |
MagLev® HA | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.5 CFM (0.154m³/min) | 0.080 in H2O (19.9 Pa) | Vapo-Bearing™ | Tubeaxial | - | 12.8dB(A) | 600 mW | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.067 lb (30.39 g) |
