DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF80151V1-1000U-Q9912VDC FAN 80X15MM ALARM/PWM |
2,733 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 32.9dB(A) | 1.5 W | 3500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80151V2-1000U-Q9912VDC FAN 80X15MM ALARM/PWM |
3,858 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 29.9dB(A) | 1.13 W | 3100 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80151V3-1000U-Q9912VDC FAN 80X15MM ALARM/PWM |
2,089 | 0.00 |
|
Datasheet |
MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 26.5dB(A) | 0.86 W | 2800 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
3249/UB5U3-500FAN BLOWER 30X3MM VAPO 5VDC WIRE |
1,872 | 7.93 |
|
- |
Mighty Mini | Bag | Active | 5VDC | Square - 30mm L x 30mm H | 3.00mm | 0.630 CFM (0.018m³/min) | 0.354 in H2O (88.2 Pa) | Vapo-Bearing™ | Blower | Speed Sensor (Tach) | 39.2dB(A) | 360 mW | 9500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.005 lb (2.27 g) |
|
|
M5010M12C-RSRFAN AXIAL 50X10MM 12VDC WIRE |
2,096 | 7.94 |
|
Datasheet |
M5010 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.070 in H2O (17.4 Pa) | Sleeve | Tubeaxial | - | 24.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.046 lb (20.87 g) |
|
|
M5010M05C-RSRFAN AXIAL 50X10MM 5VDC WIRE |
3,862 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF30151V2-1000U-A99FAN AXIAL |
4,022 | 0.00 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 15.00mm | 4.8 CFM (0.134m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 19.0dB(A) | 420 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MF30151V3-1000U-A99Thermal Products |
3,526 | 0.00 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 15.00mm | 2.7 CFM (0.076m³/min) | 0.050 in H2O (12.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 7.8dB(A) | 240 mW | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KDE1212PTB1-6AFAN AXIAL 119.5X25.5MM 12VDC |
4,565 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 25.50mm | 90.0 CFM (2.52m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 44.5dB(A) | 5.4 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.562 lb (254.92 g) |
|
|
KDE1212PTB3-6AFAN AXIAL 119.5X25.5MM 12VDC |
3,248 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 25.50mm | 69.0 CFM (1.93m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 35.5dB(A) | 2.4 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.562 lb (254.92 g) |
|
|
KDE2412PTB1-6AFAN AXIAL 119.5X25.5MM 24VDC |
1,547 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 25.50mm | 90.0 CFM (2.52m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 44.5dB(A) | 6 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.562 lb (254.92 g) |
|
|
KDE2412PTB3-6AFAN AXIAL 119.5X25.5MM 24VDC |
4,988 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 25.50mm | 69.0 CFM (1.93m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 35.5dB(A) | 3.1 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.562 lb (254.92 g) |
|
|
KDE1212PMB1-6AFAN AXIAL 119.5X38.5MM 12VDC |
3,302 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 119.5mm L x 119.5mm H | 38.50mm | 108.0 CFM (3.02m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 6.8 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.723 lb (327.95 g) |
|
|
KDE1212PMB3-6AFAN AXIAL 120X38MM 12VDC WIRE |
4,544 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 3.2 W | 2400 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE2412PMB1-6AFAN AXIAL 119.5X38.5MM 24VDC |
3,815 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 38.50mm | 108.0 CFM (3.02m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 6.7 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.719 lb (326.13 g) |
|
|
KDE2412PMB3-6AFAN AXIAL 120X38MM 24VDC WIRE |
4,442 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 84.0 CFM (2.35m³/min) | - | Ball | Tubeaxial | - | - | 4 W | - | 2 Wire Leads | - | - | CE, CUR, TUV, UL | - |
|
|
KDE2412PMBX-6AFAN AXIAL 119.5X38.5MM 24VDC |
1,768 | 0.00 |
|
Datasheet |
KDE | - | Obsolete | 24VDC | Square - 119.5mm L x 119.5mm H | 38.50mm | 120.0 CFM (3.36m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | - | 46.5dB(A) | 7.2 W | 3150 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.719 lb (326.13 g) |
|

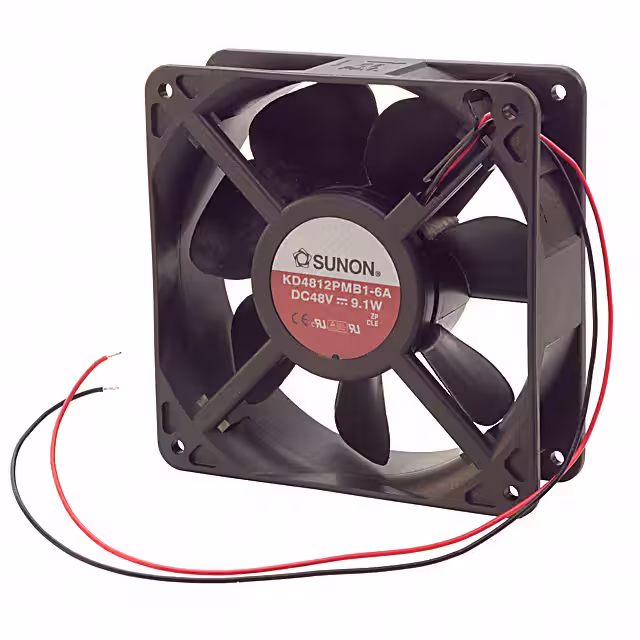

KD4812PMB1-6AFAN AXIAL 120X38MM 48VDC WIRE |
2,514 | 0.00 |
|
- |
KD | - | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 136.0 CFM (3.81m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 9.1 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.705 lb (319.78 g) |
|
CFM-9225-23-22FAN AXIAL 92X25.4MM 24VDC WIRE |
2,264 | 0.00 |
|
Datasheet |
CFM-92 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.8dB(A) | 6.72 W | 4200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.218 lb (98.88 g) |
|
CFM-7015C-050-406-20FAN AXIAL 70X15.5MM 5VDC WIRE |
2,782 | 8.08 |
|
Datasheet |
CFM-70C | Box | Active | 5VDC | Square - 70mm L x 70mm H | 15.50mm | - | - | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
