DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G4010S05B-RSRFAN AXIAL 40X10.3MM 5VDC WIRE |
2,987 | 7.99 |
|
Datasheet |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.30mm | 5.0 CFM (0.140m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 21.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
G4010S12B-RSRFAN AXIAL 40X10.3MM 12VDC WIRE |
3,338 | 7.99 |
|
Datasheet |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.30mm | 5.0 CFM (0.140m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 21.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|

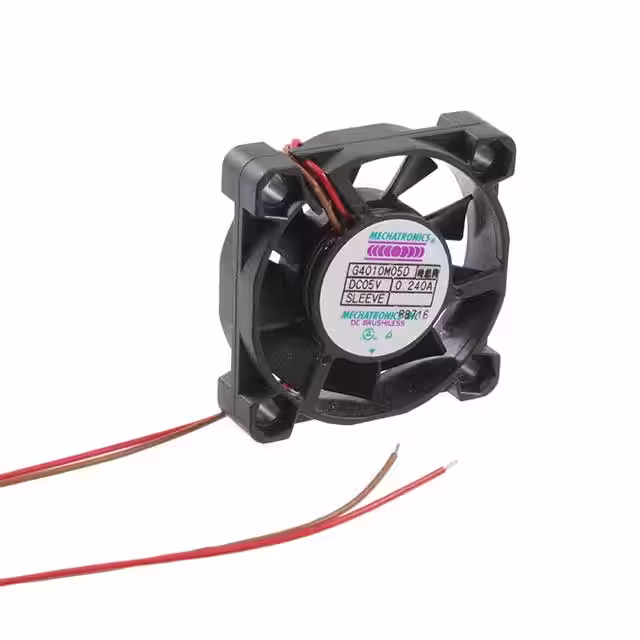

G4010M05D-RSRFAN AXIAL 40X10.3MM 5VDC WIRE |
2,733 | 7.99 |
|
Datasheet |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.30mm | 7.0 CFM (0.196m³/min) | 0.150 in H2O (37.3 Pa) | Sleeve | Tubeaxial | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
CFM-6010B-130-215-22DC AXIAL FAN, 60 MM SQUARE, 10 M |
2,652 | 0.00 |
|
Datasheet |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 10.6 CFM (0.297m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 21.5dB(A) | 720 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6010B-140-278-22DC AXIAL FAN, 60 MM SQUARE, 10 M |
4,062 | 0.00 |
|
Datasheet |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.50mm | 14.4 CFM (0.403m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 27.5dB(A) | 1.44 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD3010-05HSS01AFAN AXIAL 30X10.2MM 5VDC WIRE |
3,351 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.20mm | 5.0 CFM (0.140m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | 32.0dB | - | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD3010-05LLSS01AFAN AXIAL 30X10.2MM 5VDC WIRE |
3,573 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.20mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
OD3010-05LSS01AFAN AXIAL 30X10.2MM 5VDC WIRE |
2,811 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.20mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
OD3010-05MSS01AFAN AXIAL 30X10.2MM 5VDC WIRE |
2,335 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 10.20mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | CE, cURus | - |
|
|
OD3010-12HSS01AFAN AXIAL 30X10.2MM 12VDC WIRE |
2,246 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 5.0 CFM (0.140m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | 32.0dB | - | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD3010-12HSS10AFAN AXIAL 30X10.2MM 12VDC WIRE |
3,222 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 5.0 CFM (0.140m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 32.0dB | - | 11000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD3010-12HSS5FAN AXIAL 30X10.2MM 12VDC WIRE |
4,373 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 5.0 CFM (0.140m³/min) | 0.200 in H2O (49.8 Pa) | Sealed Sleeve | Tubeaxial | PWM Control | 32.0dB | - | 11000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD3010-12LLSS01AFAN AXIAL 30X10.2MM 12VDC WIRE |
3,199 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | 25.0dB | - | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD3010-12LSS01AFAN AXIAL 30X10.2MM 12VDC WIRE |
1,878 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | 25.0dB | - | 7000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | cURus, TUV | - |
|
|
OD3010-12LSS10AFAN AXIAL 30X10.2MM 12VDC WIRE |
2,791 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Sealed Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.0dB | - | 7000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | cURus, TUV | - |
|
|
OD3010-12LSS5FAN AXIAL 30X10.2MM 12VDC WIRE |
3,322 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 3.5 CFM (0.098m³/min) | 0.110 in H2O (27.4 Pa) | Sealed Sleeve | Tubeaxial | PWM Control | 25.0dB | - | 7000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | cURus, TUV | - |
|
|
OD3010-12MSS01AFAN AXIAL 30X10.2MM 12VDC WIRE |
3,239 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 4.0 CFM (0.112m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | 27.0dB | - | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD3010-12MSS10AFAN AXIAL 30X10.2MM 12VDC WIRE |
1,228 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 4.0 CFM (0.112m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | Tubeaxial | PWM Control, Speed Sensor (Tach) | 27.0dB | - | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
|
OD3010-12MSS5FAN AXIAL 30X10.2MM 12VDC WIRE |
3,426 | 8.08 |
|
Datasheet |
OD3010 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.20mm | 4.0 CFM (0.112m³/min) | 0.170 in H2O (42.3 Pa) | Sealed Sleeve | Tubeaxial | PWM Control | 27.0dB | - | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD3506-12HSS01AFAN AXIAL 35X6MM 12VDC WIRE |
4,445 | 8.08 |
|
Datasheet |
OD3506 | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 6.00mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
