DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-3010B-1130-373-22FAN AXIAL 30X10.5MM 12VDC WIRE |
2,116 | 8.16 |
|
Datasheet |
CFM-30B | Box | Active | 12VDC | Square - 30mm L x 30mm H | 10.50mm | 4.1 CFM (0.115m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.3dB(A) | 2.04 W | 13000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-7530CF-240-454-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
1,237 | 0.00 |
|
Datasheet |
CBM-75CF | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 24.50mm | 11.8 CFM (0.330m³/min) | 0.540 in H2O (134.5 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.4dB(A) | 5.52 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7530CF-140-454-22DC BLOWER, 75.7 X 75.7 X 30 MM, |
2,834 | 0.00 |
|
Datasheet |
CBM-75CF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.640 in H2O (159.4 Pa) | omniCOOL™ Magnetic Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 48.1dB(A) | 4.44 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-5010B-170-361-22DC AXIAL FAN, 50 MM SQUARE, 10 M |
1,462 | 0.00 |
|
Datasheet |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | 14.0 CFM (0.392m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 34.5dB(A) | 1.8 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6025-13-22FAN AXIAL 60X25.4MM 12VDC WIRE |
1,810 | 0.00 |
|
Datasheet |
CFM-60 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 36.3 CFM (1.02m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 4.8 W | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.161 lb (73.03 g) |
|
BFB0405LA-AFAN BLOWER 40X10MM 5VDC WIRE |
3,662 | 7.96 |
|
Datasheet |
BFB | Tray | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 1.9 CFM (0.053m³/min) | 0.211 in H2O (52.6 Pa) | Ball | Blower | Locked Rotor Protection | 28.0dB(A) | 350 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.027 lb (12.25 g) |
|
|
AFB0524LDFAN AXIAL 50X20MM 24VDC WIRE |
3,881 | 7.28 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.095 in H2O (23.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.2 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
|
AFB0524HDFAN AXIAL 50X20MM 24VDC WIRE |
3,418 | 7.28 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.68 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
CFM-9238S-230-410-20FAN AXIAL 92X37.5MM 24VDC WIRE |
4,447 | 7.94 |
|
Datasheet |
CFM-92S | Box | Active | 24VDC | Square - 92mm L x 92mm H | 37.50mm | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.1dB(A) | 4.08 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MF80152V2-1000U-A99FAN AXIAL 24VDC 80X15MM |
2,981 | 0.00 |
|
- |
MagLev® MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.9dB(A) | 1.32 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
MF80152V1-1000U-A99FAN AXIAL 24VDC 80X15MM |
4,566 | 0.00 |
|
- |
MagLev® MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.9dB(A) | 1.64 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
MF80152V3-1000U-A99FAN AXIAL 24VDC 80X15MM |
4,889 | 0.00 |
|
- |
MagLev® MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 26.5dB(A) | 0.96 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
CFM-4010B-250-195-22FAN AXIAL 40X10.5MM 24VDC WIRE |
1,746 | 8.15 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 19.5dB(A) | 1.2 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4010B-265-251-22FAN AXIAL 40X10.5MM 24VDC WIRE |
1,064 | 8.15 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.1dB(A) | 1.44 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

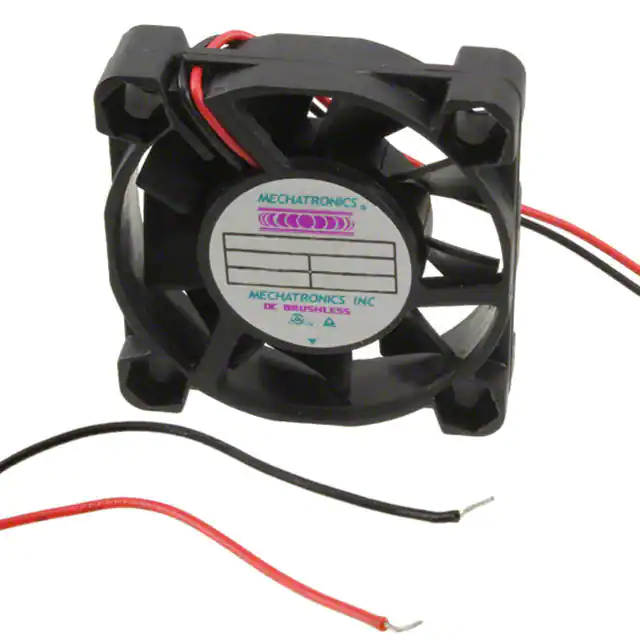

G4010E24B-RSRFAN AXIAL 40X10.3MM 24VDC WIRE |
3,083 | 7.99 |
|
Datasheet |
G4010 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.30mm | 11.0 CFM (0.308m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
G4010H05B-RSRFAN AXIAL 40X10.3MM 5VDC WIRE |
3,224 | 7.99 |
|
Datasheet |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.30mm | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
G4010H12B-RSRFAN AXIAL 40X10.3MM 12VDC WIRE |
1,870 | 7.99 |
|
Datasheet |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.30mm | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|

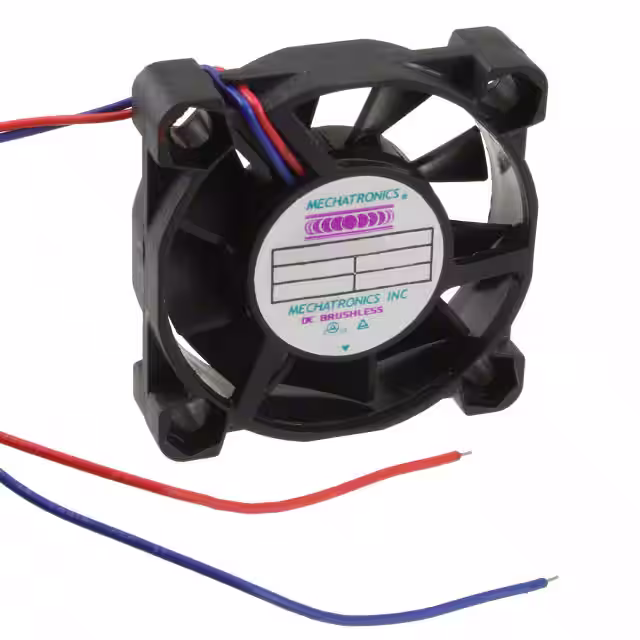

G4010L05B-RSRFAN AXIAL 40X10.3MM 5VDC WIRE |
2,678 | 7.99 |
|
Datasheet |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.30mm | 6.0 CFM (0.168m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 22.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
G4010L12B-RSRFAN AXIAL 40X10.3MM 12VDC WIRE |
2,779 | 7.99 |
|
Datasheet |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.30mm | 6.0 CFM (0.168m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 22.0dB(A) | - | 5000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
G4010M05B-RSRFAN AXIAL 40X10.3MM 5VDC WIRE |
4,865 | 7.99 |
|
Datasheet |
G4010 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.30mm | 7.0 CFM (0.196m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 28.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
