Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4342.473NLTFIXED IND 47UH 3A 167 MOHM SMD |
8,809 | 1.36 |
|
Datasheet |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3 A | 4.5A | Shielded | 167mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|

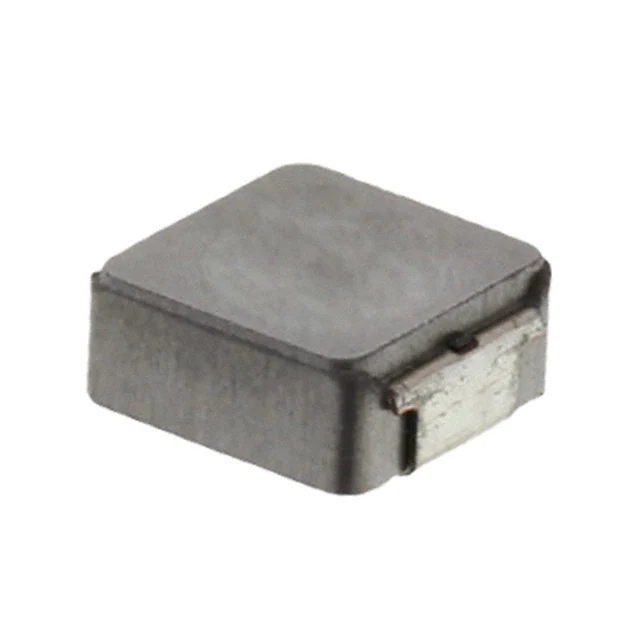

IHLP2525CZER3R3M8AFIXED IND 3.3UH 6.8A 28.4MOHM SM |
8,710 | 1.45 |
|
Datasheet |
IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 6.8 A | 8.3A | Shielded | 28.4mOhm Max | - | 28.3MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP2525CZERR68M8AFIXED IND 680NH 16.5A 5.76 MOHM |
7,995 | 1.45 |
|
Datasheet |
IHLP-2525CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 16.5 A | 17A | Shielded | 5.76mOhm Max | - | 62.8MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP2020BZER4R7M11FIXED IND 4.7UH 3.2A 81.3MOHM SM |
1,521 | 1.34 |
|
Datasheet |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 3.2 A | 3A | Shielded | 81.3mOhm Max | - | 27MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
B82477P4473M000FIXED IND 47UH 2.8A 67 MOHM SMD |
26,268 | 2.16 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.8 A | 3A | Shielded | 67mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
IHLP2525CZER2R2M01FIXED IND 2.2UH 8A 20 MOHM SMD |
19,486 | 1.34 |
|
Datasheet |
IHLP-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
IHLP1212BZER2R2M11FIXED IND 2.2UH 3A 46 MOHM SMD |
14,144 | 1.42 |
|
Datasheet |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 3 A | 3.3A | Shielded | 46mOhm Max | - | 55MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
|
IHLP2020CZERR47M01FIXED IND 470NH 12.2A 7.04 MOHM |
13,103 | 1.38 |
|
Datasheet |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 12.2 A | 16A | Shielded | 7.04mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
IHLP2020BZER1R0M11FIXED IND 1UH 7.5A 18.1 MOHM SMD |
10,391 | 1.34 |
|
Datasheet |
IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 7.5 A | 7A | Shielded | 18.1mOhm Max | - | 66MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
IHLP2525CZER100M11FIXED IND 10UH 4A 71.2 MOHM SMD |
8,706 | 1.34 |
|
Datasheet |
IHLP-2525CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 4 A | 3.5A | Shielded | 71.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|

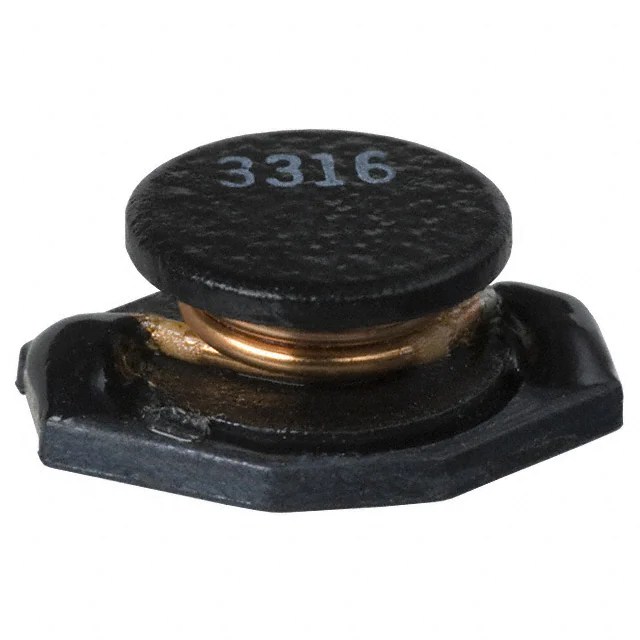

PM3316-151M-RCFIXED IND 150UH 800MA 590MOHM SM |
6,499 | 1.38 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 800 mA | 1A | Unshielded | 590mOhm | 30 @ 50kHz | 6MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
|
IHLP2020BZER2R2M01FIXED IND 2.2UH 4.2A 50.1MOHM SM |
6,050 | 1.34 |
|
Datasheet |
IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 4.2 A | 9.5A | Shielded | 50.1mOhm Max | - | 39MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2525CZER3R3M11FIXED IND 3.3UH 7A 26 MOHM SMD |
5,393 | 1.34 |
|
Datasheet |
IHLP-2525CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 7 A | 6.5A | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
|
IHLP1212BZER3R3M11FIXED IND 3.3UH 2.7A 61 MOHM SMD |
12,805 | 1.42 |
|
Datasheet |
IHLP-1212BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 2.7 A | 3.3A | Shielded | 61mOhm Max | - | 45MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.079" (2.00mm) |
|
|
IHLP2020CZER2R2M01FIXED IND 2.2UH 5.8A 29.2MOHM SM |
5,578 | 1.38 |
|
Datasheet |
IHLP-2020CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 5.8 A | 10A | Shielded | 29.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|

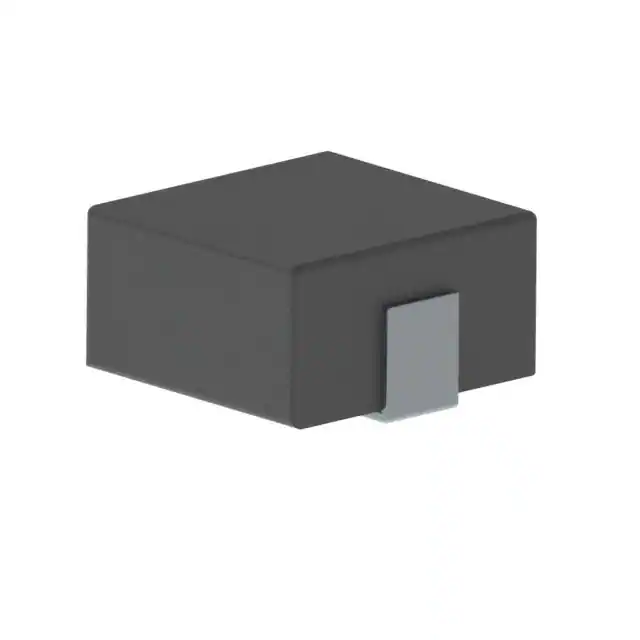

HCM1A4020V2-4R7-RFIXED IND 4.7UH 2.5A 118MOHM SMD |
3,003 | 0.99 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 2.5 A | 3.2A | Shielded | 118mOhm Max | - | 27MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
SRR1210-680MFIXED IND 68UH 3A 102 MOHM SMD |
126,347 | 1.41 |
|
Datasheet |
SRR1210 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 3 A | 2.7A | Shielded | 102mOhm Max | 12 @ 2.52MHz | 3.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
SRP4020TA-100MFIXED IND 10UH 1.8A 243 MOHM SMD |
87,624 | 1.42 |
|
Datasheet |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 1.8 A | 2.3A | Shielded | 243mOhm Max | 10 @ 100kHz | 19MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
IHLP1616BZERR10M5AFIXED IND 0.1 UH 17.3 A 4.2 MOHM |
16,240 | 1.32 |
|
Datasheet |
IHLP-1616BZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 17.3 A | 19A | Shielded | 4.2mOhm Max | - | 320MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
SRP4020TA-3R3MFIXED IND 3.3UH 3.5A 76 MOHM SMD |
15,927 | 1.42 |
|
Datasheet |
SRP4020TA | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 3.3 µH | ±20% | 3.5 A | 4A | Shielded | 76mOhm Max | 10 @ 100kHz | 40MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 2-SMD | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
