Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH125NP-101MCFIXED IND 100UH 1.3A 160MOHM SMD |
6,394 | 1.59 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.3 A | - | Shielded | 160mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
NS12575T101MNFIXED IND 100UH 2.01A 132MOHM SM |
18,444 | 1.54 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.01 A | 2.64A | Shielded | 132mOhm Max | - | 3.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|

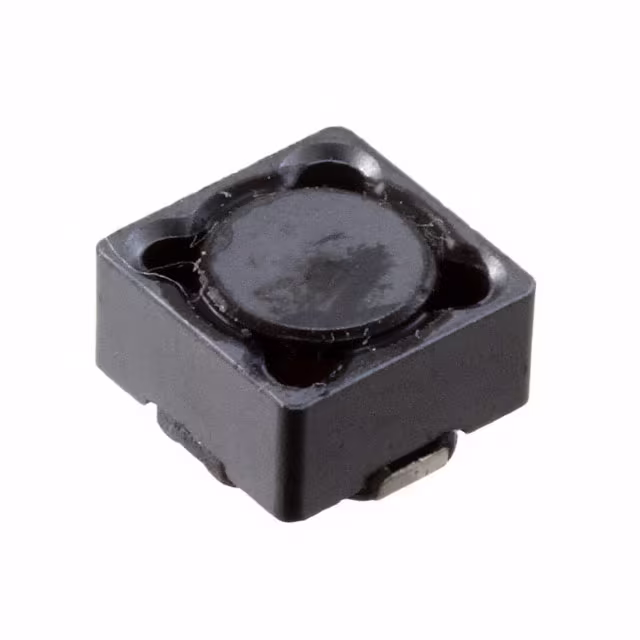

B82472P6104M000FIXED IND 100UH 670MA 390MOHM SM |
16,096 | 1.77 |
|
Datasheet |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 670 mA | 550mA | Shielded | 390mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CDRH125NP-680MCFIXED IND 68UH 1.5A 120 MOHM SMD |
8,731 | 1.59 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.5 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
IHLP3232DZER3R3M01FIXED IND 3.3UH 9.2A 17.7MOHM SM |
5,576 | 1.54 |
|
Datasheet |
IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 9.2 A | 20A | Shielded | 17.7mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|

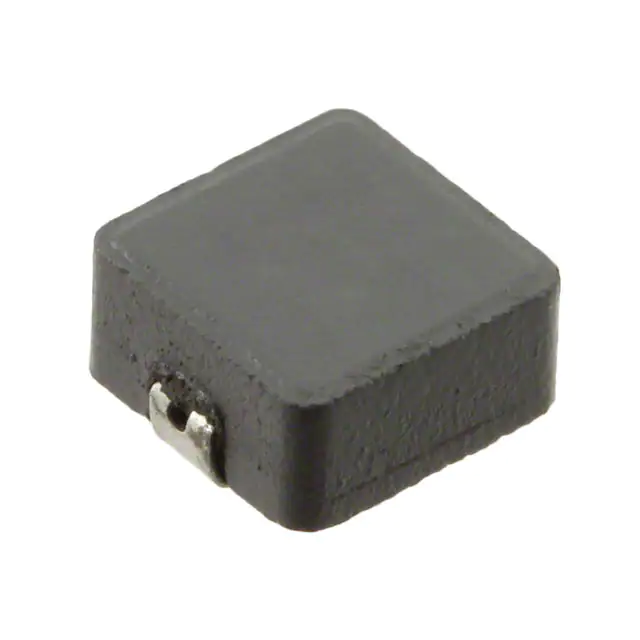

SRP5030T-4R7MFIXED IND 4.7UH 4.6A 53 MOHM SMD |
4,461 | 1.52 |
|
Datasheet |
SRP5030T | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 4.6 A | 6A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
ETQ-P3M2R2YFPFIXED IND 2.2UH 5.8A 24.8MOHM SM |
3,530 | 1.58 |
|
Datasheet |
PCC-M0530M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 5.8 A | 10.9A | Shielded | 24.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
|
CDRH125NP-100MCFIXED IND 10UH 4A 25 MOHM SMD |
2,805 | 1.59 |
|
Datasheet |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4 A | - | Shielded | 25mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
IHLP1212ABER1R0M11FIXED IND 1UH 4A 37.5 MOHM SMD |
541 | 1.50 |
|
Datasheet |
IHLP-1212AB-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 4 A | 5A | Shielded | 37.5mOhm Max | - | 90MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.047" (1.20mm) |
|
CDRH127/LDNP-150MCFIXED IND 15UH 5.65A 26.4MOHM SM |
89,255 | 1.59 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 5.65 A | - | Shielded | 26.4mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
SRP6540-1R0MFIXED IND 1UH 12A 7.2 MOHM SMD |
53,072 | 1.55 |
|
Datasheet |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 12 A | 13.5A | Shielded | 7.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
SRP6540-100MFIXED IND 10UH 4A 78.5 MOHM SMD |
22,309 | 1.55 |
|
Datasheet |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 4 A | 4A | Shielded | 78.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
IHLP4040DZER3R3M01FIXED IND 3.3UH 10A 14.4MOHM SMD |
17,098 | 1.58 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 10 A | 18.6A | Shielded | 14.4mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
SRP6540-1R5MFIXED IND 1.5UH 11A 10 MOHM SMD |
12,076 | 1.55 |
|
Datasheet |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 11 A | 11A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
CDRH127/LDNP-390MCFIXED IND 39UH 3.5A 60.5MOHM SMD |
6,029 | 1.59 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 39 µH | ±20% | 3.5 A | - | Shielded | 60.5mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
IHLP3232DZER330M11FIXED IND 33UH 3.2A 144 MOHM SMD |
5,659 | 1.47 |
|
Datasheet |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 3.2 A | 3.2A | Shielded | 144mOhm Max | - | 6.7MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER100M11FIXED IND 10UH 5.4A 51.8MOHM SMD |
5,323 | 1.54 |
|
Datasheet |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 5.4 A | 6.4A | Shielded | 51.8mOhm Max | - | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.322" L x 0.322" W (8.18mm x 8.18mm) | 0.157" (4.00mm) |
|
|
CDRH127/LDNP-100MCFIXED IND 10UH 6.7A 19.5MOHM SMD |
5,010 | 1.59 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 6.7 A | - | Shielded | 19.5mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

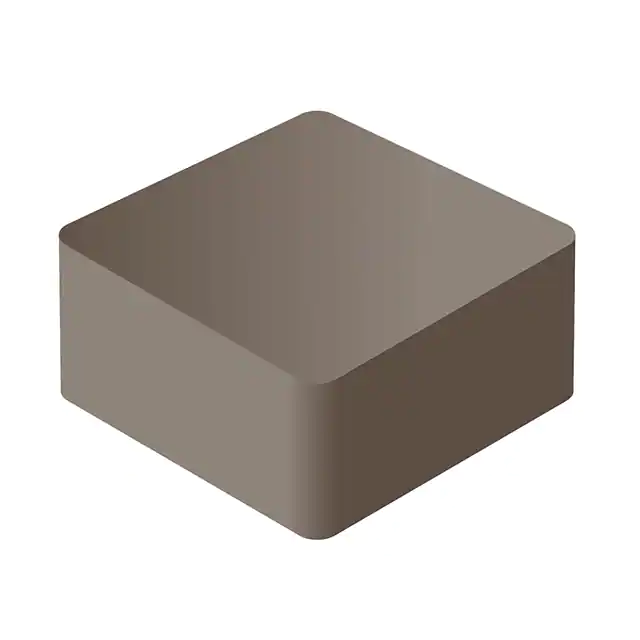

SRP4020FA-3R3MFIXED IND 3.3UH 5.5A 38.3MOHM SM |
2,033 | 1.57 |
|
Datasheet |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 5.5 A | 3.4A | Shielded | 38.3mOhm Max | 15 @ 100kHz | 26MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
IHLP4040DZER4R7M01FIXED IND 4.7UH 9.5A 16.5MOHM SM |
10,883 | 1.58 |
|
Datasheet |
IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 9.5 A | 17A | Shielded | 16.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
