Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP4020FA-1R0MFIXED IND 1UH 11A 11.7 MOHM SMD |
7,336 | 1.57 |
|
Datasheet |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 11 A | 5.4A | Shielded | 11.7mOhm Max | 20 @ 100kHz | 56MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

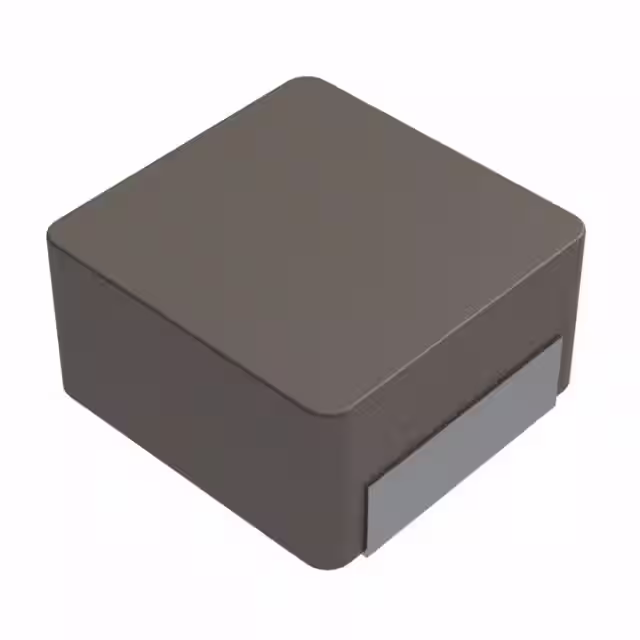

VCHA042A-1R0MS6FIXED IND 1UH 8.9A 10.5MOHM SMD |
4,082 | 1.33 |
|
Datasheet |
VCHA042A | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 8.9 A | 6.7A | Unshielded | 10.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.083" (2.10mm) |
|
IHLP3232DZER1R0M11FIXED IND 1UH 18.2A 4.63MOHM SMD |
3,436 | 1.54 |
|
Datasheet |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 18.2 A | 12A | Shielded | 4.63mOhm Max | - | 49MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
IHLP4040DZER470M11FIXED IND 47UH 3.3A 145 MOHM SMD |
3,429 | 1.58 |
|
Datasheet |
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3.3 A | 3A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
SRP4020FA-2R2MFIXED IND 2.2UH 8A 23.5 MOHM SMD |
2,737 | 1.57 |
|
Datasheet |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 3.8A | Shielded | 23.5mOhm Max | 15 @ 100kHz | 38MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
SRP4020FA-R47MFIXED IND 470NH 13.2A 6.8MOHM SM |
1,976 | 1.57 |
|
Datasheet |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 13.2 A | 10A | Shielded | 6.8mOhm Max | 30 @ 100kHz | 90MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

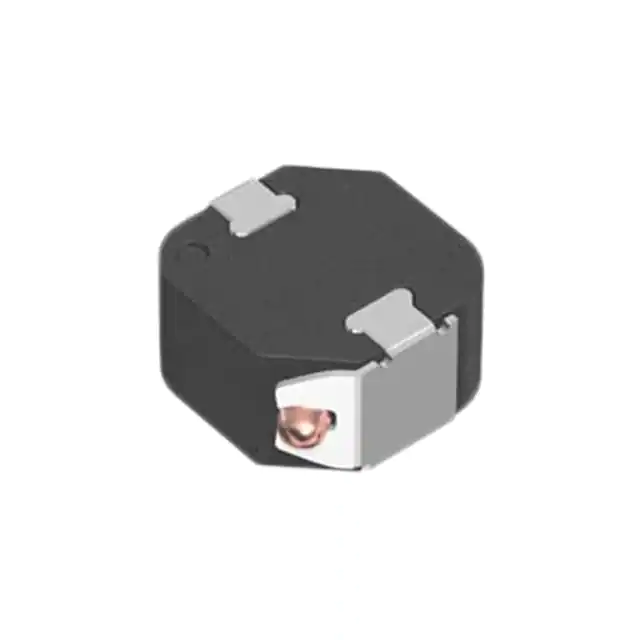

SPM5030T-1R0MFIXED IND 1UH 10.1A 11.44MOHM SM |
1,341 | 1.69 |
|
Datasheet |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 10.1 A | 8.5A | Shielded | 11.44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.197" W (5.20mm x 5.00mm) | 0.118" (3.00mm) |
|

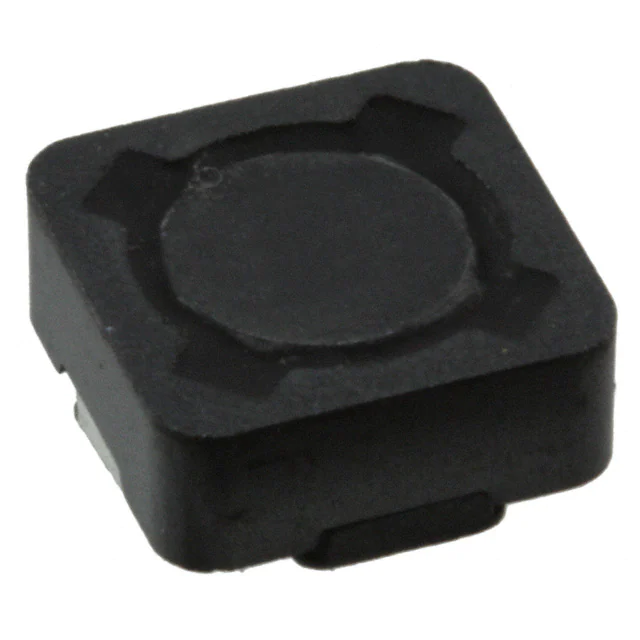

DRA73-470-RFIXED IND 47UH 1.02A 275MOHM SMD |
170 | 1.85 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 1.02 A | 1.1A | Shielded | 275mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
ECS-MPI4040R4-6R8-RFIXED IND 6.8UH 2.4A 91 MOHM SMD |
39,082 | 1.59 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.4 A | 3.2A | Shielded | 91mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
ECS-MPI4040R4-220-RFIXED IND 22UH 1.3A 316 MOHM SMD |
26,690 | 1.59 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.3 A | 1.8A | Shielded | 316mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
VCHA042A-2R2MS6FIXED IND 2.2UH 5.8A 23MOHM SMD |
15,125 | 1.33 |
|
Datasheet |
VCHA042A | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 5.8 A | 4.5A | Unshielded | 23mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.083" (2.10mm) |
|
|
ECS-MPI4040R4-1R0-RFIXED IND 1UH 5.7A 17 MOHM SMD |
14,892 | 1.59 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 5.7 A | 8.2A | Shielded | 17mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
VCHA042A-4R7MS6FIXED IND 4.7UH 4A 53.8MOHM SMD |
5,992 | 1.33 |
|
Datasheet |
VCHA042A | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 4 A | 3.2A | Unshielded | 53.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.083" (2.10mm) |
|

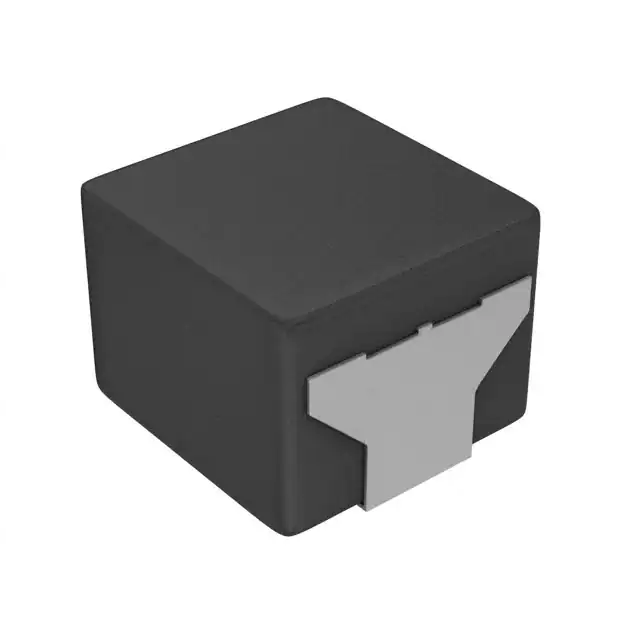

ETQ-P5M470YFMFIXED IND 47UH 2.9A 172 MOHM SMD |
4,714 | 1.63 |
|
Datasheet |
PCC-M0754M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 2.9 A | 4.1A | Shielded | 172mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
VFB4532-510FIXED INDUCTOR 51UH -30% +50% |
3,779 | 1.33 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHLP3232DZER150M11FIXED IND 15UH 4.9A 65.3MOHM SMD |
2,315 | 1.54 |
|
Datasheet |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 4.9 A | 3.7A | Shielded | 65.3mOhm Max | - | 10.3MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER3R3M11FIXED IND 3.3UH 10.5A 14.9 MOHM |
1,805 | 1.54 |
|
Datasheet |
IHLP-3232DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 10.5 A | 9.7A | Shielded | 14.9mOhm Max | - | 22MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|

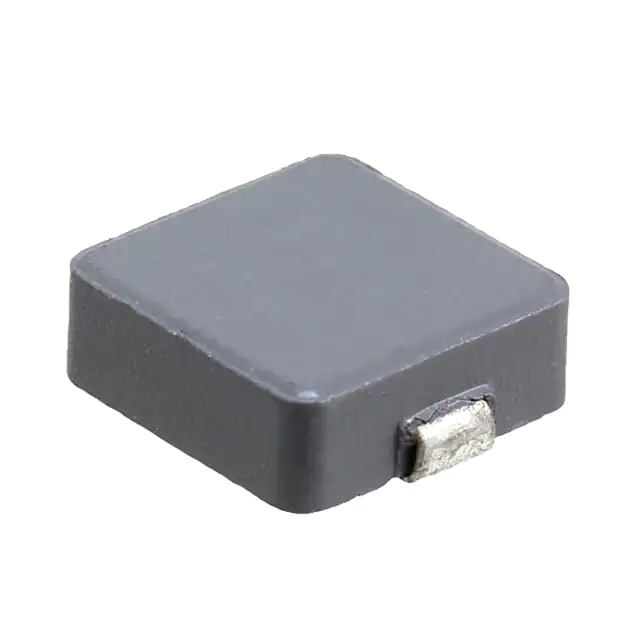

SRP1038A-100MFIXED IND 10UH 7.5A 30 MOHM SMD |
53,386 | 1.61 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 10 µH | ±20% | 7.5 A | 12A | Shielded | 30mOhm Max | 20 @ 100kHz | 10MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
IHLP5050CEER2R2M01FIXED IND 2.2UH 16A 8 MOHM SMD |
22,496 | 1.65 |
|
Datasheet |
IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 16 A | 29A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
|
SRP1038A-220MFIXED IND 22UH 5A 74 MOHM SMD |
22,094 | 1.61 |
|
Datasheet |
SRP1038A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 22 µH | ±20% | 5 A | 7A | Shielded | 74mOhm Max | 20 @ 100kHz | 8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
