Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPRX1912S-2R0MCHIGH CURRENT THT POWER INDUCTOR |
1,668 | 0.00 |
|
Datasheet |
CPRX1912S | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 2 µH | ±20% | 45 A | 65A | Shielded | 1.14mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912S-150MCHIGH CURRENT THT POWER INDUCTOR |
4,179 | 0.00 |
|
Datasheet |
CPRX1912S | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 15 µH | ±20% | 17 A | 25A | Shielded | 8.27mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912S-3R6MCHIGH CURRENT THT POWER INDUCTOR |
2,889 | 0.00 |
|
Datasheet |
CPRX1912S | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 3.6 µH | ±20% | 33 A | 49A | Shielded | 2.09mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912S-2R7MCHIGH CURRENT THT POWER INDUCTOR |
4,912 | 0.00 |
|
Datasheet |
CPRX1912S | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 2.7 µH | ±20% | 36 A | 55A | Shielded | 1.63mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912H-1R8MCHIGH CURRENT THT POWER INDUCTOR |
2,892 | 0.00 |
|
Datasheet |
CPRX1912H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 1.8 µH | ±20% | 36 A | 110A | Shielded | 1.63mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912H-100MCHIGH CURRENT THT POWER INDUCTOR |
2,723 | 0.00 |
|
Datasheet |
CPRX1912H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 10 µH | ±20% | 17 A | 48A | Shielded | 8.27mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912S-4R7MCHIGH CURRENT THT POWER INDUCTOR |
3,939 | 0.00 |
|
Datasheet |
CPRX1912S | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 31 A | 43A | Shielded | 2.47mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912H-3R0MCHIGH CURRENT THT POWER INDUCTOR |
2,529 | 0.00 |
|
Datasheet |
CPRX1912H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 3 µH | ±20% | 31 A | 85A | Shielded | 2.47mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912H-6R2MCHIGH CURRENT THT POWER INDUCTOR |
3,827 | 0.00 |
|
Datasheet |
CPRX1912H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 6.2 µH | ±20% | 21 A | 60A | Shielded | 5.39mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912H-2R2MCHIGH CURRENT THT POWER INDUCTOR |
2,549 | 0.00 |
|
Datasheet |
CPRX1912H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 33 A | 97A | Shielded | 2.09mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912S-100MCHIGH CURRENT THT POWER INDUCTOR |
4,262 | 0.00 |
|
Datasheet |
CPRX1912S | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 10 µH | ±20% | 21 A | 30A | Shielded | 5.39mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|
|
CPRX1912H-4R3MCHIGH CURRENT THT POWER INDUCTOR |
4,667 | 0.00 |
|
Datasheet |
CPRX1912H | Vertical, 2 PC Pin | Active | Wirewound | Metal Composite | 4.3 µH | ±20% | 25 A | 70A | Shielded | 3.81mOhm Max | - | - | - | -55°C ~ 155°C | - | Flat Wire, High Current | Through Hole | - | 0.768" L x 0.524" W (19.50mm x 13.30mm) | 0.688" (17.50mm) | |
|

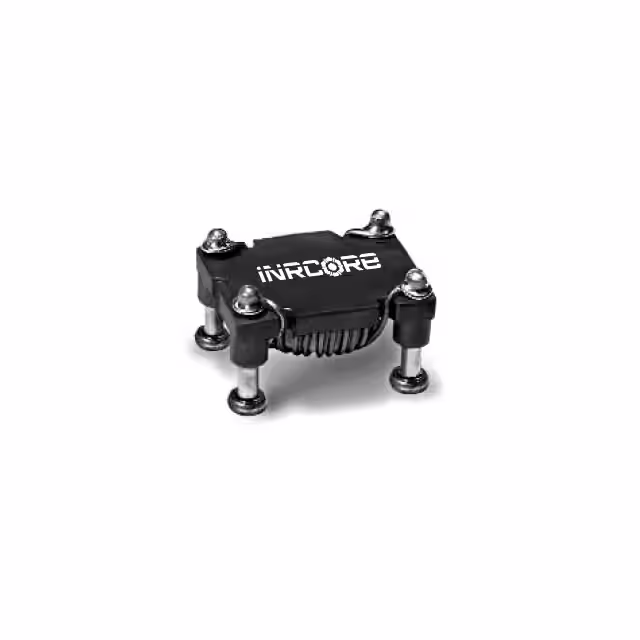

PL8609FIXED IND 91UH 1.2A 318 MOHM SMD |
1,548 | 7.34 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 91 µH | ±10% | 1.2 A | - | Unshielded | 318mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8609NLFIXED IND 91UH 1.2A 318 MOHM SMD |
4,739 | 7.34 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 91 µH | ±10% | 1.2 A | - | Unshielded | 318mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
DSH-31-0001FIXED IND 1.6A 240 MOHM TH |
2,052 | 7.87 |
|
Datasheet |
DSH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | - | - | 1.6 A | - | - | 240mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | 1.299" (33.00mm) |
|
|
DSH-31-0002FIXED IND 2A 140 MOHM TH |
3,044 | 7.87 |
|
Datasheet |
DSH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | - | - | 2 A | - | - | 140mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | 1.299" (33.00mm) |
|
|
DSH-31-0004FIXED IND 4A 40 MOHM TH |
4,064 | 7.87 |
|
Datasheet |
DSH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | - | - | 4 A | - | - | 40mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | 1.299" (33.00mm) |
|
|
DSH-31-0005FIXED IND 4.5A 15 MOHM TH |
2,190 | 7.87 |
|
Datasheet |
DSH | Radial, Horizontal, 4 Leads | Bulk | Active | - | - | - | - | 4.5 A | - | - | 15mOhm | - | - | - | -40°C ~ 125°C | - | - | Through Hole | - | 1.240" L x 0.728" W (31.50mm x 18.50mm) | 1.299" (33.00mm) |
|
|
SMP2007-102MVERTICAL MOUNT TOROIDAL INDUCTOR |
1,759 | 0.00 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10 µH | ±20% | 2.5 A | 450mA | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
|
|
SMP2007-101MVERTICAL MOUNT TOROIDAL INDUCTOR |
1,225 | 0.00 |
|
Datasheet |
SMP2007 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 1 µH | ±20% | 4.2 mA | 2.1A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.165" W (10.20mm x 4.19mm) | 0.300" (7.62mm) |
