Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT75R-1260FIXED IND 75UH 7.4A 35 MOHM TH |
4,328 | 6.90 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 75 µH | ±15% | 7.4 A | - | Unshielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.260" Dia x 0.600" W (32.00mm x 15.24mm) | - |
|
|
PT75R-1550FIXED IND 75UH 10.6A 25 MOHM TH |
2,614 | 6.90 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 75 µH | ±15% | 10.6 A | - | Unshielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.550" Dia x 0.640" W (39.37mm x 16.26mm) | - |
|
|
PT75R-900FIXED IND 75UH 3.9A 60 MOHM TH |
3,086 | 6.90 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 75 µH | ±15% | 3.9 A | - | Unshielded | 60mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.900" Dia x 0.360" W (22.86mm x 9.14mm) | - |
|
|
PT75R-980FIXED IND 75UH 5.2A 40 MOHM TH |
2,591 | 6.90 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 75 µH | ±15% | 5.2 A | - | Unshielded | 40mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.980" Dia x 0.380" W (24.89mm x 9.65mm) | - |
|
|
PL8401NLTFIXED IND 39.5UH 2.7A 90.5 MOHM |
2,698 | 7.42 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 39.5 µH | - | 2.7 A | - | Unshielded | 90.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
PL8401TFIXED IND 39.5UH 2.7A 90.5 MOHM |
4,715 | 7.42 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 39.5 µH | - | 2.7 A | - | Unshielded | 90.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
|
PL8402NLTFIXED IND 6.575UH 6.4A 23MOHM SM |
2,484 | 7.42 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 6.575 µH | - | 6.4 A | - | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|

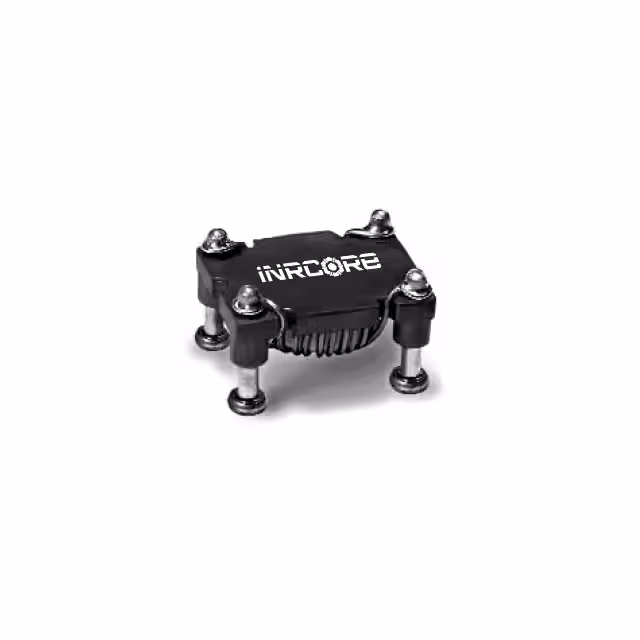

PL8402TFIXED IND 6.575UH 6.4A 23MOHM SM |
1,273 | 7.42 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 6.575 µH | - | 6.4 A | - | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
|
PL8403NLTFIXED IND 880NH 23.8A 3 MOHM SMD |
1,916 | 7.42 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 880 nH | - | 23.8 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
PL8403TFIXED IND 880NH 23.8A 3 MOHM SMD |
4,760 | 7.42 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 880 nH | - | 23.8 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
|
PL8404NLTFIXED IND 2.1UH 21A 2.5 MOHM SMD |
1,052 | 7.42 |
|
- |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.1 µH | - | 21 A | - | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
PL8404TFIXED IND 2.1UH 21A 2.5 MOHM SMD |
1,982 | 7.42 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 2.1 µH | - | 21 A | - | Unshielded | 2.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.510" (12.95mm) |
|
|
PL9217NLTFIXED IND 56UH 1.6A 157 MOHM SMD |
1,755 | 7.48 |
|
Datasheet |
PL92XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 56 µH | ±20% | 1.6 A | 1.7A | Shielded | 157mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.201" (5.10mm) |
|
|
SML32S-120GMOLDED SHIELDED INDUCTOR |
1,828 | 0.00 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 120 nH | ±2% | 1.104 A | - | Shielded | 170mOhm Max | - | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-150GMOLDED SHIELDED INDUCTOR |
2,874 | 0.00 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 150 nH | ±2% | 1.017 A | - | Shielded | 200mOhm Max | - | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-180GMOLDED SHIELDED INDUCTOR |
3,889 | 0.00 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 180 nH | ±2% | 971 mA | - | Shielded | 220mOhm Max | - | 310MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-220GMOLDED SHIELDED INDUCTOR |
1,823 | 0.00 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±2% | 910 mA | - | Shielded | 250mOhm Max | - | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SML32S-330GMOLDED SHIELDED INDUCTOR |
4,449 | 0.00 |
|
Datasheet |
SML32 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 330 nH | ±2% | 831 mA | - | Shielded | 350mOhm Max | - | 255MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.102" (2.60mm) |
|
|
SMP5057-562KMOLDED UNSHIELDED INDUCTOR |
3,775 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 56 µH | ±10% | 3.93 A | 7A | Unshielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-392KMOLDED UNSHIELDED INDUCTOR |
4,528 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 39 µH | ±10% | 4.63 A | 8.3A | Unshielded | 31mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
