Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMP5057-682KMOLDED UNSHIELDED INDUCTOR |
2,318 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 68 µH | ±10% | 3.36 A | 6.4A | Unshielded | 59mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-562KLFMOLDED UNSHIELDED INDUCTOR |
1,005 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 56 µH | ±10% | 3.93 A | 7A | Unshielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-822KMOLDED UNSHIELDED INDUCTOR |
1,070 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 82 µH | ±10% | 3.18 A | 5.7A | Unshielded | 66mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-472KLFMOLDED UNSHIELDED INDUCTOR |
1,337 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±10% | 4.45 A | 7.4A | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
SMP5057-472KMOLDED UNSHIELDED INDUCTOR |
2,475 | 0.00 |
|
Datasheet |
SMP5057 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±10% | 4.45 A | 7.4A | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.750" L x 0.620" W (19.04mm x 15.74mm) | 0.650" (16.51mm) |
|
|
26HF2502VVERTICAL TOROIDAL INDUCTOR |
3,364 | 0.00 |
|
Datasheet |
HF | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 25 µH | ±10% | 1.78 A | 1.7A | Unshielded | 80mOhm Max | - | 20MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia x 0.150" L (8.13mm x 3.81mm) | - |
|
|
SMP3340-103MLFMOLDED UNSHIELDED INDUCTOR |
4,394 | 0.00 |
|
Datasheet |
SMP3340 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 100 µH | ±20% | 1.7 A | 2.8A | Unshielded | 220mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.450" (11.43mm) |
|
|
PL8702NLTFIXED IND 5.9UH 8.1A 10.47 MOHM |
2,880 | 6.58 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 5.9 µH | ±20% | 8.1 A | - | Unshielded | 10.47mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|

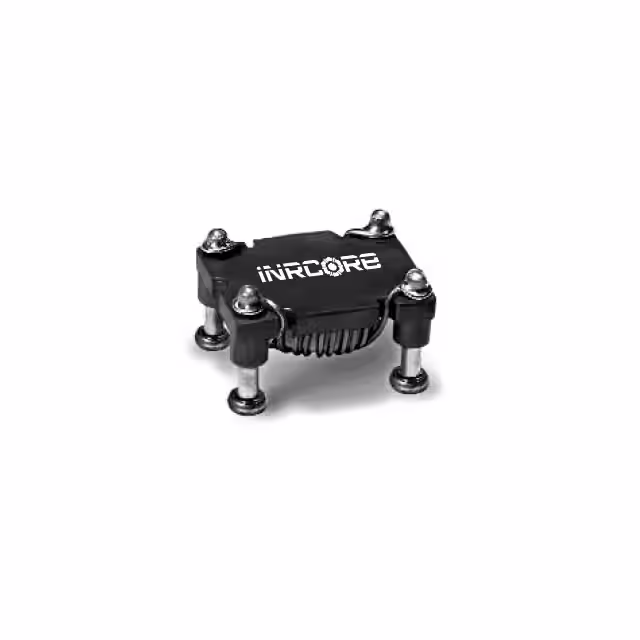

PL8702TFIXED IND 5.9UH 8.1A 10.47 MOHM |
4,218 | 6.58 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 5.9 µH | ±20% | 8.1 A | - | Unshielded | 10.47mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
|
030AT2502SMLFWIREWOUND TOROIDAL INDUCTOR |
3,452 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 2.16 A | 2.1A | Shielded | 70mOhm Max | - | 25MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
030AT2502SMWIREWOUND TOROIDAL INDUCTOR |
3,605 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 2.16 A | 2.1A | Shielded | 70mOhm Max | - | 25MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
1840R-00GFIXED IND 150NH 3.05A 30 MOHM TH |
2,669 | 4.27 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 150 nH | ±2% | 3.05 A | - | Unshielded | 30mOhm Max | 55 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-02GFIXED IND 220NH 2.82A 35 MOHM TH |
1,532 | 4.27 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±2% | 2.82 A | - | Unshielded | 35mOhm Max | 55 @ 25MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-04GFIXED IND 330NH 2.36A 50 MOHM TH |
2,651 | 4.27 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 330 nH | ±2% | 2.36 A | - | Unshielded | 50mOhm Max | 55 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-05GFIXED IND 390NH 1.86A 80 MOHM TH |
3,663 | 4.27 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 390 nH | ±2% | 1.86 A | - | Unshielded | 80mOhm Max | 55 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-06GFIXED IND 470NH 1.86A 80 MOHM TH |
1,360 | 4.27 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 470 nH | ±2% | 1.86 A | - | Unshielded | 80mOhm Max | 55 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
2500-30GFIXED IND 1.1MH 81MA 21 OHM TH |
2,812 | 6.81 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.1 mH | ±2% | 81 mA | - | Unshielded | 21Ohm Max | 60 @ 250kHz | 2.8MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500-32GFIXED IND 1.2MH 79MA 22 OHM TH |
4,982 | 6.81 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.2 mH | ±2% | 79 mA | - | Unshielded | 22Ohm Max | 60 @ 250kHz | 2.7MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500-34GFIXED IND 1.3MH 78MA 23 OHM TH |
3,472 | 6.81 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.3 mH | ±2% | 78 mA | - | Unshielded | 23Ohm Max | 60 @ 250kHz | 2.6MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500-36GFIXED IND 1.5MH 76MA 25 OHM TH |
1,416 | 6.81 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1.5 mH | ±2% | 76 mA | - | Unshielded | 25Ohm Max | 65 @ 250kHz | 2.4MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
