Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4302R-471FFIXED IND 470NH 790MA 240MOHM SM |
4,207 | 8.89 |
|
Datasheet |
4302R | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±1% | 790 mA | - | Unshielded | 240mOhm Max | 40 @ 25MHz | 130MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
4302R-472FFIXED IND 4.7UH 255MA 2.3OHM SMD |
4,393 | 8.89 |
|
Datasheet |
4302R | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±1% | 255 mA | - | Unshielded | 2.3Ohm Max | 30 @ 7.9MHz | 30MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
4302R-561FFIXED IND 560NH 710MA 295MOHM SM |
4,344 | 8.89 |
|
Datasheet |
4302R | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | 560 nH | ±1% | 710 mA | - | Unshielded | 295mOhm Max | 40 @ 25MHz | 115MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
4302R-562FFIXED IND 5.6UH 225MA 3 OHM SMD |
3,544 | 8.89 |
|
Datasheet |
4302R | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | 5.6 µH | ±1% | 225 mA | - | Unshielded | 3Ohm Max | 30 @ 7.9MHz | 26MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
4302R-681FFIXED IND 680NH 685MA 320MOHM SM |
3,687 | 8.89 |
|
Datasheet |
4302R | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±1% | 685 mA | - | Unshielded | 320mOhm Max | 40 @ 25MHz | 105MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
4302R-682FFIXED IND 6.8UH 205MA 3.5OHM SMD |
2,804 | 8.89 |
|
Datasheet |
4302R | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±1% | 205 mA | - | Unshielded | 3.5Ohm Max | 30 @ 7.9MHz | 22MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
4302R-821FFIXED IND 820NH 540MA 510MOHM SM |
1,959 | 8.89 |
|
Datasheet |
4302R | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | 820 nH | ±1% | 540 mA | - | Unshielded | 510mOhm Max | 40 @ 25MHz | 95MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
4302R-822FFIXED IND 8.2UH 195MA 4 OHM SMD |
4,384 | 8.89 |
|
Datasheet |
4302R | 2-SMD | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±1% | 195 mA | - | Unshielded | 4Ohm Max | 30 @ 7.9MHz | 20MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
SMRF1010-022KEPOXY-COATED CHIP INDUCTOR |
3,043 | 0.00 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 22 nH | ±10% | 950 mA | - | Unshielded | 108mOhm Max | 50 @ 50MHz | 1.8GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
|
SMRF1010-012KEPOXY-COATED CHIP INDUCTOR |
1,064 | 0.00 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 12 nH | ±10% | 1.19 A | - | Unshielded | 69mOhm Max | 57 @ 50MHz | 2.45GHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
|
SMRF1010-182KEPOXY-COATED CHIP INDUCTOR |
3,192 | 0.00 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 18 µH | ±10% | 130 mA | - | Unshielded | 5.8Ohm Max | 25 @ 2.5MHz | 28MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
|
SMRF1010-272KEPOXY-COATED CHIP INDUCTOR |
3,768 | 0.00 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 27 µH | ±10% | 120 mA | - | Unshielded | 6.9Ohm Max | 25 @ 2.5MHz | 22MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
|
SMRF1010-222KEPOXY-COATED CHIP INDUCTOR |
4,262 | 0.00 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 22 µH | ±10% | 125 mA | - | Unshielded | 6.4Ohm Max | 25 @ 2.5MHz | 25MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
|
SMRF1010-082KEPOXY-COATED CHIP INDUCTOR |
1,010 | 0.00 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 82 nH | ±10% | 675 mA | - | Unshielded | 212mOhm Max | 34 @ 50MHz | 915MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
|
SMRF1010-122KEPOXY-COATED CHIP INDUCTOR |
3,263 | 0.00 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 12 µH | ±10% | 160 mA | - | Unshielded | 3.8Ohm Max | 25 @ 2.5MHz | 35MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
|
SMRF1010-152KEPOXY-COATED CHIP INDUCTOR |
4,287 | 0.00 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 15 µH | ±10% | 135 mA | - | Unshielded | 5.6Ohm Max | 25 @ 2.5MHz | 30MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
|
SMRF1010-102KEPOXY-COATED CHIP INDUCTOR |
2,645 | 0.00 |
|
Datasheet |
SMRF1010 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Phenolic | 10 µH | ±10% | 165 mA | - | Unshielded | 3.45Ohm Max | 24 @ 7.9MHz | 40MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.085" (2.16mm) |
|
PL8504FIXED IND 83UH 1.3A 220 MOHM SMD |
3,364 | 9.86 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 83 µH | ±10% | 1.3 A | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
PL8504NLFIXED IND 83UH 1.3A 220 MOHM SMD |
3,885 | 9.86 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 83 µH | ±10% | 1.3 A | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|

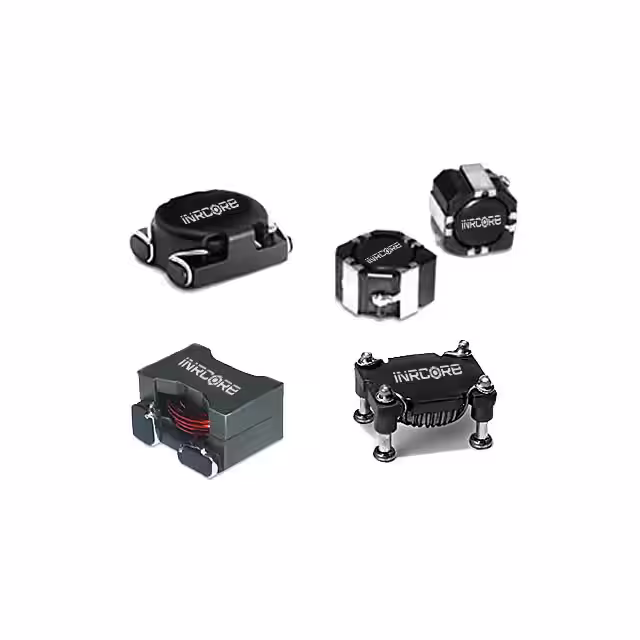

PL8509FIXED IND 472UH 560MA 1.52OHM SM |
4,334 | 9.86 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 472 µH | ±10% | 560 mA | - | Unshielded | 1.52Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
