Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
059KM1003HHORIZONTAL TOROIDAL INDUCTOR |
2,391 | 0.00 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 100 µH | ±10% | 4.9 A | 4.2A | Shielded | 44mOhm Max | - | 2MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.475" (12.06mm) |
|
|
059KM1503HHORIZONTAL TOROIDAL INDUCTOR |
3,454 | 0.00 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 150 µH | ±10% | 4.5 A | 3.4A | Shielded | 52mOhm Max | - | 1MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.475" (12.06mm) |
|
|
059KM1003HLFHORIZONTAL TOROIDAL INDUCTOR |
1,099 | 0.00 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 100 µH | ±10% | 4.9 A | 4.2A | Shielded | 44mOhm Max | - | 2MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.475" (12.06mm) |
|
|
059KM1503HLFHORIZONTAL TOROIDAL INDUCTOR |
2,130 | 0.00 |
|
Datasheet |
KM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 150 µH | ±10% | 4.5 A | 3.4A | Shielded | 52mOhm Max | - | 1MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.475" (12.06mm) |
|
|
ER15M471JMM39010 LEV-R AXIAL INDUCTOR |
2,355 | 0.00 |
|
Datasheet |
ER15M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 4.7 µH | ±5% | 260 mA | - | Unshielded | 2.6Ohm Max | 33 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
ER15M511JMM39010 LEV-R AXIAL INDUCTOR |
4,384 | 0.00 |
|
Datasheet |
ER15M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.1 µH | ±5% | 495 mA | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
ER15M150JMM39010 LEV-R AXIAL INDUCTOR |
1,855 | 0.00 |
|
Datasheet |
ER15M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 150 nH | ±5% | 2.45 A | - | Unshielded | 30mOhm Max | 50 @ 25MHz | 525MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
ER15M102JRM39010 LEV-R AXIAL INDUCTOR |
3,127 | 0.00 |
|
Datasheet |
ER15M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±5% | 290 mA | - | Unshielded | 900mOhm Max | 55 @ 7.9MHz | 45MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
ER15M243JMM39010 LEV-R AXIAL INDUCTOR |
1,067 | 0.00 |
|
Datasheet |
ER15M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 240 µH | ±5% | 101 mA | - | Unshielded | 7.8Ohm Max | 65 @ 790kHz | 5.9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
ER15M561JRM39010 LEV-R AXIAL INDUCTOR |
2,956 | 0.00 |
|
Datasheet |
ER15M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 5.6 µH | ±5% | 495 mA | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|
|
ER15M221JRM39010 LEV-R AXIAL INDUCTOR |
2,581 | 0.00 |
|
Datasheet |
ER15M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.2 µH | ±5% | 435 mA | - | Unshielded | 950mOhm Max | 33 @ 7.9MHz | 135MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.52mm) | - |
|

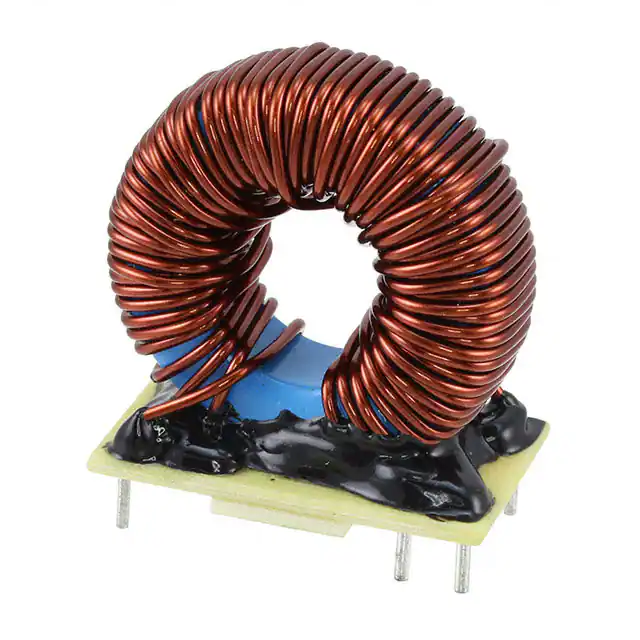

S14100035FIXED IND 307UH 7A 65 MOHM TH |
3,037 | 10.39 |
|
Datasheet |
WE-LCB | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 307 µH | ±20% | 7 A | - | Unshielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.772" L x 0.906" W (45.00mm x 23.00mm) | 1.654" (42.00mm) |
|
|
2500-56GFIXED IND 3.9MH 62MA 44 OHM TH |
2,442 | 8.96 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 3.9 mH | ±2% | 62 mA | - | Unshielded | 44Ohm Max | 80 @ 250kHz | 1.45MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500-58GFIXED IND 4.3MH 60MA 46 OHM TH |
2,098 | 8.96 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.3 mH | ±2% | 60 mA | - | Unshielded | 46Ohm Max | 80 @ 250kHz | 1.4MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500-60GFIXED IND 4.7MH 59MA 48 OHM TH |
2,166 | 8.96 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 4.7 mH | ±2% | 59 mA | - | Unshielded | 48Ohm Max | 80 @ 250kHz | 1.35MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500-62GFIXED IND 5MH 58MA 50 OHM TH |
3,535 | 8.96 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5 mH | ±2% | 58 mA | - | Unshielded | 50Ohm Max | 80 @ 250kHz | 1.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500-63GFIXED IND 5.1MH 58MA 50 OHM TH |
2,177 | 8.96 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.1 mH | ±2% | 58 mA | - | Unshielded | 50Ohm Max | 80 @ 250kHz | 1.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500-64GFIXED IND 5.6MH 56MA 53 OHM TH |
3,280 | 8.96 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 5.6 mH | ±2% | 56 mA | - | Unshielded | 53Ohm Max | 80 @ 250kHz | 1.25MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500-66GFIXED IND 6.2MH 55MA 56 OHM TH |
4,870 | 8.96 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.2 mH | ±2% | 55 mA | - | Unshielded | 56Ohm Max | 80 @ 250kHz | 1.2MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
2500-68GFIXED IND 6.8MH 54MA 59 OHM TH |
1,510 | 8.96 |
|
Datasheet |
2500 | Axial | Tape & Reel (TR) | Active | Molded | Iron | 6.8 mH | ±2% | 54 mA | - | Unshielded | 59Ohm Max | 80 @ 250kHz | 1.15MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
