Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL8509NLFIXED IND 472UH 560MA 1.52OHM SM |
1,015 | 9.86 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 472 µH | ±10% | 560 mA | - | Unshielded | 1.52Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.320" (8.12mm) |
|
|
ER18M271JMM39010 LEV-R AXIAL INDUCTOR |
3,075 | 0.00 |
|
Datasheet |
ER18M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 2.7 µH | ±5% | 460 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.9MHz | 120MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | Axial | 0.188" Dia x 0.438" L (4.78mm x 11.13mm) | - |
|
|
ER18M301JMM39010 LEV-R AXIAL INDUCTOR |
3,331 | 0.00 |
|
Datasheet |
ER18M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 3 µH | ±5% | 945 mA | - | Unshielded | 140mOhm Max | 30 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | Axial | 0.188" Dia x 0.438" L (4.78mm x 11.13mm) | - |
|
|
ER18M180JRM39010 LEV-R AXIAL INDUCTOR |
2,431 | 0.00 |
|
Datasheet |
ER18M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 180 nH | ±5% | 2.7 A | - | Unshielded | 35mOhm Max | 50 @ 25MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.188" Dia x 0.438" L (4.78mm x 11.13mm) | - |
|
|
ER18M150JMM39010 LEV-R AXIAL INDUCTOR |
1,163 | 0.00 |
|
Datasheet |
ER18M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 150 nH | ±5% | 2.9 A | - | Unshielded | 30mOhm Max | 55 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.188" Dia x 0.438" L (4.78mm x 11.13mm) | - |
|
|
ER18M272JMM39010 LEV-R AXIAL INDUCTOR |
1,524 | 0.00 |
|
Datasheet |
ER18M | Axial | Tape & Reel (TR) | Active | Molded | Iron Powder | 27 µH | ±5% | 205 mA | - | Unshielded | 2.75Ohm Max | 65 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | Axial | 0.188" Dia x 0.438" L (4.78mm x 11.13mm) | - |
|
|
ER18M220JRM39010 LEV-R AXIAL INDUCTOR |
3,128 | 0.00 |
|
Datasheet |
ER18M | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 220 nH | ±5% | 2.7 A | - | Unshielded | 35mOhm Max | 50 @ 25MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.188" Dia x 0.438" L (4.78mm x 11.13mm) | - |
|

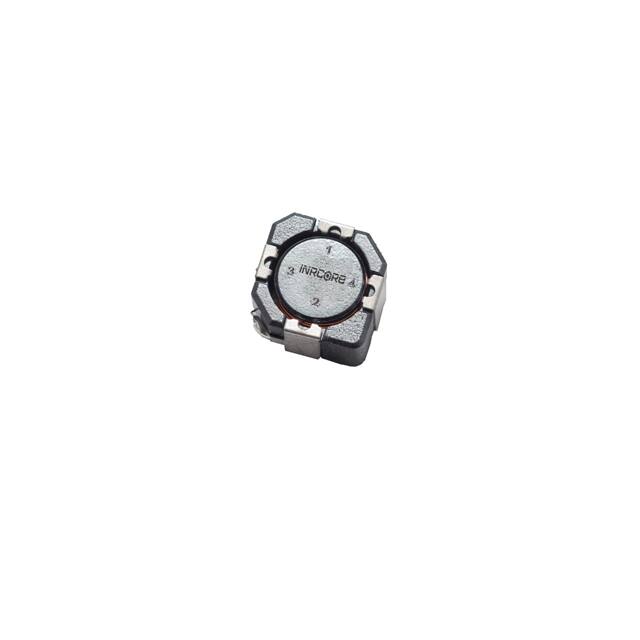

PL8912TFIXED IND 22UH 3.8A 42 MOHM SMD |
2,068 | 9.26 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.8 A | 3.8A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
ER1025-00KSFIXED IND 150NH 1.2A 100 MOHM TH |
3,960 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 150 nH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-02KSFIXED IND 180NH 1.105A 120 MOHM |
4,593 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±10% | 1.105 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-08KSFIXED IND 330NH 815MA 220MOHM TH |
2,087 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 330 nH | ±10% | 815 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-10KSFIXED IND 390NH 700MA 300MOHM TH |
3,658 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 390 nH | ±10% | 700 mA | - | Unshielded | 300mOhm Max | 30 @ 25MHz | 365MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-12KSFIXED IND 470NH 650MA 350MOHM TH |
3,027 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 470 nH | ±10% | 650 mA | - | Unshielded | 350mOhm Max | 30 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-16KSFIXED IND 680NH 495MA 600MOHM TH |
3,161 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 680 nH | ±10% | 495 mA | - | Unshielded | 600mOhm Max | 28 @ 25MHz | 275MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-20KSFIXED IND 1UH 385MA 1 OHM TH |
1,724 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 1 µH | ±10% | 385 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-94KRFIXED IND 100NH 1.35A 80 MOHM TH |
2,138 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±10% | 1.35 A | - | Unshielded | 80mOhm Max | 40 @ 25MHz | 680MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-00KRFIXED IND 150NH 1.2A 100 MOHM TH |
4,519 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 150 nH | ±10% | 1.2 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-02KRFIXED IND 180NH 1.105A 120 MOHM |
3,183 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±10% | 1.105 A | - | Unshielded | 120mOhm Max | 35 @ 25MHz | 550MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-04KRFIXED IND 220NH 1.025A 140 MOHM |
1,357 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±10% | 1.025 A | - | Unshielded | 140mOhm Max | 33 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ER1025-06KRFIXED IND 270NH 960MA 160MOHM TH |
4,238 | 5.50 |
|
Datasheet |
Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 270 nH | ±10% | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
