Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMP3316-103MMOLDED UNSHIELDED INDUCTOR |
1,987 | 0.00 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 1.4 A | 1.4A | Unshielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-153MMOLDED UNSHIELDED INDUCTOR |
1,082 | 0.00 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 µH | ±20% | 1.2 A | 1A | Unshielded | 380mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-473MMOLDED UNSHIELDED INDUCTOR |
2,448 | 0.00 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 µH | ±20% | 650 mA | 640mA | Unshielded | 1.23Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
SMP3316-103MLFMOLDED UNSHIELDED INDUCTOR |
3,994 | 0.00 |
|
Datasheet |
SMP3316 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 1.4 A | 1.4A | Unshielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.236" (6.00mm) |
|
|
050KM1503HMHORIZ STANDOFF TOROIDAL CHOKE |
3,628 | 0.00 |
|
Datasheet |
KMHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 150 µH | ±10% | 2.33 A | 780mA | Shielded | 100mOhm Max | - | 2MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
|
050KM2003HMHORIZ STANDOFF TOROIDAL CHOKE |
1,156 | 0.00 |
|
Datasheet |
KMHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 200 µH | ±10% | 1.97 A | 650mA | Shielded | 140mOhm Max | - | 1.7MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|
|
050KM2503HMHORIZ STANDOFF TOROIDAL CHOKE |
1,897 | 0.00 |
|
Datasheet |
KMHM | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 250 µH | ±10% | 1.84 A | 590mA | Shielded | 160mOhm Max | - | 1.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.660" Dia (16.76mm) | 0.420" (10.67mm) |
|

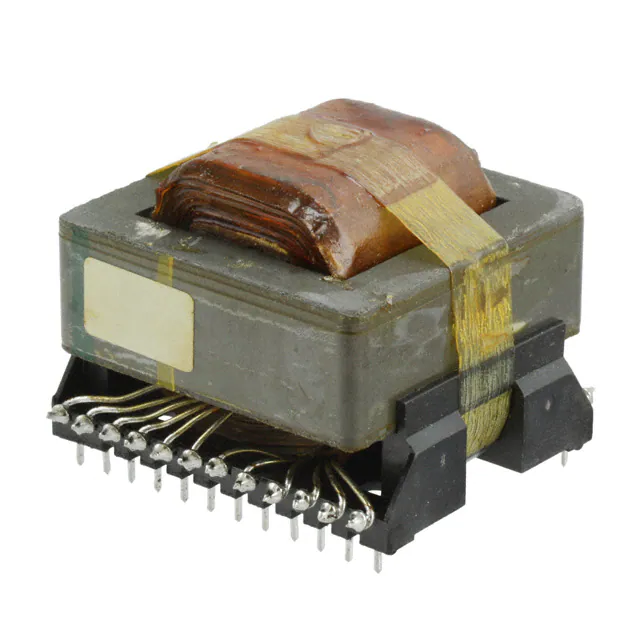

FIE220-1FIXED IND 11.7UH 120A 1 MOHM TH |
1,018 | 0.00 |
|
Datasheet |
FIE220 | 24-DIP Module | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 11.7 µH | ±10% | 120 A | - | Unshielded | 1mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 2.350" L x 2.050" W (59.69mm x 52.07mm) | 2.050" (52.07mm) |
|
|
2534R-28KFIXED IND 1.5MH 118MA 12 OHM TH |
2,401 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 1.5 mH | ±10% | 118 mA | - | Unshielded | 12Ohm Max | 90 @ 250kHz | 1.15MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-44KFIXED IND 6.8MH 61MA 45 OHM TH |
3,951 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 6.8 mH | ±10% | 61 mA | - | Unshielded | 45Ohm Max | 75 @ 250kHz | 500kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|

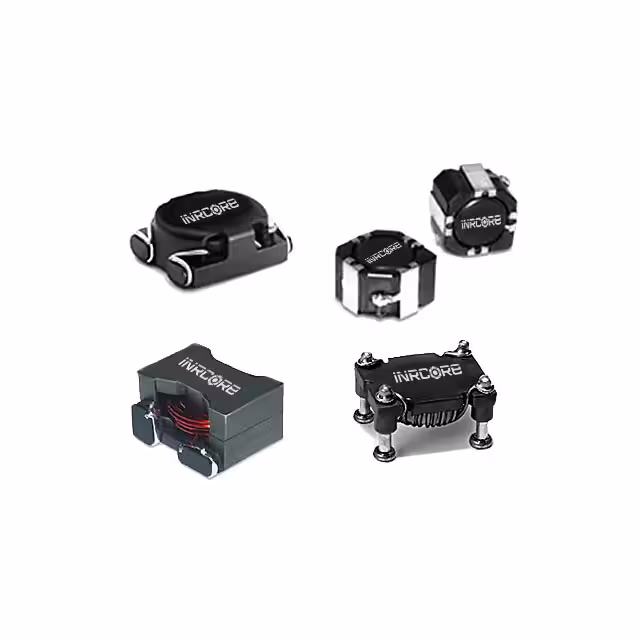

PL8123FIXED IND 73UH 1.3A 290 MOHM SMD |
3,553 | 11.04 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 73 µH | - | 1.3 A | - | Unshielded | 290mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL8123NLFIXED IND 73UH 1.3A 290 MOHM SMD |
4,913 | 11.04 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 73 µH | - | 1.3 A | - | Unshielded | 290mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
SMT3106-152MLFSHIELDED TOROIDAL CHOKE |
4,904 | 0.00 |
|
Datasheet |
SMT3106 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 15 µH | ±20% | 2.2 A | 1.6A | Shielded | 56mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.169" (4.30mm) |
|
CTRL5480F-4-104K1000UH RADIAL FXED INDUCTR |
4,103 | 6.94 |
|
- |
CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 100 mH | ±10% | 46 mA | 68mA | Unshielded | 130Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|
|
CTRL5480F-4-101K100UH RADIAL FIXED INDUCTOR |
3,852 | 6.94 |
|
- |
CTRL5480F-4 | Radial, Vertical Cylinder | Bulk | Active | - | - | 100 µH | ±10% | 2 A | 2.8A | Unshielded | 108mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.449" Dia (11.40mm) | 0.709" (18.00mm) |
|
PL8120FIXED IND 3.8UH 8A 8.3 MOHM SMD |
4,783 | 11.08 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 3.8 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
PL8120NLFIXED IND 3.8UH 8A 8.3 MOHM SMD |
4,204 | 11.08 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 3.8 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
HCM2213V2-3R3-RIND MP 3.3UH 41A 2 PADS SMT |
1,672 | 7.51 |
|
- |
HCMV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 3.3 µH | ±20% | 34 A | 41A | Shielded | 1.77mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
HCM2213V2-101-RIND MP 100UH 8A 2 PADS SMT |
2,748 | 7.51 |
|
- |
HCMV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 100 µH | ±20% | 6.4 A | 8A | Shielded | 39.5mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
HCM2213V2-4R7-RIND MP 4.7UH 37A 2 PADS SMT |
3,726 | 7.51 |
|
- |
HCMV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 4.7 µH | ±20% | 33 A | 37A | Shielded | 1.85mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
