Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HL8527-325KMOLDED HIGH INDUCTANCE CHOKE |
1,387 | 0.00 |
|
Datasheet |
HL8527 | Nonstandard | Tape & Reel (TR) | Active | Molded | Non-Magnetic | 32 mH | ±10% | 57 mA | - | Unshielded | 132Ohm Max | 55 @ 70kHz | 200kHz | - | -55°C ~ 125°C | 70 kHz | - | Surface Mount | - | 0.865" L x 0.270" W (21.97mm x 6.86mm) | 0.290" (7.37mm) |
|
|
2534R-00KFIXED IND 100UH 330MA 1.5 OHM TH |
2,756 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 100 µH | ±10% | 330 mA | - | Unshielded | 1.5Ohm Max | 100 @ 790kHz | 4MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-02KFIXED IND 120UH 300MA 1.8 OHM TH |
4,622 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 120 µH | ±10% | 300 mA | - | Unshielded | 1.8Ohm Max | 95 @ 790kHz | 3.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|

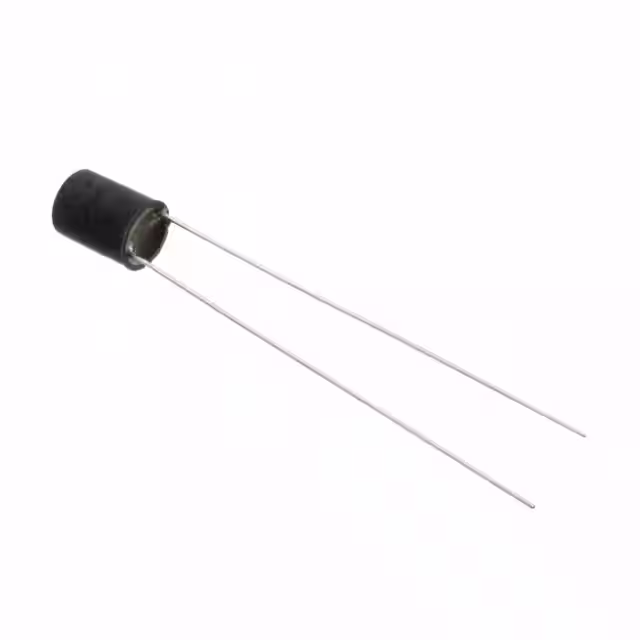

2534R-04KFIXED IND 150UH 285MA 2 OHM TH |
1,840 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 150 µH | ±10% | 285 mA | - | Unshielded | 2Ohm Max | 90 @ 790kHz | 3.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-06KFIXED IND 180UH 277MA 2.2 OHM TH |
2,334 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 180 µH | ±10% | 277 mA | - | Unshielded | 2.2Ohm Max | 85 @ 790kHz | 2.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-08KFIXED IND 220UH 265MA 2.4 OHM TH |
1,151 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 220 µH | ±10% | 265 mA | - | Unshielded | 2.4Ohm Max | 90 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-10KFIXED IND 270UH 229MA 3.2 OHM TH |
1,752 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 270 µH | ±10% | 229 mA | - | Unshielded | 3.2Ohm Max | 95 @ 790kHz | 2.3MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-12KFIXED IND 330UH 220MA 3.4 OHM TH |
4,309 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 330 µH | ±10% | 220 mA | - | Unshielded | 3.4Ohm Max | 90 @ 790kHz | 2.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-14KFIXED IND 390UH 203MA 4.1 OHM TH |
3,289 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 390 µH | ±10% | 203 mA | - | Unshielded | 4.1Ohm Max | 80 @ 790kHz | 2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-16KFIXED IND 470UH 193MA 4.5 OHM TH |
2,521 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 470 µH | ±10% | 193 mA | - | Unshielded | 4.5Ohm Max | 70 @ 790kHz | 1.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-18KFIXED IND 560UH 187MA 4.8 OHM TH |
1,736 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 560 µH | ±10% | 187 mA | - | Unshielded | 4.8Ohm Max | 65 @ 790kHz | 1.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-20KFIXED IND 680UH 175MA 5.4 OHM TH |
4,117 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 680 µH | ±10% | 175 mA | - | Unshielded | 5.4Ohm Max | 65 @ 790kHz | 1.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-22KFIXED IND 820UH 170MA 5.8 OHM TH |
2,380 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 820 µH | ±10% | 170 mA | - | Unshielded | 5.8Ohm Max | 65 @ 790kHz | 1.6MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-24KFIXED IND 1MH 160MA 6.4 OHM TH |
2,550 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 1 mH | ±10% | 160 mA | - | Unshielded | 6.4Ohm Max | 65 @ 790kHz | 1.4MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-26KFIXED IND 1.2MH 130MA 10 OHM TH |
4,608 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 1.2 mH | ±10% | 130 mA | - | Unshielded | 10Ohm Max | 95 @ 250kHz | 1.2MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-30KFIXED IND 1.8MH 110MA 14 OHM TH |
2,389 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 1.8 mH | ±10% | 110 mA | - | Unshielded | 14Ohm Max | 90 @ 250kHz | 1.1MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-32KFIXED IND 2.2MH 100MA 17 OHM TH |
1,125 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 2.2 mH | ±10% | 100 mA | - | Unshielded | 17Ohm Max | 90 @ 250kHz | 950kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-34KFIXED IND 2.7MH 90MA 20 OHM TH |
1,455 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 2.7 mH | ±10% | 90 mA | - | Unshielded | 20Ohm Max | 90 @ 250kHz | 860kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-36KFIXED IND 3.3MH 85MA 24 OHM TH |
2,903 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 3.3 mH | ±10% | 85 mA | - | Unshielded | 24Ohm Max | 90 @ 250kHz | 800kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534R-38KFIXED IND 3.9MH 80MA 27 OHM TH |
1,148 | 10.76 |
|
Datasheet |
2534R | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 3.9 mH | ±10% | 80 mA | - | Unshielded | 27Ohm Max | 85 @ 250kHz | 680kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
