Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2534-32KFIXED IND 2.2MH 100MA 17 OHM TH |
1,781 | 8.72 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 2.2 mH | ±10% | 100 mA | - | Unshielded | 17Ohm Max | 90 @ 250kHz | 950kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-34KFIXED IND 2.7MH 90MA 20 OHM TH |
1,852 | 8.72 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 2.7 mH | ±10% | 90 mA | - | Unshielded | 20Ohm Max | 90 @ 250kHz | 860kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-36KFIXED IND 3.3MH 85MA 24 OHM TH |
2,918 | 8.72 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 3.3 mH | ±10% | 85 mA | - | Unshielded | 24Ohm Max | 90 @ 250kHz | 800kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-38KFIXED IND 3.9MH 80MA 27 OHM TH |
4,035 | 8.72 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 3.9 mH | ±10% | 80 mA | - | Unshielded | 27Ohm Max | 85 @ 250kHz | 680kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-40KFIXED IND 4.7MH 70MA 34 OHM TH |
2,423 | 8.72 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 4.7 mH | ±10% | 70 mA | - | Unshielded | 34Ohm Max | 85 @ 250kHz | 640kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-42KFIXED IND 5.6MH 68MA 37 OHM TH |
3,010 | 8.72 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 5.6 mH | ±10% | 68 mA | - | Unshielded | 37Ohm Max | 80 @ 250kHz | 600kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-44KFIXED IND 6.8MH 61MA 45 OHM TH |
2,780 | 8.72 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 6.8 mH | ±10% | 61 mA | - | Unshielded | 45Ohm Max | 75 @ 250kHz | 500kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-46KFIXED IND 8.2MH 59MA 48 OHM TH |
3,872 | 8.72 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 8.2 mH | ±10% | 59 mA | - | Unshielded | 48Ohm Max | 65 @ 250kHz | 470kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
2534-48KFIXED IND 10MH 58MA 51 OHM TH |
2,020 | 8.72 |
|
Datasheet |
2534 | Radial, Vertical Cylinder | Bulk | Obsolete | Molded | Ferrite | 10 mH | ±10% | 58 mA | - | Unshielded | 51Ohm Max | 45 @ 250kHz | 420kHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - | 0.250" Dia (6.35mm) | 0.345" (8.76mm) |
|
|
PL10100NLFIXED IND 450NH 73A 0.48MOHM SMD |
1,484 | 11.63 |
|
Datasheet |
- | Nonstandard | Tube | Active | Planar | - | 450 nH | ±15% | 73 A | 80A | Unshielded | 0.48mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|
|
121AT2502SMLFWIREWOUND TOROIDAL INDUCTOR |
4,359 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 6.34 A | 10.5A | Shielded | 17mOhm Max | - | 8MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.510" (12.95mm) |
|
|
121AT2502SMWIREWOUND TOROIDAL INDUCTOR |
4,344 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 6.34 A | 10.5A | Shielded | 17mOhm Max | - | 8MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.510" (12.95mm) |
|

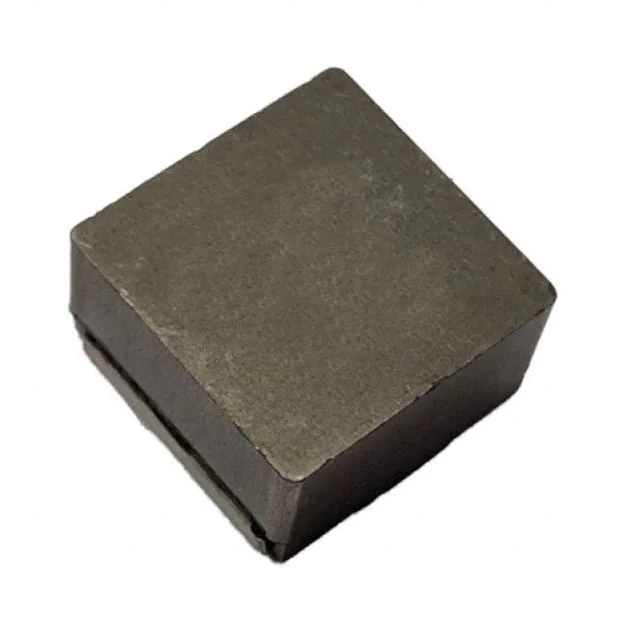

HCM1A2213V2-220-RFIXED IND 22UH 13.5A 10 MOHM SMD |
3,646 | 7.57 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | 13.5 A | 16A | Shielded | 10mOhm Max | - | 4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
HCM1A2213V2-1R0-RFIXED IND 1UH 50A 0.84 MOHM SMD |
4,196 | 7.57 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 50 A | 71A | Shielded | 0.84mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
HCM1A2213V2-150-RFIXED IND 15UH 17A 6 MOHM SMD |
1,044 | 7.57 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 17 A | 24A | Shielded | 6mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
HCM1A2213V2-4R7-RFIXED IND 4.7UH 33A 1.85MOHM SMD |
3,632 | 7.57 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 33 A | 37A | Shielded | 1.85mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
121AT2502VSMLFVERTICAL MOUNT TOROIDAL INDUCTOR |
2,028 | 0.00 |
|
Datasheet |
ATVSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 6.34 A | 10.5A | Shielded | 17mOhm Max | - | 8MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.830" L x 0.613" W (21.08mm x 15.57mm) | 0.900" (22.86mm) |
|
|
M1331-104KFIXED IND 100UH 51MA 16.8OHM SMD |
2,243 | 10.44 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 100 µH | ±10% | 51 mA | 51mA | Shielded | 16.8Ohm Max | 40 @ 2.5MHz | 10.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
|
M1331-123KFIXED IND 12UH 122MA 3 OHM SMD |
4,134 | 10.44 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 12 µH | ±10% | 122 mA | 122mA | Shielded | 3Ohm Max | 36 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
|
M1331-153KFIXED IND 15UH 115MA 3.4 OHM SMD |
4,942 | 10.44 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | 15 µH | ±10% | 115 mA | 115mA | Shielded | 3.4Ohm Max | 38 @ 2.5MHz | 30MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
