Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP5752H(D4TP4,EOPTOISO 5KV 1CH GATE DVR 6SO |
1,445 | 1.95 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 2.5A, 2.5A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO | CQC, CSA, cUL, UL, VDE |
|
2EDR7259XXUMA1DGTL ISO 5.7KV 2CH GT DVR DSO14 |
1,481 | 4.39 |
|
Datasheet |
EiceDRIVER™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 5700Vrms | 150V/ns | 38ns, 38ns | - | - | 9A, 5A | 5A, 9A | - | - | - | - | - | - | Surface Mount | PG-DSO-14 | UL, VDE |
|
IS341WOPTOISO 5KV 1CH GATE DVR 6SO |
232 | 2.03 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 200ns | 70ns | 35ns, 35ns | 2.5A, 2.5A | 3A | 1.37V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | - |
|
FOD3120SVOPTOISO 5KV 1CH GATE DVR 8SMD |
795 | 2.10 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | IEC, UL |
|
VO3150A-X017TOPTOISO 5.3KV 1CH GATE DVR 8SMD |
916 | 2.06 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5300Vrms | 25kV/µs | 400ns, 400ns | 200ns | 100ns, 100ns | 500mA, 500mA | 500mA | 1.3V | 25 mA | 15V ~ 32V | - | - | -40°C ~ 110°C | Surface Mount | 8-SMD | cUR, UR, VDE |
|
VOD3120AGOPTOISO 5.3KV 1CH GATE DVR 8DIP |
1,565 | 2.27 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5300Vrms | 35kV/µs | 500ns, 500ns | 70ns | 35ns, 35ns | 2.5A | 2.5A | 1.37V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Through Hole | 8-DIP | CQC, cUL, UL, VDE |
|
VOD3120AB-T2OPTOISO 5.3KV 1CH GATE DVR 8SMD |
702 | 2.27 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5300Vrms | 35kV/µs | 500ns, 500ns | 70ns | 35ns, 35ns | 2.5A | 2.5A | 1.37V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SMD | CQC, cUL, UL, VDE |
|
|
VOD3120AG-VOPTOISO 5.3KV 1CH GATE DVR 8DIP |
1,478 | 2.31 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5300Vrms | 35kV/µs | 500ns, 500ns | 70ns | 35ns, 35ns | 2.5A | 2.5A | 1.37V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Through Hole | 8-DIP | CQC, cUL, UL, VDE |
|
1ED3250MC12HXUMA1DGT ISO 5.7KV 1CH GT DVR DSO8-66 |
1,000 | 5.42 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 200kV/µs | 110ns, 110ns | 5ns | 9ns, 8.5ns | 5A, 10A | 10A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-66 | UL, VDE |
|
PS9506-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
301 | 3.15 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 400ns, 400ns | 250ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Through Hole | 8-DIP | CSA, SEMKO, UL |
|
NCV57200DR2GDIGITAL ISO 1CH GATE DVR 8SOIC |
7,136 | 2.01 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | - | 100kV/µs (Max) | 110ns, 110ns | 25ns | 13ns, 13ns | - | 1.9A, 2.3A | - | - | - | Automotive | AEC-Q100 | -40°C ~ 125°C (TA) | Surface Mount | 8-SOIC | - |
|
|
NCD57200DR2GDIGITAL ISO 1CH GATE DVR 8SOIC |
4,755 | 2.14 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | - | 100kV/µs (Max) | 110ns, 110ns | 25ns | 13ns, 13ns | - | 1.9A, 2.3A | - | - | - | - | - | -40°C ~ 125°C (TA) | Surface Mount | 8-SOIC | - |
|
NCD57201DR2GDGTL ISO 1KV 1CH GATE DVR 8SOIC |
2,285 | 1.78 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 1000Vrms | 100kV/µs | 110ns, 110ns | 25ns | 13ns, 8ns | 1.9A, 2.3A | 1.9A, 2.3A | - | - | 0V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
|
NCV57201DR2GDGTL ISO 1KV 1CH GATE DVR 8SOIC |
2,194 | 2.01 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 1000Vrms | 100kV/µs | 110ns, 110ns | 25ns | 13ns, 8ns | 1.9A, 2.3A | 1.9A, 2.3A | - | - | 0V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
STGAP2SICSDIGITAL ISO 5KV 1CH GATE DVR 8SO |
799 | 4.00 |
|
Datasheet |
- | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|
FOD8480TOPTOISO 5KV 1CH GATE DVR 6SOIC |
6,000 | 2.44 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 300ns, 300ns | 250ns | 15ns, 10ns | 2.5mA, 2.5mA | - | 1.4V | 20 mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | IEC/EN/DIN, UL |
|

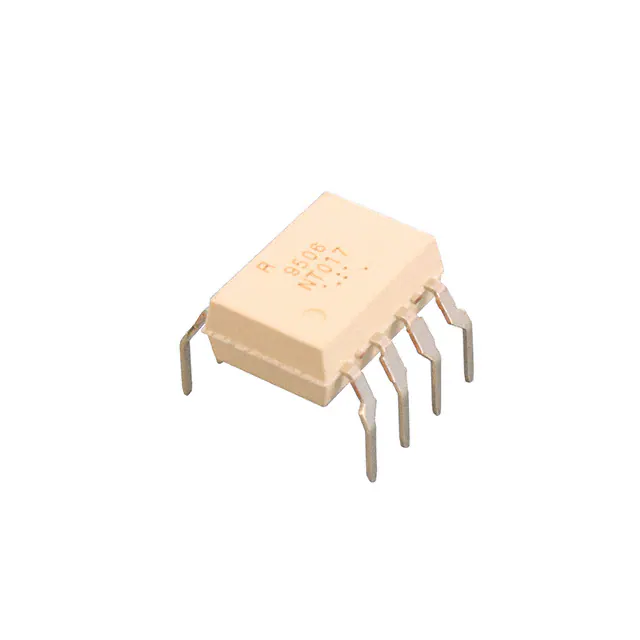

PS9506L1-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
986 | 3.34 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 400ns, 400ns | 250ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Through Hole | 8-DIP | CSA, SEMKO, UL, VDE |
|
|
1ED3131MU12HXUMA1DGT ISO 1.2KV 1CH GT DVR DSO8-66 |
915 | 3.16 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 1200Vrms | 200kV/µs | - | - | 15ns, 15ns | 5.5A, 5.5A | 5.5A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8-66 | UL |
|
SI8286BC-ISRDGT ISO 3.75KV 1CH GT DVR 16SOIC |
10,776 | 3.96 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
|
NCD57085DR2GDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
2,488 | 2.50 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 2500Vrms | 100kV/µs | 90ns, 90ns | 25ns | 10ns, 15ns | 7A, 7A | 7A | - | - | 3.3V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
