Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FOD8482TR2OPTOISO 5KV 1CH GATE DVR 6SOP |
1,177 | 2.66 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 300ns, 300ns | 250ns | 15ns, 10ns | - | - | 1.4V | 20 mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | VDE |
|
SI8235BB-D-ISRDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
6,176 | 5.34 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
PS9531L1-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
1,017 | 3.53 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP | CSA, SEMKO, UL |
|

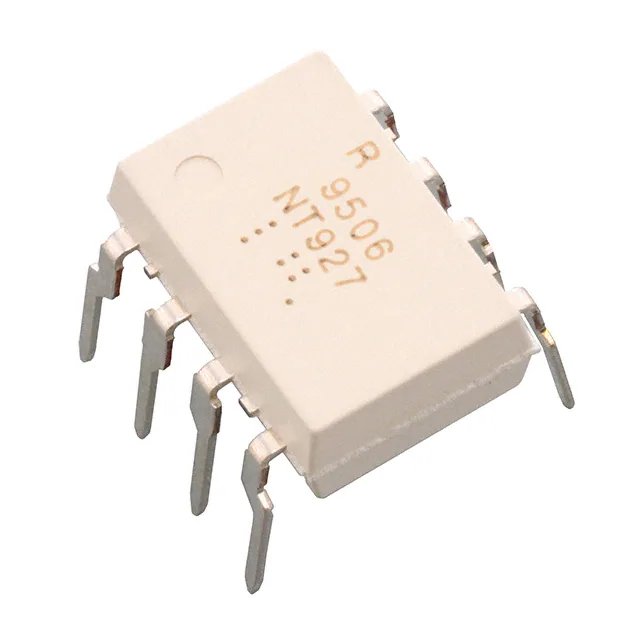

PS9506-V-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
886 | 3.34 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 400ns, 400ns | 250ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Through Hole | 8-DIP | CSA, SEMKO, UL, VDE |
|
PS9506L2-AXOPTOISO 5KV 1CH GATE DVR 8SMD |
4,369 | 3.34 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 400ns, 400ns | 250ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-SMD | CSA, SEMKO, UL, VDE |
|
|
SI8232BB-D-ISRDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
3,665 | 3.93 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
FOD8343TR2OPTOISO 5KV 1CH GATE DVR 6SOP |
990 | 3.68 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 3A, 3A | 4A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | UR |
|
PS9506L2-V-AXOPTOISO 5KV 1CH GATE DVR 8SMD |
1,608 | 3.37 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 400ns, 400ns | 250ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-SMD | CSA, SEMKO, UL, VDE |
|
PS9506L1-V-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
2,035 | 3.37 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 400ns, 400ns | 250ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Through Hole | 8-DIP | CSA, SEMKO, UL, VDE |
|
SI8234BB-D-IMRDGTL ISO 2.5KV 2CH GT DVR 14LGA |
11,400 | 5.70 |
|
Datasheet |
- | 14-VFLGA | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
SI8233AB-D-IMRDGTL ISO 2.5KV 2CH GT DVR 14LGA |
10,818 | 5.70 |
|
Datasheet |
- | 14-VFLGA | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
PS9506L3-AXOPTOISO 5KV 1CH GATE DVR 8DIP GW |
2,718 | 3.49 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 400ns, 400ns | 250ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.56V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-DIP Gull Wing | CSA, SEMKO, UL |
|
ACPL-P343-560EOPTOISO 3.75KV 1CH GATE DRVR 6SO |
2,912 | 3.66 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 35kV/µs | 200ns, 200ns | 70ns | 43ns, 40ns | 3A, 3A | 4A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, IEC/EN/DIN, UR |
|
|
PS9531-V-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
626 | 3.53 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP | CSA, SEMKO, UL, VDE |
|
PS9531L2-AXOPTOISO 5KV 1CH GATE DVR 8SMD |
1,416 | 3.53 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD | CSA, SEMKO, UL |
|
SI8230BC-D-IS1DGT ISO 3.75KV 2CH GT DVR 16SOIC |
235 | 4.13 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 3750Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
FOD3125OPTOISO 5KV 1CH GATE DVR 8DIP |
864 | 3.98 |
|
Datasheet |
OPTOPLANAR® | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-PDIP | UL |
|
FOD8318VOPTOISO 4.243KV 1CH GT DVR 16SO |
3,036 | 9.08 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 500ns, 500ns | 300ns | 34ns, 34ns | 2.5A, 2.5A | 3A | - | - | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | IEC/EN/DIN, UL |
|
ACPL-K342-500EOPTOISO 5KV 1CH GATE DVR 8SO |
1,699 | 3.94 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 350ns, 250ns | - | 22ns, 18ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched | CSA, UR |
|
SI8221CC-D-ISDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
1,479 | 4.10 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 3750Vrms | 30kV/µs (Typ) | 60ns, 40ns | - | 30ns, 30ns (Max) | 300mA, 500mA | 500mA | 2.5V (Max) | 30 mA | 12.2V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
