Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS9531L3-AXOPTOISO 5KV 1CH GATE DVR 8SMD |
982 | 3.53 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD | CSA, SEMKO, UL |
|
FOD8342TR2VOPTOISO 5KV 1CH GATE DVR 6SOP |
782 | 2.80 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP | IEC/EN/DIN, UR |
|

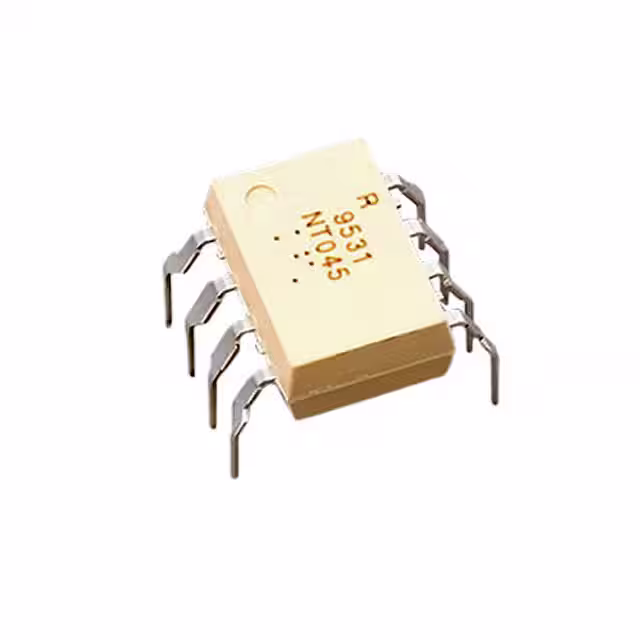

PS9531L1-V-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
800 | 3.59 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP | CSA, SEMKO, UL, VDE |
|
SI8237BB-D-IS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
1,670 | 4.13 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
1ED3131MC12HXUMA1DIGITAL ISO 8KV 1CH GT DVR DSO8 |
1,000 | 3.35 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 8000Vpk | 200kV/µs | 280ns, 280ns | - | 30ns, 30ns (Max) | 5.5A, 5.5A | 5.5A | - | - | 10V ~ 35V | - | - | -40°C ~ 125°C | Surface Mount | PG-DSO-8 | UL, VDE |
|
PS9531L2-V-AXOPTOISO 5KV 1CH GATE DVR 8SMD |
910 | 3.65 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD | CSA, SEMKO, UL, VDE |
|
|
FOD8343TR2VOPTOISO 5KV 1CH GATE DVR 6SOP |
920 | 2.98 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 3A, 3A | 4A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | UL |
|
|
1EDI30I12MHXUMA1DIGITAL ISO 1CH GATE DVR DSO8-59 |
990 | 1.00 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 18V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
|
1EDC20I12MHXUMA1DGT ISO 2.5KV 1CH GT DVR DSO8-59 |
784 | 1.00 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
|
1EDI60H12AHXUMA1DIGITAL ISO 1CH GATE DVR DSO8-59 |
5,439 | 3.56 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | - | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
|
1EDC30I12MHXUMA1DGT ISO 2.5KV 1CH GT DVR DSO8-59 |
4,017 | 3.68 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
|
1EDC60I12AHXUMA1DGT ISO 2.5KV 1CH GT DVR DSO8-59 |
497 | 1.00 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | - | - | - | 10ns, 9ns | - | - | - | - | 13V ~ 35V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-8-59 | - |
|
|
FOD8342VOPTOISO 5KV 1CH GATE DVR 6SOP |
395 | 3.27 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP | UL |
|
PS9531-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
850 | 3.40 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | - | - | - | -40°C ~ 125°C | Through Hole | 8-DIP | CSA, SEMKO, UL |
|
|
FOD8480R2OPTOISO 5KV 1CH GATE DVR 6SOIC |
673 | 2.47 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 300ns, 300ns | 250ns | 15ns, 10ns | 2.5mA, 2.5mA | - | 1.4V | 20 mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | IEC/EN/DIN, UL |
|
NCD57080BDR2GDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
4,896 | 5.10 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 100kV/µs | 90ns, 90ns | - | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | - |
|
SID1102KDGT ISO 1KV 1CH GT DVR ESOP-R16B |
420 | 3.51 |
|
- |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tube | Active | Magnetic Coupling | 1 | 1000Vrms | 100kV/µs | 350ns, 350ns | - | 29ns, 14ns | 5A, 5A | - | - | - | 22V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | VDE |
|
FOD3180TSVOPTOISO 5KV 1CH GATE DVR 8SMD |
967 | 3.16 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 200ns, 200ns | 65ns | 75ns, 55ns | 2A, 2A | 2.5A | 1.43V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | cUL, UL, VDE |
|
ACPL-T350-560EOPTOISO 3.75KV 1CH GT DVR 8DIP |
1,126 | 3.13 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 15ns, 20ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|
|
FOD8343TVOPTOISO 5KV 1CH GATE DVR 6SOP |
1,995 | 3.29 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 3A, 3A | 4A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | UL |
