LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRV-DR-1827G-2000-A-13LED COB VESTA WM WHT RECT 2250K |
1,204 | 4.23 |
|
Datasheet |
Vesta™ | Tray | Active | Chip On Board (COB) | White, Warm | 2250K (1800K ~ 2700K) 3-Step MacAdam Ellipse | - | Rectangle | 2111lm (Typ) | 600mA | 25°C | 33.5V | 105 lm/W | 720mA | 90 | 110° | - | 24.00mm L x 20.00mm W | 1.70mm | 14.00mm Dia | Flat |
|
CLU7S3-0403C4-273H7X5LED COB CLU7S3 WARM WHT SQ 2700K |
3,016 | 0.00 |
|
Datasheet |
CLU7S3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 572lm (Typ) | 525mA | 85°C | 12.2V | 84 lm/W | 750mA | 97 (Typ) | - | With Connector | 9.50mm L x 9.50mm W | 1.40mm | 3.50mm Dia | Flat |
|
BXRE-65S0801-D-74LED COB V8 THRIVE ARRAY SQ 6500K |
2,361 | 3.85 |
|
Datasheet |
V8 Thrive™ Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 4-Step MacAdam Ellipse | - | Square | 771lm (Typ) | 350mA | 25°C | 17.2V | 128 lm/W | 700mA | 98 (Typ) | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 9.00mm Dia | Flat |
|
|
CLU7S3-0403C4-403H7X5LED COB CLU7S3 NEUT WHT SQ 4000K |
1,111 | 0.00 |
|
Datasheet |
CLU7S3 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 673lm (Typ) | 525mA | 85°C | 12.2V | 98 lm/W | 750mA | 97 (Typ) | - | With Connector | 9.50mm L x 9.50mm W | 1.40mm | 3.50mm Dia | Flat |
|
BXRC-30G1000-C-73LED COB VERO WHT STARBRD 3000K |
3,262 | 4.37 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1613lm (Typ) | 360mA | 25°C | 34.8V | 129 lm/W | 720mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
CLU7R3-0403E1-353H5X3LED COB CLU7R3 WARM WHT SQ 3500K |
2,519 | 0.00 |
|
Datasheet |
CLU7R3 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 792lm | 525mA | 85°C | 12.2V | 116 lm/W | 900mA | 90 | - | With Connector | 11.50mm L x 11.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CLU02Q-1202E1-302H5X3LED COB CLU02Q WARM WHT SQ 3000K |
2,236 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 925lm (Typ) | 180mA | 85°C | 33.8V | 140 lm/W | 460mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1202E1-352H5X3LED COB CLU02Q WARM WHT SQ 3500K |
4,619 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 943lm (Typ) | 180mA | 85°C | 33.8V | 143 lm/W | 460mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1202E1-272H5X3LED COB CLU02Q WARM WHT SQ 2700K |
3,276 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 869lm (Typ) | 180mA | 85°C | 33.8V | 132 lm/W | 460mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
CXA1512-0000-000F00K20E7LED COB XLAMP WARM WHT SQ 3000K |
100 | 3.80 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1245lm (1200lm ~ 1290lm) | 700mA | 85°C | 18V | 99 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
CLU701-0303C4-403M2K1LED COB CLU701 NEUT WH SQ 4000K |
3,028 | 4.74 |
|
Datasheet |
CLU701 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 625lm (Typ) | 525mA | 85°C | 9.4V | 127 lm/W | 690mA | 80 | - | - | 13.50mm L x 13.50mm W | - | 6.00mm Dia | Flat |
|
|
CLU703-1202E1-403H7X5LED COB CLU703 NEUT WHT SQ 4000K |
3,137 | 0.00 |
|
Datasheet |
CLU703 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1490lm (Typ) | 350mA | 85°C | 36.5V | 109 lm/W | 600mA | 97 (Typ) | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 6.00mm Dia | Flat |
|
|
CMA1303-0000-00PC0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
100 | 0.00 |
|
Datasheet |
XLamp® CMA1303 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 700mA | 85°C | 9.35V | - | 1.4A | 90 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 4.50mm Dia | Flat |
|

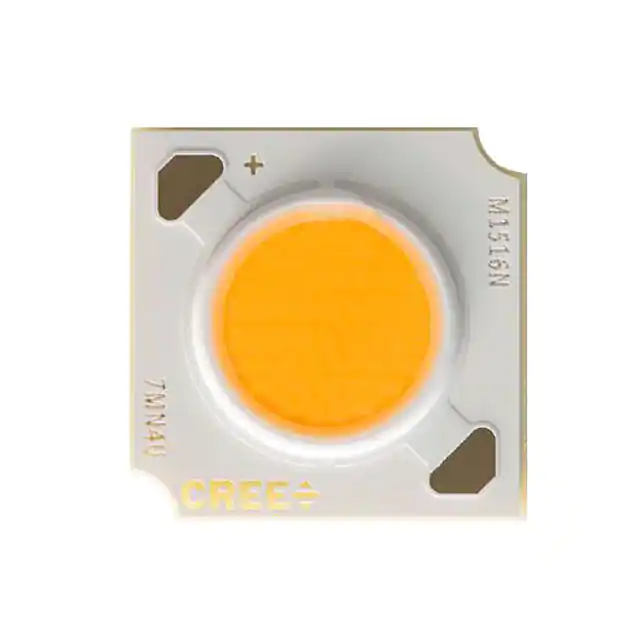

CMA1516-0000-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
1,875 | 4.00 |
|
Datasheet |
XLamp® CMA1516 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1818lm (Typ) | 450mA | 85°C | 35V | 115 lm/W | 1.05A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.00mm Dia | Flat |
|
|
CMA1306-0000-00PC0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
4,865 | 0.00 |
|
Datasheet |
XLamp® CMA1306 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 888lm | 800mA | 85°C | 9V | 123 lm/W | 2.4A | 90 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CMA1306-0000-00PN0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
2,152 | 0.00 |
|
Datasheet |
XLamp® CMA1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 868lm | 200mA | 85°C | 36V | 121 lm/W | 600mA | 90 | 116° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
BXRE-35G1000-C-83LED COB V10 WARM WHT SQU 3500K |
3,387 | 5.05 |
|
Datasheet |
Gen 8 V10 Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 1380lm (Typ) | 300mA | 25°C | 30.7V | 150 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.65mm | 10.20mm Dia | Flat |
|
|
CXA1512-0000-000N00K40E7LED COB XLAMP WARM WHT SQ 3000K |
100 | 4.14 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 1335lm (1290lm ~ 1380lm) | 350mA | 85°C | 37V | 103 lm/W | 600mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CLU701-0304C4-273H5K2LED COB CLU701 WM WHT SQ 2700K |
2,078 | 5.20 |
|
Datasheet |
CLU701 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 640lm (Typ) | 700mA | 85°C | 9.4V | 97 lm/W | 920mA | 90 | - | - | 13.50mm L x 13.50mm W | - | 6.00mm Dia | Flat |
|
|
CLU701-0304C4-273M2K1LED COB CLU701 WM WHT SQ 2700K |
3,566 | 4.47 |
|
Datasheet |
CLU701 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K | - | Square | 775lm (Typ) | 700mA | 85°C | 9.4V | 118 lm/W | 920mA | 80 | - | - | 13.50mm L x 13.50mm W | - | 6.00mm Dia | Flat |
