LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLU701-0304C4-403M2K1LED COB CLU701 NEUT WH SQ 4000K |
2,813 | 5.20 |
|
Datasheet |
CLU701 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 834lm (Typ) | 700mA | 85°C | 9.4V | 127 lm/W | 920mA | 80 | - | - | 13.50mm L x 13.50mm W | - | 6.00mm Dia | Flat |
|
CLU7A3-0403E1-273H5X3LED COB CLU7A3 WARM WHT SQ 2700K |
3,229 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 730lm | 525mA | 85°C | 12.2V | 106 lm/W | 900mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CLU7A3-0403E1-303H5X3LED COB CLU7A3 WM WHT SQ 3000K |
4,149 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 762lm (Typ) | 525mA | 85°C | 12.2V | 111 lm/W | 900mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CLU7A3-0403E1-243H5X3LED COB CLU7A3 WARM WHT SQ 2400K |
4,913 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 2400K 3-Step MacAdam Ellipse | - | Square | 672lm (Typ) | 525mA | 85°C | 12.2V | 98 lm/W | 900mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CLU7A3-0403E1-303M2X2LED COB CLU7A3 WM WHT SQ 3000K |
4,359 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 869lm (Typ) | 525mA | 85°C | 12.2V | 127 lm/W | 900mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CMB1818-0000-000N0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
2,410 | 0.00 |
|
Datasheet |
XLamp® CMB1818 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2703lm | 500mA | 85°C | 33.5V | 161 lm/W | 1.5A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.75mm | 12.00mm Dia | Flat |
|
|
CLU02Q-1203E1-352H5X3LED COB CLU02Q WARM WHT SQ 3500K |
2,740 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 1403lm (Typ) | 270mA | 85°C | 33.8V | 142 lm/W | 690mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1203E1-302H5X3LED COB CLU02Q WARM WHT SQ 3000K |
3,201 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1364lm (Typ) | 270mA | 85°C | 33.8V | 138 lm/W | 690mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1203E1-272H5X3LED COB CLU02Q WARM WHT SQ 2700K |
1,879 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1280lm | 270mA | 85°C | 33.8V | 130 lm/W | 690mA | 90 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
CLU02Q-1203E1-272M2X2LED COB CLU02Q WARM WHT SQ 2700K |
1,656 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1491lm (Typ) | 270mA | 85°C | 33.8V | 151 lm/W | 690mA | 80 | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
|
BXRE-40G10F0-C-83LED COB V10 F90 WHT SQ 4000K |
4,838 | 0.00 |
|
Datasheet |
V10 F90 Array | Tube | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 3416lm | - | 85°C | 34.87V | 136 lm/W | 720mA | 90 | 120° | Dimming | 13.50mm L x 13.50mm W | 1.65mm | 10.00mm Dia | Flat |
|

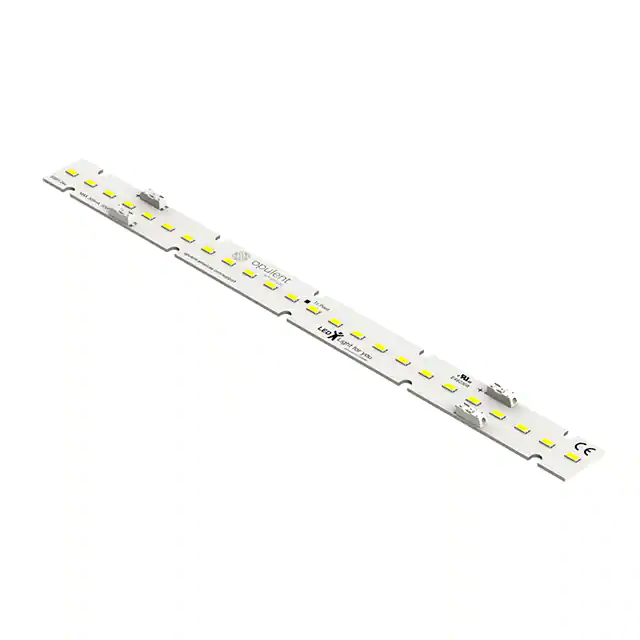

SSB1-24F01-4080-00LED MOD SSB1 WHT LNR STRP 4000K |
1,038 | 4.13 |
|
Datasheet |
SSB1 | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 1192lm (Typ) | 200mA | 50°C | 34.4V | 172 lm/W | 300mA | 80 | - | - | 279.50mm L x 22.00mm W | 6.00mm | - | Flat |
|
|
SSB1-24F01-3580-00LED MOD SSB1 WHT LNR STRP 3500K |
2,019 | 4.13 |
|
Datasheet |
SSB1 | Tray | Active | LED Module | White, Warm | 3500K | - | Linear Light Strip | 1140lm (Typ) | 200mA | 50°C | 34.4V | 164 lm/W | 300mA | 80 | - | - | 279.50mm L x 22.00mm W | 6.00mm | - | Flat |
|

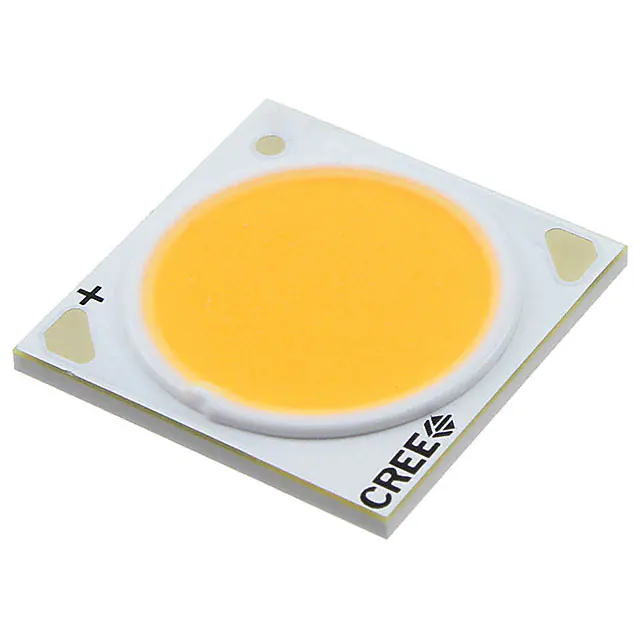

CXA1830-0000-000N00U20E3LED COB XLAMP COOL WHT SQ 5000K |
1,416 | 4.52 |
|
Datasheet |
XLamp® CXA1830 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 3818lm (3680lm ~ 3955lm) | 800mA | 85°C | 37V | 129 lm/W | 1.4A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 14.00mm Dia | Flat |
|
|
CLU7A3-0403E1-273H7X5LED COB CLU7A3 WARM WHT SQ 2700K |
2,428 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 641lm (Typ) | 525mA | 85°C | 12.2V | 93 lm/W | 900mA | 97 (Typ) | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
|
CLU7A3-0403E1-303H7X5LED COB CLU7A3 WM WHT SQ 3000K |
2,230 | 0.00 |
|
Datasheet |
CLU7A3 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 682lm (Typ) | 525mA | 85°C | 12.2V | 99 lm/W | 900mA | 97 (Typ) | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 4.20mm Dia | Flat |
|
CXA1512-0000-000F00K430FLED COB XLAMP WARM WHT SQU 3000K |
3,127 | 4.58 |
|
Datasheet |
XLamp® CXA1512 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 4-Step MacAdam Ellipse | - | Square | 1335lm (1290lm ~ 1380lm) | 700mA | 85°C | 18V | 106 lm/W | 1.2A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
BXRH-35H3000-D-83LED COB V9 HD WARM WHT SQU 3500K |
1,602 | 5.93 |
|
Datasheet |
Gen 8 V9 HD LED Array | Tube | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 2744lm (Typ) | 700mA | 25°C | 36.6V | 107 lm/W | 1.2A | 97 (Typ) | 120° | - | 19.00mm L x 19.00mm W | 1.63mm | 8.80mm Dia | Flat |
|
|
CLU02Q-1203E1-402H7X5LED COB CLU02Q NEUT WHT SQ 4000K |
2,799 | 0.00 |
|
Datasheet |
CLU02Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1262lm (Typ) | 270mA | 85°C | 33.8V | 128 lm/W | 690mA | 97 (Typ) | - | With Connector | 13.50mm L x 13.50mm W | 1.40mm | 9.70mm Dia | Flat |
|
CMA1516-0000-000N0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
1,753 | 4.80 |
|
Datasheet |
XLamp® CMA1516 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 2150lm (Typ) | 450mA | 85°C | 35V | 137 lm/W | 1.05A | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 9.00mm Dia | Flat |
